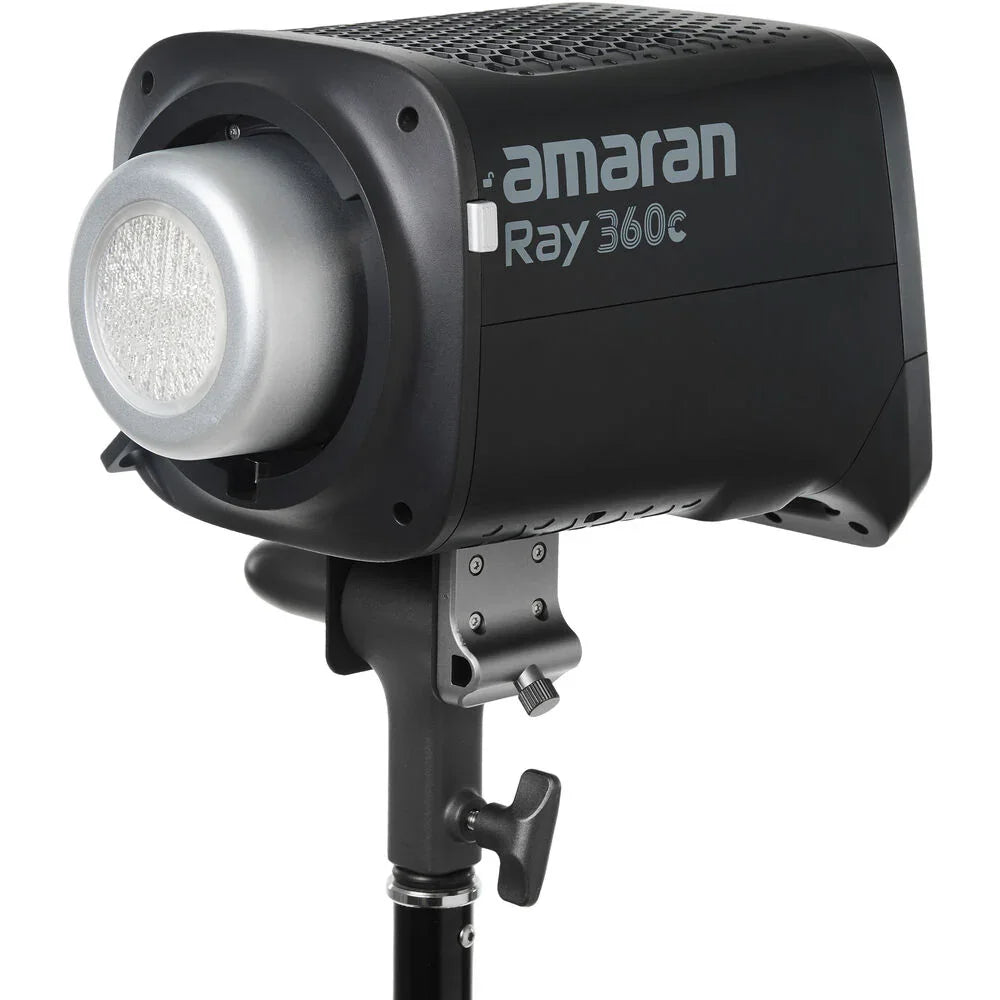

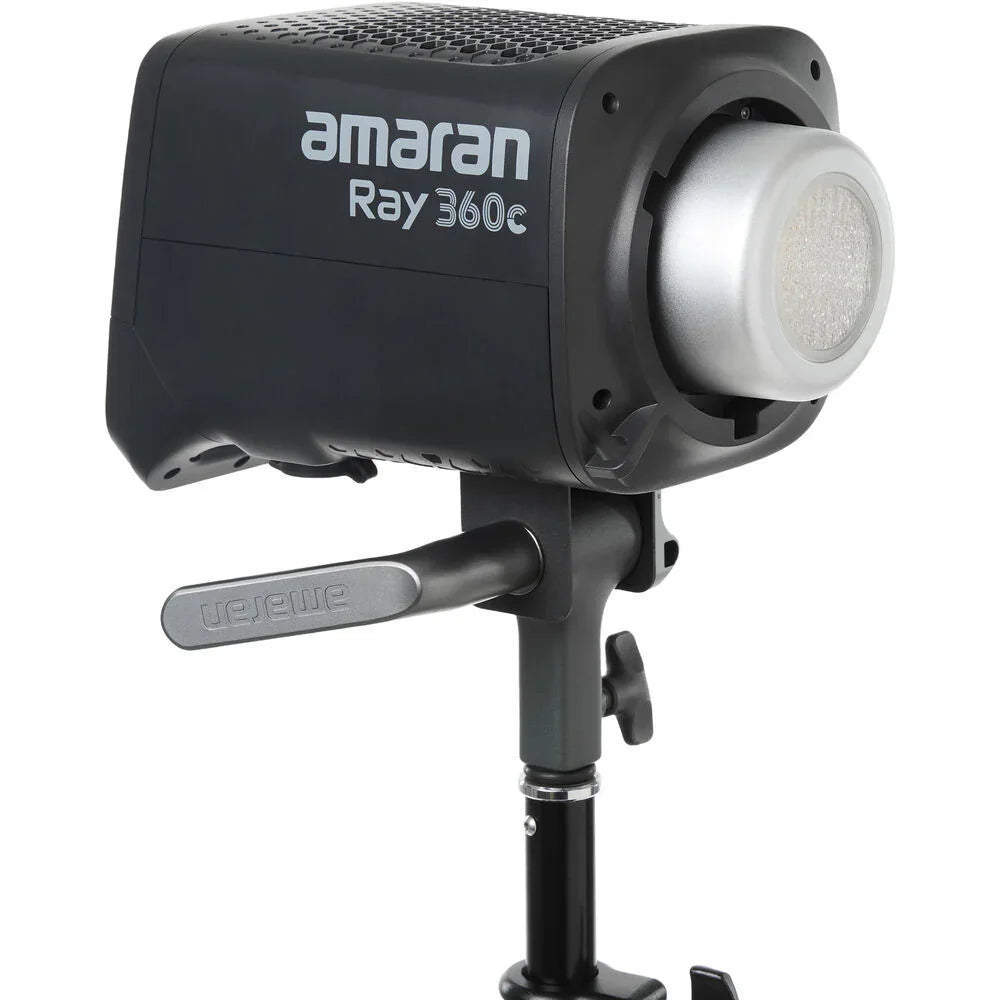

amaran Ray 360c RGB LED Monolight
Product Features
- For Film, Broadcast & Video Production
- Output: 17,130 Lux at 3.3' (Bare)
- 1800-20,000K CCT+; RGB Color Control
- AC Power & Optional USB-C DMX Control
- Onboard & App Control; FlowTurn & NFC
- CRI & TLCI 95 | SSI 80/87 | TM-30 94/100
- OmniColor Engine, G/M Shift & Effects
- Fan Cooled, Bowens Mount & IP54 Design
- Metal Tilting Bracket; 5/8" Receiver
- Includes Reflector, AC Power Cable & Bag
amaran Ray 360c RGB LED Monolight
Model # MP00000191
In Stock
Special Financing | Shoot Now - Pay Later!
Get the gear you want today and pay tomorrow with one of our special financing programs.
amaran Ray 360c RGB LED Monolight
amaran Ray 360c RGB LED Monolight
For Studio Creators

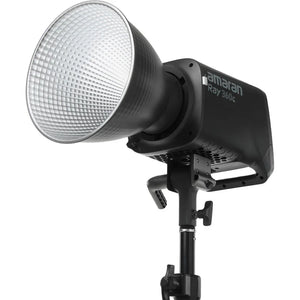

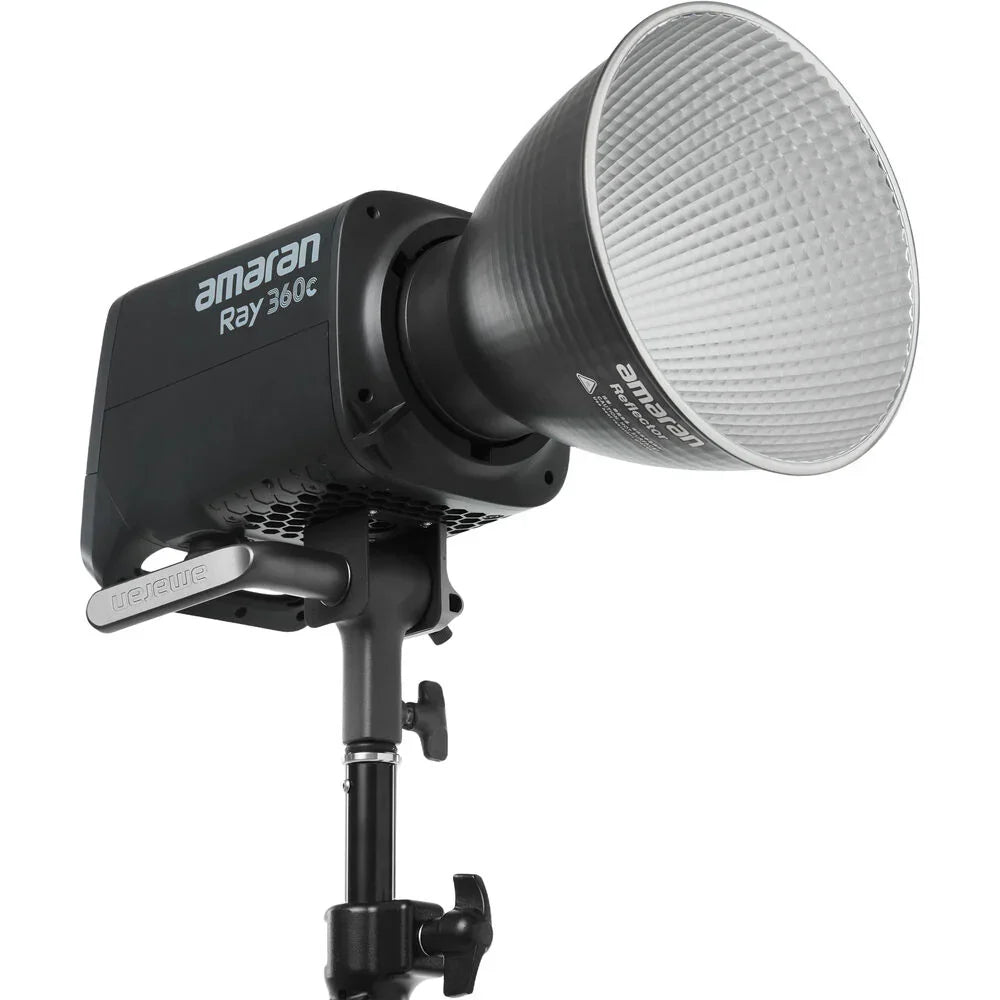

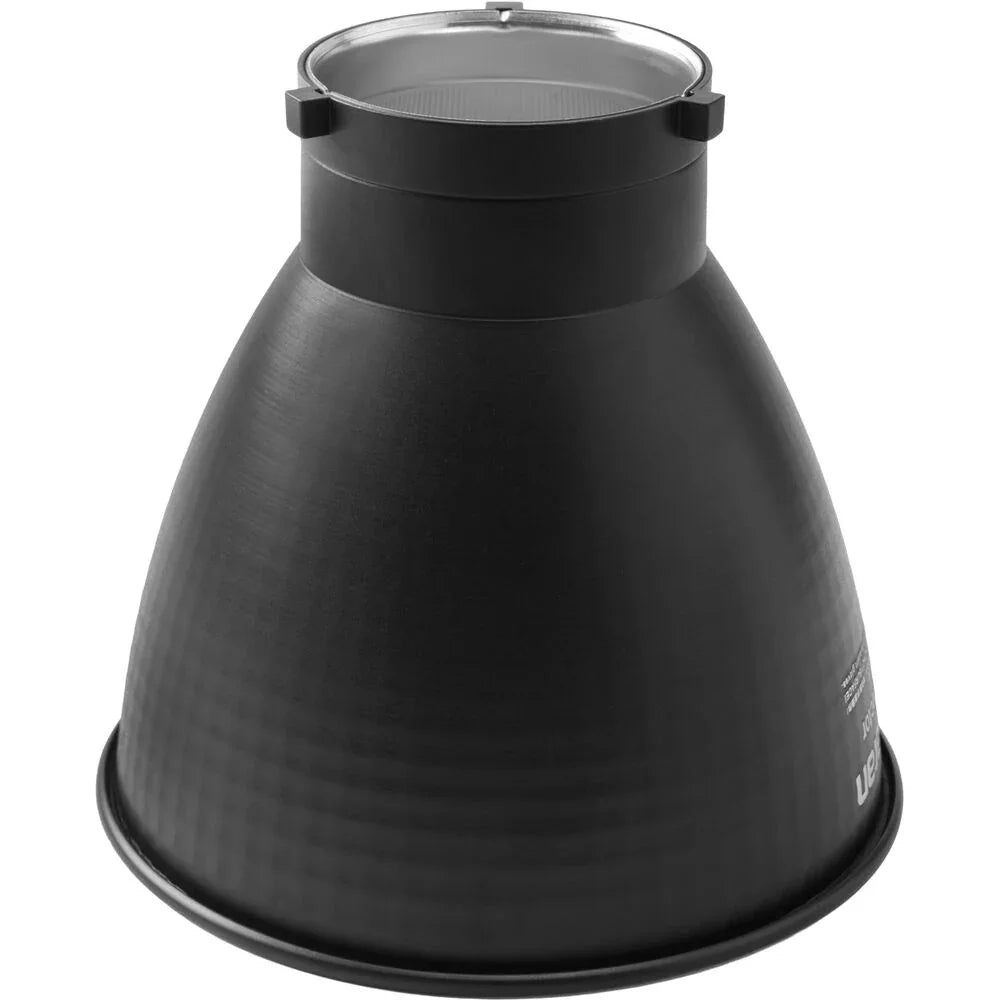

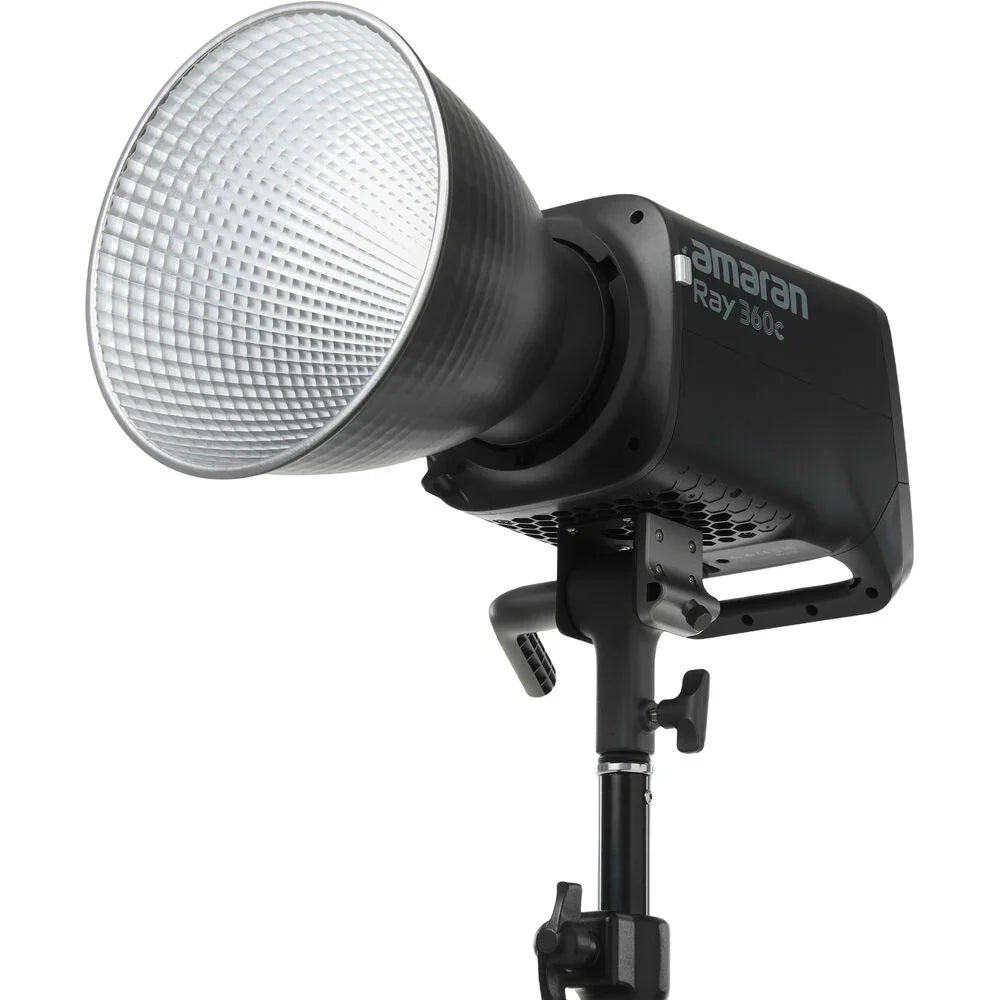

The bare light delivers up to 17,130 lux at 3.3' and 4300K, but pair it with the included reflector to increase the output to an impressive 45,000 lux at the same distance. A dedicated Fresnel is available separately to expand your creative options with a variable spot-to-flood beam. Experience 23,174 lumens, green-magenta shift, and find true-to-life colors with high CRI 95, TLCI 95, SSI 80/87, and TM-30 94/100 ratings. These ratings reflect cleaner whites, true skin tones, and highly accurate colors that stay consistent on camera and to the eye.
360º Full Color
amaran's OmniColor engine offers an enhanced color spectrum with expanded red and blue ranges for a fuller, more balanced spectrum of light. The Ray 360c has a 2300-10,000K adjustable color temperature that can be extended to a wider 1800-20,000K range in CCT+ mode. Another benefit is 0-100% stepless brightness control. The light supports 360° of color control for creating different looks, while the FX mode lets you select from 12 different effects: fireworks, faulty bulb, lightning, TV, pulsing, strobe, explosion, fire, paparazzi, welding, cop car, and party.
Adaptive Control

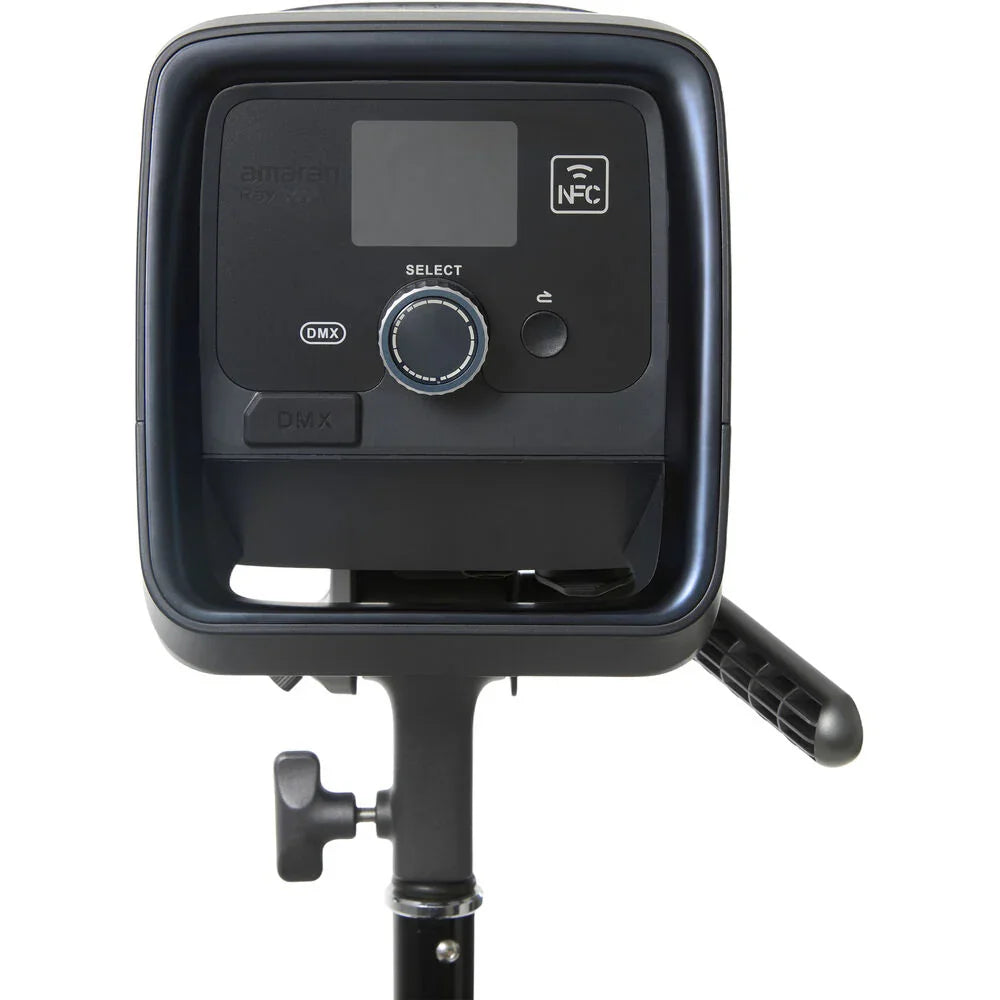

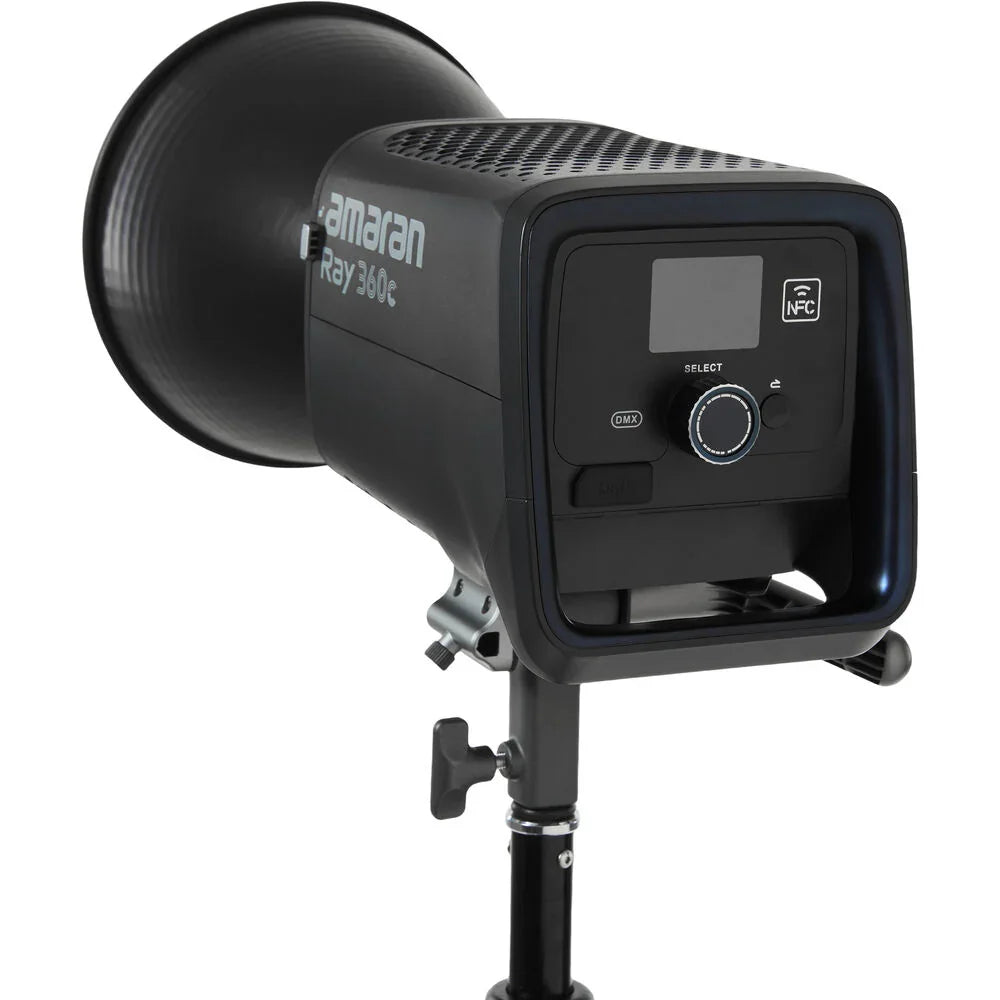

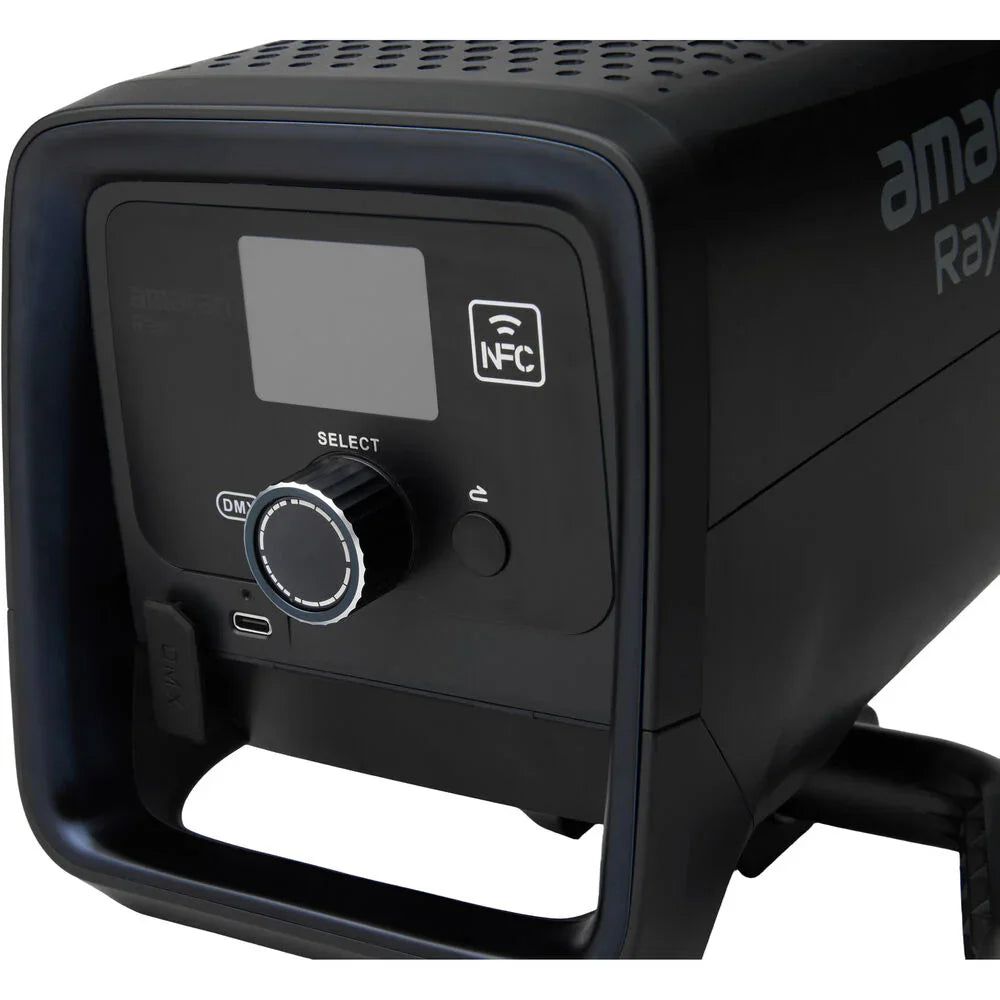

Other highlights are a Quick Operation mode for instant adjustments of settings, custom shortcuts for long press and double click options, as well as High-Speed Photography and Studio modes. Control is simplified with an intuitive menu and a TFT screen for quick onboard operation. A FlowTurn knob gives you tactile feedback when adjusting the lighting settings, but the Ray 360c also provides one-tap pairing to the amaran app thanks to its built-in NFC configuration. Bluetooth app control has a generous 262.5' wireless operating range.
Optional DMX via USB-C
Integrate the Ray 360c into optional industry-standard consoles and software with the addition of the separately available amaran USB-C to 5-pin DMX in/out adapter. When programingprecise cues, syncing multi-light looks, or triggering repeatable scenes, the optional adapter for DMX control via USB-C lets you scale into more advanced studio workflows.
AC Power
A convenient all-in-one monolight design integrates the power supply directly into the Ray 360c light head. This eliminates bulky, external power bricks, which helps you keep an efficient, clutter-free studio space. Power the light by simply using a single 16.4' long AC power cable.
IP54 Design & Low Fan Noise

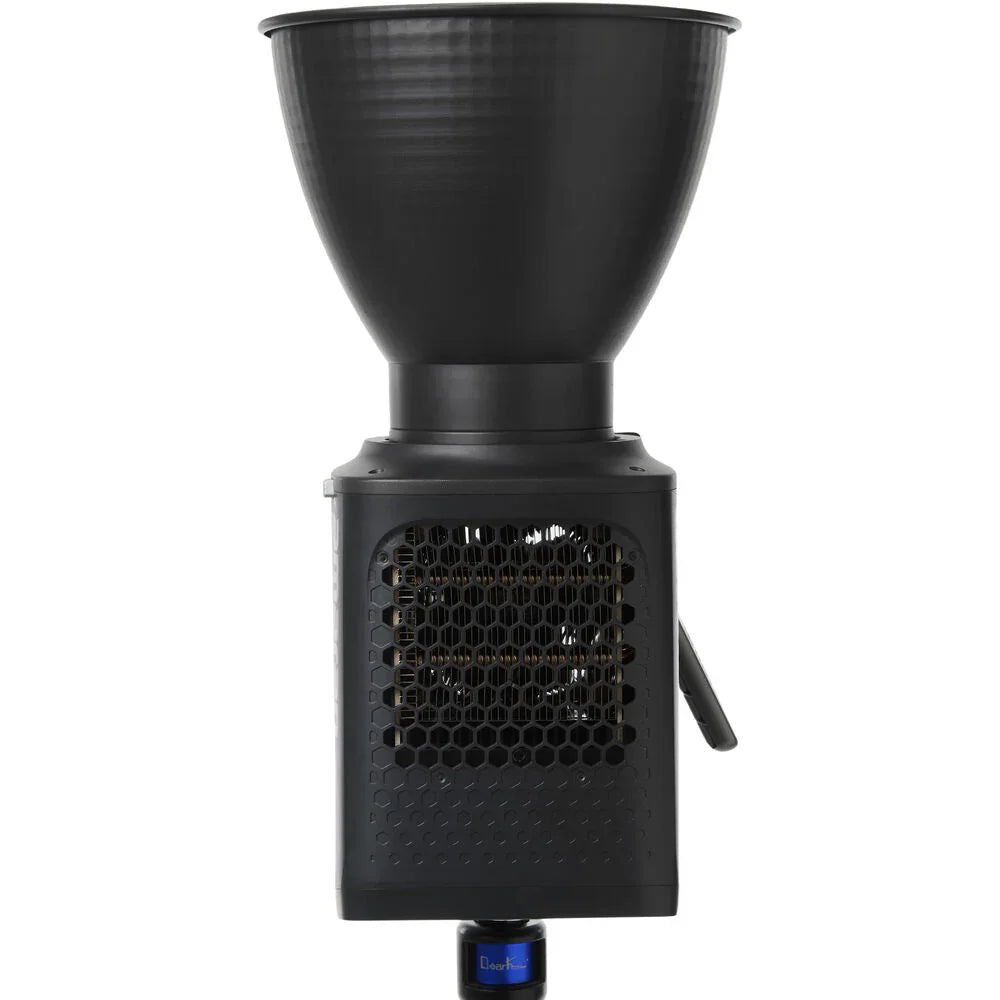

With an IP54 rating ensuring dust and splash resistance and active fan cooling quiet enough for video work at 28 dBA (maximum output), with the choice of silent or smart fan modes, the Ray 360c is an ideal light for creators requiring studio-quality output whether lighting up subjects or filling small studios.
Wide Compatibility

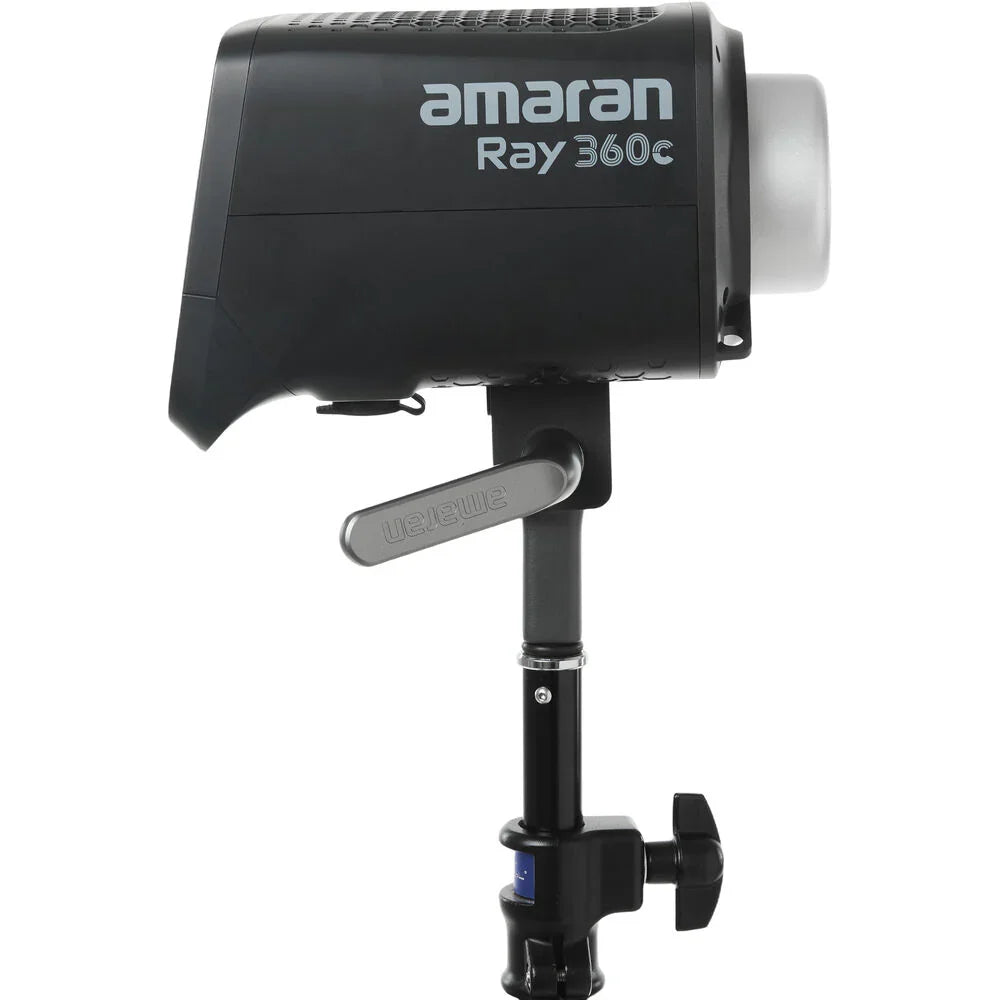

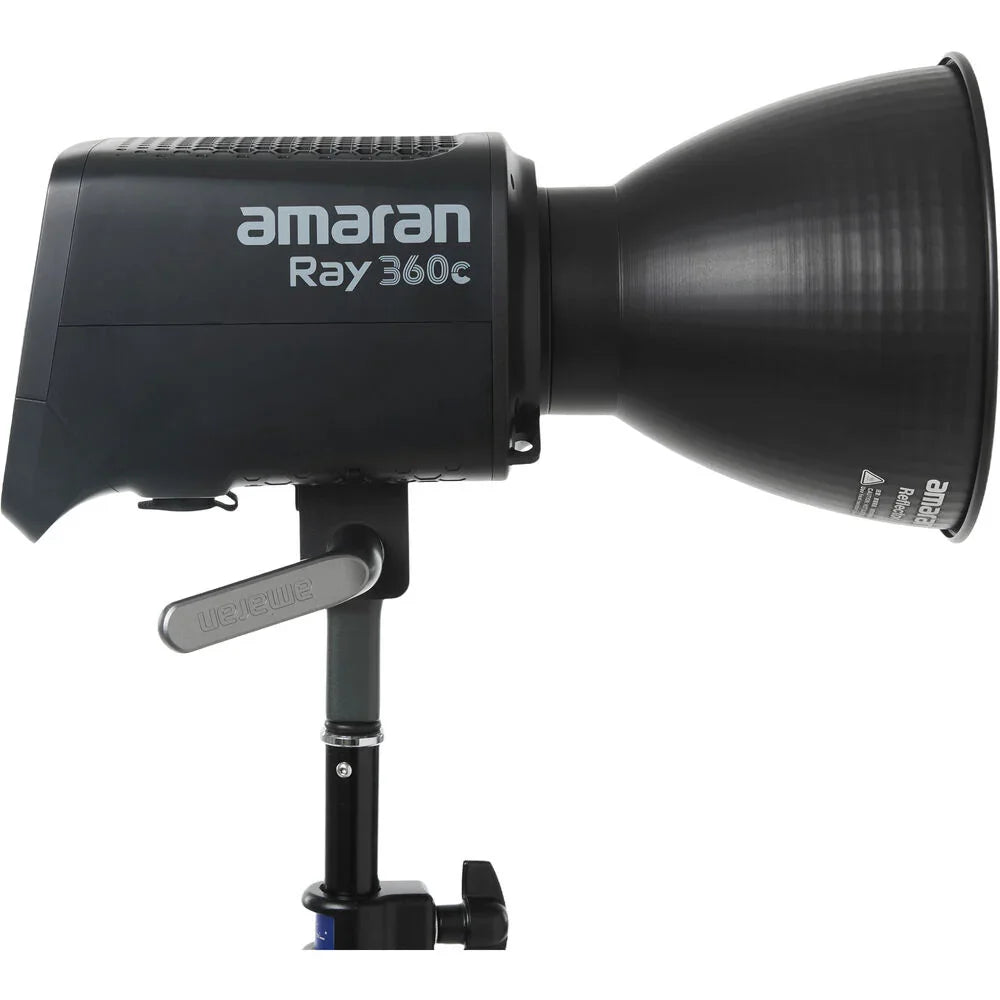

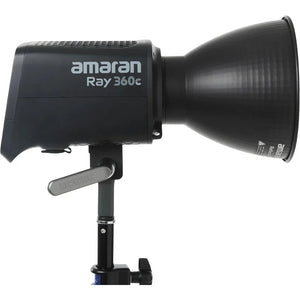

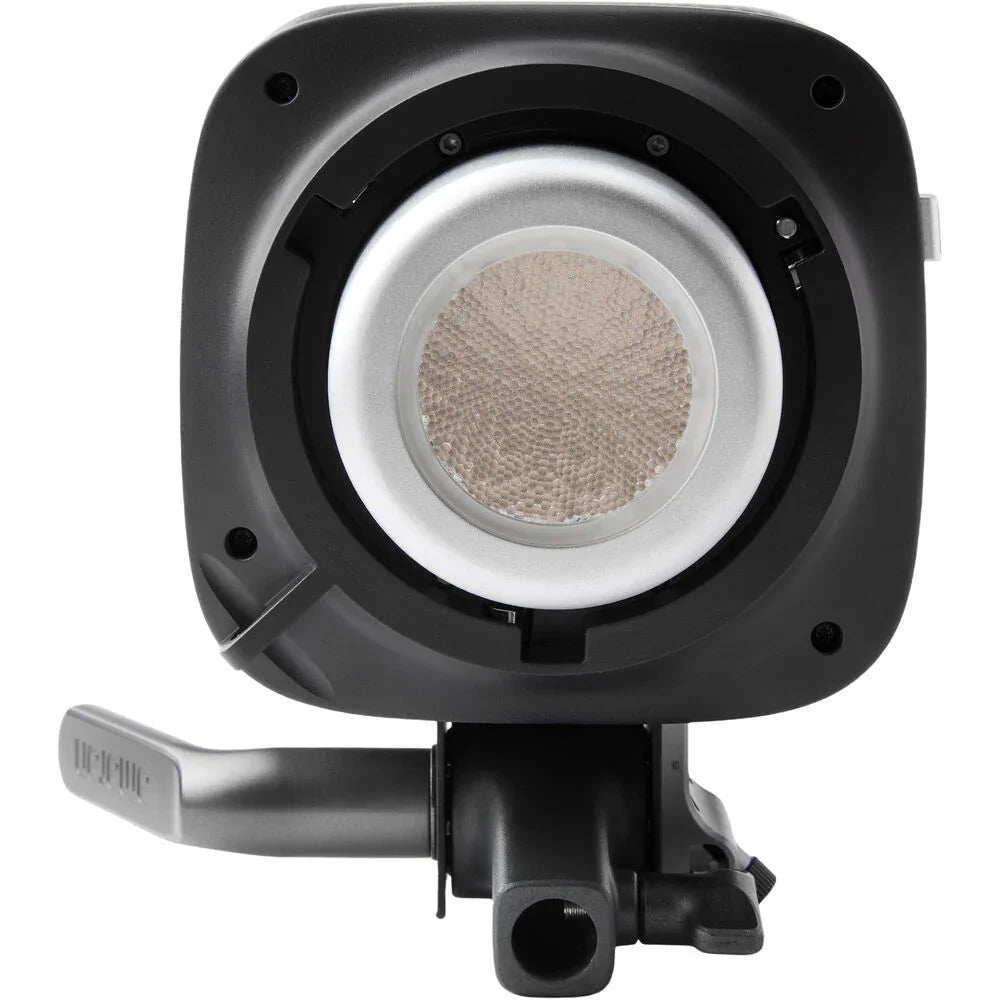

The fixture's metal, full-size Bowens mount is fully compatible with the included reflector, an optional dedicated Fresnel, and other Bowens modifiers. In addition, the light has an integrated metal tilting bracket with a popular, widely compatible 5/8" receiver that lets you mount the fixture to optional stands and other gear. Other conveniences are a built-in umbrella holder and a safety chain bracket for added security.

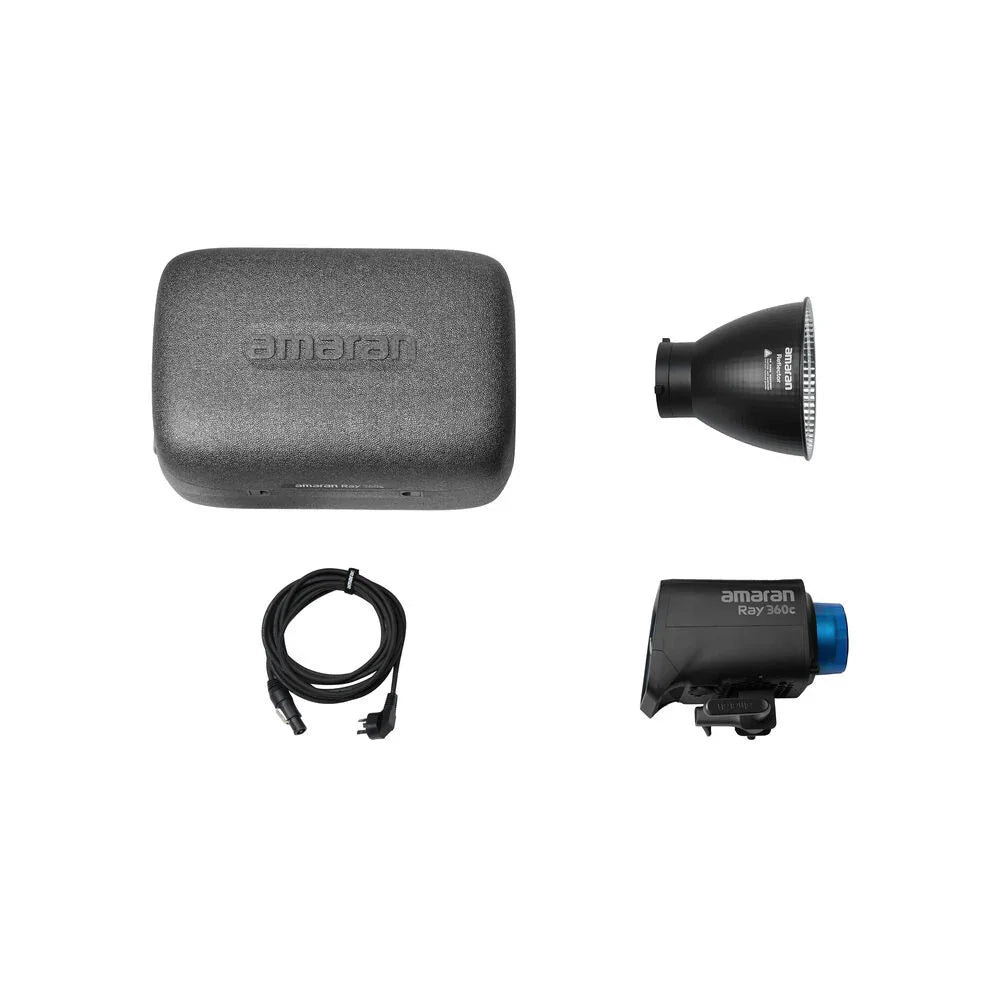

What's in the box
- amaran Ray 360c RGB LED Monolight

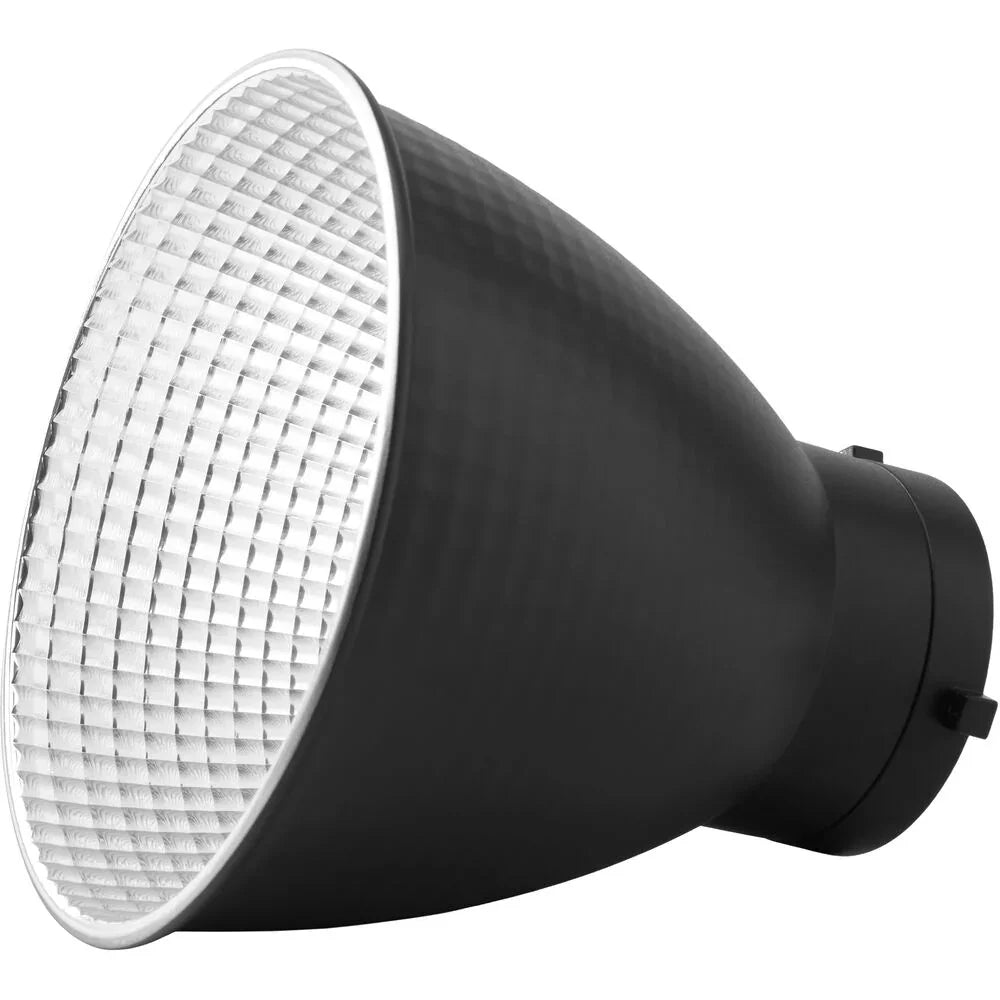

- Reflector
- AC Power Cable (16.4')

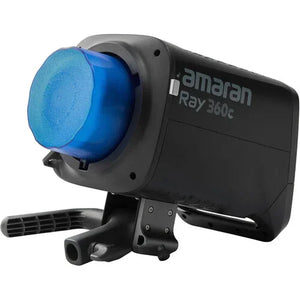

- Blue Bowens Mount Protection Cover
- Carry Bag
- Limited 1-Year Manufacturer Warranty
6977162453217
Specifications
Light Fixture
| Item Type |
1x COB LED Monolight
|
| Included Light Modifier |
1x Reflector
|
| Included Storage Case |
Yes
|
| Lumens |
23,174
|
| Photometrics |
2300K:
933 fc / 10,050 Lux at 3.3' / 1 m (Unmodified) 108 fc / 1171 Lux at 9.8' / 3 m (Unmodified) 3200K: 1477 fc / 15,900 Lux at 3.3' / 1 m (Unmodified) 171 fc / 1850 Lux at 9.8' / 3 m (Unmodified) 4300K: 1591 fc / 17,130 Lux at 3.3' / 1 m (Unmodified) 184 fc / 1988 Lux at 9.8' / 3 m (Unmodified) 5600K: 1583 fc / 17,040 Lux at 3.3' / 1 m (Unmodified) 183 fc / 1970 Lux at 9.8' / 3 m (Unmodified) 6500K: 1549 fc / 16,680 Lux at 3.3' / 1 m (Unmodified) 178 fc / 1925 Lux at 9.8' / 3 m (Unmodified) 10000K: 1462 fc / 15,740 Lux at 3.3' / 1 m (Unmodified) 168 fc / 1815 Lux at 9.8' / 3 m (Unmodified) *Standardized Measurement Supplied by the Manufacturer |
| Color Temperature |
1800 to 20,000K
|
| Color Modes |
RGB, Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 95
TLCI 95 TM-30 Rf 94 TM-30 Rg 100 SSI 80 at 5600K SSI 87 at 3200K |
| Dimming |
Built-In Dimmer
• 0 to 100% |
| Cooling System |
Fan
|
| Beam Angle |
70° Unmodified
45° with Included Reflector |
| Built-In Flash |
No
|
| Preprogrammed Effects |
Yes
|
| Umbrella Mount |
Yes
|
| Front Accessory Mount |
Bowens S
|
Connectivity
| Wireless Remote Control Type |
Bluetooth
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: amaran Functionality: Remote Control |
| Wireless Range |
262.5' / 80 m (Bluetooth)
|
Power & I/O
| Power Source |
AC Power (Cable Included)
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz at 1.5 A
|
| Power Consumption |
360 W (Maximum)
|
Mounting
| Fixture Mounting |
1x 5/8" Receiver (Via Bracket)
|
General
| Environmental Resistance |
Dust/Water-Resistant (IP54)
|
| Operating Conditions |
14 to 104°F / -10 to 40°C
|
| Storage Conditions |
-4 to 176°F / -20 to 80°C
|
| Dimensions |
10.04 x 6.5 x 5.83" / 25.5 x 16.51 x 14.81 cm (Fixture)
|
| Weight |
7.28 lb / 3.3 kg (Fixture)
|
What's Included
- amaran Ray 360c RGB LED Monolight
- Reflector
- AC Power Cable (16.4')
- Blue Bowens Mount Protection Cover
- Carry Bag
- Limited 1-Year Manufacturer Warranty
