Aputure INFINIBAR PB12 RGB LED Light Panel 4-Light Kit (4')

Product Features

For Studio and Film/TV Production
Output: 617 Lux at 3.3' (120º, 7500K)
2000 to 10,000K; RGB Color Control
47.4 x 1.8" Panel; AC/DC Operation
CRI 96 | TLCI 98 | SSI 74 | TM-30 94
DMX, CRMX, and Sidus Link App Control
Passive Cooling
2 x 1/4-20" Threads, INFINIBAR Rail
4 x 45º Light Control Grids
Flight Case and 330W Power Adapter

Aputure INFINIBAR PB12 RGB LED Light Panel 4-Light Kit (4')

Name: Aputure INFINIBAR PB12 RGB LED Light Panel 4-Light Kit (4')
Brand: Aputure
SKU: APL0300AXR
Price: 2790.0 USD
Availability: OutOfStock

Model # APL0300AXR

$2,790.00

Out of Stock

Aputure INFINIBAR PB12 RGB LED Light Panel 4-Light Kit (4')

Aputure INFINIBAR PB12 RGB LED Light Panel (4')

Lightweight at 4.3 lb, the INFINIBAR features a durable aluminum housing that's also mountable with the included Clamp to Baby Pin Adapter, two 1/4-20" female threads , magnetic spacers, and the Straight Connector for the INFINIBAR Rail system. The unit can be powered with a built-in lithium battery that can operate at 100% brightness for 80 minutes or via the included AC adapter. Alternately, multiple units can share one power supply when linked together with the power-sharing connectors.

Output

4' 27W panel light with proprietary RGBWW chipset and 96 individual pixels (or lighting zones)

617 lux at 7500K

0 to 100% brightness control at increments of .1%

Nine built-in lighting effects: Fireworks II, Fire II, Paparazzi II, Faulty Bulb II, TV III, Pulsing III, Cop Car III, Lightning III, Party II

Seven pixel effects: Color Fade, Color Cycle, 1-Pixel Chase, 2-Pixel Chase, 3-Pixel Chase, Rainbow, Pixel Fire

Color

Fully tunable correlated color temperature (CCT) from 2000 to 10,000K with green and magenta adjustment

High color standards of CRI: 96+, TLCI: 98+, SSI (D56): 74, SSI (Tungsten): 85, TM-30 Rf: 94, and TM-30 Rg: 103

Advanced HSI with white point CCT control, industry-standard xy (CIE 1931), RGB, 300+ gel presets, and greater than 90% of colors within Rec.2020 color space

Power

AC adapter included

Built-in 59.2Wh lithium battery lasts up to 80 minutes at maximum output

Smart Battery Life Mode adjusts the runtime to 2, 4, 6, and 8 hours

Share AC Power over multiple INFINIBARs with connector ecosystem

Connect and Control

Multiple control methods: Sidus Link App, LumenRadio CRMX, DMX/RDM via USB-C cable available separately

Straight connector included; nine other splicing connectors available separately (triangle flat, triangle 3D, hexagon flat, hexagon 3D, 3-way flat, 4-way flat, 6-way flat, square flat, and square 3D)

Infinite blending design to reduce visible gaps when connecting multiple lights

Included mounting options: Clamp to Baby Pin Adapter, two 1/4-20" female threads, magnetic spacers, and the Straight Connector for the INFINIBAR Rail system

Aputure 45° Slip-On Grid for INFINIBAR PB12 RGB LED Light Panel

This Aputure 45° Slip-On Grid is specifically designed for the INFINIBAR PB12 RGB LED Light Panel. The 45° grid narrows the beam spread, adds directional control, and minimizes spill light.

Aputure 4-Way Power Splitter Cable for INFINIBAR Series Lights

The Aputure 4-Way Power Splitter Cable is an accessory for the PB3, PB6, and PB12 INFINIBAR RGB LED panel lights.

Aputure INFINIBAR Power Adapter (24V, 330W)

Essential for managing cables in multilight arrays, the Aputure INFINIBAR Power Adapter outputs 330W of DC power and comes with a 5' AC cable to power or charge up to eight PB12 RGB LED lights in a closed circuit. The adapter's 5.5mm DC locking barrel connector is compatible with Aputure's optional power accessories.

Closed Circuit

In a closed circuit, the power adapter can power or charge up to:

20 INFINIBAR PB3 RGB LED light panels

13 INFINIBAR PB6 RGB LED light panels

8 INFINIBAR PB12 RGB LED light panels

Open Circuit

In an open circuit, the power adapter can power or charge up to:

11 INFINIBAR PB3 RGB LED light panels

9 INFINIBAR PB6 RGB LED light panels

6 INFINIBAR PB12 RGB LED light panels

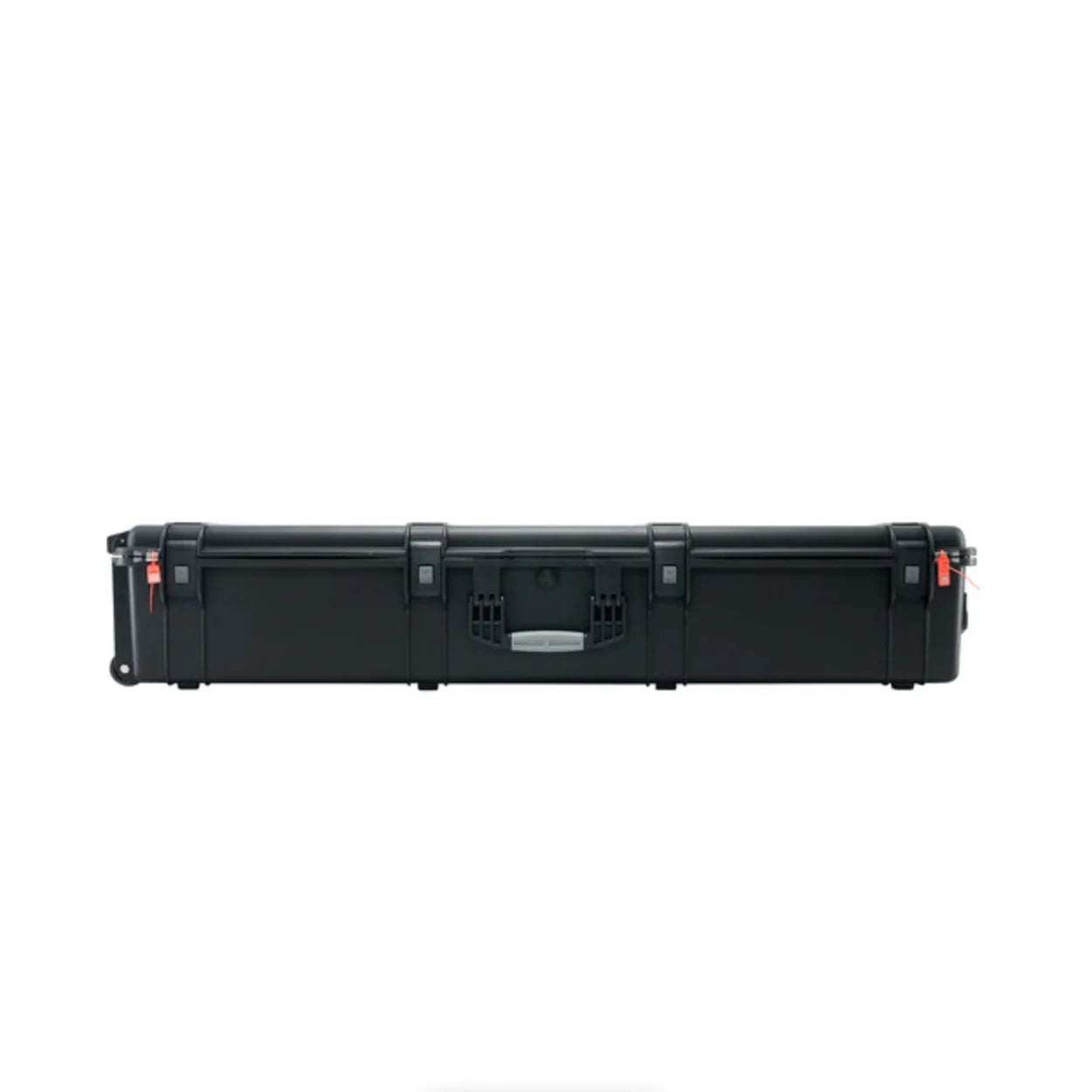

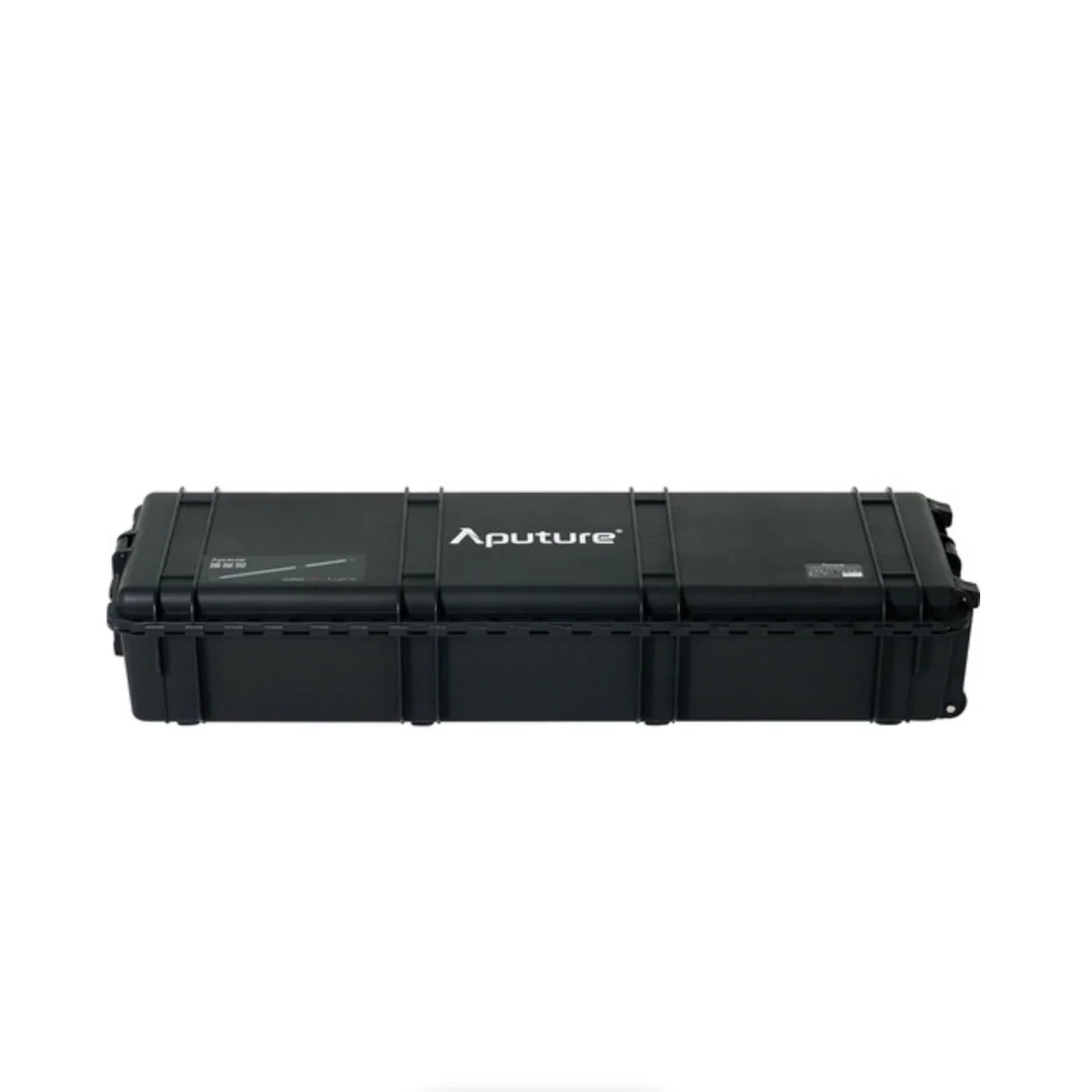

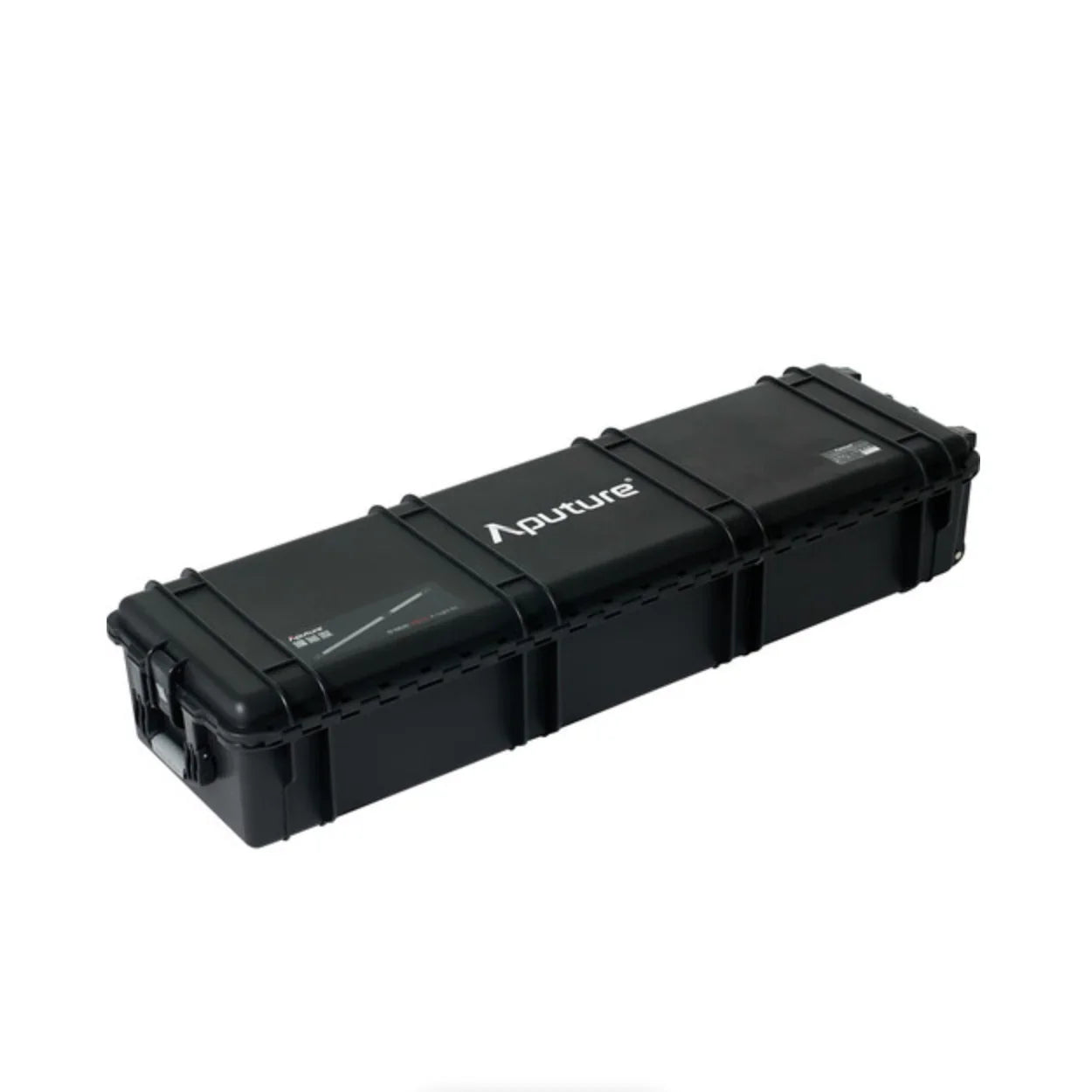

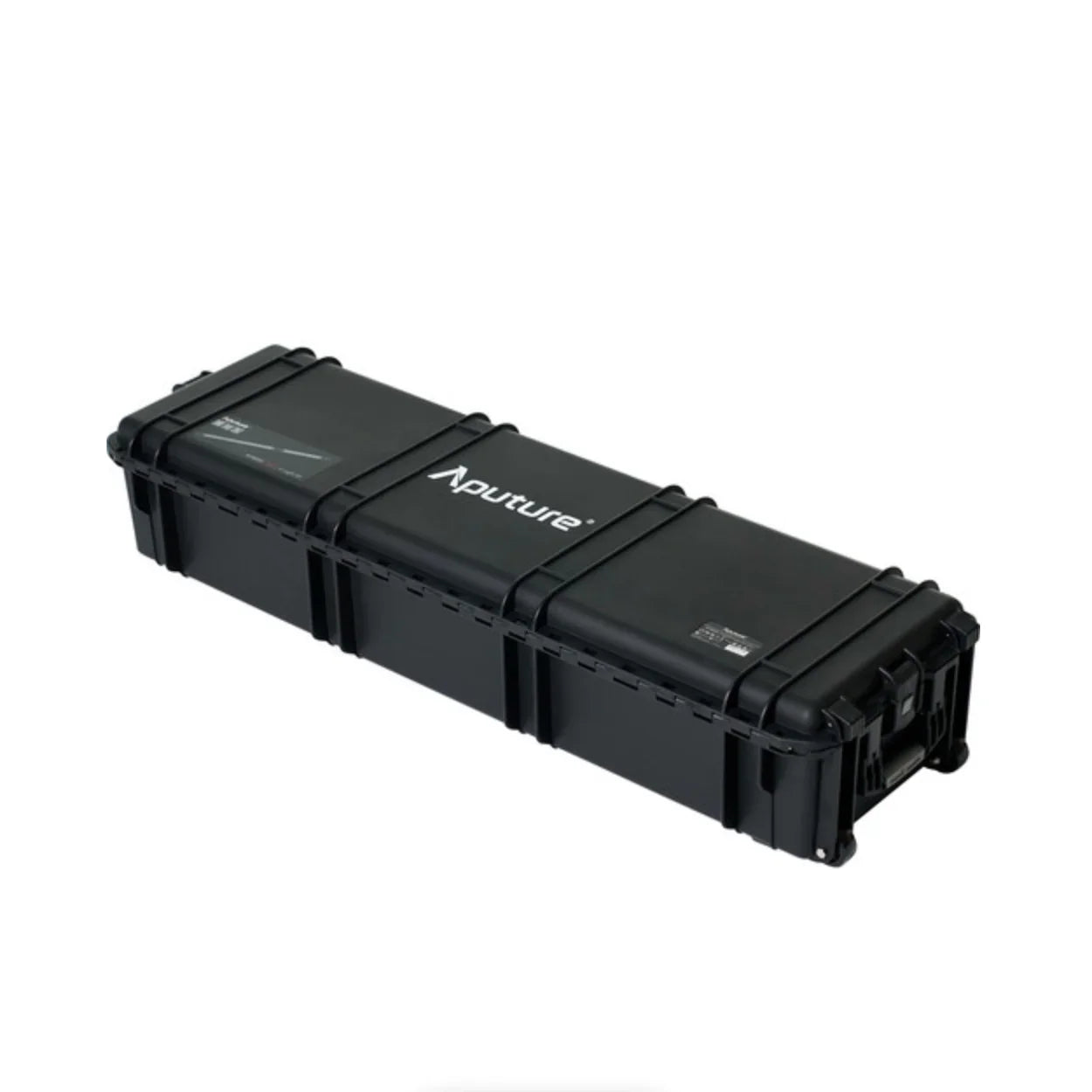

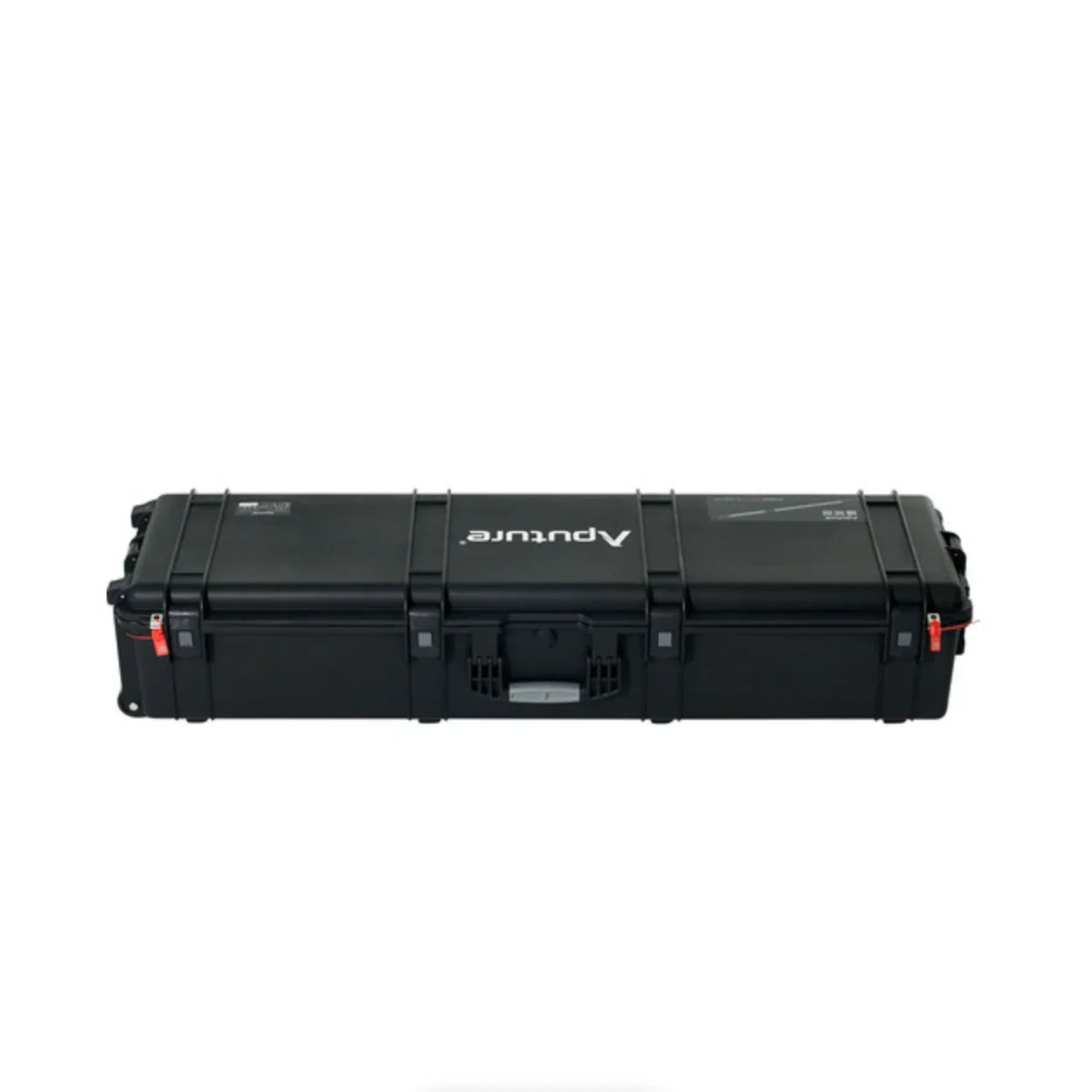

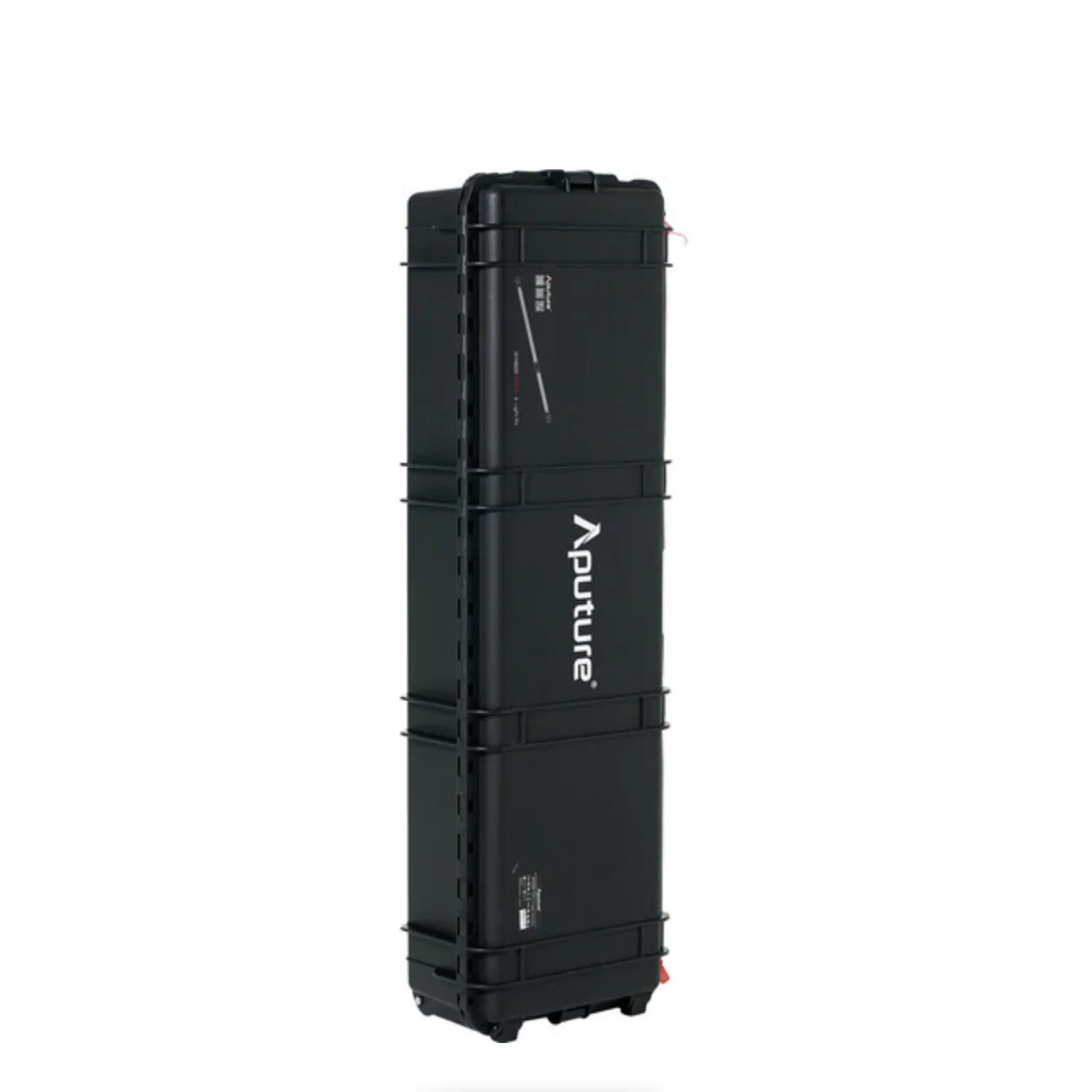

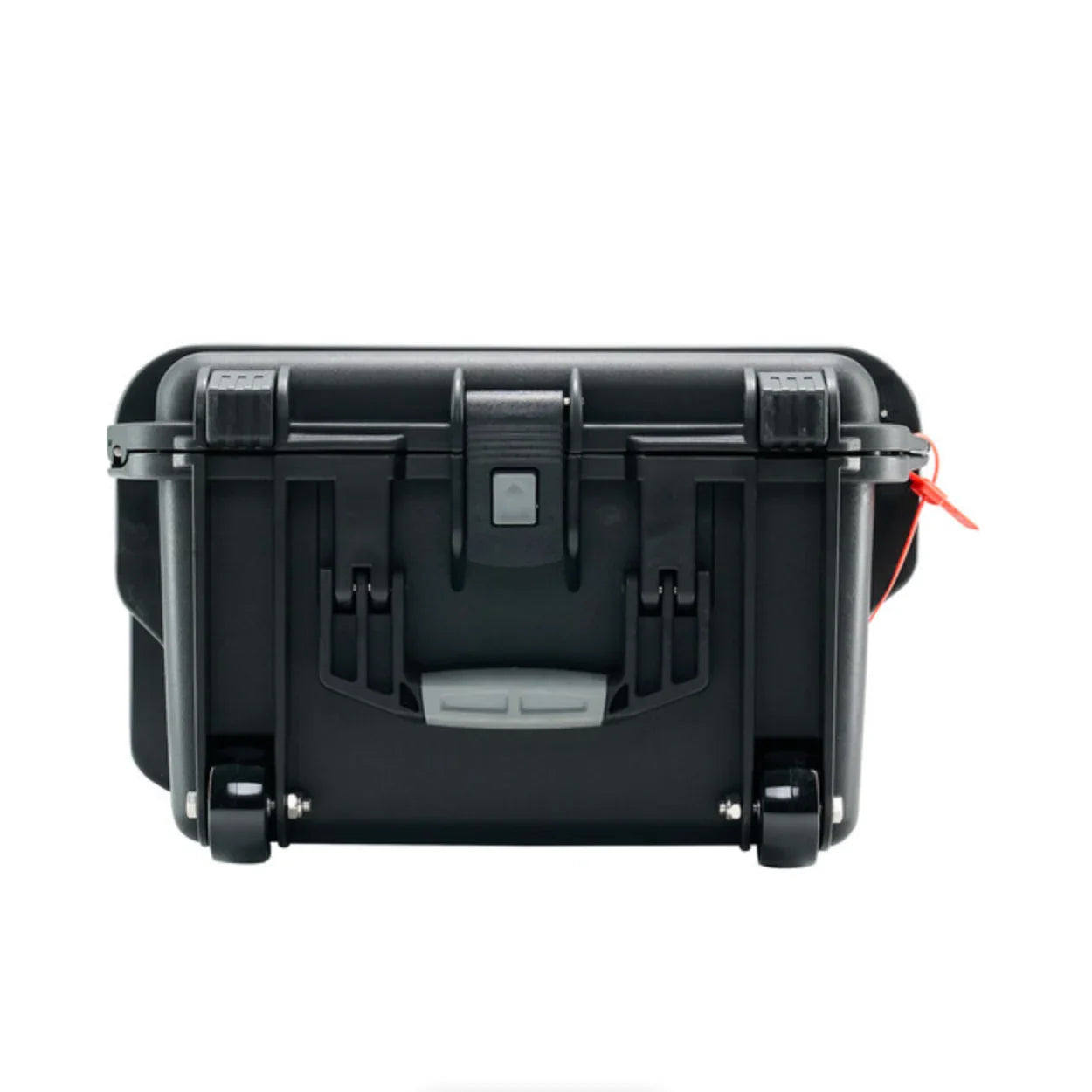

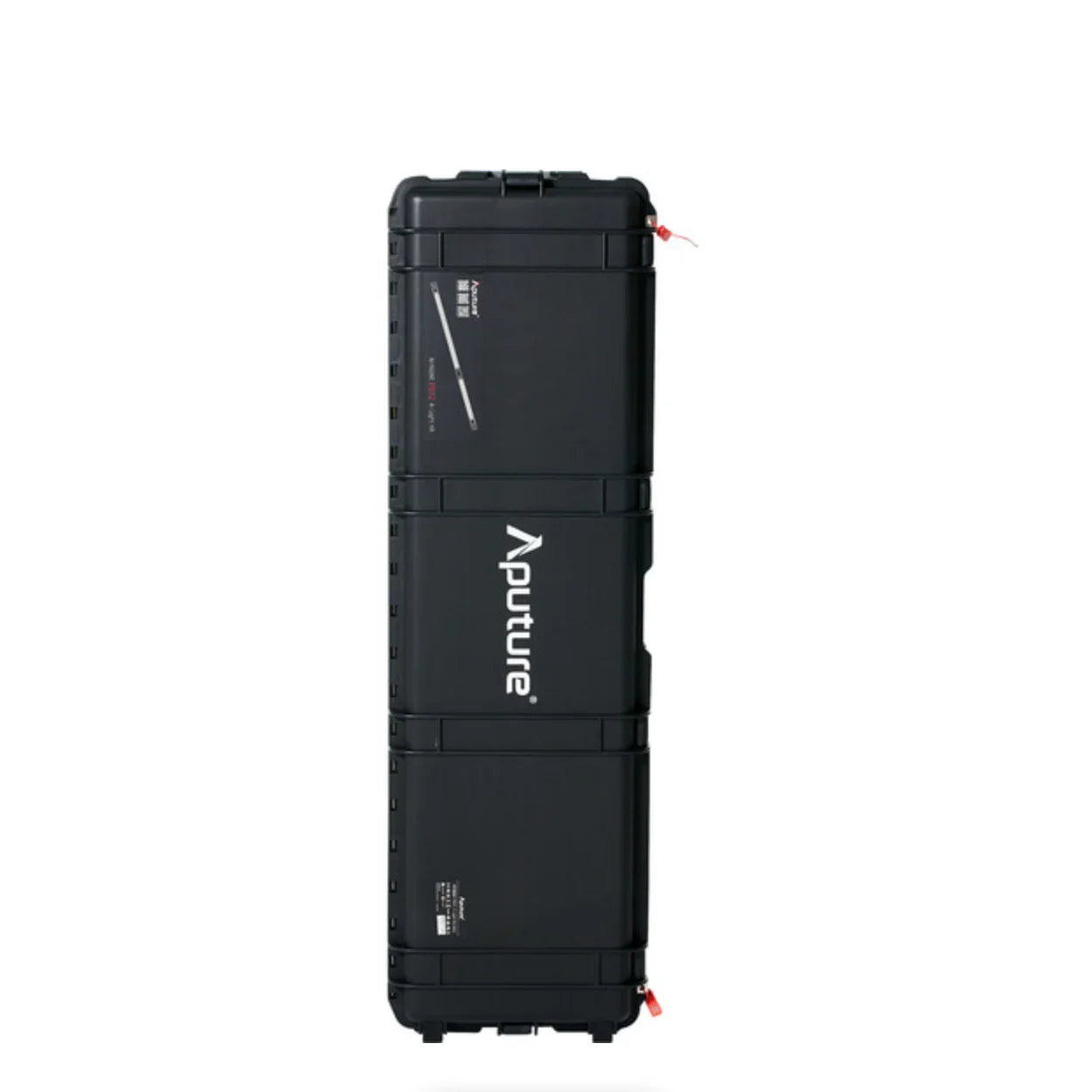

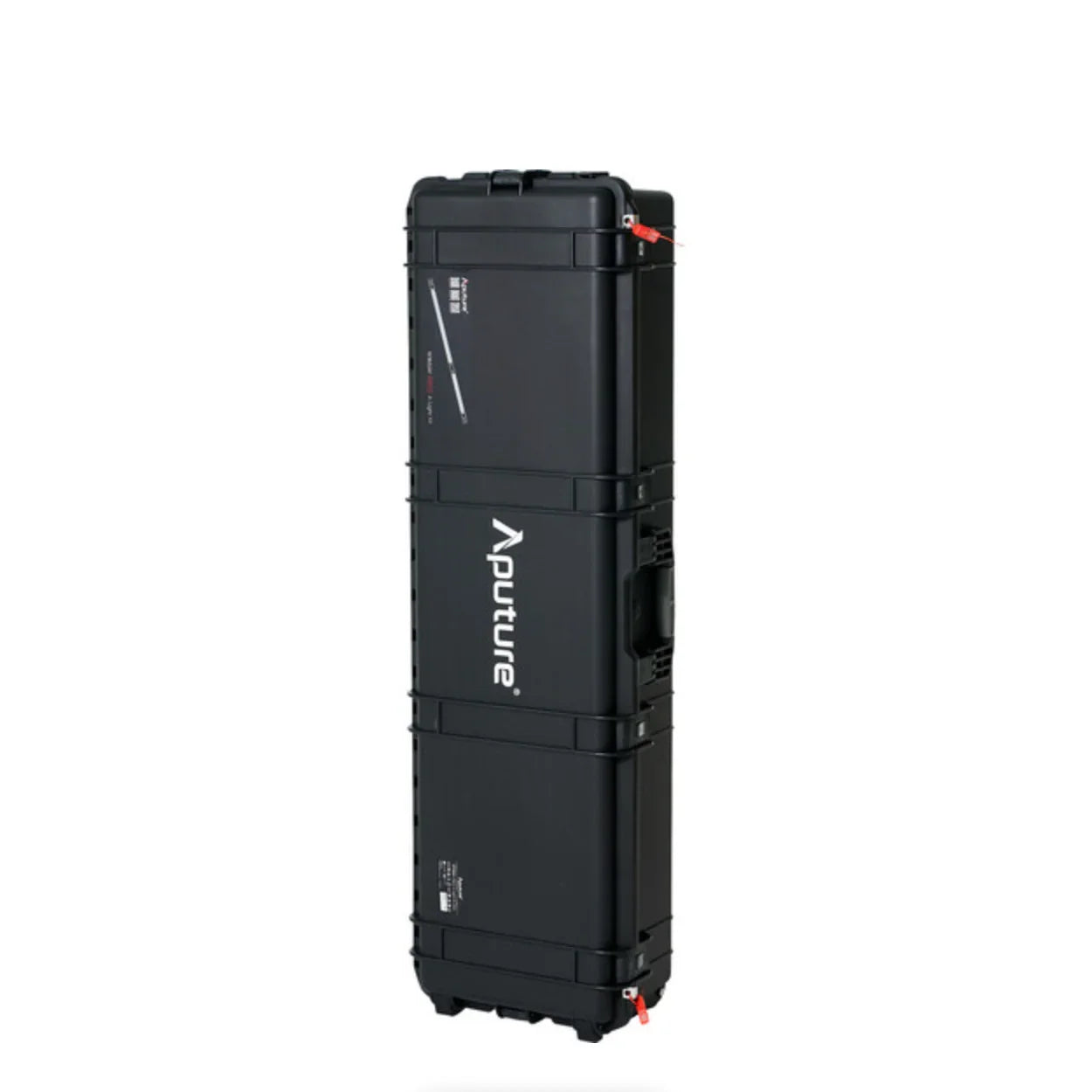

Aputure INFINIBAR PB12 Rolling Hard Case (4-Light)

Designed to accommodate the INFINIBAR PB12 four-light kit, this Rolling Hard Case from Aputure stores, transports, and protects the four lights and their accompanying suite of accessories including power adapters, rigging hardware, cables, and splitters.

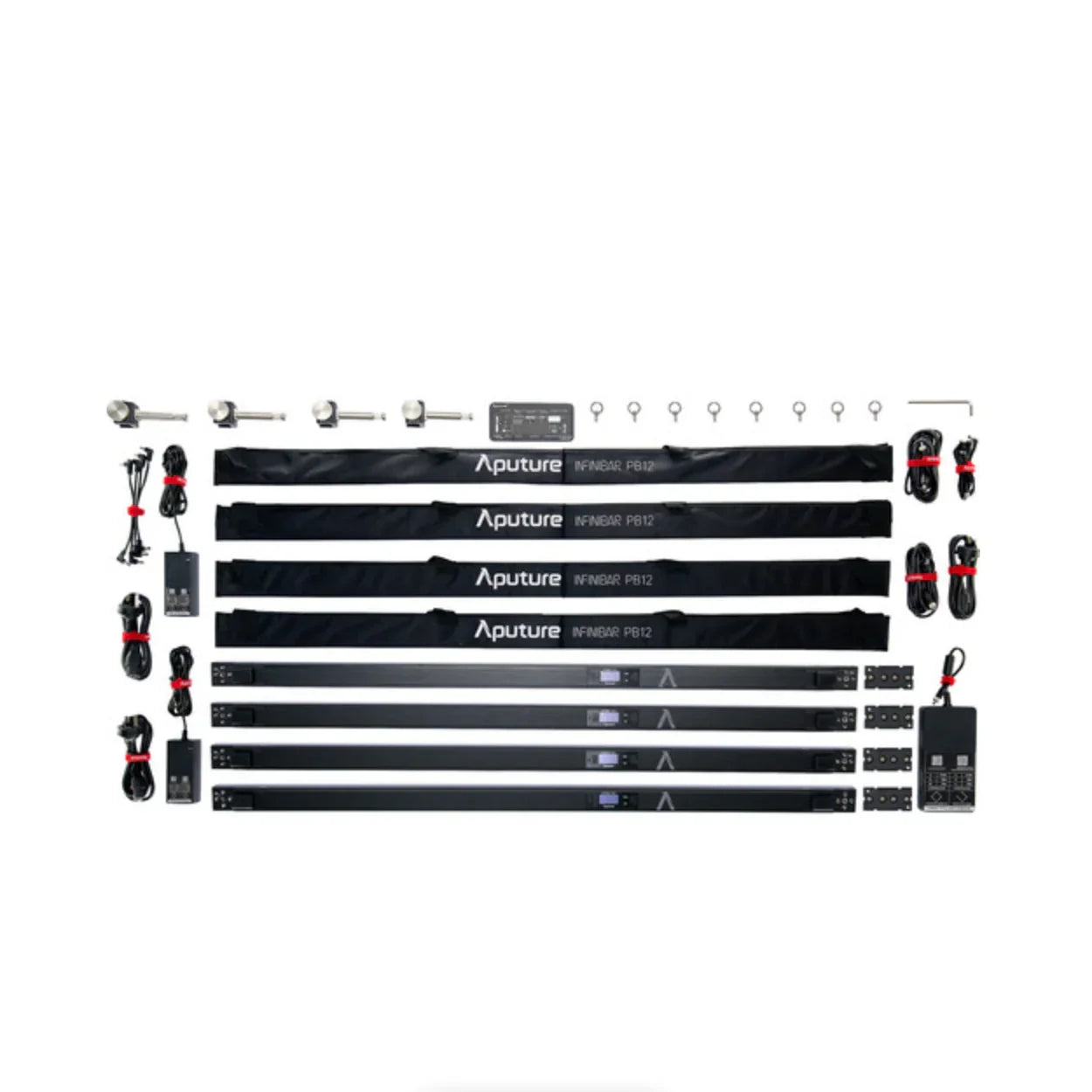

What's in the box

4 x Aputure INFINIBAR PB12 RGB LED Light Panel (4')
- DC Power Adapter (9.8')
- AC Locking Power Cable (4.9')
- Clamp to Baby Pin Adapter
- 2 x Magnetic Spacer
- Straight Connector
- Hex Wrench
- Carrying Case
- Limited 1-Year Manufacturer Warranty
  Registration Extension: 1-Year
4 x Aputure 45° Slip-On Grid for INFINIBAR PB12 RGB LED Light Panel
- Limited 1-Year Manufacturer Warranty
  Registration Extension: 1-Year
Aputure 4-Way Power Splitter Cable for INFINIBAR Series Lights
- Limited 1-Year Manufacturer Warranty
  Registration Extension: 1-Year
Aputure INFINIBAR Power Adapter (24V, 330W)
- AC Power Cable
- Limited 1-Year Manufacturer Warranty
  Registration Extension: 1-Year
Aputure INFINIBAR PB12 Rolling Hard Case (4-Light)
- Limited 1-Year Manufacturer Warranty
  Registration Extension: 1-Year
4 x 5.5mm DC Barrel Male-to-Male Power Cable (7.9")
8 x 1/4"-20 Eyebolt

6971842187577

Specifications

Light Fixture

Item Type	1x LED Light Panel
Included Storage Case	1x Case
Lumens	2077
Photometrics	120° at 3200K: 50 fc / 542 Lux at 3.3' / 1 m 130 fc / 1410 Lux at 1.6' / 0.5 m 120° at 5600K: 55 fc / 593 Lux at 3.3' / 1 m 148 fc / 1600 Lux at 1.6' / 0.5 m
Color Temperature	2000 to 10,000K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 96 TLCI 98 SSI 74 at 5600K SSI 85 at 3000K TM-30 Rf 94 TM-30 Rg 100
Dimming	Built-In Dimmer
Cooling System	Passive
Expected Lamp Life	50,000 Hours
Beam Angle	120°
Umbrella Mount	No
Front Accessory Mount	No

Connectivity

Wireless Remote Control Type	Bluetooth Wireless CRMX (LumenRadio)
Mobile App Compatible	Yes: Android & iOS App Name: Sidus Link
Wireless Channels	No
Wireless Groups	No
Wireless Range	262.5' / 80 m (Bluetooth)

Power & I/O

Power Source	AC Power (Cable Included) Battery (Built-In)
Battery	1x Proprietary Rechargeable Lithium (Built-In) • Up to 80-Minute Runtime at 100% Brightness • 150-Minute Charge Time
Battery Charging	AC to DC Adapter (Included)
AC Input Power	100 to 240 VAC, 50 / 60 Hz at 1.5 A
DC Input Power	24 VDC at 1.8 A
Included Adapter / Cable	1x USA Type-A/B to Barrel / Coax AC to DC Adapter
Inline Switch	No
Power Pass-Thru	No
Power Consumption	36.5 W

Mounting

Fixture Mounting

Support Mount
2x 1/4"-20 Female Thread

Environmental

Environmental Protection

General

Display	No
Dimensions	47.4 x 1.8 x 1.7" / 120.4 x 4.5 x 4.3 cm (Fixture)
Weight	4.32 lb / 1.96 kg (Fixture)

Aputure 45° Slip-On Grid For INFINIBAR PB12 RGB LED Light Panel Specs

Attachment Method	Slip-On
Grid Angle	45°

Aputure 4-Way Power Splitter Cable For INFINIBAR Series Lights Specs

Connector 1	Proprietary
Connector 2	4 x Bare Ends Male

Aputure INFINIBAR Power Adapter (24V, 330W) Specs

Maximum Wattage	330 W
Output Voltage	24 VDC

General

Output	Barrel 5.5 mm
Indicator	LED
Environmental Protection	No

Physical

Dimensions	7.8 x 3.9 x 1.2" / 19.8 x 9.9 x 3 cm
Weight	2 lb / 909 g

Aputure INFINIBAR PB12 Rolling Hard Case (4-Light)

Carry/Transport Options	Handle, Retractable Handle, Wheels (Built-In)
Padded Strap	No
Type of Closure	Latch
Interior Type	Precut Foam

Features

Bottle Pocket	Yes
Hydration Bladder Compatible	No
Monopod/Tripod Holder	No
Pressure/Purge Valve	No
RFID-Blocking Pockets	No
Security Lock	Accepts Padlock (Not Included)

General

Padded Interior	Yes
Dimensions	Exterior 56.3 x 23.2 x 8.3" / 143 x 59 x 21 cm
Weight	28.4 lb / 12.9 kg

What's Included

4 x Aputure INFINIBAR PB12 RGB LED Light Panel (4')
- DC Power Adapter (9.8')
- AC Locking Power Cable (4.9')
- Clamp to Baby Pin Adapter
- 2 x Magnetic Spacer
- Straight Connector
- Hex Wrench
- Carrying Case
- Limited 1-Year Manufacturer Warranty
  Registration Extension: 1-Year
4 x Aputure 45° Slip-On Grid for INFINIBAR PB12 RGB LED Light Panel
- Limited 1-Year Manufacturer Warranty
  Registration Extension: 1-Year
Aputure 4-Way Power Splitter Cable for INFINIBAR Series Lights
- Limited 1-Year Manufacturer Warranty
  Registration Extension: 1-Year
Aputure INFINIBAR Power Adapter (24V, 330W)
- AC Power Cable
- Limited 1-Year Manufacturer Warranty
  Registration Extension: 1-Year
Aputure INFINIBAR PB12 Rolling Hard Case (4-Light)
- Limited 1-Year Manufacturer Warranty
  Registration Extension: 1-Year
4 x 5.5mm DC Barrel Male-to-Male Power Cable (7.9")
8 x 1/4"-20 Eyebolt
