The original Shogun gave filmmakers what they had been asking for. All the Ninja’s talents, with a bigger, 7-inch super-bright screen and both HDMI and SDI I/O. Today’s Shogun is bolstered by new abilities from AtomOS 11, massive connectivity from integrated networking, more codecs, and compatibility with almost every camera. Shogun is the Atomos dream writ large.

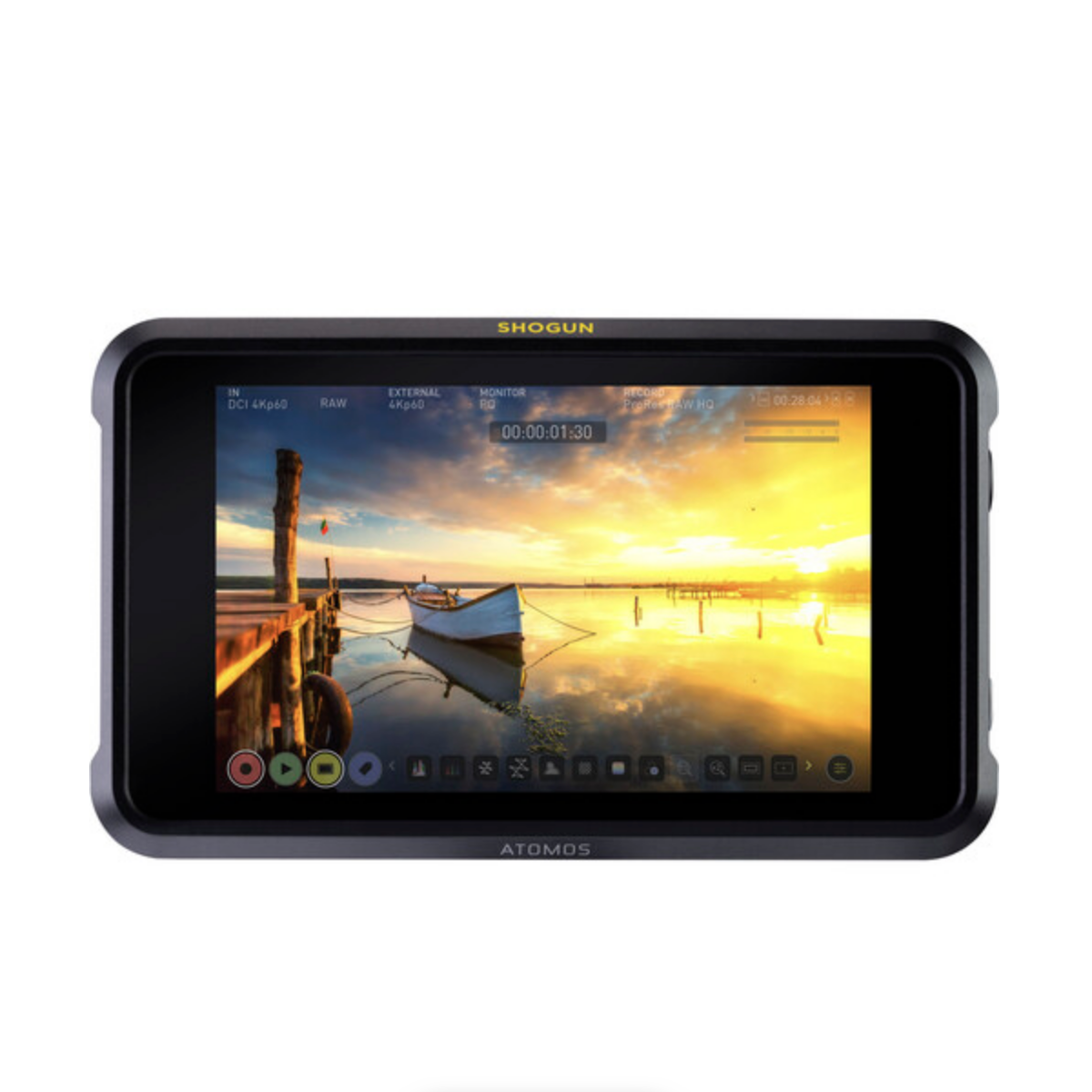

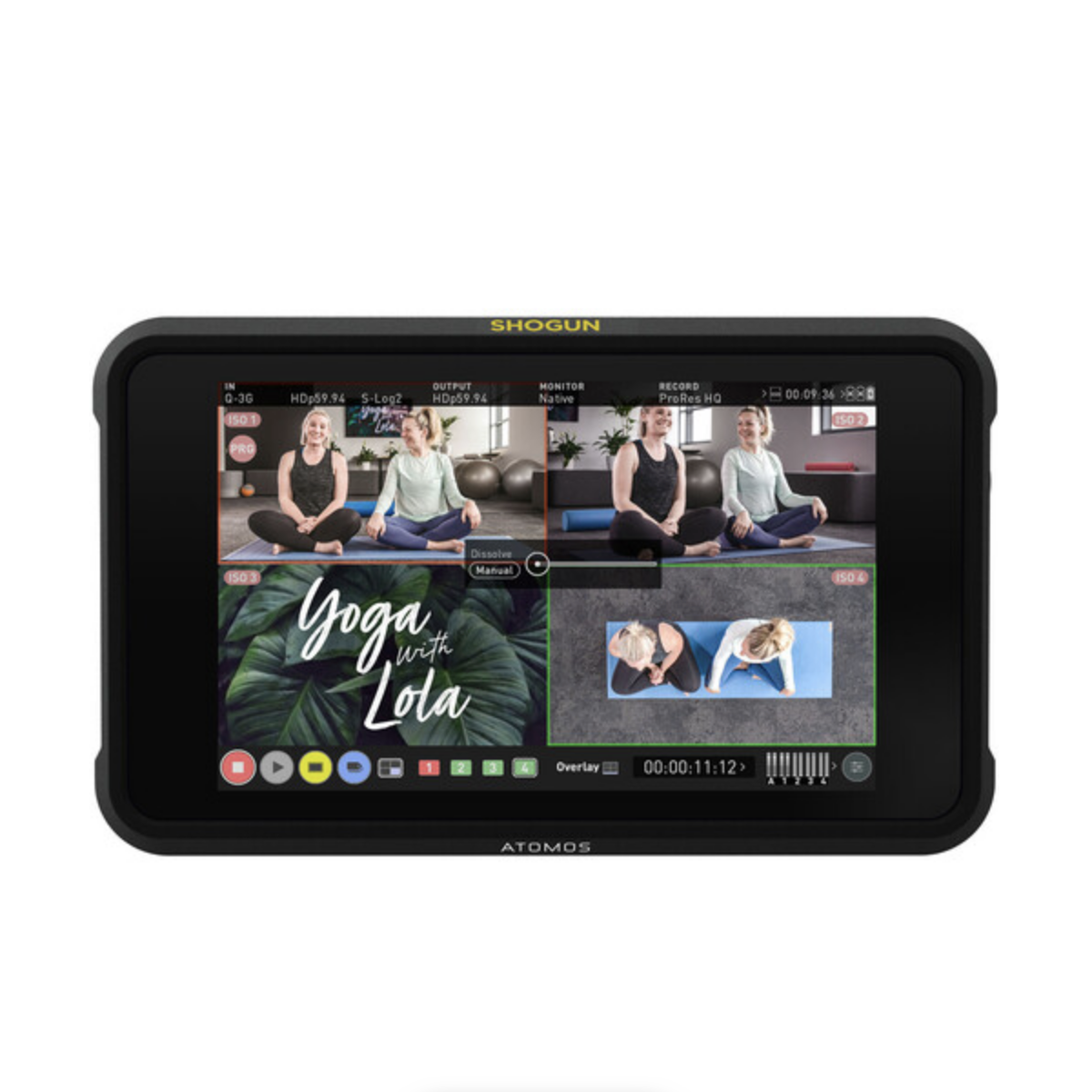

The new Shogun has an ultra-bright, 7-inch HDR screen that’s easily visible outdoors. Capture RAW video from a vast range of DSLR, mirrorless and cinematic cameras with either SDI or HDMI connections. It’s packed with on-screen tools for focus, exposure, customer LUTs and metadata. Shogun takes care of your workflow while you focus on creative ideas.
Shogun can capture RAW inputs up to 6K at 30fps and simultaneously output a standard viewable video signal via HDMI or SDI for devices that don’t support RAW formats.
You can pair the new Shogun with a huge range of video, DSLR, mirrorless or cinematic cameras. Choose from a selection of industry-standard recording formats, including Apple ProRes. Pick the best frame size, frame rate, and codec for your project and delivery requirements. Shogun also allows you to record HDMI RAW inputs up to 6K at 30fps while simultaneously looping out standard YCC video via HDMI to non-RAW compatible devices.
Pair the Shogun equally well with smaller cameras as part of a minimal setup, or with full-size camera rigs on large-scale productions. Shogun is made from precision materials and crafted for maximum durability with a solid aluminium frame. Weighing only 360g (0.79lbs), you can use it comfortably with a handheld camera. Shogun includes anti-rotational ⅜ – 16 mount points on the top and bottom. It ships with a ¼ – 20 adaptor for easy mounting on industry-standard equipment from a wide range of manufacturers.
Stage clever cinematic shots and save time in post-production with the powerful Onion Skin and Frame Grab features built-in as standard. Onion skin overlay simplifies stop-motion and jump or match cuts. Capturing frame grabs live on set saves time making thumbnails and acts as a quick reference to share with the team.
From individuals to large-scale cinema productions, Shogun has been built to fit into any camera rig. It features a versatile mount that can be adapted to suit different industry-standard equipment from a wide range of manufacturers. Once locked in place the mount is highly secure and offers anti-rotation settings, so you can trust Shogun to remain in place at all times.
| Display | |
|---|---|
| Panel Type |
IPS-Type LCD
|
| Display Size |
7.0" / 17.8 cm
|
| Resolution |
1920 x 1200
|
| Aspect Ratio |
16:9
|
| Touchscreen |
Yes
|
| Maximum Brightness |
2000 nits / cd/m2
|
| Bit Depth / Color Support |
10-Bit (1.07 Billion Colors)
|
| HDR Compatibility |
HDR10
|
| Pixels Per Inch (ppi) |
315 ppi
|
| Color Gamut |
100% DCI-P3
100% Rec. 2020 |
| Real-Time LUT Monitoring |
SDR, HDR
|
| Image Controls |
Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, RGB Parade, Vectorscope, Waveform, Zebra
|
| Inputs / Outputs | |
| Video I/O |
1 x HDMI 2.0 Input
1 x BNC (12G-SDI) Input 1 x HDMI 2.0 Output 1 x BNC (12G-SDI) Output |
| Embedded Audio |
HDMI: 8-Channel
SDI: 24-Channel |
| Audio I/O |
1 x 1/8" / 3.5 mm Headphone Output
1 x 1/8" / 3.5 mm Input 1 x 1/8" / 3.5 mm Output |
| Built-In Speaker |
None
|
| Power I/O |
1 x Barrel Input
|
| Other I/O |
1 x 2.5 mm (LANC)
1 x USB-C (Serial) Input 1 x RJ45 (Gigabit Ethernet) Input |
| Media/Memory Card Slot |
Single Slot: SSDmini/SSD with Master Caddy II/III
|
| File System Support |
exFAT
|
| Wi-Fi |
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
|
| Bluetooth |
Yes
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: AtomRemote Functionality: Adjust Settings, Setup *As of September, 2023: Check with manufacturer for the most up-to-date compatibility |
| Format Support | |
| Video Format |
HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)
6K Raw: 30 4K Raw: 120 DCI 4K: 60 UHD 4K: 60 DCI 2K: 60 1080p: 120 1080i: 60/50 720p: 60 |
| Gamma Curve |
ARRI Log C, ARRI Log C4, Canon Log, Canon Log 2, Canon Log 3, DCI-P3, DCI-P3+, FLAT, FUJIFILM F-Log, FUJIFILM F-Log 2, HDR-HLG, JVC J-Log, Nikon N-Log, OM-Log, Panasonic V-Gamut, Panasonic V-Log, Rec709, Rec2020, RED IPP2, REDlogFilm, S Cinetone, Sony S-Log 2, Sony S-Log 3, V-Log, V-Log L, Wide DR, Z-Log2
|
| Video Signal Conversion |
HDMI to SDI
SDI to HDMI |
| Timecode Support |
Yes
|
| Recording | |
| Pulldown Conversion |
None
|
| Camera Trigger |
SDI, HDMI
|
| Pre-Roll Record |
None
|
| Encoding Formats |
x
DNxHD H.265 ProRes |
| Metadata Tagging |
Yes
|
| Phantom Power |
None
|
| Power | |
| DC Input Power |
6.2 to 16.8 VDC
|
| Built-In Battery |
None
|
| Battery Type |
1 x L-Series
|
| Mounting | |
| Mounting |
3 x 1/4"-20 Female
3 x 3/8"-16 Female |
| Environmental | |
| Environmental Protection |
None
|
| Operating Temperature |
72°F / 40°C
|
| General | |
| Material of Construction |
Aluminum, Polycarbonate
|
| Dimensions |
7.8 x 5.2 x 1.6" / 198 x 133 x 40 mm
|
| Weight |
1.6 lb / 730 g
|
