Atomos 7" Shogun Ultra 8K RAW Monitor-Recorder

Model # ATOMSHGU01


In StockIn StockOut of stock

Sale ends on {timer}


  • AtomOS 11, 12G-SDI/HDMI Conversion
  • 7" 1920 x 1080Touchscreen
  • Records up to 8K Apple ProRes Raw
  • ProRes Raw + H.265 Dual Recording
  • AirGlu RF Wireless Sync, GigE, 6E Wi-Fi
  • 2000 cd/m² Brightness
  • ARRI/Canon/RED/Sony Camera SDI Support
  • AVID DNX QuickTime
  • Atomos RemoteView via Subscription
  • NDI 4K TX Pro Mode 1-Off Activation


Atomos 7" Shogun Ultra 8K RAW Monitor-Recorder


Shogun Ultra is your gateway to amazingly fast and productive cloud workflows. So much more than a super-bright monitor recorder, it takes you to new heights of productivity and collaborative creativity. Work faster, work better.

Capture Every Nuance

  • All the connectivity you’ll ever need

  • Solid Internet - Network connectivity with Wi-Fi 6E and GigE.

  • Wireless Sync - Long-range robust wireless sync and control with AirGlu RF.

  • Third-party Sync - Third-party sync and app control with Bluetooth AirGlu BT.

  • USB-C Port - For future updates.

  • More Power Options - Multiple power options with NP battery slot and separate 2.1mm locking jack DC input.

  • SDI Out - Separate SDI Out for comprehensive SDI<>HDMI cross-conversion.

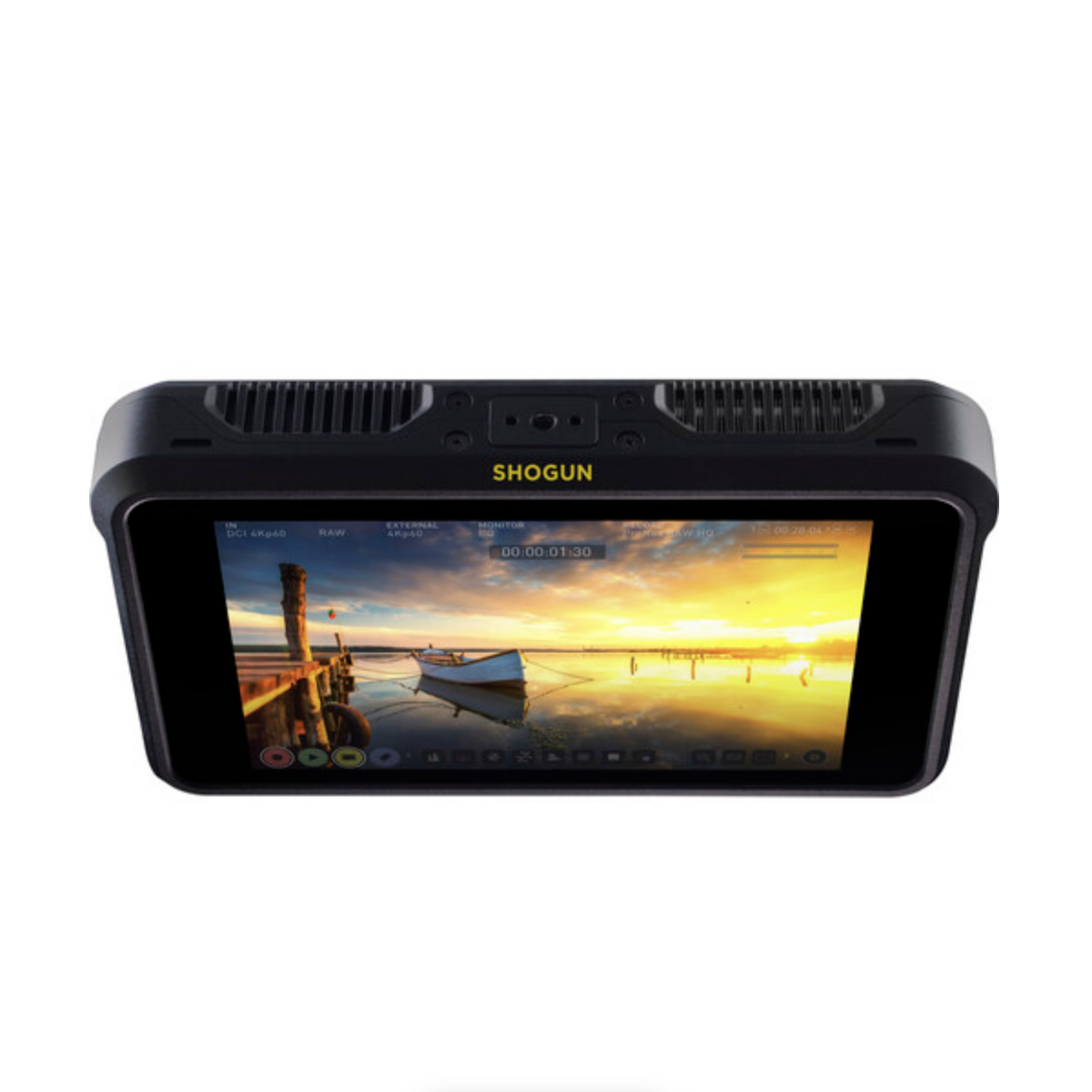

  • Super bright screen

    Shogun Ultra’s super-bright, large 7-inch screen is viewable in almost every kind of light. Indoors, outdoors, or anywhere you need critical, viewable, instant feedback on your images. With 2000 nits brightness, it’s ideal for checking your HDR footage while you’re still on set. Or play back your recently captured shots on the same pristine screen for review or even uploading to the cloud.

    Choose your workflow

    Shogun Ultra has two faces: Local and Cloud. Use it conventionally, and you have an incredible HDR screen, new monitoring tools and both HDMI and 12G-SDI. Turn on its wireless and network capabilities, and you have access to new and productive cloud workflows like camera to cloud and Atomos Edit. You can even edit your project in the cloud and publish directly to social media within minutes of shooting the action.

    Enhance your camera

    Shogun Ultra can capture RAW inputs up to 8K at 30fps, 6K at 60fps and 4K at 30fps and simultaneously output a standard viewable video signal via HDMI or SDI for devices that don’t support RAW formats. With a super bright 2000nit 7-inch SuperAtom IPS touchscreen for clear images and easy accessibility to the features in AtomOS, Shogun Ultra has a new operating system and user interface.

    The Ultimate Shogun

    In addition to network and SDI connectivity, you get access to super-efficient cloud workflows, and you can cross-convert between HDMI and SDI. Take advantage of the new, ultra-fast and reliable WiFI 6E for more stable connections. Shogun Ultra, which can be remote-controlled over Bluetooth with AtomRemote App, is the most practical and affordable way to stream, transfer and edit in the cloud.

    Capture simultaneously up to 4K 60p ProRes RAW and HD 60p H.265

    Record full-quality files in ProRes RAW up to 4K 60p while at the same time recording HD 60p to H.265. It’s the best of both worlds. Boost your productivity by storing your definitive copy in ProRes RAW ready for your post-production workflow, and use your H.265 copy for your camera to cloud activities.

    Multiple Codecs

    The new Shogun line includes these codecs free of charge, so you can choose the ideal codec for your projects.

  • Apple ProRes

  • Apple ProRes RAW

  • 265

  • DNx (QuickTime)

  • DNx (MXF)* coming later in 2023

  • Original camera filenames over SDI

    Automatically match filenames, timecode and record triggers from ARRI, Canon, RED and Sony cameras. Previously, camera to cloud relied on matching filenames with hero and proxy files made by AtomOS. Now, thanks to cooperation with ARRI, Canon, RED
and Sony, Atomos C2C files are matched back to the original in-camera (OCF) filenames.

    Any camera, any format. Anywhere

    Pair Shogun Ultra equally well using SDI or HDMI with smaller cameras as part of a minimal setup or with full-size camera rigs on large-scale productions. Shogun Ultra is made from precision materials with a solid aluminium frame, crafted for maximum durability. Weighing only 360g (0.79lbs), you can use it comfortably with a handheld camera. Shogun Ultra includes anti-rotational ⅜ – 16 mount points on the top and bottom. It ships with a ¼ – 20 adaptor for easy mounting on industry-standard equipment from a wide range of manufacturers.

    Stream from Anywhere

    Shogun Ultra supports live streaming to a range of online services including Facebook Live, Twitch, YouTube, and custom RTMP/S. With Wi-Fi 6E, Gigabit Ethernet, and the ability to join cellular hotspots all built-in, Shogun Ultra helps filmmakers, streamers, and video content producers reach their audience from anywhere.

    A highly secure mount

    From individuals to large-scale cinema productions, Shogun Ultra has been built to fit into any camera rig. It features a versatile mount that can be adapted to suit different industry-standard equipment from a wide range of manufacturers. Once locked in place the mount is highly secure and offers anti-rotation settings, so you can trust Shogun Ultra to remain in place at all times.

    What's in the box

    • Atomos Shogun Ultra 7" HDR Monitor-Recorder
    • USB-C PD to 2.1mm DC Power Lead
    • Master Caddy III
    • 2x Wi-Fi Antennas
    • AirGlu Antenna
    • Antenna Tips
    • 3.5mm Audio Sync Cable
    • User Manual
    • Atomos 1 Year Limited Warranty



    Panel Type
    IPS-Type LCD
    Display Size
    7.0" / 17.8 cm
    1920 x 1200
    Aspect Ratio
    Maximum Brightness
    2000 nits / cd/m2
    Bit Depth / Color Support
    10-Bit (1.07 Billion Colors)
    HDR Compatibility
    Pixels Per Inch (ppi)
    315 ppi
    Color Gamut
    100% DCI-P3
    100% Rec. 2020
    Real-Time LUT Monitoring
    SDR, HDR
    Image Controls
    Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, RGB Parade, Vectorscope, Waveform, Zebra

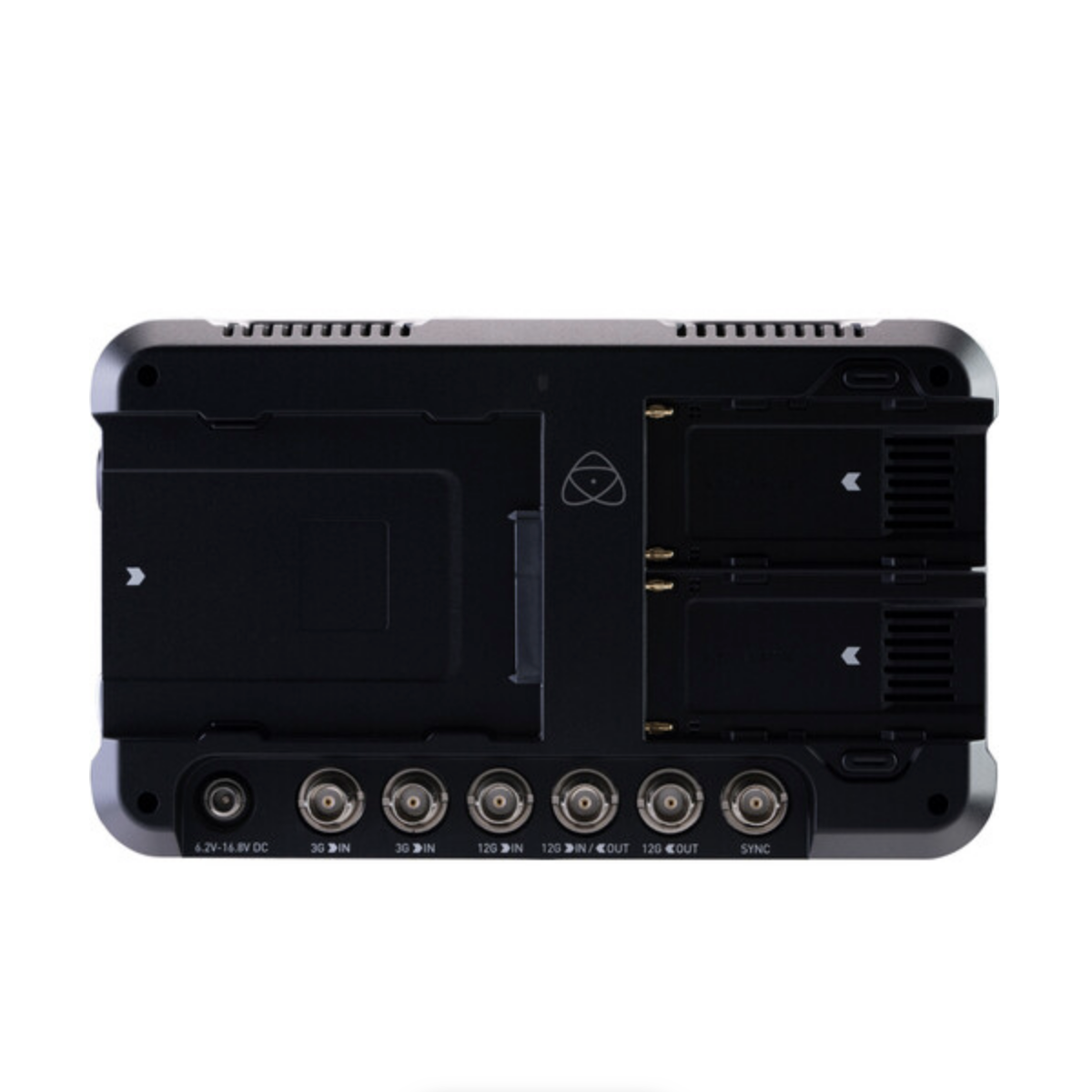

    Inputs / Outputs
    Video I/O
    1 x HDMI 2.0 Input
    1 x BNC (12G-SDI) Input
    1 x HDMI 2.0 Output
    1 x BNC (12G-SDI) Output
    Embedded Audio
    HDMI: 8-Channel
    SDI: 24-Channel
    Audio I/O
    1 x 1/8" / 3.5 mm Headphone Output
    1 x 1/8" / 3.5 mm Input
    1 x 1/8" / 3.5 mm Output
    Built-In Speaker
    Power I/O
    1 x Barrel Input
    Other I/O
    1 x 2.5 mm (LANC)
    1 x USB-C (Serial) Input
    1 x RJ45 (Gigabit Ethernet) Input
    Media/Memory Card Slot
    Single Slot: SSDmini/SSD with Master Caddy II/III
    File System Support
    Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
    Mobile App Compatible
    Yes: Android & iOS
    App Name: AtomRemote
    Functionality: Adjust Settings, Setup
    *As of September, 2023: Check with manufacturer for the most up-to-date compatibility
    Format Support
    Video Format
    HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)
    8K Raw: 30
    6K Raw: 60/30
    4K Raw: 120
    DCI 4K: 60
    UHD 4K: 60
    DCI 2K: 60
    1080p: 120
    1080i: 60/50
    720p: 60
    Gamma Curve
    ARRI Log C, ARRI Log C4, Canon Log, Canon Log 2, Canon Log 3, DCI-P3, DCI-P3+, FLAT, FUJIFILM F-Log, FUJIFILM F-Log 2, HDR-HLG, JVC J-Log, Nikon N-Log, OM-Log, Panasonic V-Gamut, Panasonic V-Log, Rec709, Rec2020, RED IPP2, REDlogFilm, S Cinetone, Sony S-Log 2, Sony S-Log 3, V-Log, V-Log L, Wide DR, Z-Log2
    Video Signal Conversion
    HDMI to SDI

    SDI to HDMI
    Timecode Support
    Pulldown Conversion
    Camera Trigger
    Pre-Roll Record
    Encoding Formats
    Metadata Tagging
    Phantom Power
    DC Input Power
    6.2 to 16.8 VDC
    Built-In Battery
    Battery Type
    1 x L-Series
    3 x 1/4"-20 Female
    3 x 3/8"-16 Female
    Environmental Protection
    Operating Temperature
    72°F / 40°C
    Material of Construction
    Aluminum, Polycarbonate
    7.8 x 5.2 x 1.6" / 198 x 133 x 40 mm
    1.6 lb / 730 g

    What's in the box

    • Atomos Shogun Ultra 7" HDR Monitor-Recorder
    • USB-C PD to 2.1mm DC Power Lead
    • Master Caddy III
    • 2x Wi-Fi Antennas
    • AirGlu Antenna
    • Antenna Tips
    • 3.5mm Audio Sync Cable
    • User Manual
    • Atomos 1 Year Limited Warranty
