DJI RC-N3 Controller
Product Features
- Works with Smartphone & DJI Fly App
- 2.4 & 5.8 GHz Dual-Band Transmission
- Displays HD Video Feed on Phone Display
- Up to 3.5 Hours of Operation
DJI RC-N3 Controller
Model # CP.RC.00000038.01
Out of Stock
Note: This Item is not available to purchase using Katapult Leasing

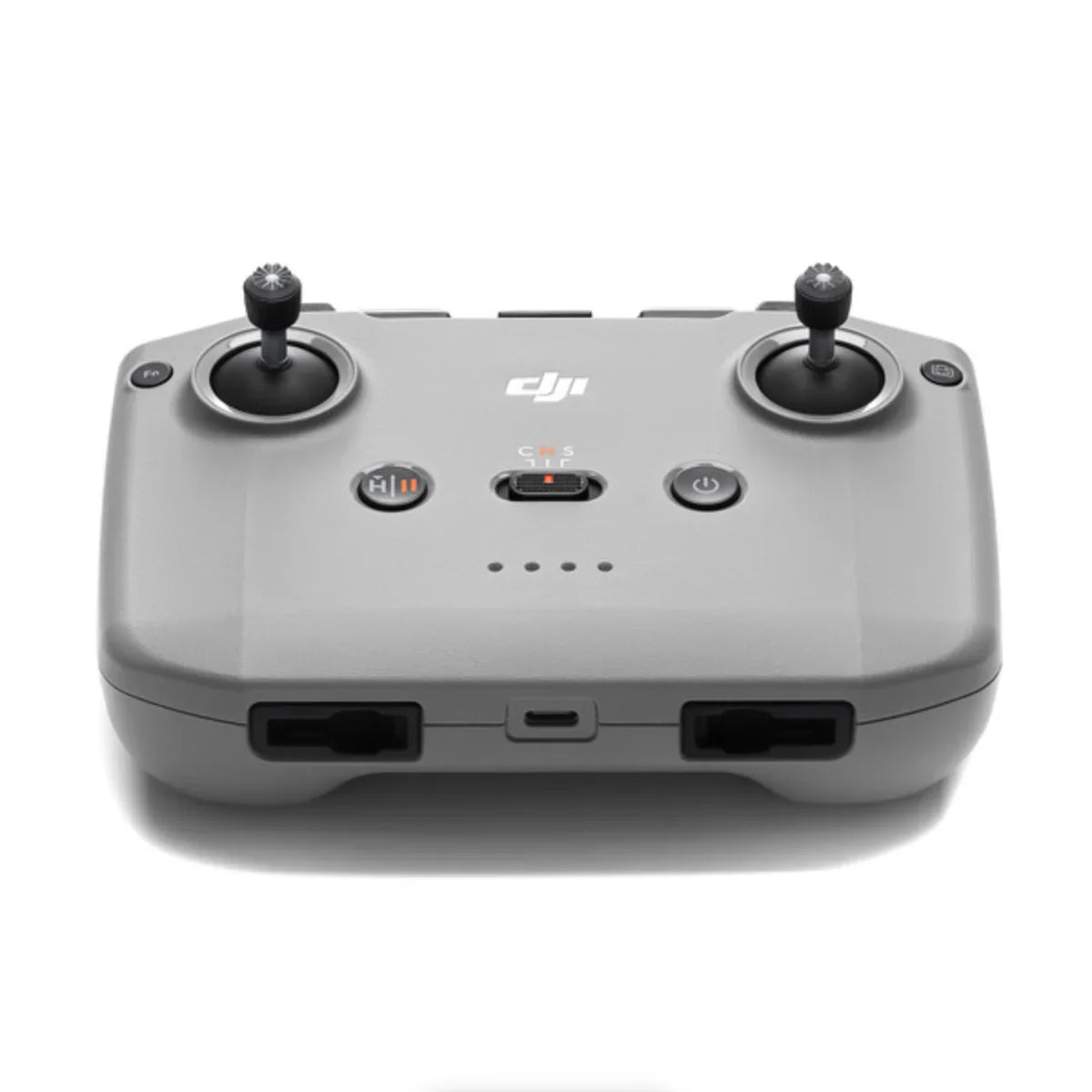

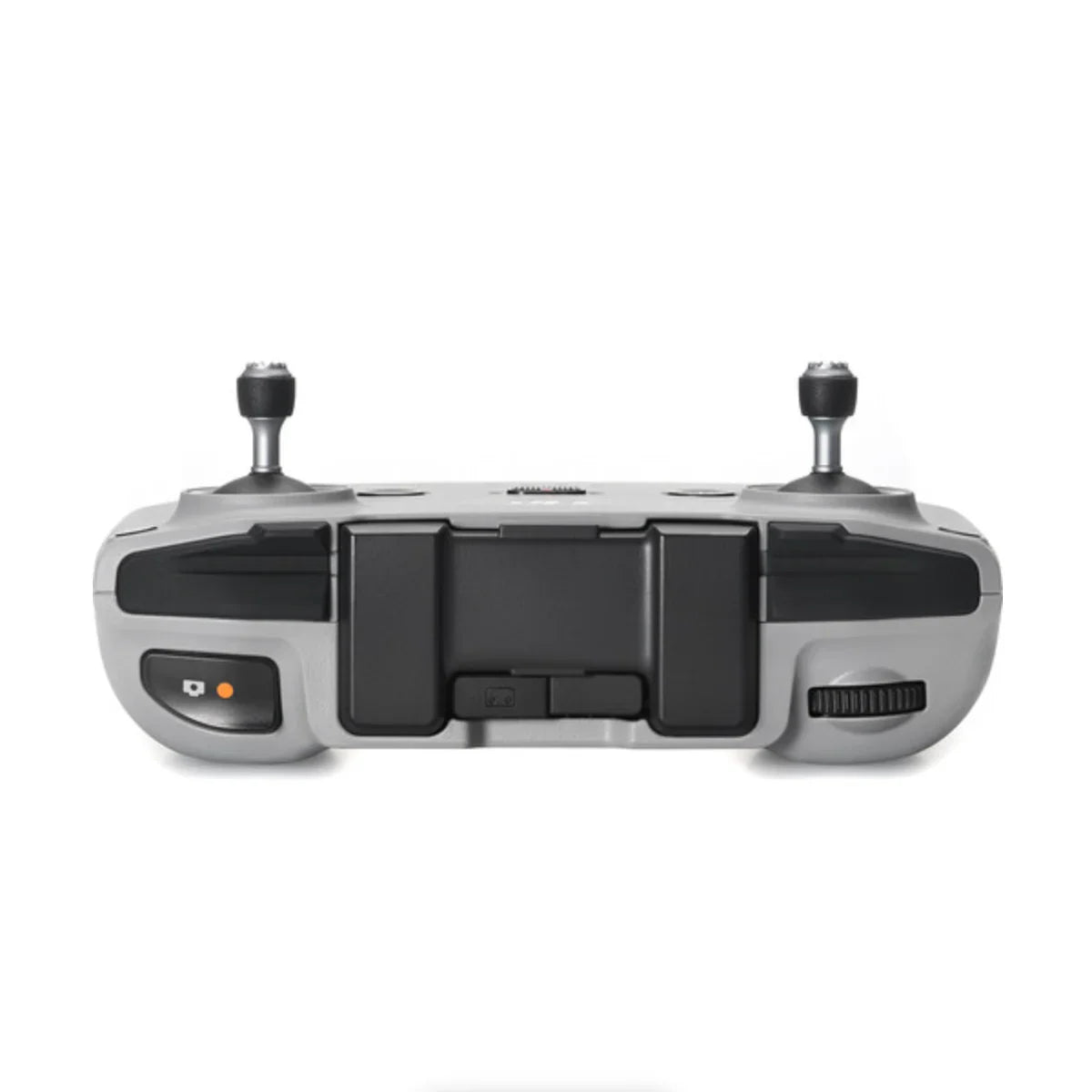

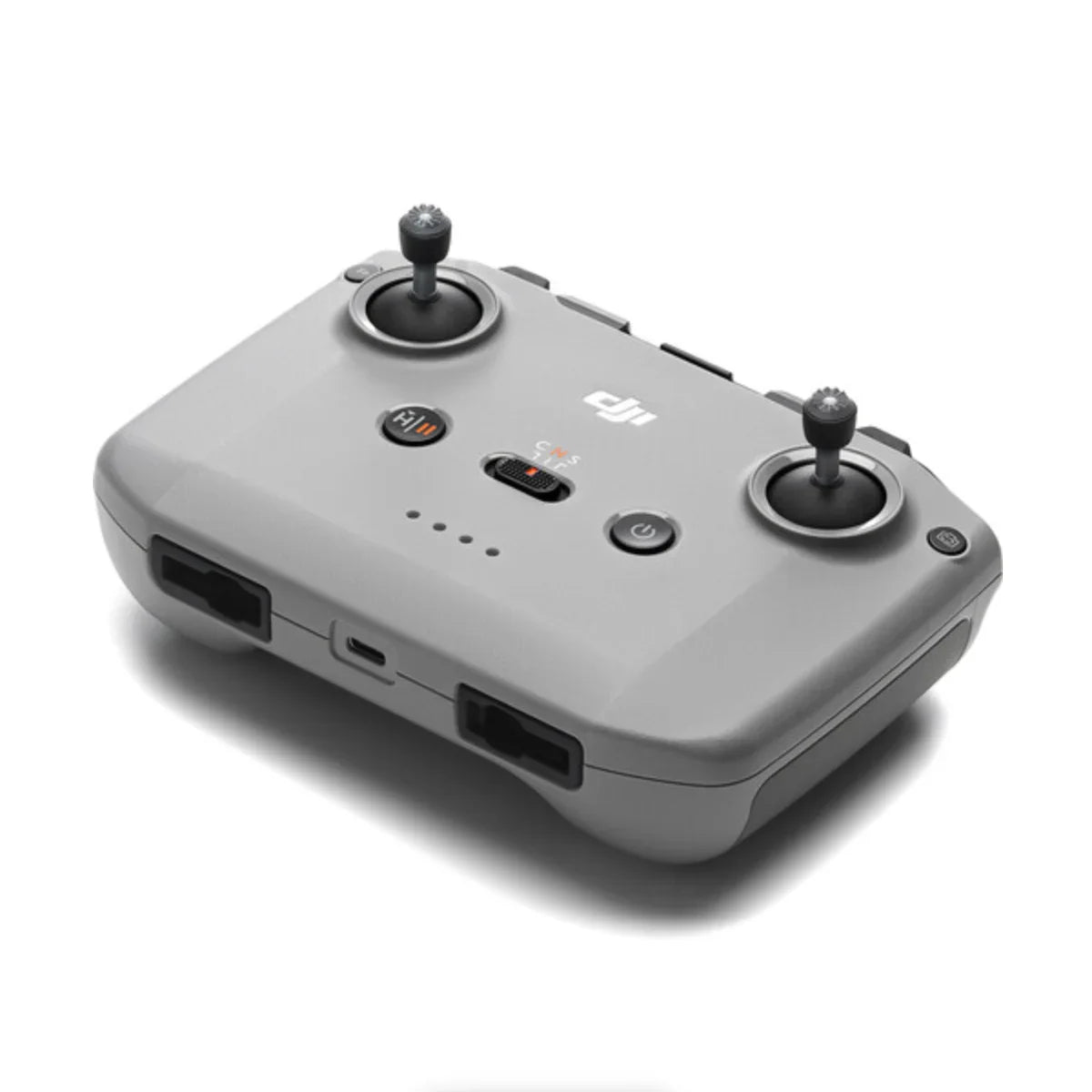

DJI RC-N3 Controller
For a more intuitive piloting experience, use the DJI RC-N3 Controller with your compatible DJI drone, such as the DJI Neo. The controller accepts any smartphone up to 7.1" long, 3.4" wide, and 0.4" thick, which needs to be equipped with the DJI Fly app. The controller transmits piloting information using 2.4 and 5.8 GHz dual-band frequencies and receives an HD video feed from the drone to display on the phone's screen. The included cables support both Lightning and USB-C-compatible phones. On a full charge, the RC-N3 can operate for up to 3.5 hours or, if its internal battery is used to power the inserted phone, up to 1.5 hours.
What's in the box
- DJI RC-N3 Controller

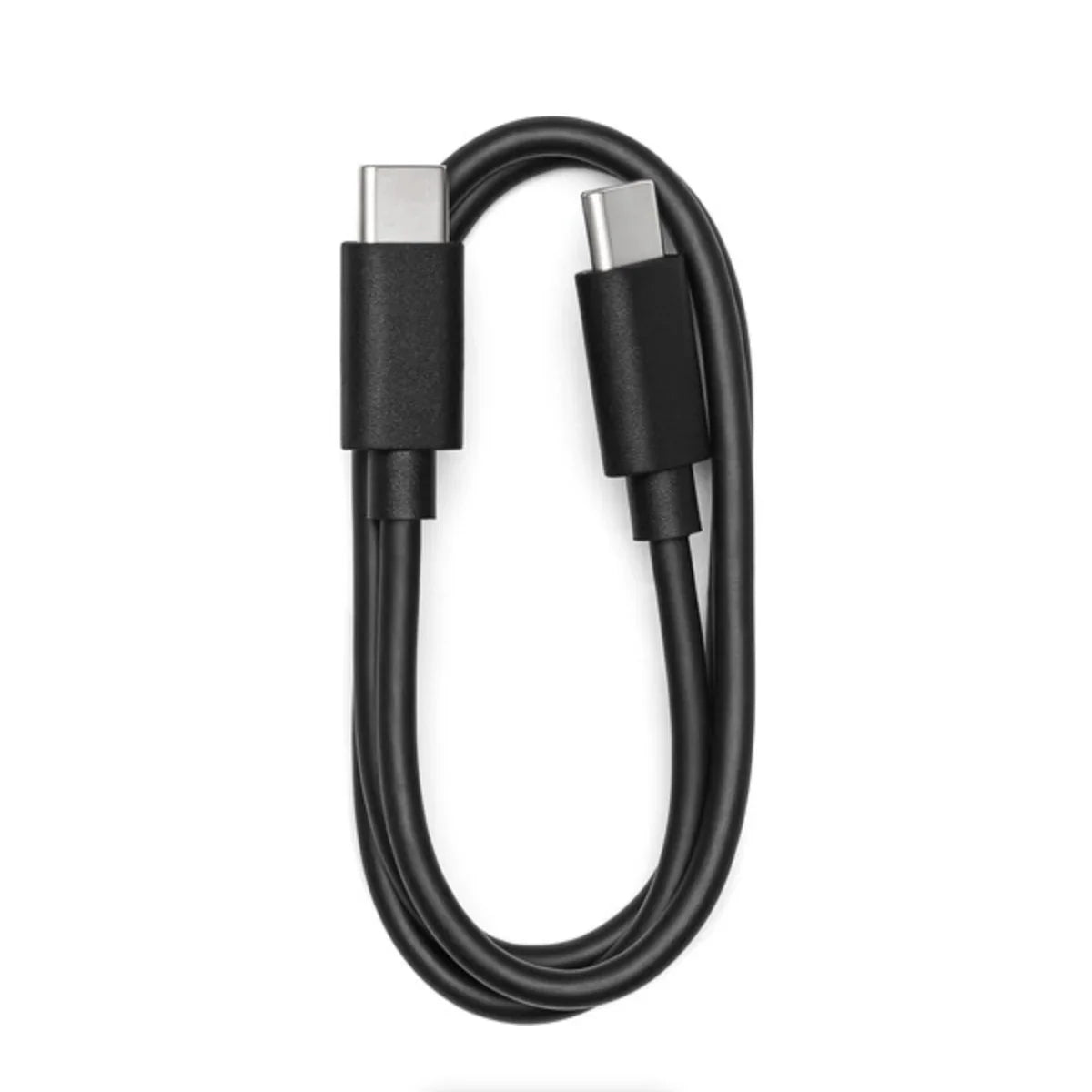

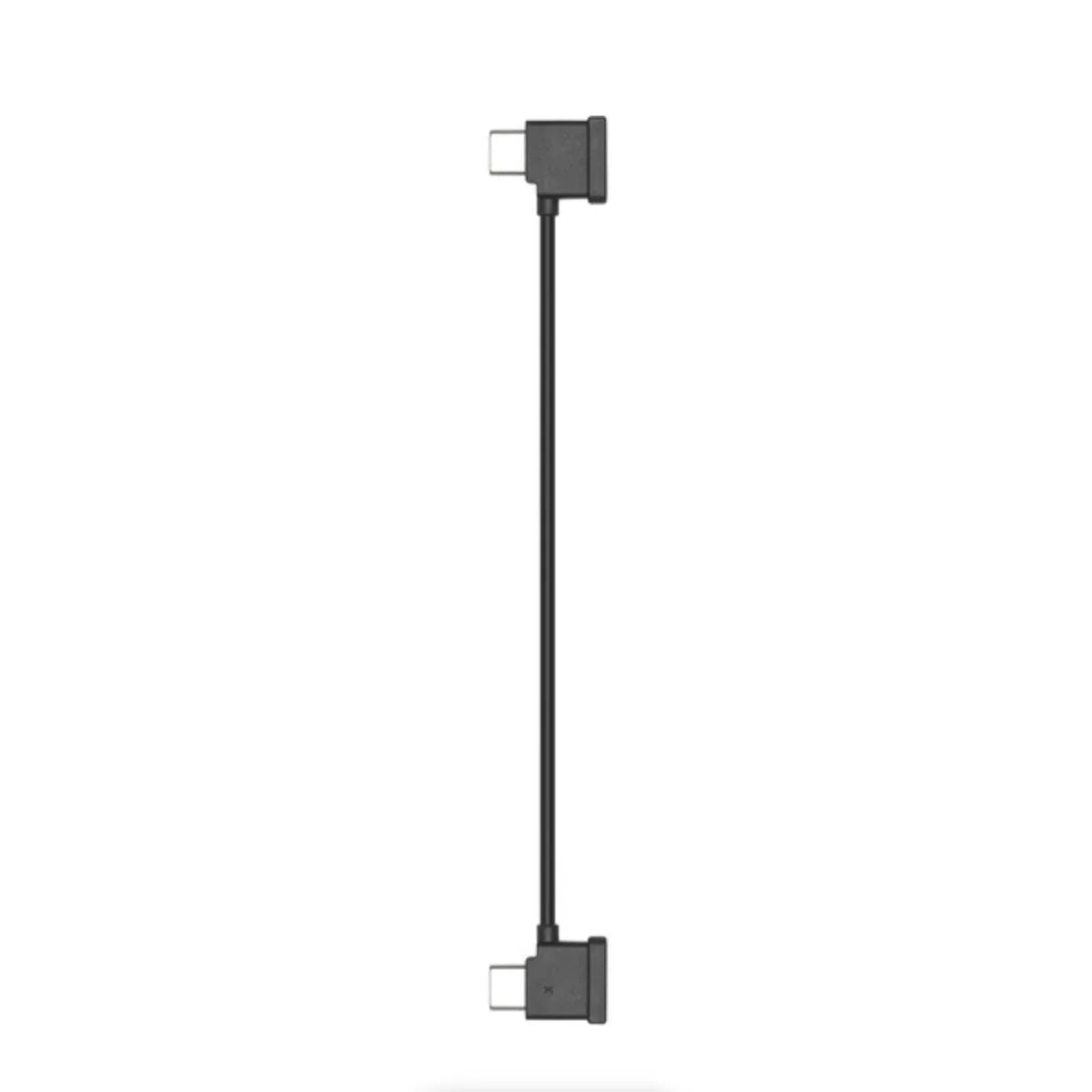

- USB-C RC Cable
- Lightning RC Cable
- Limited 1-Year Manufacturer Warranty
190021116115
Specifications
General
| Compatibility | DJI Neo / Mini 4 Pro / Air 3 |
| Supported Smartphone Sizes | 7.1 x 3.4 x 0.4" / 18.0 x 8.6 x 1.0 cm (L x W x H) |
| Run Time | Without Charging Any Mobile Device: Up to 3.5 Hours When Charging a Mobile Device: Up to 1.5 Hours |
| Charging Time | Approximately 2 Hours |
| Temperature | Charging Temperature: 14 to 104°F / 5 to 40°C |
Wireless
| Mobile App Compatible | Yes: Android & iOS App Name: DJI Fly |
| Operating Frequency | 2.400 - 2.4835 GHz 5.170 - 5.250 GHz 5.725 - 5.850 GHz |
| Transmission | Power (EIRP) (2.4 GHz): (FCC) <33 dBm, (CE/SRRC/MIC) <20 dBm Power (EIRP) (5.1 GHz): (CE) <23 dBm Power (EIRP) (5.8 GHz): (FCC) <33 dBm, (CE) 14 dBm, (SRRC) <30 dBm |
Power
| Power Source | Battery (Built-In) |
| DC Input Power | 5 VDC at 2 A |
| Battery Capacity | 2600 mAh |
Environmental
| Operating Temperature | 14 to 104°F / -10 to 40°C |
Physical
| Dimensions | 5.9 x 4.1 x 1.8" / 150 x 104.2 x 45.2 mm |
| Weight | 11.3 oz / 320 g |
What's Included
- DJI RC-N3 Controller
- USB-C RC Cable
- Lightning RC Cable
- Limited 1-Year Manufacturer Warranty
