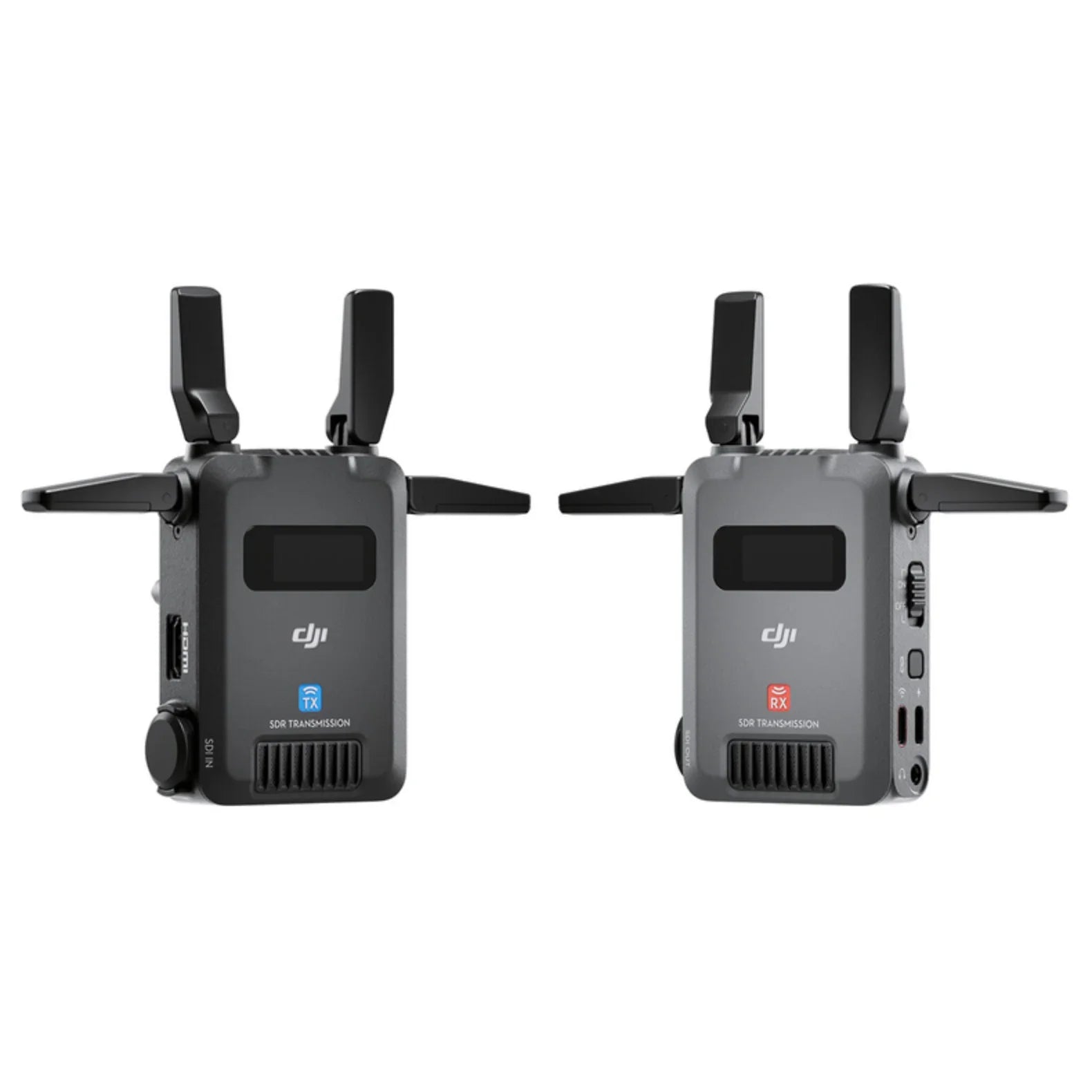

DJI SDR Wireless Video Transmission Combo
- SDI and HDMI for video, 3.5mm jack for audio, and USB-C for power and data
- SDR: 2.4000-2.4835 GHz, 5.725-5.850 GHz, and 5.470-5.725 GHz (DFS)
- Wi-Fi Protocol Supports 802.11b/a/g/n/ac/ax with 2x2 MIMO capability
- Maximum Bandwidth 20 MHz for both SDR and Wi-Fi
- Maximum Bitrate 20 Mbps for SDR and 8 Mbps for Wi-Fi
- Power Consumption 8.2W to 8.3W
- Power Supply: Multiple USB-C options and NP-F battery support
- Video Formats: Supports 1080p, 1080i, and 720p across various frame rates
DJI SDR Wireless Video Transmission Combo
Note: This Item is not available to purchase using Katapult Leasing
Built around Software-Defined Radio technology, DJI SDR Transmission utilizes both SDR and Wi-Fi video transmission modes. SDR technology takes video transmission performance to a whole new level, offering enhanced stability, interference resistance, and penetration capabilities. For instances that require temporary monitoring, DJI SDR Transmission also accommodates Wi-Fi transmission to provide teams with increased flexibility.
This advanced video transmission device is engineered to facilitate high-quality video and audio broadcasting for professional applications. It boasts a versatile array of input and output ports, including SDI and HDMI, complemented by a 3.5mm stereo jack and USB-C ports for firmware updates, power supply, and gimbal communication.
No delays, no interruptions
Discover the power of DJI's SDR Transmission System, stable and resistant to any interference. This advanced technology utilizes both SDR (or Software-Defined Radio) and Wi-Fi video transmission modes to help your video feed remain clear and uninterrupted.
Strong connection even from 1.8 miles away
Capable of reaching distances up to 3 kilometers or about 1.8 miles away, this system is the one to use for wide-area filming setups. Even if you’re filming a fast-paced sports event, your signal will stay strong, providing a reliable connection no matter the distance.

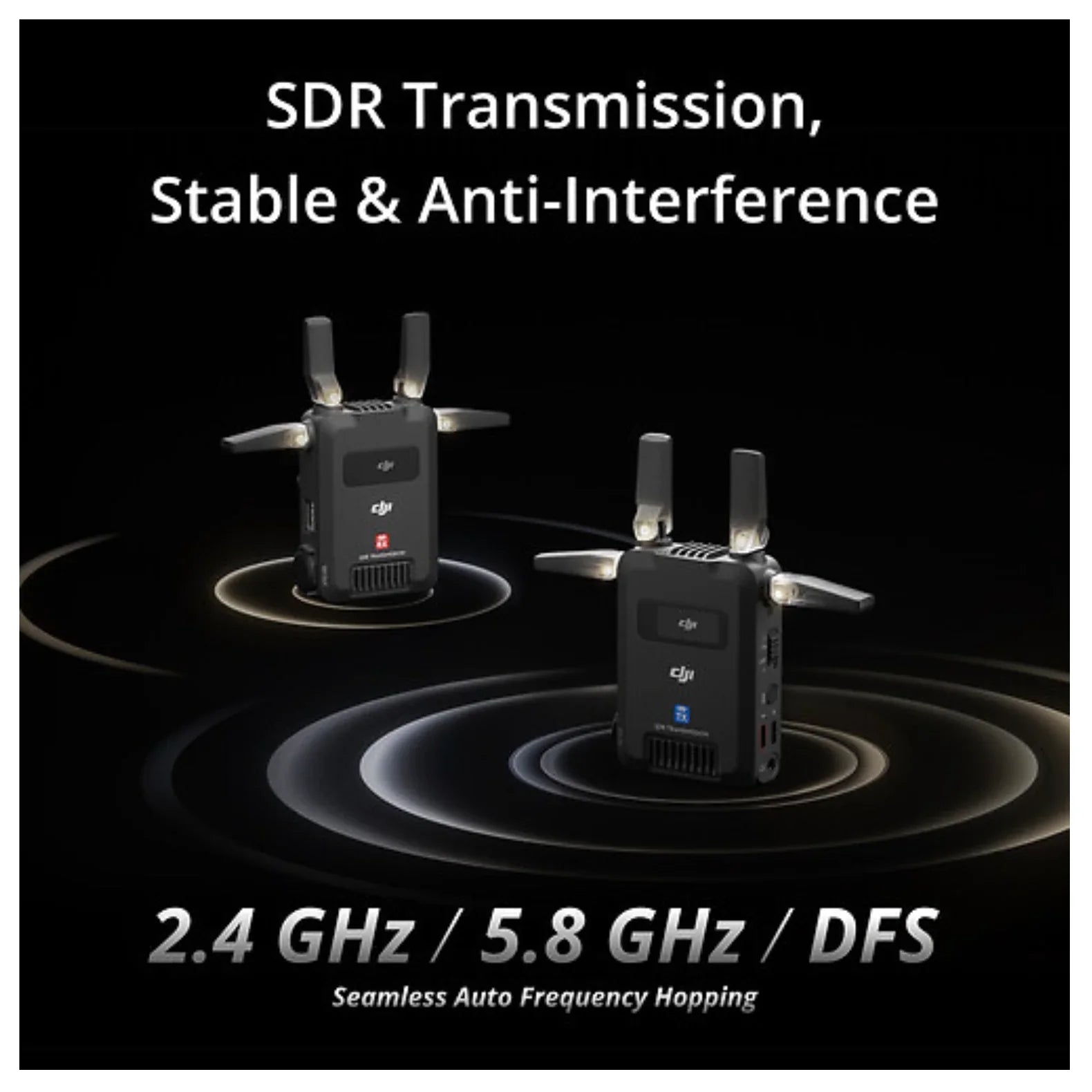

Hop across 2.4 GHz, 5.8 GHz, and DFS
Never worry about signal interference ever again! DJI SDR Transmission System supports seamless auto frequency hopping across 2.4 GHz, 5.8 GHz, and DFS frequency bands. If it detects interference, it automatically switches to the optimal channel.
High bitrate and image quality
No more choppy video feeds when it comes to the DJI SDR Transmission System. Stream live feeds in stunning 1080p Full HD at 60 frames per second, with a high bitrate of up to 20 Mbps. Yup, that means smooth, high-quality video perfect for professional monitoring and collaboration.
Connect to multiple receivers at the same time
Broadcast Mode allows the user to connect to an unlimited number of receivers. That’s a nice feature that allows high-quality monitoring experience in professional environments. Seamless connection is key!
Ideal for on-the-go filmmakers
The DJI SDR Transmission System is compact, weighing 145 grams. Each transmitter features foldable antennas for easy storage. This makes it ideal for on-the-go filmmakers who need a reliable and portable transmission solution.
Traditional battery options
For those who prefer traditional battery options, the transmitter and receiver both support industry-standard NP-F batteries, offering a voltage range from 6.8 to 8.4 V for reliable and long-lasting power. Additionally, the USB-C power supply compatibility increases your flexibility, allowing you to power the system through a standard PD protocol charger rated at 9 V and 2 A.
Ronin compatibility & remote control
The DJI SDR Transmission System integrates seamlessly with the DJI RS 4 Pro, DJI RS 4, and DJI RS 3 Pro gimbals. Power the transmitter directly from the gimbal and say bye extra batteries and cables. Additionally, you can control the gimbal remotely.
USB-C compatibility
The transmitter features multiple USB-C ports for power, gimbal communication, firmware updates, and direct connections to smartphones or tablets. Monitor your video feed in real-time directly on your smart device without any additional receivers.

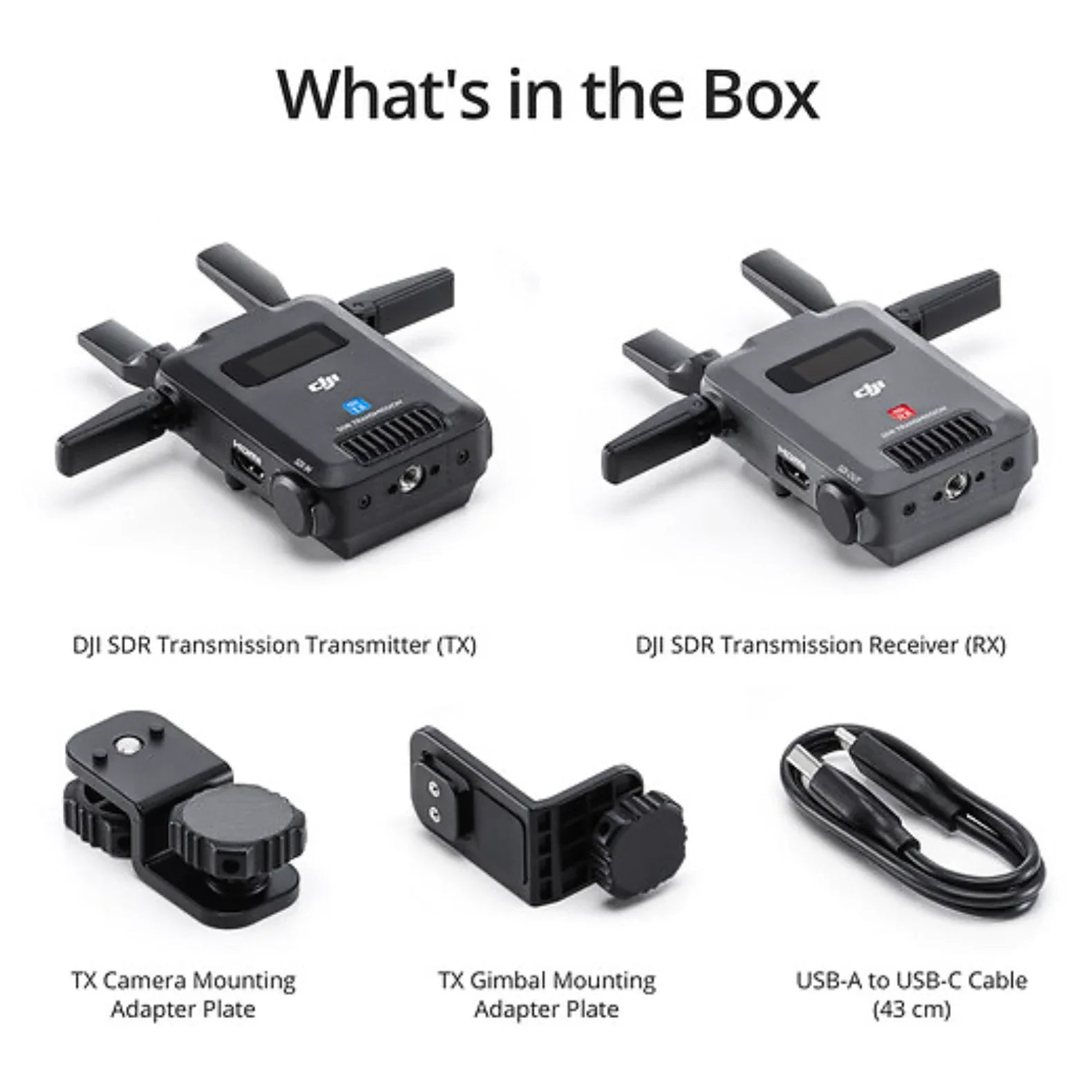

- SDR Transmission Transmitter (TX)
- SDR Transmission Receiver (RX)
- USB-A to USB-C Cable (43cm)
- TX Camera Mounting Adapter Plate
- TX Gimbal Mounting Adapter Plate
- DJI 1 Year Limited Warranty
DJI SDR Transmission Transmitter
Inputs / Outputs
| Antenna I/O | No |
| Video I/O | 1x HDMI (Unspecified Signal) Input 1x BNC (Unspecified SDI) Input |
| Embedded Audio | HDMI/SDI/USB/Wireless |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Power I/O | 1x USB-C (2 A / 9 VDC) Input |
| Other I/O | 1x USB-C (Firmware) Input |
Wireless
| Wireless Range | 1.9 Miles / 3 km (Line-of-Sight) 656.2' / 200 m (Without Quality Loss) |
| Channel Bandwidth | 20 MHz |
| Frequency Range | Non-DFS Frequencies 2.4 to 2.4835 GHz 5.725 to 5.85 GHz DFS Frequencies 5.47 to 5.725 GHz |
| Latency | 35 ms |
| RF Power | 30 dBm |
| Wi-Fi | Wi-Fi 6 (802.11ax); Tri-Band (2.4 & 5 + 5 GHz) with MU-MIMO Support (2 x 2) |
| Bluetooth | No |
| Mobile App Compatible | Yes: Android & iOS |
| Cellular Support | No |
Format Support
| Video Format | HDMI/SDI/USB 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Audio Format | PCM Audio |
| Wireless Video Compression | Compressed |
| Timecode Support | No |
Power
| Input Power | 6.8 to 17.2 VDC 9 VDC at 2 A |
| Battery Type | 1x L-Series |
| Power Consumption | 8.2 W |
Mounting
| Mounting | 1x 1/4"-20 Female (Bottom) |
Environmental
| Certifications | No |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
General
| Material of Construction | Plastic |
| Dimensions | 3.4 x 2.5 x 1.3" / 86.5 x 64 x 32 mm (Excluding Antenna) |
| Weight | 5.1 oz / 145 g, Including Antenna |
DJI SDR Transmission Receiver
Inputs / Outputs
| Video I/O | 1x HDMI (Unspecified Signal) Output 1x BNC (3G-SDI) Output 1x USB-C (Unspecified Signal) Output |
| Embedded Audio | HDMI/SDI/USB/Wireless |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Power I/O | 1x USB-C (2 A / 9 VDC) Input |
| Other I/O | 1x USB-C (Firmware) Input |
| Media/Memory Card Slot | Not Specified by Manufacturer |
Wireless
| Wireless Range | 1.9 Miles / 3 km (Line-of-Sight) 656.2' / 200 m (Without Quality Loss) |
| Channel Bandwidth | 20 MHz |
| Frequency Range | Non-DFS Frequencies 2.4 to 2.4835 GHz 5.725 to 5.85 GHz DFS Frequencies 5.47 to 5.725 GHz |
| Latency | 35 ms |
| RF Power | 30 dBm |
| Wi-Fi | Wi-Fi 6 (802.11ax); Tri-Band (2.4 & 5 + 5 GHz) with MU-MIMO Support (2 x 2) |
| Bluetooth | No |
| Mobile App Compatible | Yes: Android & iOS |
| Cellular Support | No |
Format Support
| Video Format | HDMI/SDI/USB 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Audio Format | PCM Audio |
| Wireless Video Compression | Compressed |
| Timecode Support | No |
Power
| Input Power | 6.8 to 17.2 VDC 9 VDC at 2 A |
| Battery Type | 1x L-Series |
| Power Consumption | 8.3 W |
Mounting
| Mounting | 1x 1/4"-20 Female (Bottom) |
Environmental
| Certifications | No |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
General
| Material of Construction | Plastic |
| Dimensions | 3.4 x 2.5 x 1.3" / 86.5 x 64 x 32 mm (Excluding Antenna) |
| Weight | 5.1 oz / 145 g, Including Antenna |
- SDR Transmission Transmitter (TX)
- SDR Transmission Receiver (RX)
- USB-A to USB-C Cable (43cm)
- TX Camera Mounting Adapter Plate
- TX Gimbal Mounting Adapter Plate
- DJI 1 Year Limited Warranty
