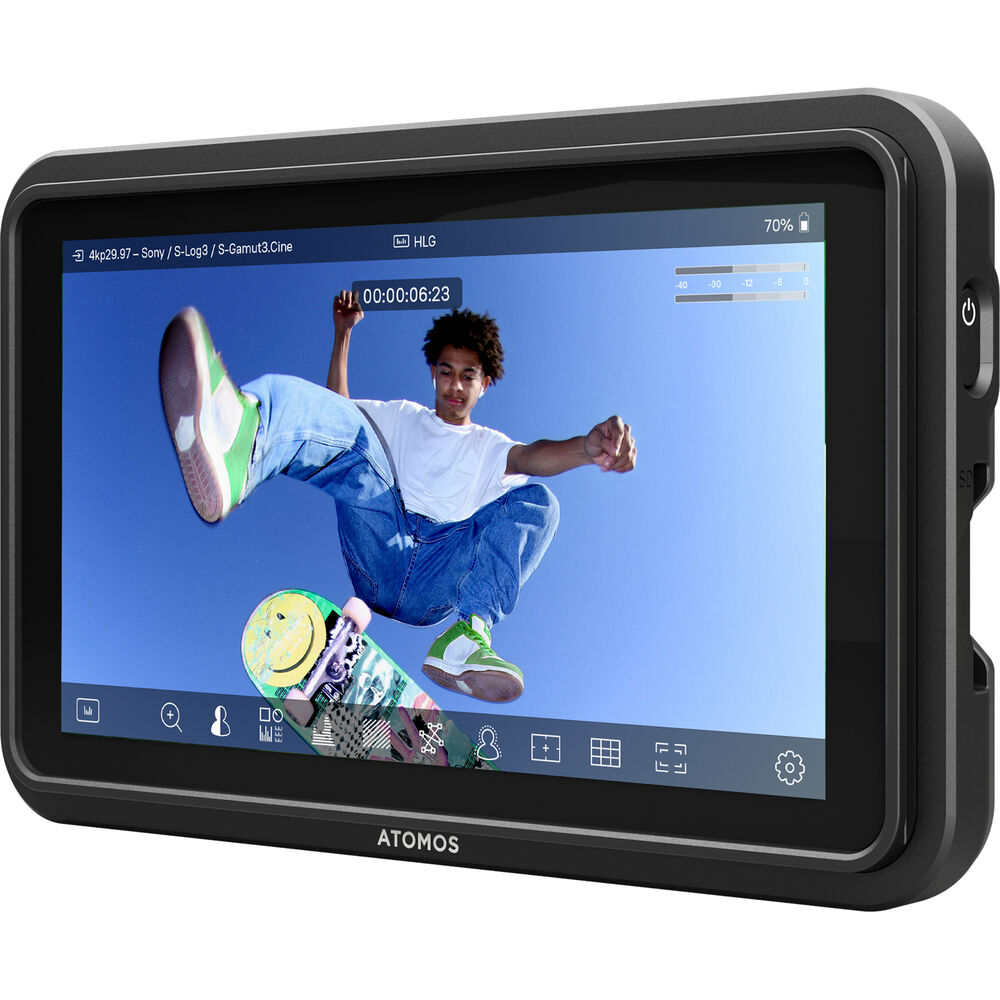

Add a bright, budget-friendly on-camera monitor to your compact camera kit with the Shinobi GO 5" Touchscreen HDR Video/Photo Monitor from Atomos. The monitor features a 5" IPS display, 1920 x 1080 resolution, edge-lit backlight, 3D LUT support, and 1500 cd/m² brightness. Its HDMI 1.4 input supports input up to UHD 4K, and there are numerous built-in image tools.
The Shinobi GO includes the latest Atomos AtomOS, which introduces numerous tools and features with a more logical layout and easy-to-navigate interface.
Use the Shinobi GO interface, which includes features such as false color, waveforms, zebras, or histogram, to achieve perfect exposure on every shot.
The 5" touchscreen display measures 1500 cd/m² peak brightness, making it easily readable whether you're shooting indoors or in bright sunlight.
It features a special antireflective coating and anti-fingerprint technology.
The Shinobi GO features an HDMI 1.4 input that allows you to monitor signals in various resolutions and frame rates up to UHD 4K30 and up to 1080p60.
You can view 10+ stops of dynamic range from Log/PQ/HLG signals. Shinobi's HDR monitoring features help you simplify the complexities of shooting Log and HDR because it is possible to replicate post-production workflows when it matters the most—while you are shooting.
A variety of built-in cinema-style and social media-focused frame guides help compose your shots, including presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9, 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, and 3:2.
The monitor has been designed with a slim form factor, and there are added locating holes alongside the 1/4"-20 threads for anti-twist mounting. A single L-series battery plate on the back has been placed in the center to improve balancing and maneuverability.
There are multiple methods to power the Shinobi GO, including an L-series/NP-F style battery or via an optional USB-C PD charger. You can also charge/power your camera via USB-C PD 13W output while using Shinobi GO's camera control features.
The Shinobi GO can be calibrated by remote software on a Windows or macOS computer using the LANC Remote jack on the side of the monitor. Install the Atomos Calibrator software on PC/Mac with Calibrite ColorChecker Display Pro and ColorChecker Display Plus+ features.
The included HDMI/USB-C locking adapter allows you to use Atomos' new line of locking cables to prevent disconnecting or pulling. The included mount allows you to swivel and tilt the monitor.
| Panel Type | IPS-Type LCD |
| Display Size | 5.2" / 13.2 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | Yes |
| Maximum Brightness | 1500 nits / cd/m2 |
| Color Support | 1.07 Billion Colors (8-Bit+FRC) |
| HDR Support | Yes, Hybrid Log Gamma |
| Color Gamut | 100% Rec. 709 |
| LUT Support | Yes |
| Image Controls | Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
| Video I/O | 1x HDMI 1.4 Input |
| Embedded Audio | HDMI: 2-Channel |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x USB-C (16.8 VDC) Input/Output |
| Other I/O | 1x 2.5 mm (Calibration) Input/Output |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-I) [LUT/Firmware Update Only] |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Video Format | HDMI (8/10-Bit 4:2:2) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/29.97/25/24/23.98 1080i: 60/50 720p: 60/59.94/50 |
| Gamma Curve | Canon Log, Canon Log 2, Canon Log 3, FUJIFILM F-Log, FUJIFILM F-Log 2, HDR-HLG, HDR-PQ, JVC J-Log, Nikon N-Log, Panasonic V-Gamut, Panasonic V-Log, Rec709, Rec2020, Sony S-Log, Sony S-Log 2, Sony S-Log 3, V-Log |
| Input Power | 6 to 16.8 VDC |
| Battery | 1x L-Series Mount on Fixed Plate |
| Tripod/Accessory Mounting | Bottom 1x 1/4"-20 Female |
| Environmental Resistance | No |
| Operating Conditions | Up to 104°F / 40.0°C |
| Dimensions | 5.9 x 3.6 x 0.8" / 151 x 91.5 x 20.8 mm |
| Weight | 7.4 oz / 210.00 g |
Atomos Shinobi GO 5" Touchscreen HDR Video/Photo Monitor
