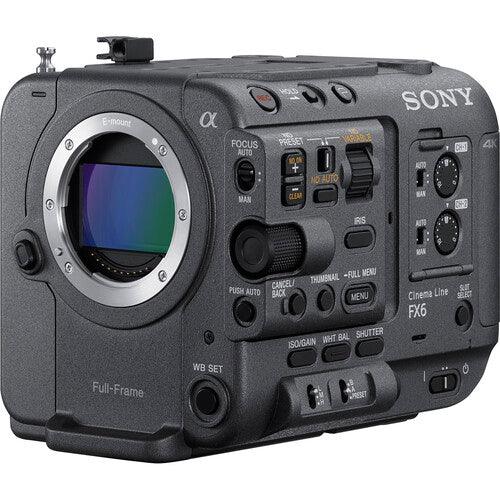

The FX6 Full-Frame Camera from Sony was developed to offer versatile, cine-style imaging in a truly compact form. With the ability to capture up to 15+ stops of dynamic range, Sony's S-Cinetone gamma for filmlike skin tones, and up to 10-bit, 4:2:2 XAVC-I recording, the FX6 is poised to both supplement your FX9 or VENICE capture and to nimbly take on documentary, gimbal, and drone shoots on its own. The FX6 camera combines a 4K full-frame Exmor R sensor with a BIONX XR engine for extremely sensitive capture in a range of settings using a base ISO of 800 as well as an ISO 12800 high-sensitivity mode for nuanced low-light scenes.
Weighing just under 2 lb, the FX6 body is a full 2 lb lighter than the FX9 and measuring 6 x 4.6", it packs a full-frame sensor into a body comparable to the S35-sensor Sony FS5. While the FX6 fits seamlessly into a pro-cine on-set workflow, it also offers several features that are a boon for a single-operator user. These include fast and accurate phase-detection autofocus with both Face Detection and real-time Eye autofocus, both auto and manual ND filter settings for quick exposure compensation, and a 3.5" LCD monitor that boasts timesaving touchscreen access to key menu settings and versatile positioning for comfortable operating.
As part of Sony's Cinema Line, the FX6 shares key imaging features with established cameras like the VENICE and FX9. Common core attributes include a full-frame sensor, filmlike color science, a compact, lightweight form, professional connector interfaces, and advanced autofocus choices.
Compared to the FX9, the FX6 differs in several specs; but many FX6 specs tick the same boxes and several improve upon the FX9:
The FX6's 10.2 MP image sensor features backside illumination for excellent low-light performance, 627 focal plane points for speedy phase-detection autofocus, and full-frame lens compatibility that produces a rich, immersive look. The sensor's fast scan speed minimizes rolling shutter artifacts and supports high frame rates and quick autofocus responses.
The Exmor R sensor also enables the FX6 to capture a whopping 15+ stops of dynamic range in Cine EI mode with S-Log3, creating nuanced, high-resolution images.
Choose from a base ISO of 800, a high-sensitivity 12,800 ISO for lower-light capture, and a 409,600 maximum ISO for true low-light settings.

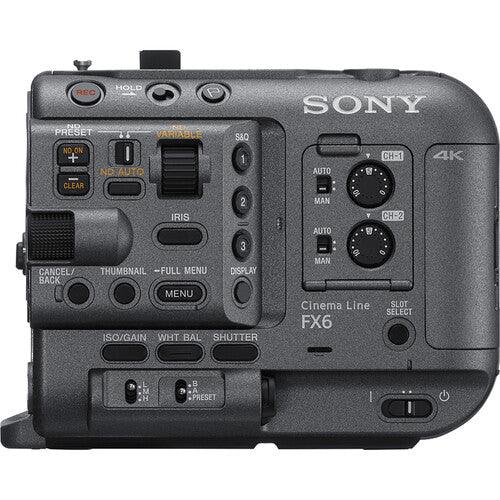

Set the FX6's integrated neutral density (ND) filter system to auto for correctly exposed shots even in changing light conditions, or smoothly adjust the ND filter density manually in increments from 1/4 to 1/128 as you shoot; both options will produce properly exposed images without affecting your chosen depth of field.
The FX6 is the first compact, full-frame camera to offer UHD 4K 4:2:2 capture in the high-quality yet efficient XAVC-I codec. It also enables you to choose from a range of professional XAVC Intra and XAVC Long codecs at bit rates ranging from 35 to 600 Mb/s.
For slow-motion and fast action looks, choose from full-frame rates ranging from:
Sony's S-Cinetone gamma curve offers a cinematic look with filmlike color, softer tones, and pleasing skin tone reproduction. Not only is this cinematic look available for in-camera viewing, but it can also be captured and output with minimal or no grading at all for a time-saving post process. The S-Cinetone, S-Log3, S-Gamut3, and S-Gamut3.Cine choices also streamline the process of matching FX6 footage with your VENICE or FX9 video and offer broad color-grading options.
Compatible with 50+ native Sony E-mount lenses, the FX6's improved autofocus choices include Face Detection and Eye Autofocus modes for rapid focusing with extremely sharp accuracy, even in lower-light settings. The phase detection autofocus accomplishes this accuracy using seven transition-speed steps and five subject-sensitivity.
Pair the FX6 with Sony's Catalyst Prepare/Browse software to use metadata to stabilize your image, automatically rotate gimbal footage, and add flags for easier clip filtering in post-production.

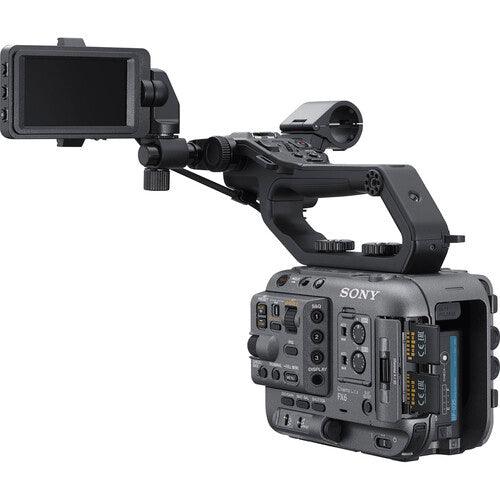

The FX6's 3.5" LCD monitor offers both high-resolution viewing and the ease of touchscreen camera control. The LCD quick menu controls include key settings like Codec, Imager Scan Mode, Picture Size and Frequency, Base ISO/Sensitivity, Shooting Mode, and Audio Levels.
Constructed with a lightweight yet durable magnesium alloy chassis, the FX6 body offers maximum reliability and efficiently disperses heat to enable extended recording times. Exterior seams, buttons, and interfaces have been treated with updated sealing that improves the camera's dust and moisture resistance as well.
The FX6 offers up to 4-channel audio recording by combining sources from the dual XLR inputs, the 2-channel multi-interface shoe input, and the stereo mic built into the camera's top handle. This enables the simultaneous use of an external microphone for recording your main audio source and the built-in microphone for ambient sound and/or voice memos by the operator.

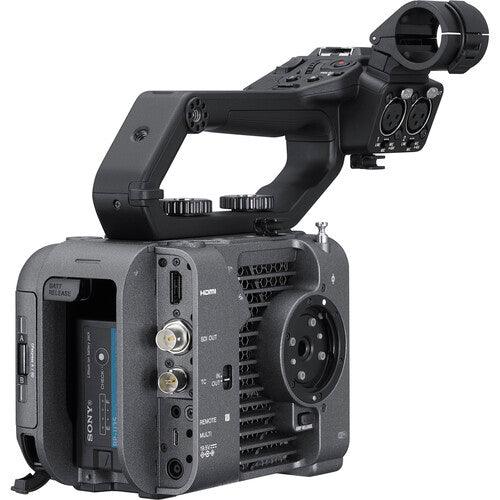

FX6 input and output ports include a selectable 12G/6G/3G-SDI output for flexible monitoring, 12-bit raw output via SDI, and an HDMI output. It also has timecode input and output for syncing multiple cameras and a built-in Wi-Fi module.
The FX6's dual media slots accept both rugged, high-performance, high-capacity CFexpress Type A cards and widely available UHS-II/UHS-1 SDXC cards. Note that the CFexpress Type A cards are required for 100/120 fps UHD 4K capture and 150/180/200/240 fps HD high-speed capture.

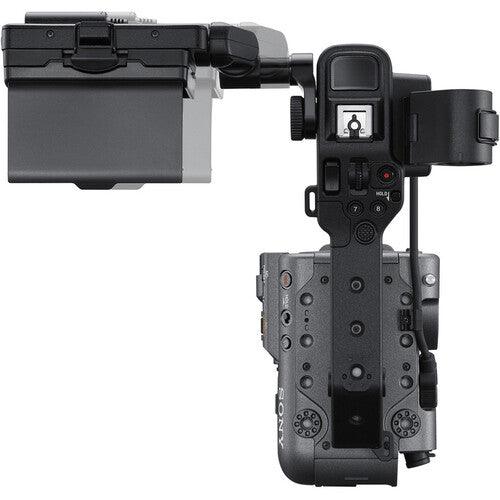

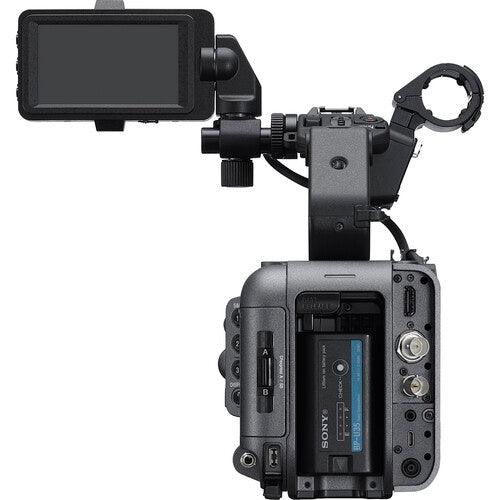

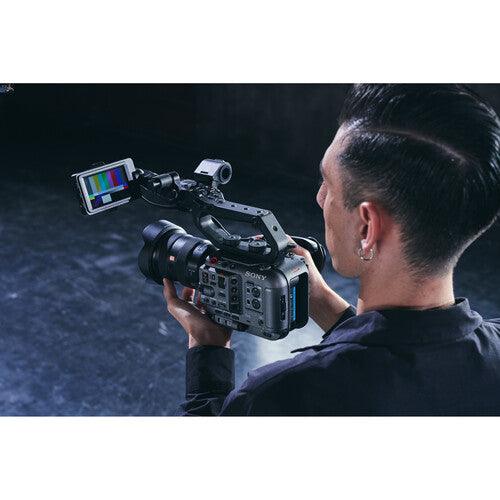

The modular design of the FX6 enables you to pare down to its compact body for gimbal or drone use, or it can be used with separately available accessories such as a smart grip and smart handle for fingertip control when shooting handheld. A 3.5" LCD screen can be quickly positioned on the camera at multiple locations to provide comfortable, ergonomic viewing.
When used with the separately available Content Browser Mobile app and a compatible smartphone or remote control, the FX6's Wi-Fi function enables remote monitoring and focus/iris/zoom control.
| Image Sensor | |
|---|---|
| Image Sensor Size | Full-Frame |
| Sensor Type | CMOS |
| Sensor Resolution | Actual: 12.9 MPEffective: 10.2 MP |
| Color Filter | Bayer |
| Shutter Type | Rolling Shutter |
| ISO | 800 (Native) 12,800 (Expanded) 320 to 409,600 (Expanded) |
| Gain | -3 to 30 dB |
| Advertised Dynamic Range | 15 Stops | Camera |
| Lens Mount | Sony E-Mount |
| Lens Communication | Yes |
| Interchangeable Lens Mount | None |
| Shutter Speed | 1/1 to 1/8000 sec |
| Built-In ND Filter | 1/4 to 1/128 Stop Electronic ND Filter |
| Built-In Microphone Type | Stereo Mono |
| Media/Memory Card Slot | Dual Slot: CFexpress Type A / SD |
| Variable Frame Rates | DCI 4K: 1 to 60 fps UHD: 1 Up to 120 fps 1080p: 1 Up to 240 fps |
Internal Recording |
| Recording Modes | XAVC-I 4:2:2 10-Bit: 4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps (240 to 600 Mb/s) 3840 x 2160p at 23.98/25/29.97/50/59.94 fps (240 to 600 Mb/s) 1920 x 1980p at 23.98/25/29.97/50/59.94 fps (89 to 222 Mb/s) XAVC-L 4:2:0 8-Bit: 3840 x 2160p at 23.98/25/29.97/50/59.94 fps (100 to 150 Mb/s) XAVC-L 4:2:2 10-Bit: 1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 to 50 Mb/s) |
| Gamma Curve | HDR-HLG, S Cinetone, Sony S-Log, Sony S-Log 3 |
| Audio Recording | AVC-Intra: 2/4-Channel 24-Bit 48 kHz LPCM Audio AVC-Long: 2/4-Channel 24-Bit 48 kHz LPCM Audio |
| Still Image Support | Not Specified by Manufacturer | External Recording |
| Raw Output | SDI/BNC In Raw Mode: 4096 x 2160 16-Bit at 23.98/24/25/29.97/50/59.94 fps 3840 x 2160 16-Bit at 23.98/25/29.97/50/59.94 fps |
Interfaces |
| Video Connectors | 1 x BNC (12G-SDI) Output 1 x HDMI Output |
| Audio Connectors | 2 x 3-Pin XLR Mic/Line Level Input 1 x 1/8" / 3.5 mm Stereo Headphone Output |
| Other I/O | 1 x BNC Timecode Input/Output 1 x USB Type-C 1 x USB Micro-B 1 x 2.5 mm Control |
| Wireless Interfaces | 2.4 GHz, 5 GHz Wi-Fi | Display |
| Display Type | Included External Touchscreen LCD |
| Size | 3.5" |
| Resolution | 1280 x 720 (2,760,000 Dot) | EVF |
| EVF | Optional, Not Included | Power |
| Battery Type | Sony BP-U Series |
| Power Connectors | 1 x Barrel (19.5 VDC) Input |
| Power Consumption | 18 W | Environmental |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C | General |
| Dimensions | 6 x 4.6 x 4.5" / 153 x 116 x 114 mm (Without Protrusions) |
| Weight | 2 lb / 890 g |
