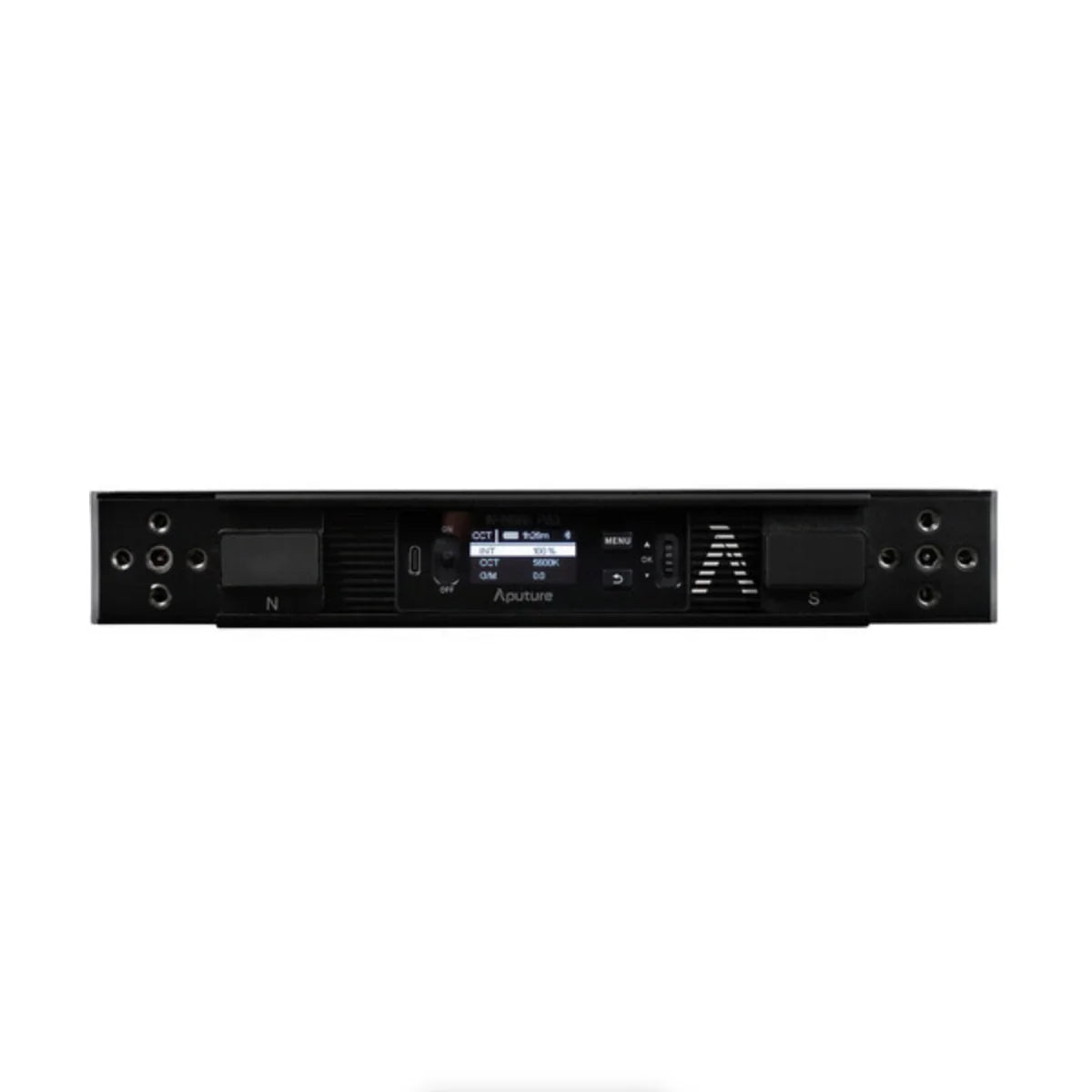

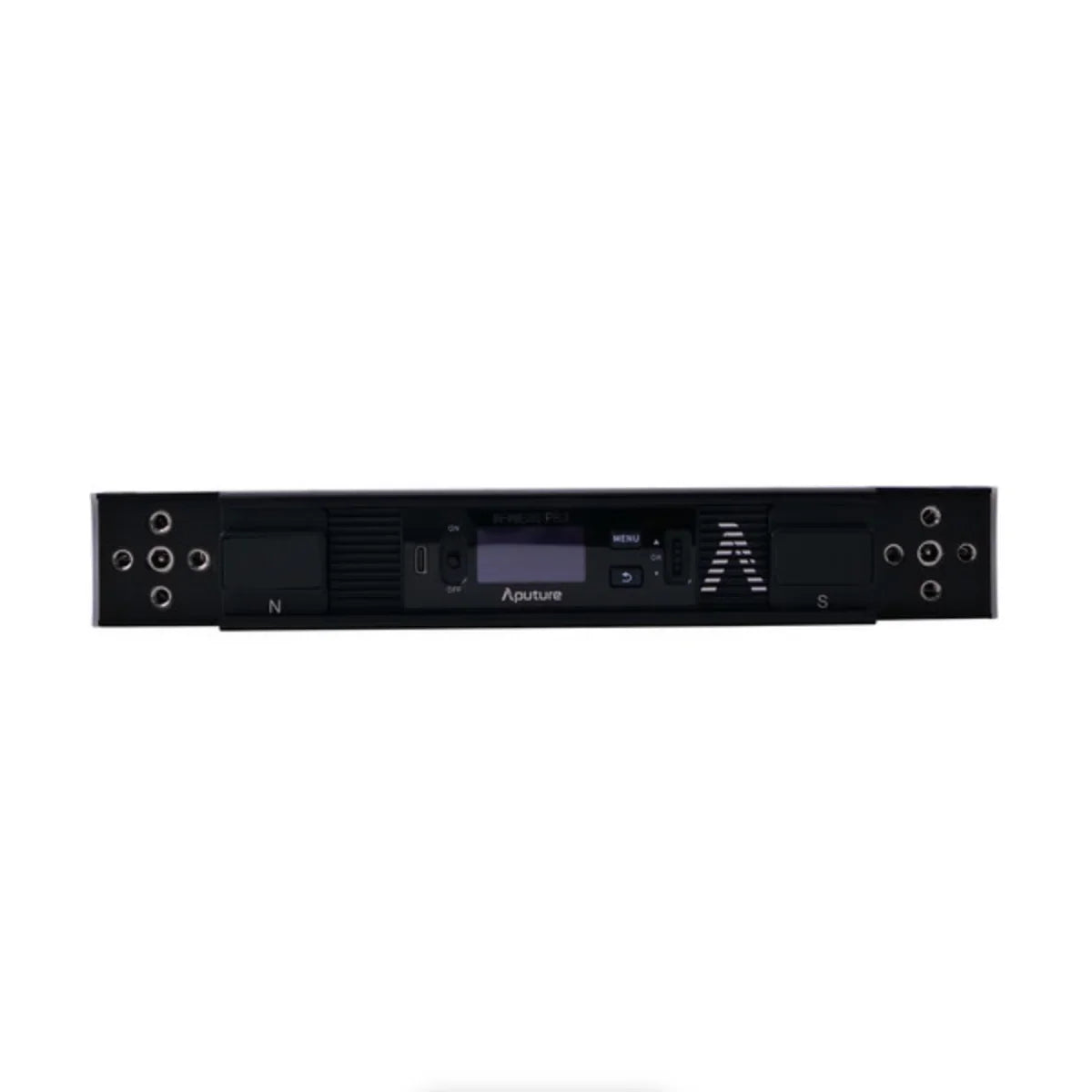

Aputure INFINIBAR PB3 RGB LED Light Panel (1')
- For Studio and Film/TV Production
- Output: 145 Lux at 3.3' (120º, 6500K)
- 2000 to 10,000K; RGB Color Control
- 12 x 1.8" Panel; AC/DC Operation
- CRI 96 | TLCI 98 | SSI 74 | TM-30 94
- DMX, CRMX, and Sidus Link App Control
- Passive Cooling
- 2 x 1/4-20" Threads, INFINIBAR Rail
- Clamp to Baby Pin Adapter

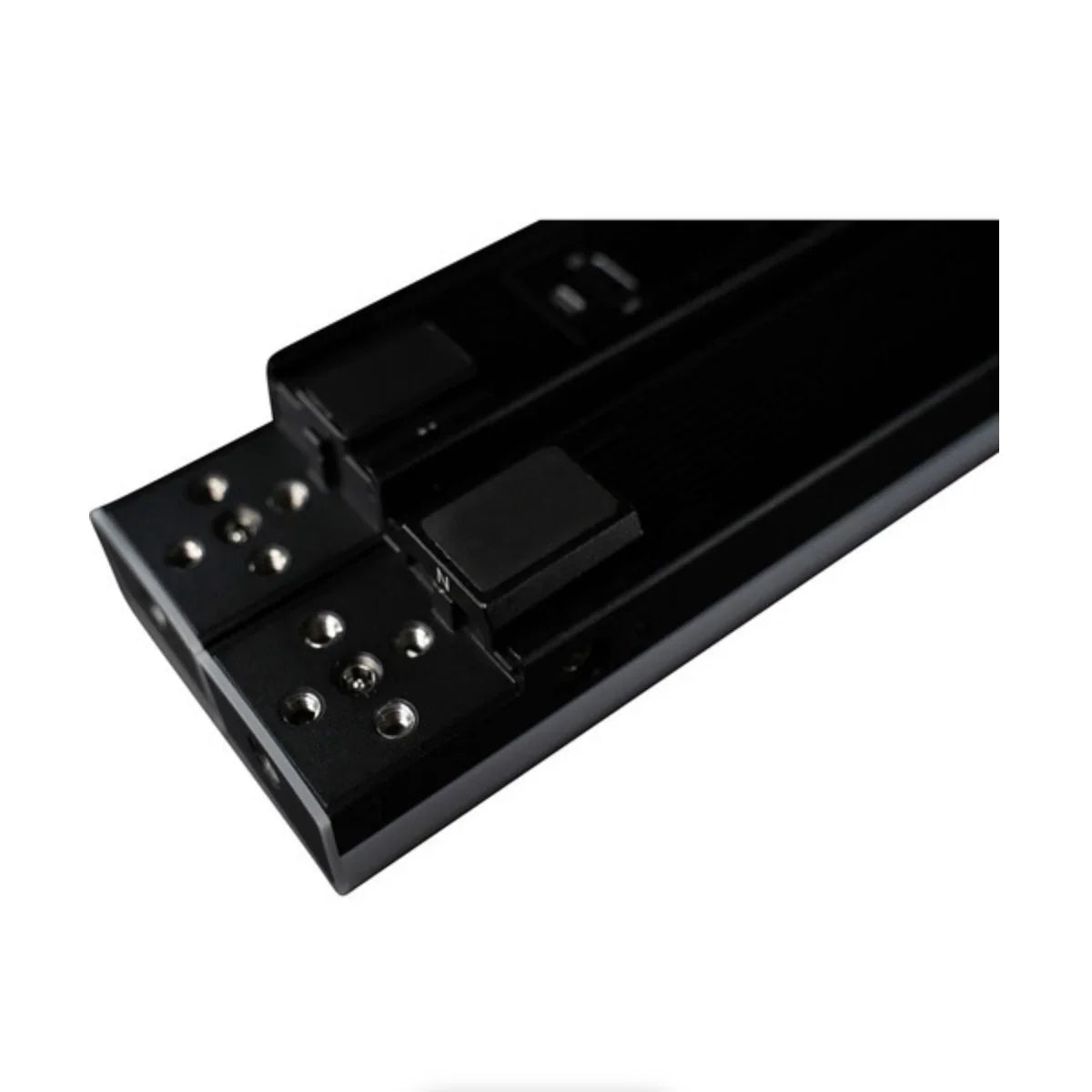

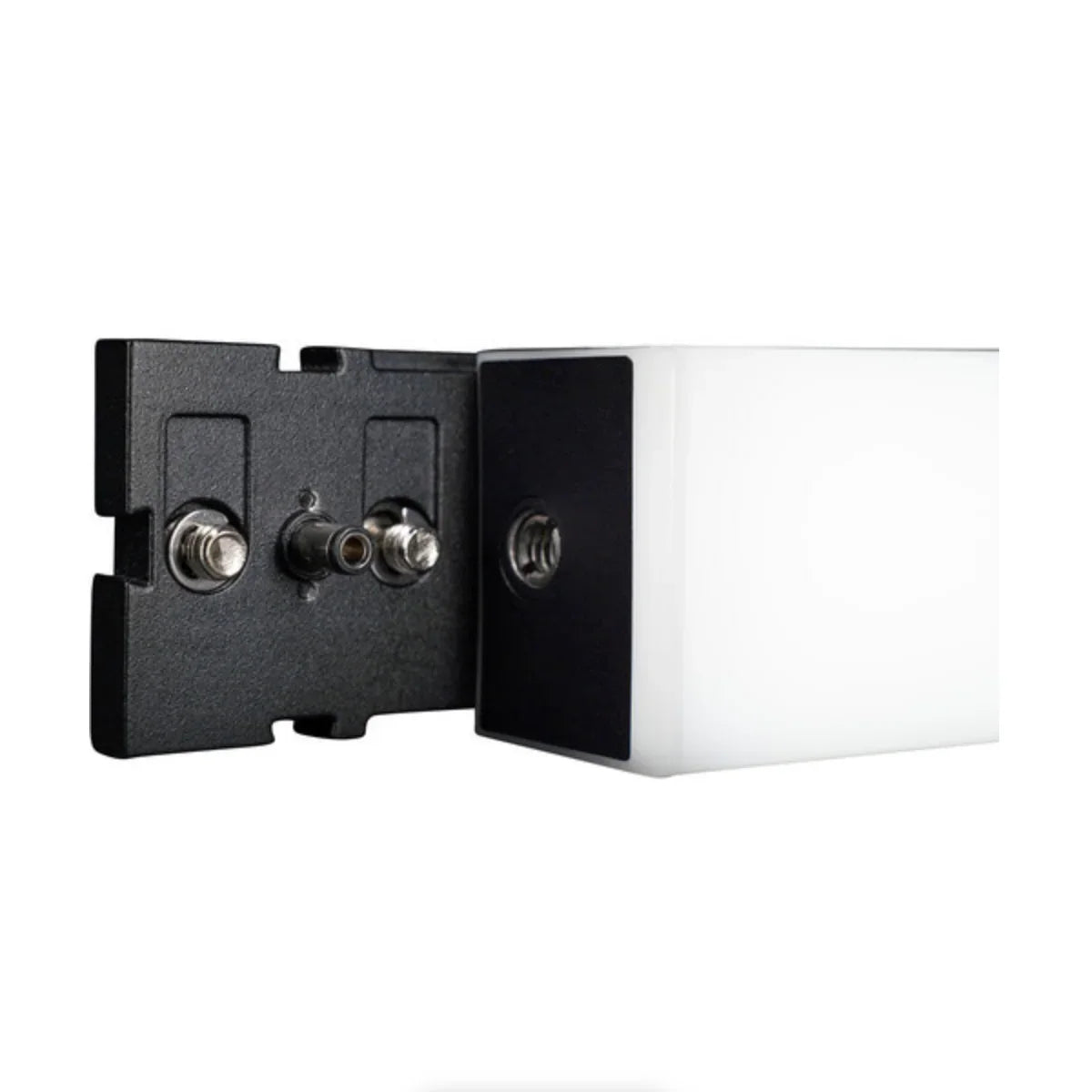

- Straight Connector Included
Aputure INFINIBAR PB3 RGB LED Light Panel (1')
Special Financing | Shoot Now - Pay Later!
Get the gear you want today and pay tomorrow with one of our special financing programs.
Aputure INFINIBAR PB3 RGB LED Light Panel (1')

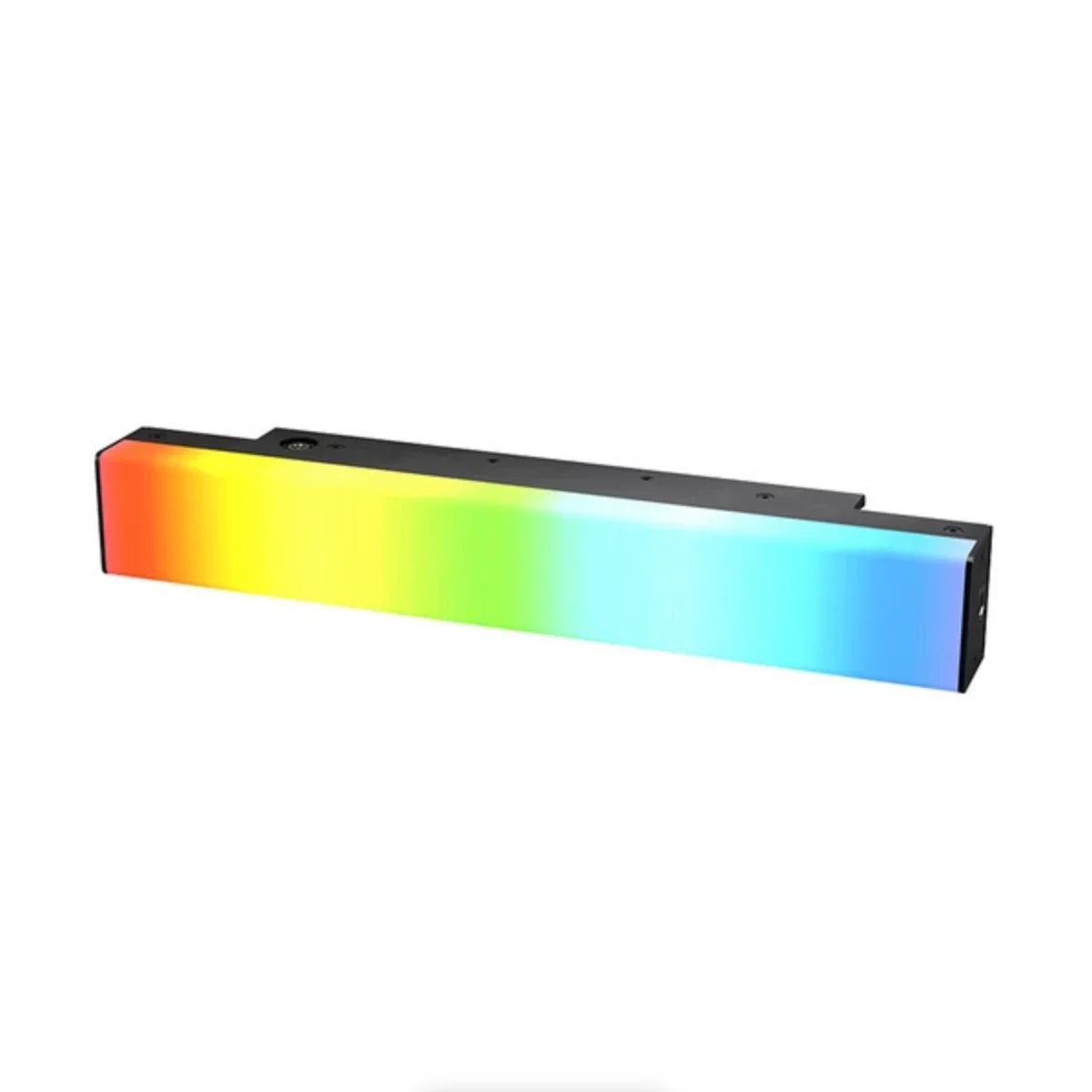

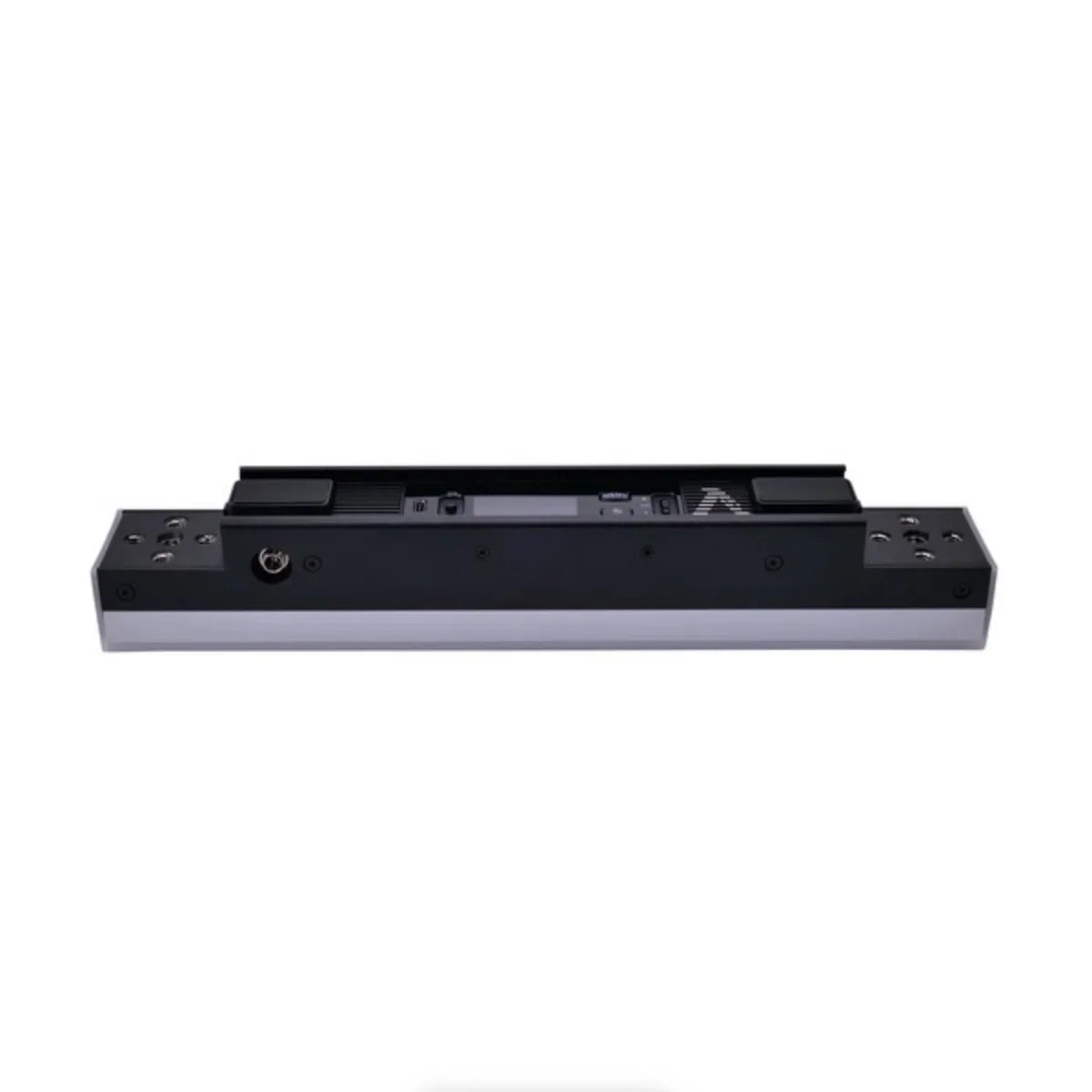

Versatile and precise, the 1' INFINIBAR PB3 RGB LED Light Panel from Aputure is a professional's choice for dynamic and colorful lighting designs. Featuring 24 pixels of CRI 96/TLCI 98 color quality throughout its multiple color modes, the INFINIBAR is designed to be a key light, built directly into sets, or used with its connector ecosystem to create new shapes and designs. The unit's proprietary RGBWW chipset produces color temperature light of 2000 to 10,000K with full green-magenta adjustment, and it has advanced hue, saturation, and intensity controls for a wide gamut of precise and accurate colors. Connect multiple INFINIBAR panels of any size with up to ten different connectors, available separately, then synchronize them via the Sidus Link app, LumenRadio CRMX, or through wired DMX with an optional USB-C to DMX adapter.

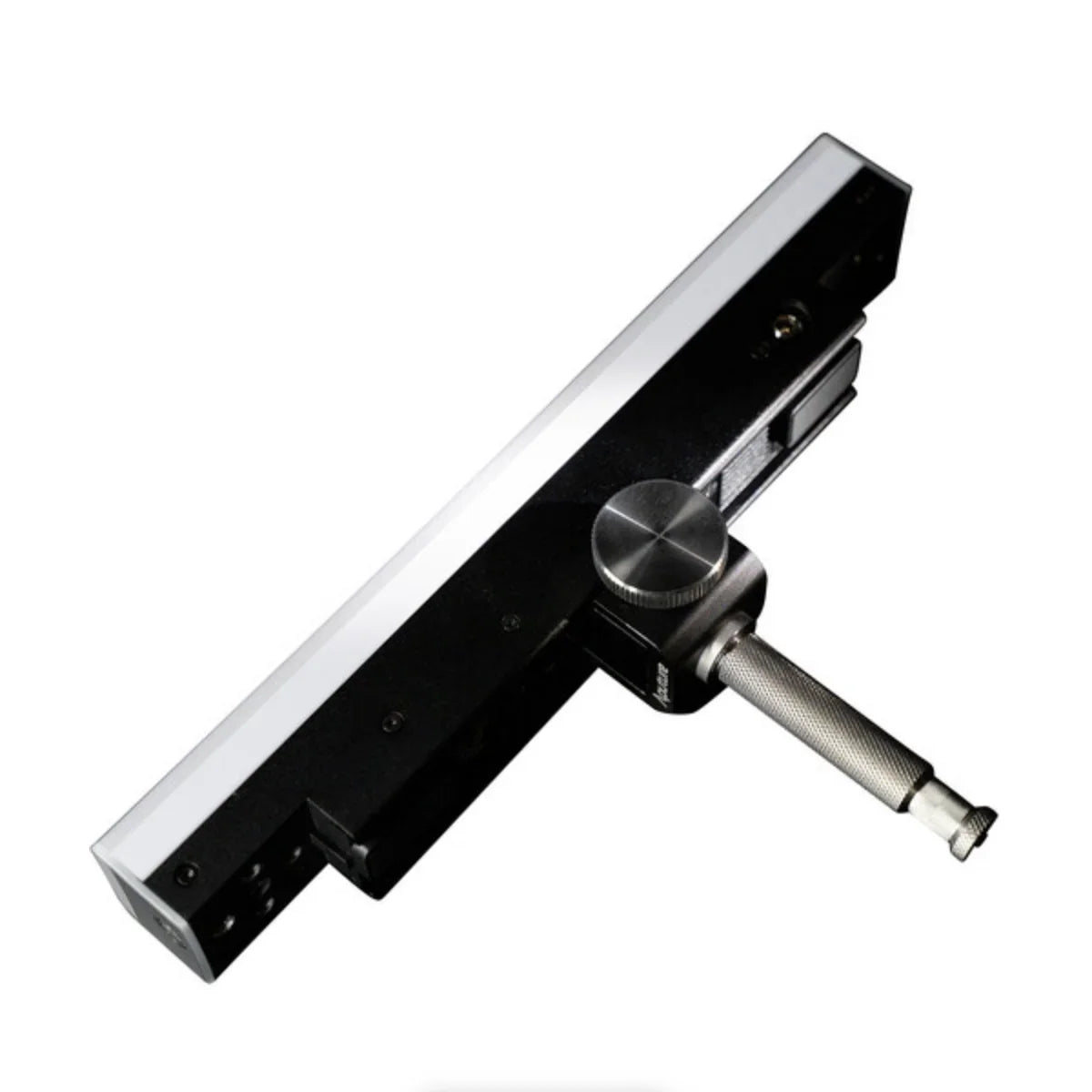

Lightweight at 1.3 lb, the INFINIBAR features a durable aluminum housing that's also mountable with the included Clamp to Baby Pin Adapter, two 1/4-20" female threads, and the Straight Connector for the INFINIBAR Rail system. The unit can be powered with a built-in lithium battery that can operate at 100% brightness for 120 minutes or via the included AC adapter. Alternately, multiple units can share one power supply when linked together with the power-sharing connectors.
Output
Color
Power
Connect and Control

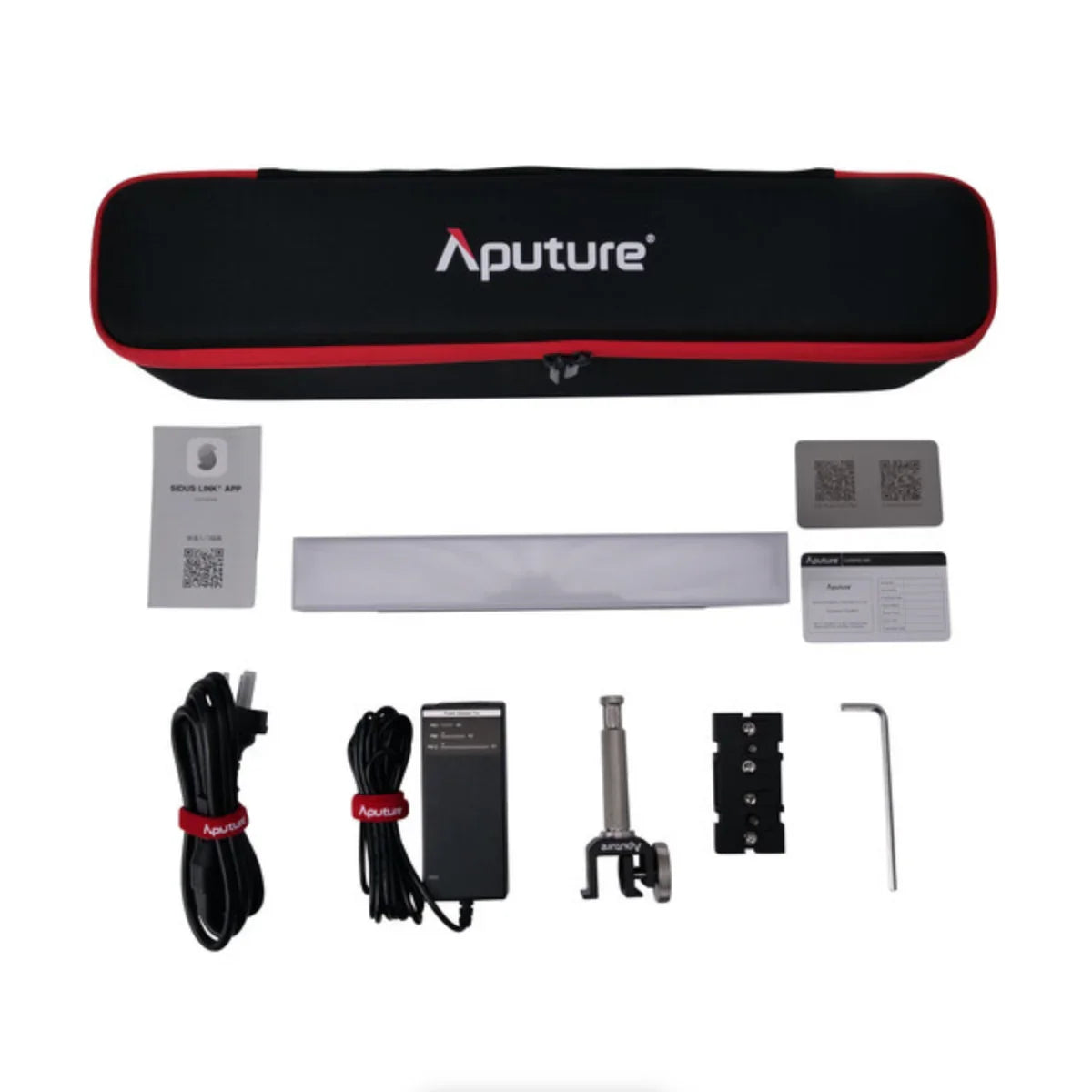

- Aputure INFINIBAR PB3 RGB LED Light Panel (1')

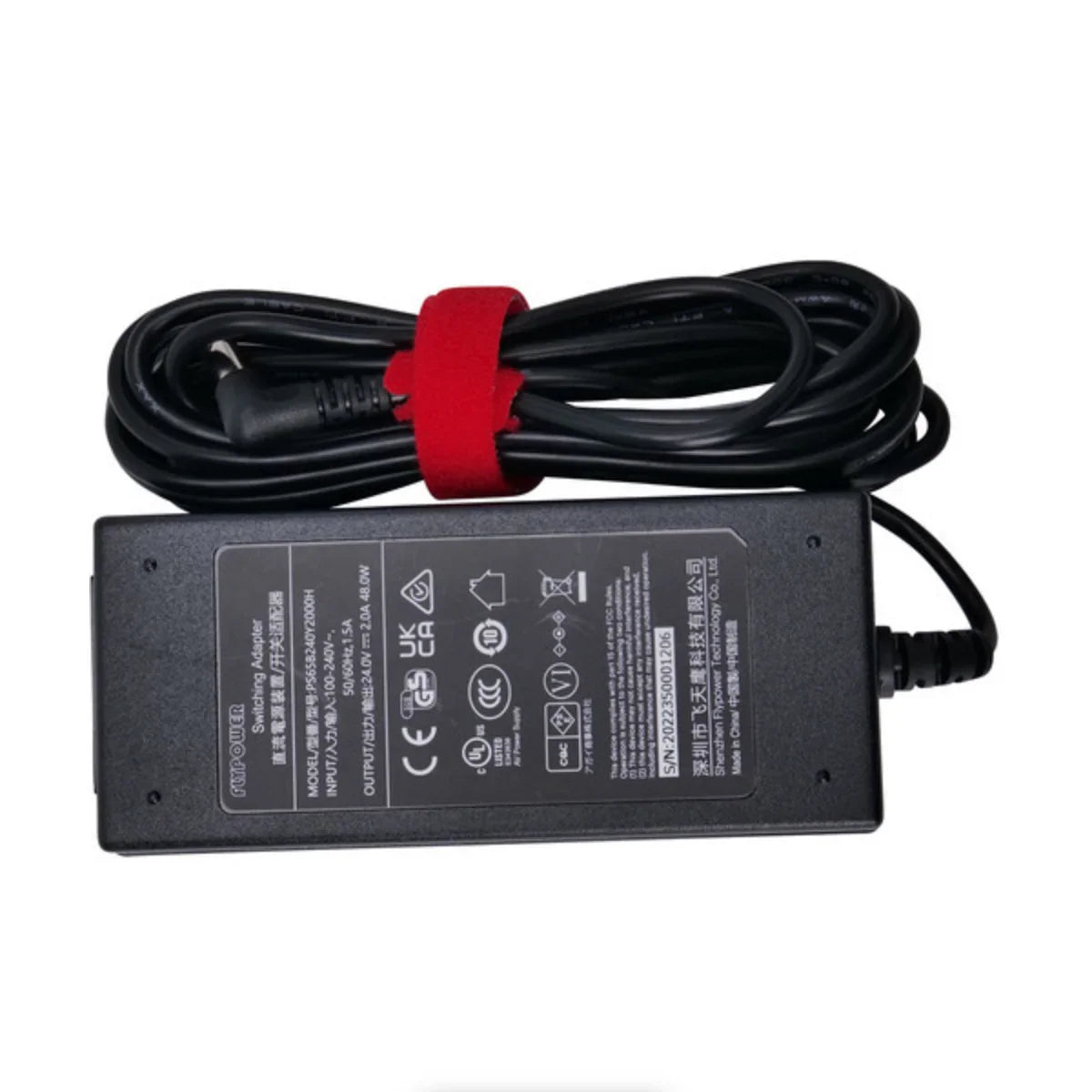

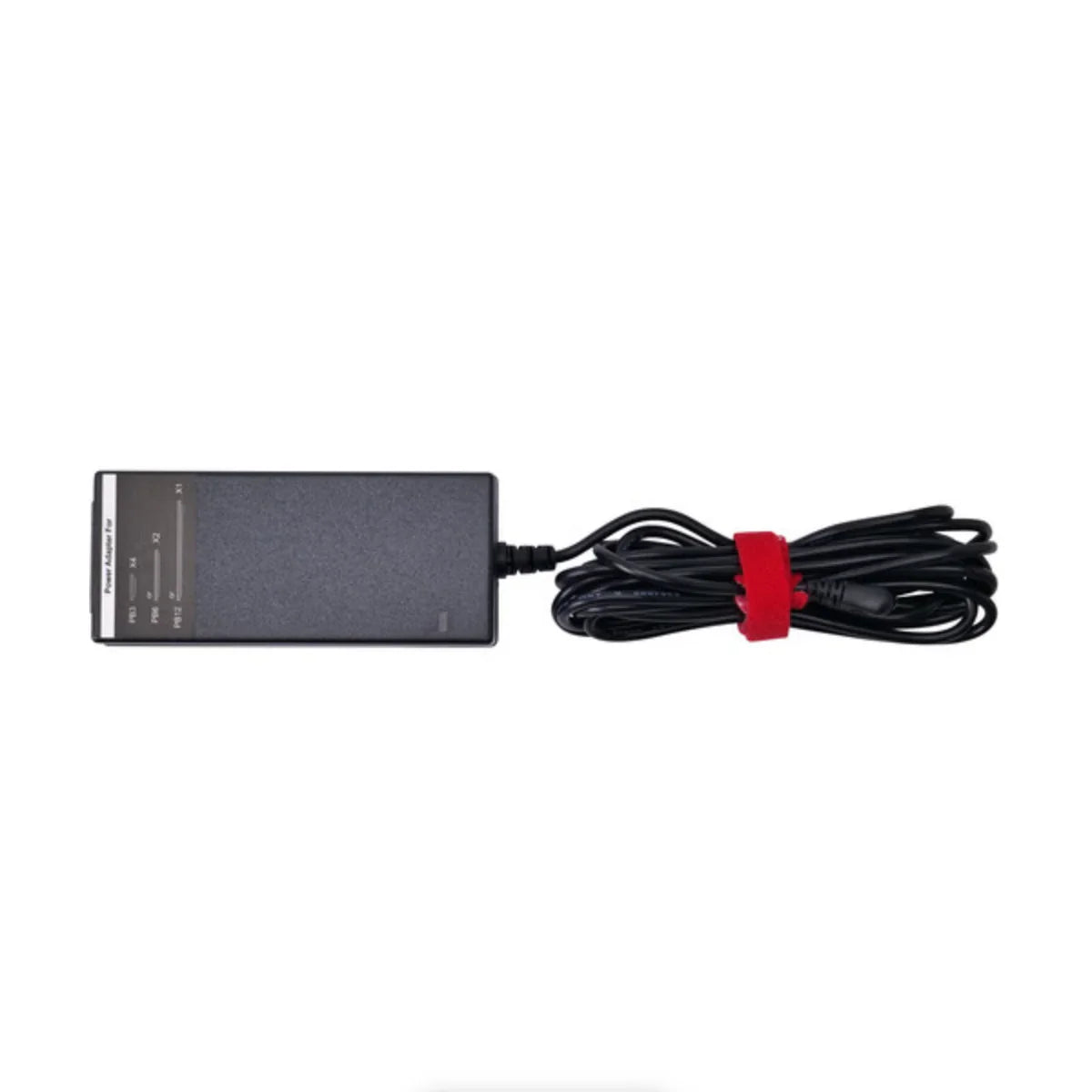

- DC Power Adapter (9.8')

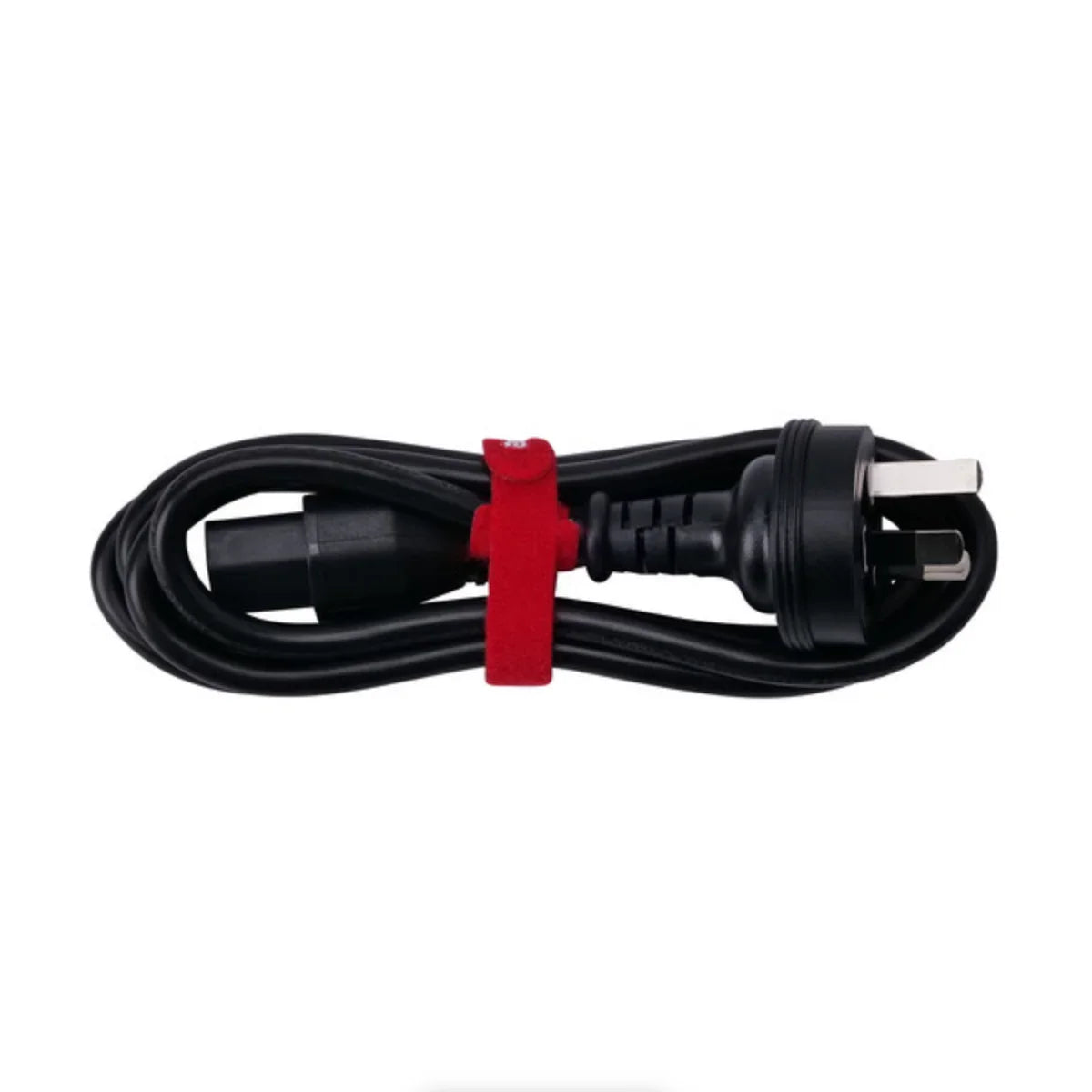

- AC Locking Power Cable (4.9')

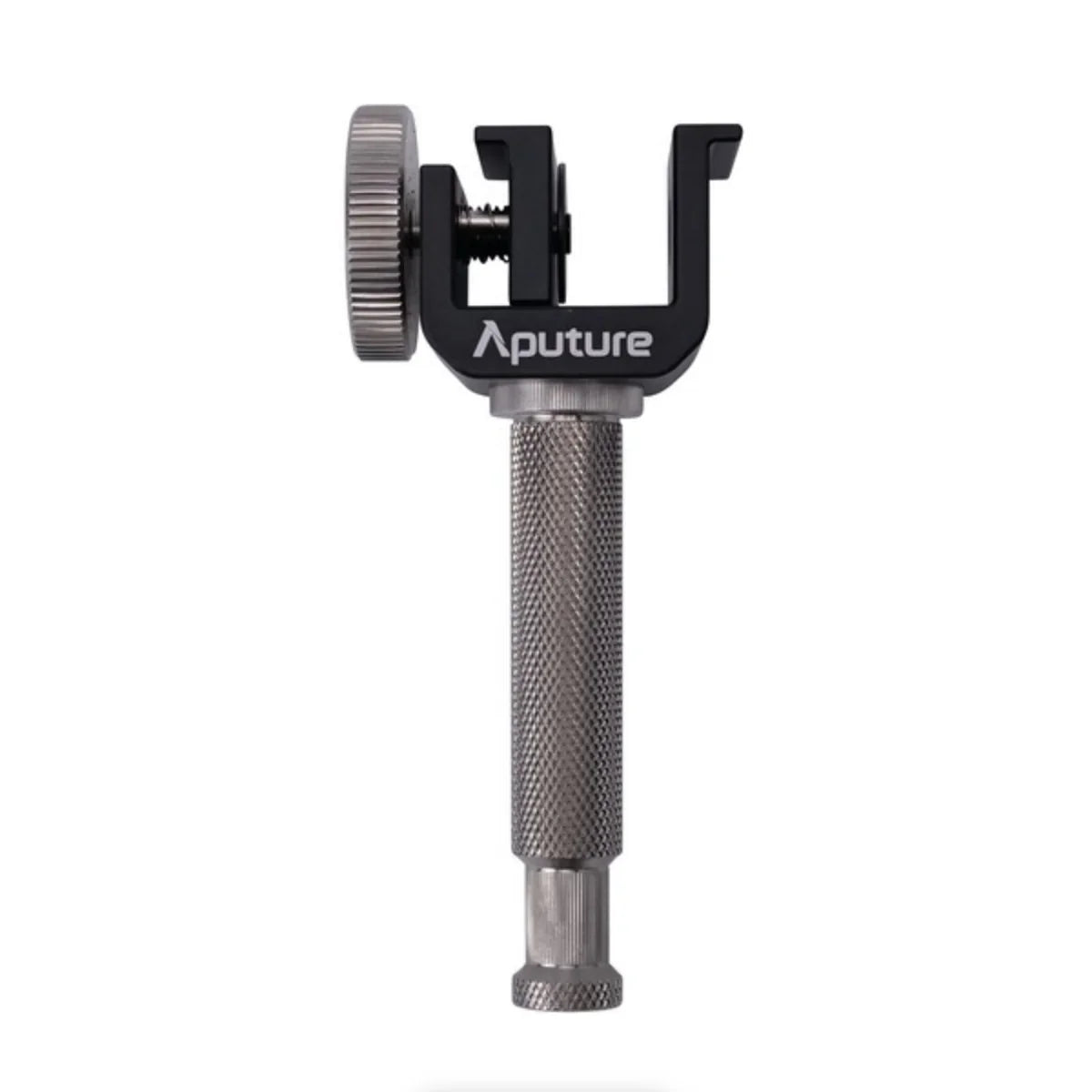

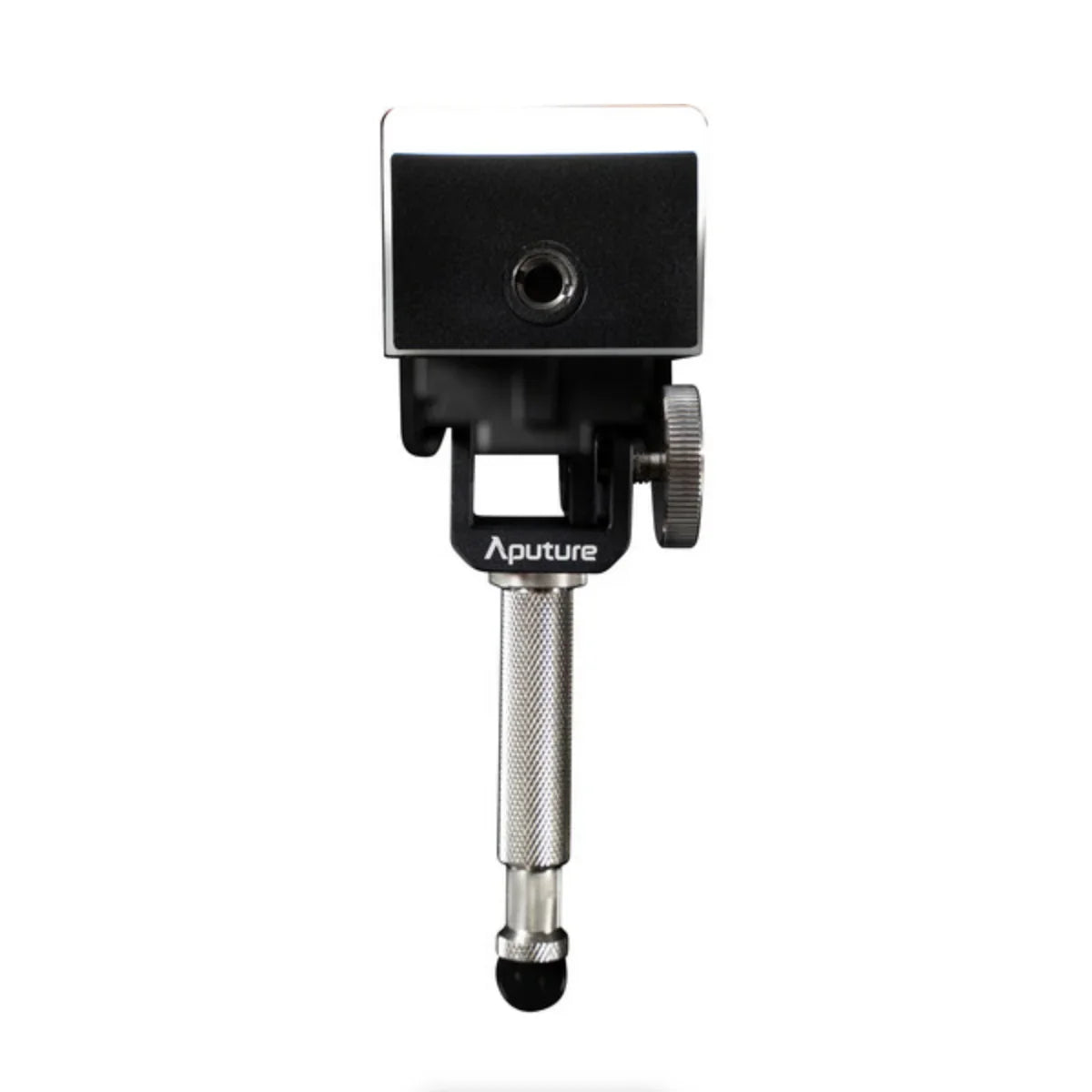

- Clamp to Baby Pin Adapter

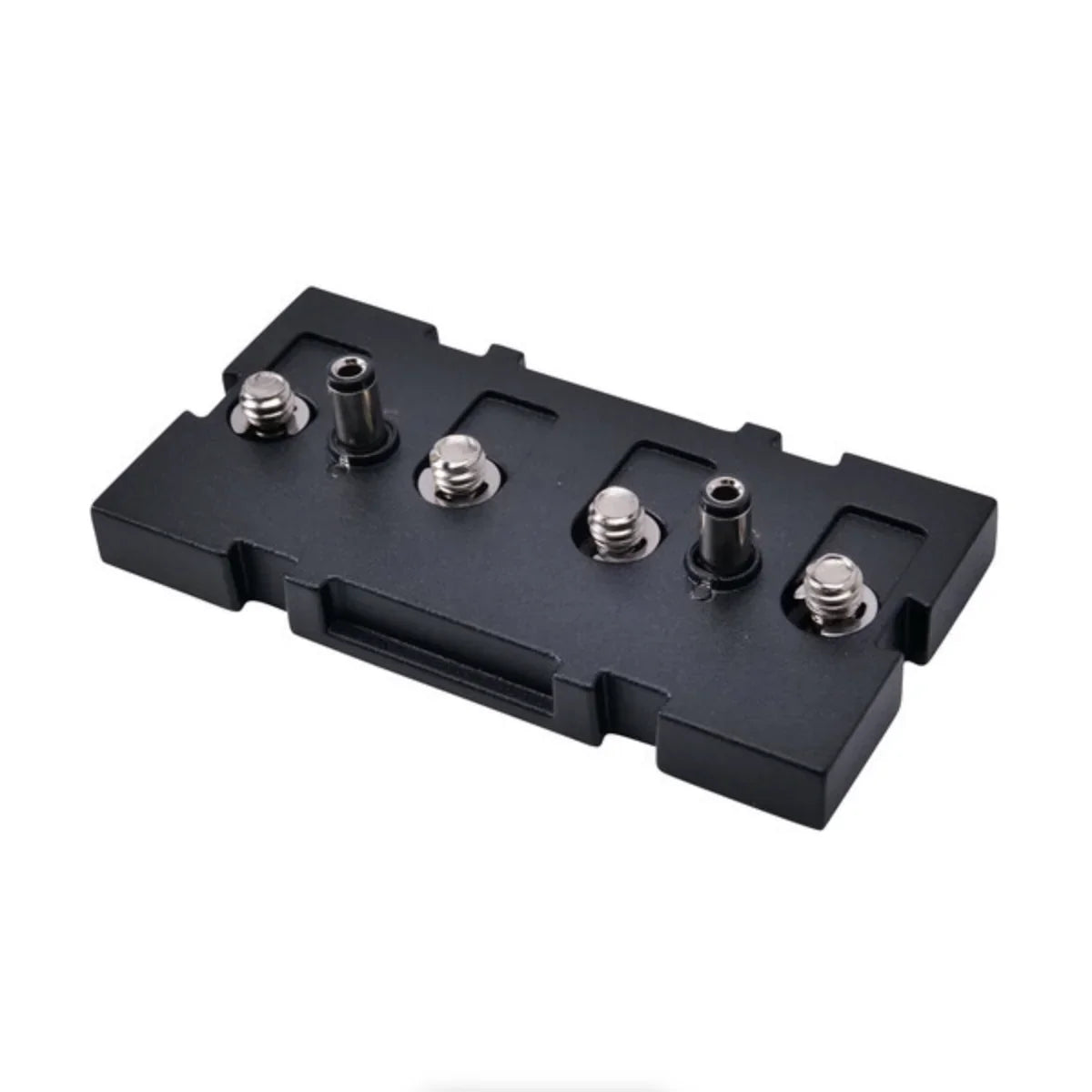

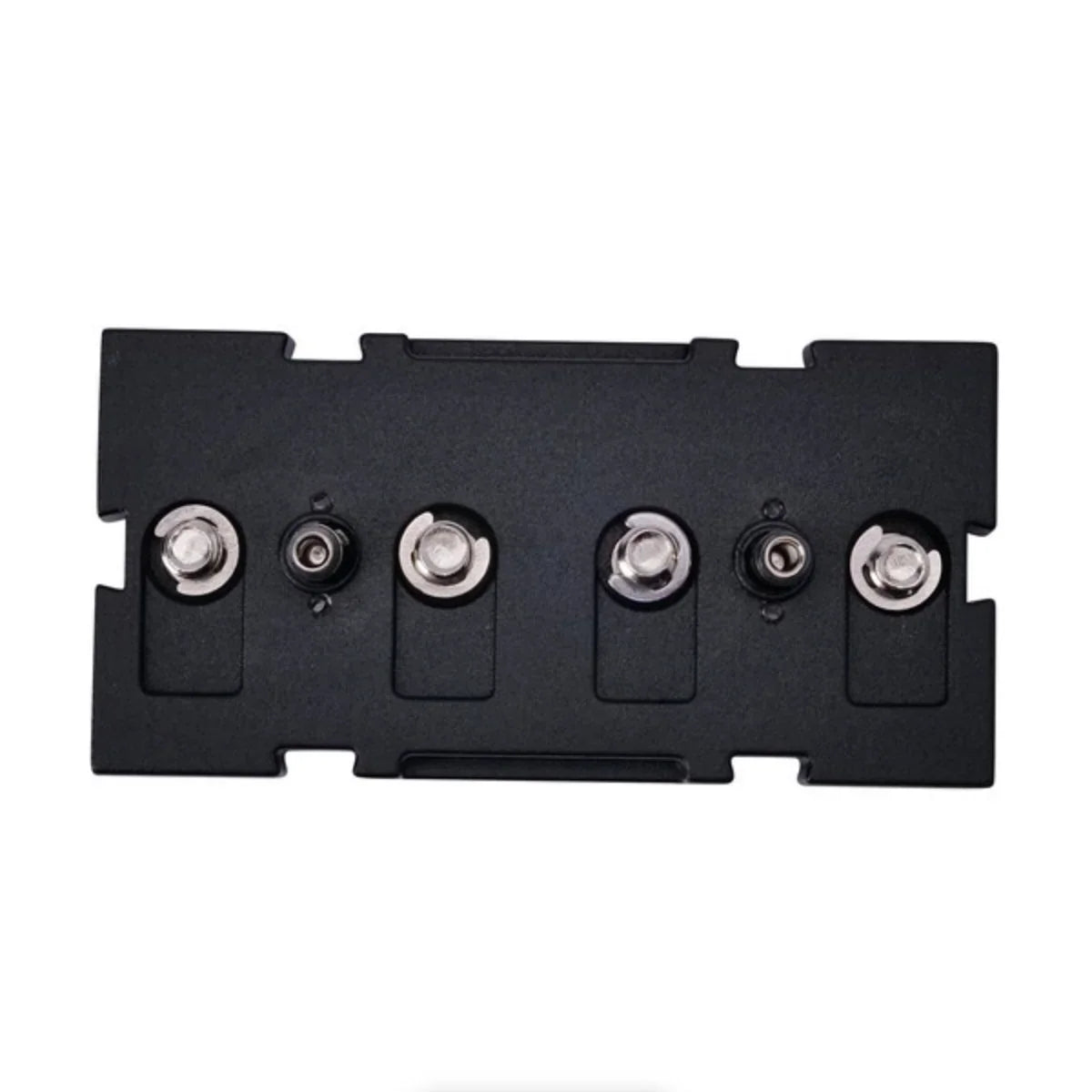

- Straight Connector

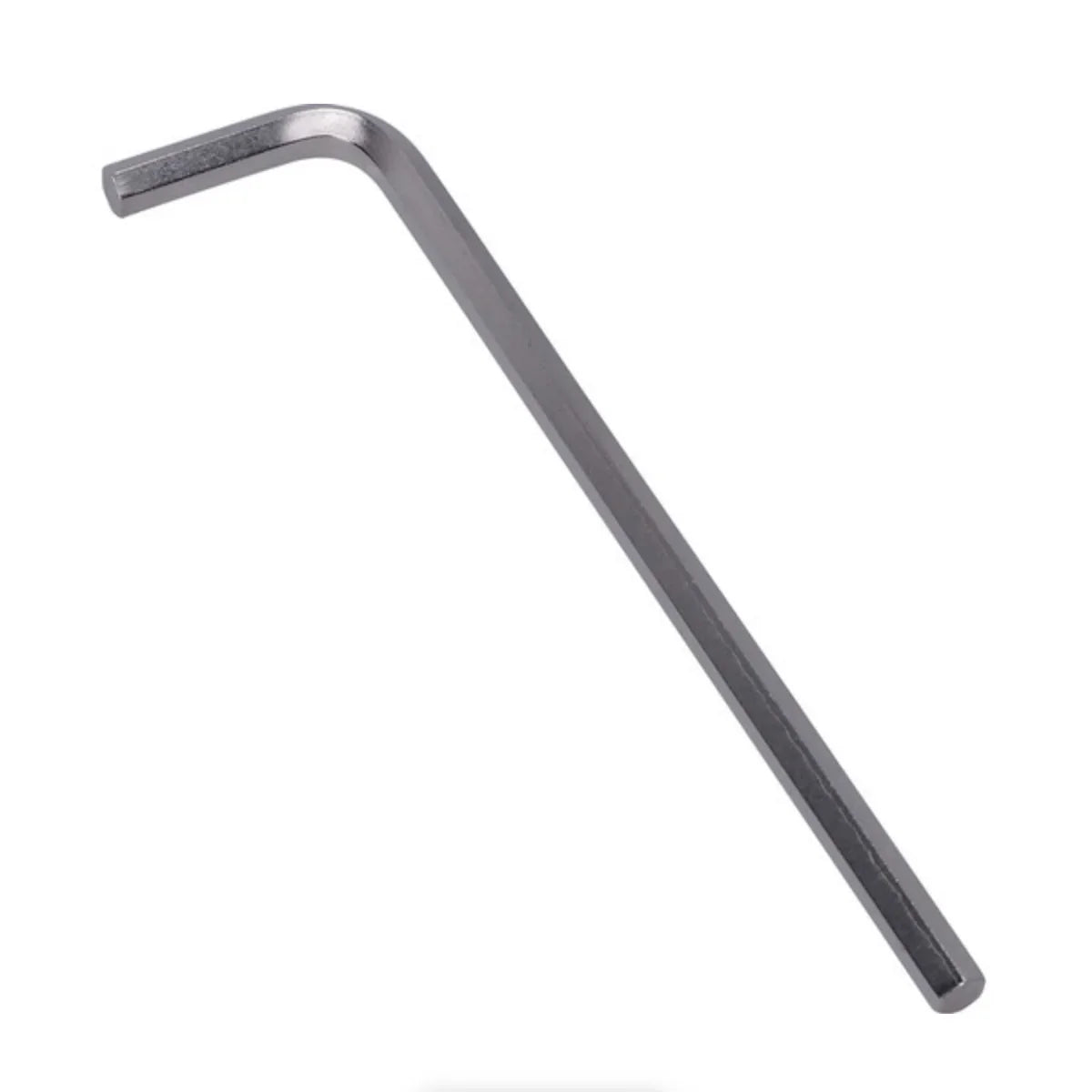

- Hex Wrench

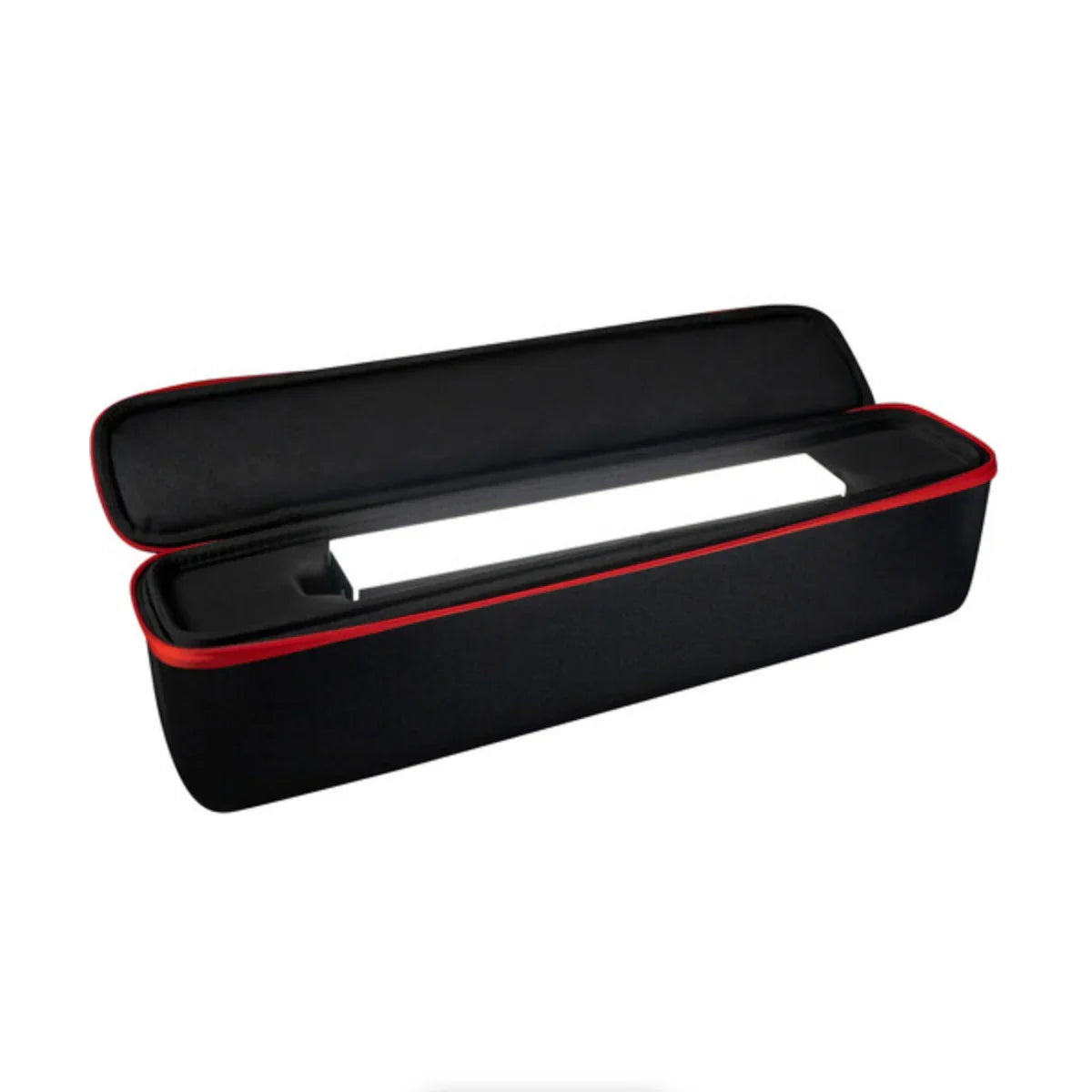

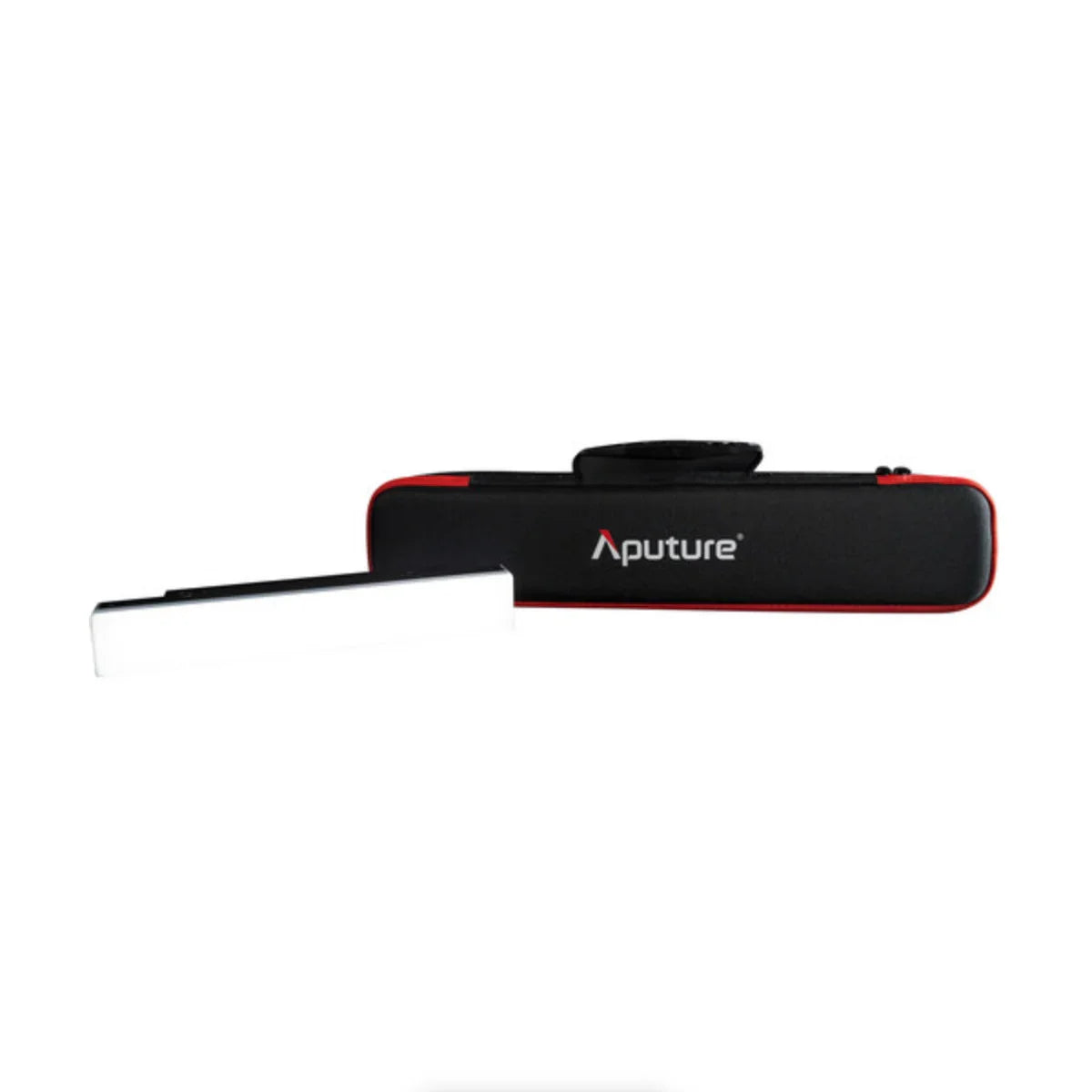

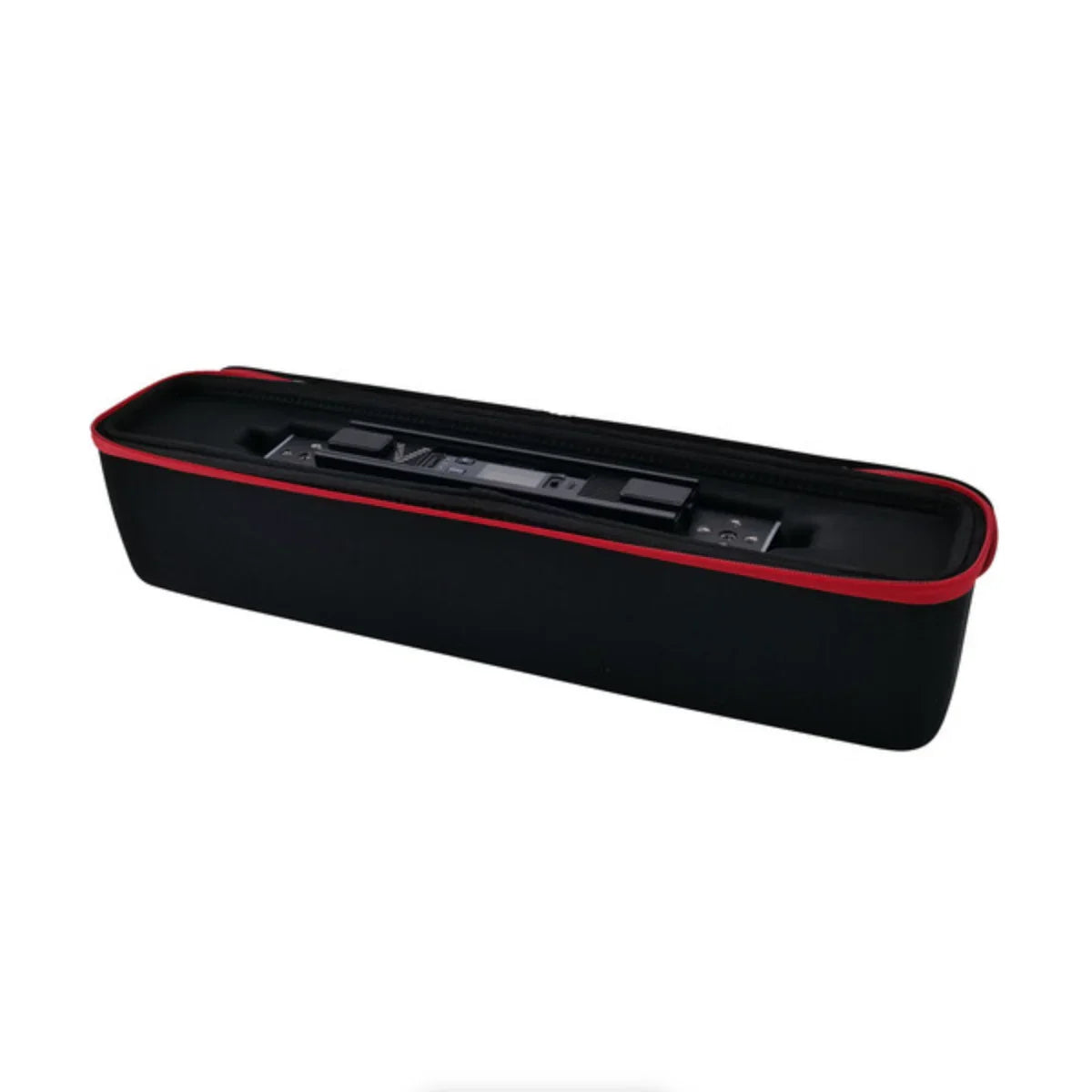

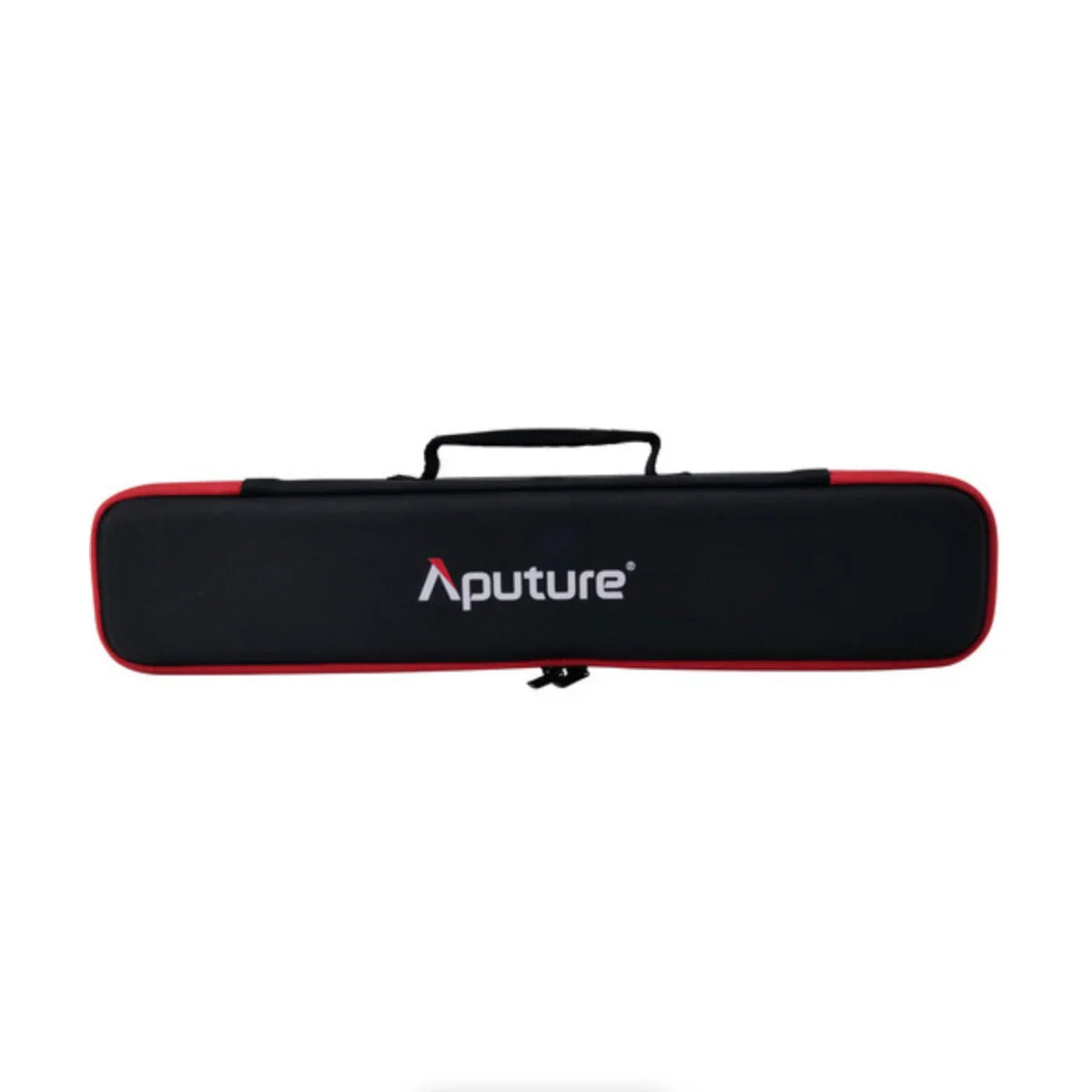

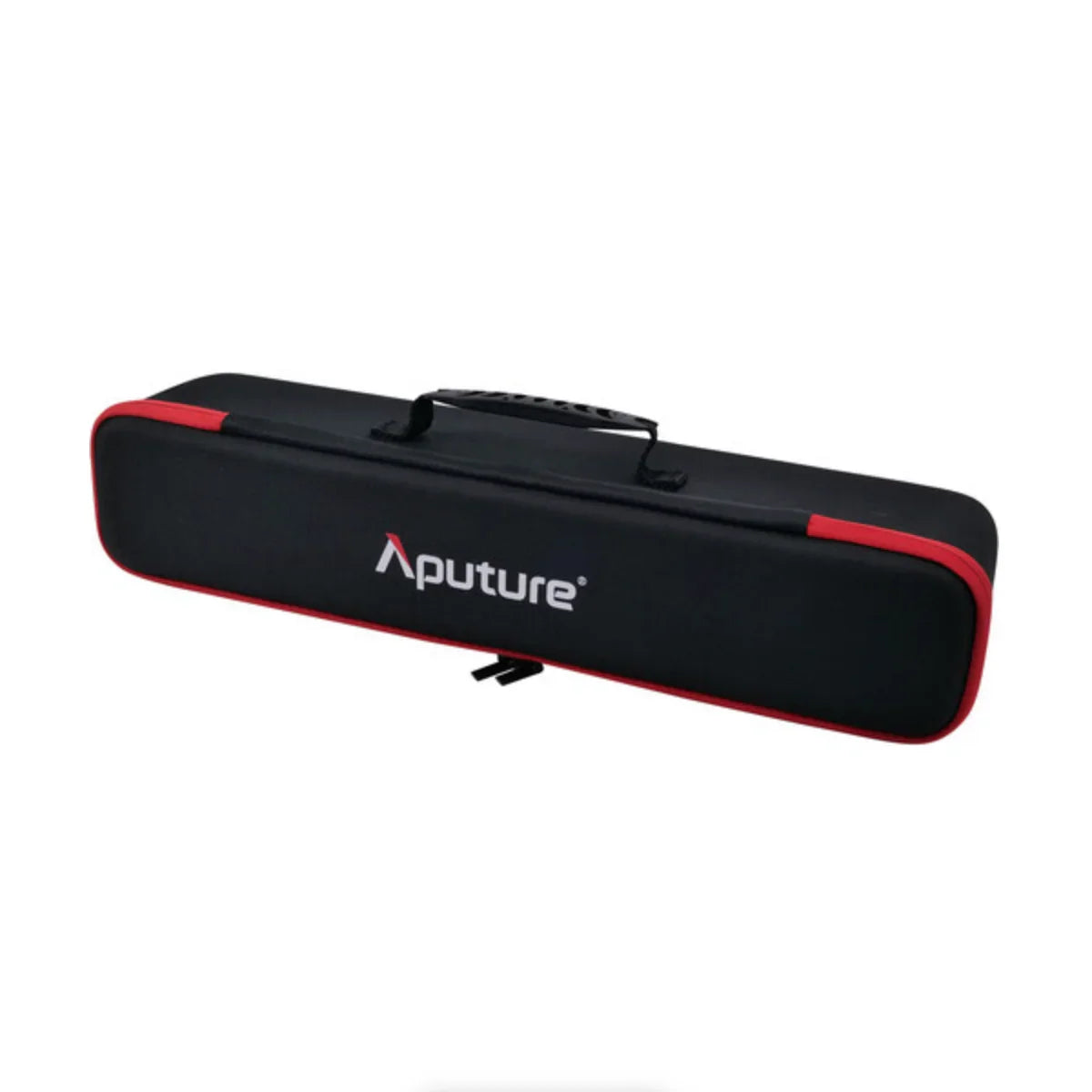

- Carrying Case
- Limited 1-Year Manufacturer Warranty
Registration Extension: 1-Year
| Light Fixture | |
|---|---|
| Item Type | 1 x LED Light Panel |
| Included Storage Case | 1 x Case |
| Lumens | 485 |
| Photometrics | 2000K 7 fc / 85 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer 2700K 11 fc / 127 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer 3200K 12 fc / 130 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer 4300K 12 fc / 137 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer 5600K 13 fc / 144 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer 6500K 13 fc / 145 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer 7500K 13 fc / 145 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer 10000K 12 fc / 135 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer |
| Color Temperature | 2000 to 10,000K |
| Color Modes | RGB, Daylight, Tungsten |
| Color Accuracy Standard | CRI 96 TLCI 98 SSI 74 at 5600K SSI 85 at 3000K TM-30 Rf 94 TM-30 Rg 100 |
| Cooling System | Passive |
| Dimming | Yes, Built-In Dimmer |
| Expected Lamp Life | 50,000 Hours |
| Beam Angle | 120° |
| Built-In Flash | No |
| Umbrella Mount | No |
| Front Accessory Mount | None |
| Connectivity | |
| Wireless Remote Control Type | Bluetooth Wireless CRMX (LumenRadio) |
| Mobile App Compatible | Yes: Android & iOS App Name: Sidus Link *As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
| Wireless Channels | None |
| Wireless Groups | None |
| Wireless Range | 262.5' / 80 m (Bluetooth) |
| Power & I/O | |
| Power Source | AC Power (Cable Included) Battery (Built-In) |
| Battery | 1 x Proprietary Rechargeable Lithium (Built-In) • Up to 120-Minute Runtime at 100% Brightness • 120-Minute Charge Time |
| Battery Charging | AC to DC Adapter (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A |
| DC Input Power | 24 VDC at 0.5 A |
| Included Adapter / Cable | 1 x Edison Plug to Barrel / Coax AC to DC Adapter |
| Inline Switch | No |
| Power Pass-Thru | No |
| Power Consumption | 9 W |
| Mounting | |

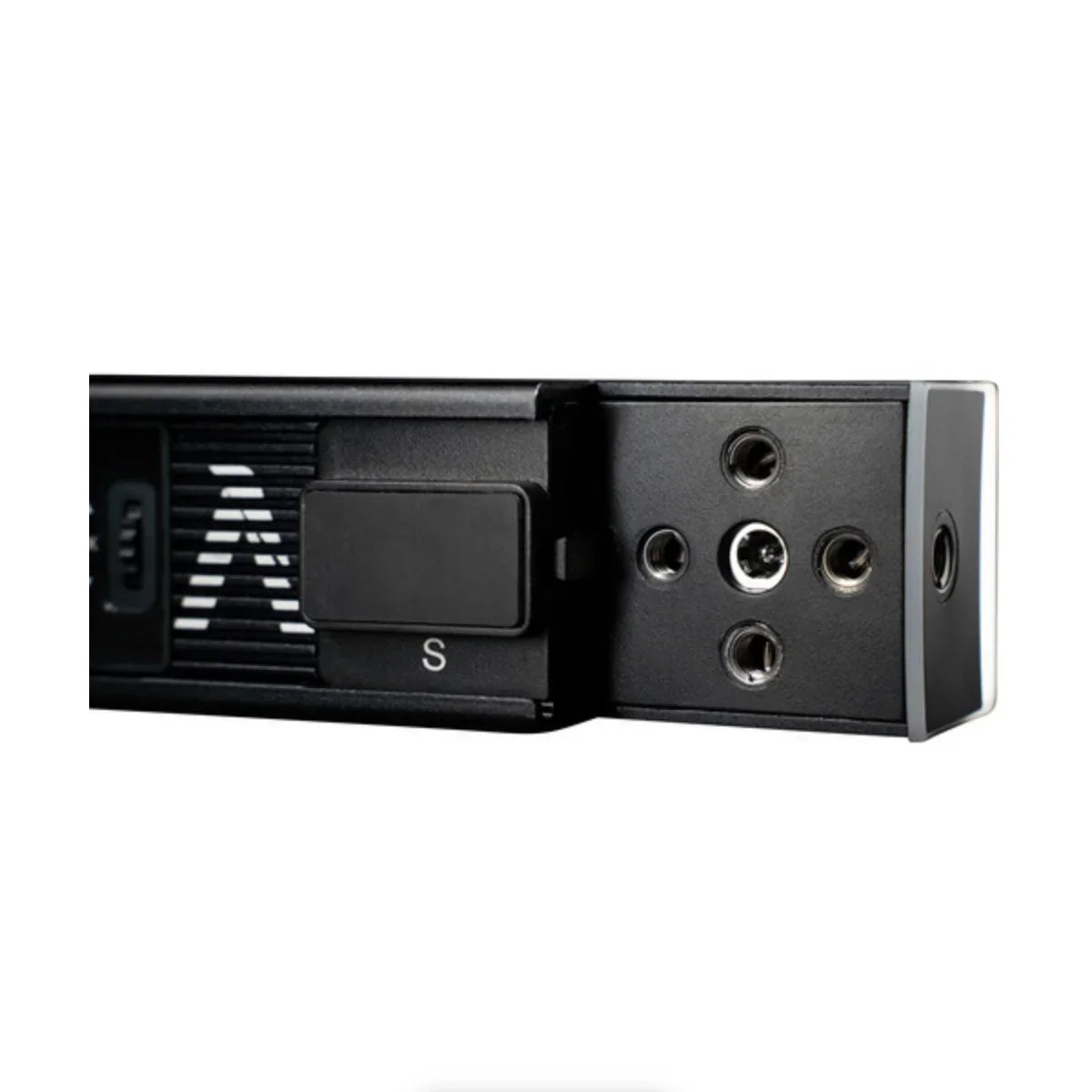

| Fixture Mounting | Support Mount 2 x 1/4"-20 Female Thread |
| Environmental | |
| Environmental Protection | None |
| General | |
| Display | None |
| Dimensions | 12 x 1.8 x 1.7" / 30.4 x 4.5 x 4.3 cm |
| Weight | 1.3 lb / 0.6 kg (Fixture) |
- Aputure INFINIBAR PB3 RGB LED Light Panel (1')
- DC Power Adapter (9.8')
- AC Locking Power Cable (4.9')
- Clamp to Baby Pin Adapter
- Straight Connector
- Hex Wrench
- Carrying Case
- Limited 1-Year Manufacturer Warranty
Registration Extension: 1-Year
