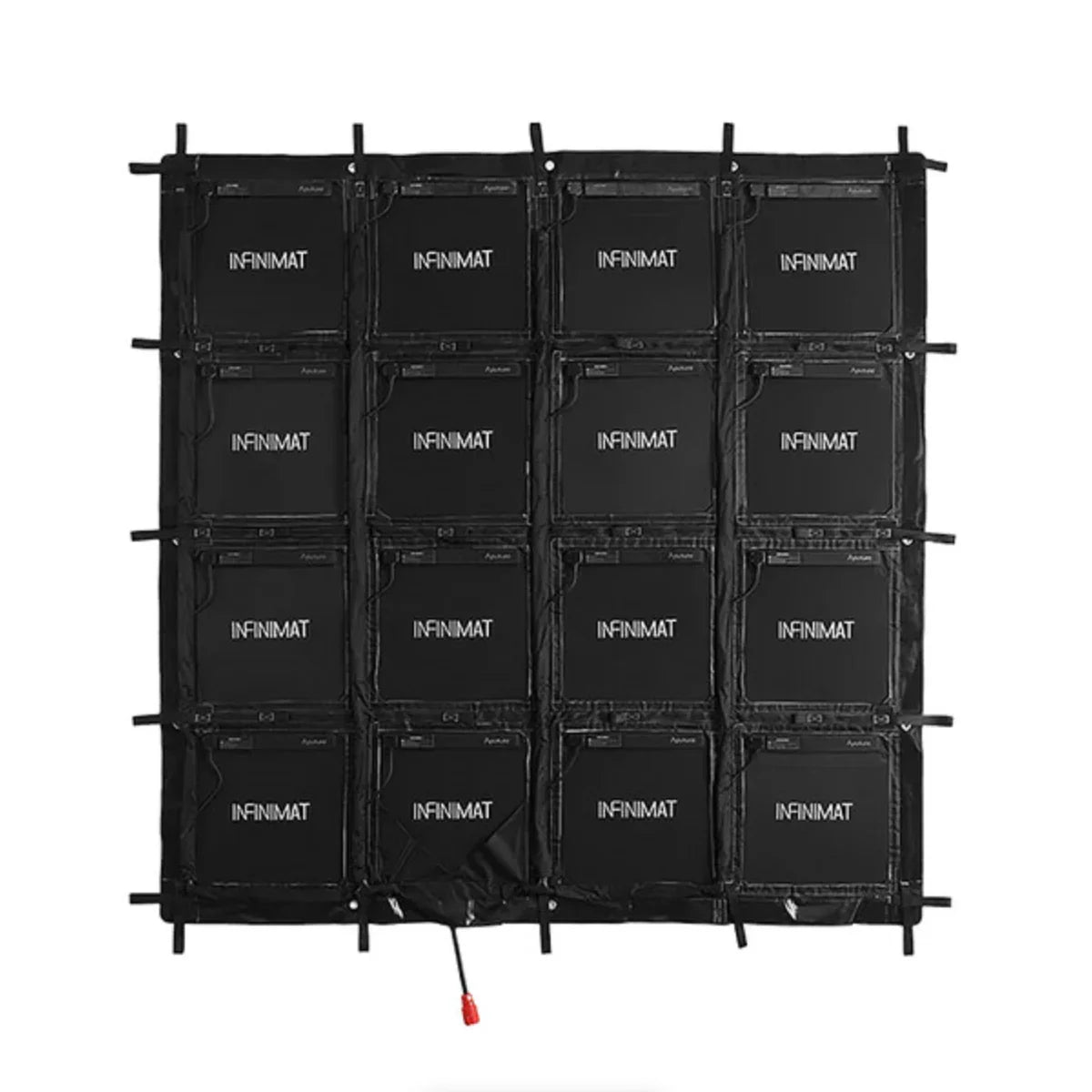

Save space and time with this versatile, rugged mat light system. The 8x8 INFINIMAT includes an inflatable airbag, 16 programmable pixels, and flexible power and control options.
INFINIMATs are significantly brighter than competitors of the same size, up to double the intensity. The increased output makes INFINIMAT a production workhorse, even in daylight.
INFINIMAT Control Boxes are universal to the family, making swapping sizes or powering arrays on set simple and quick. Control up to 3 INFINIMATs with 400W Control Box, and up to 5 mats with the 1600W box.

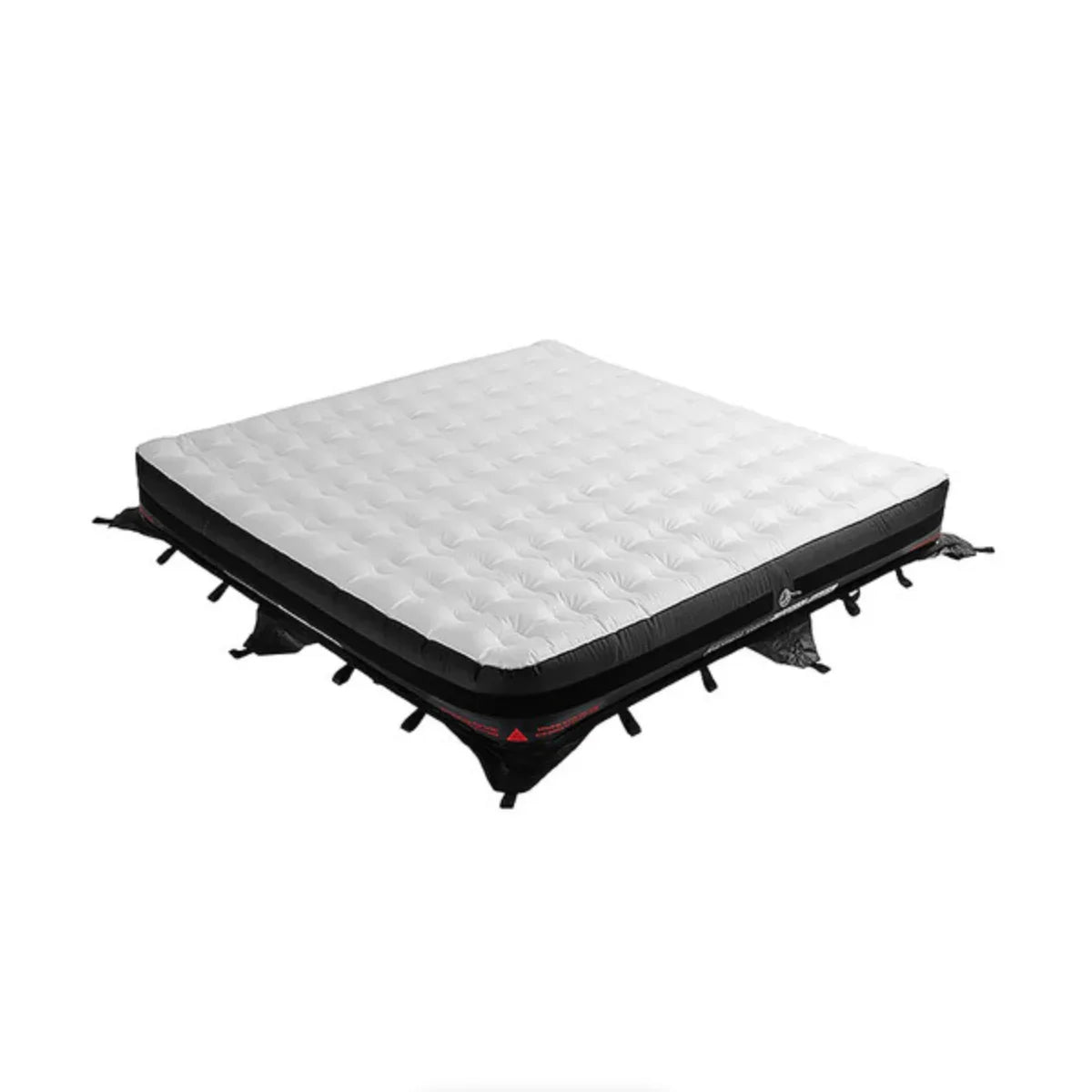

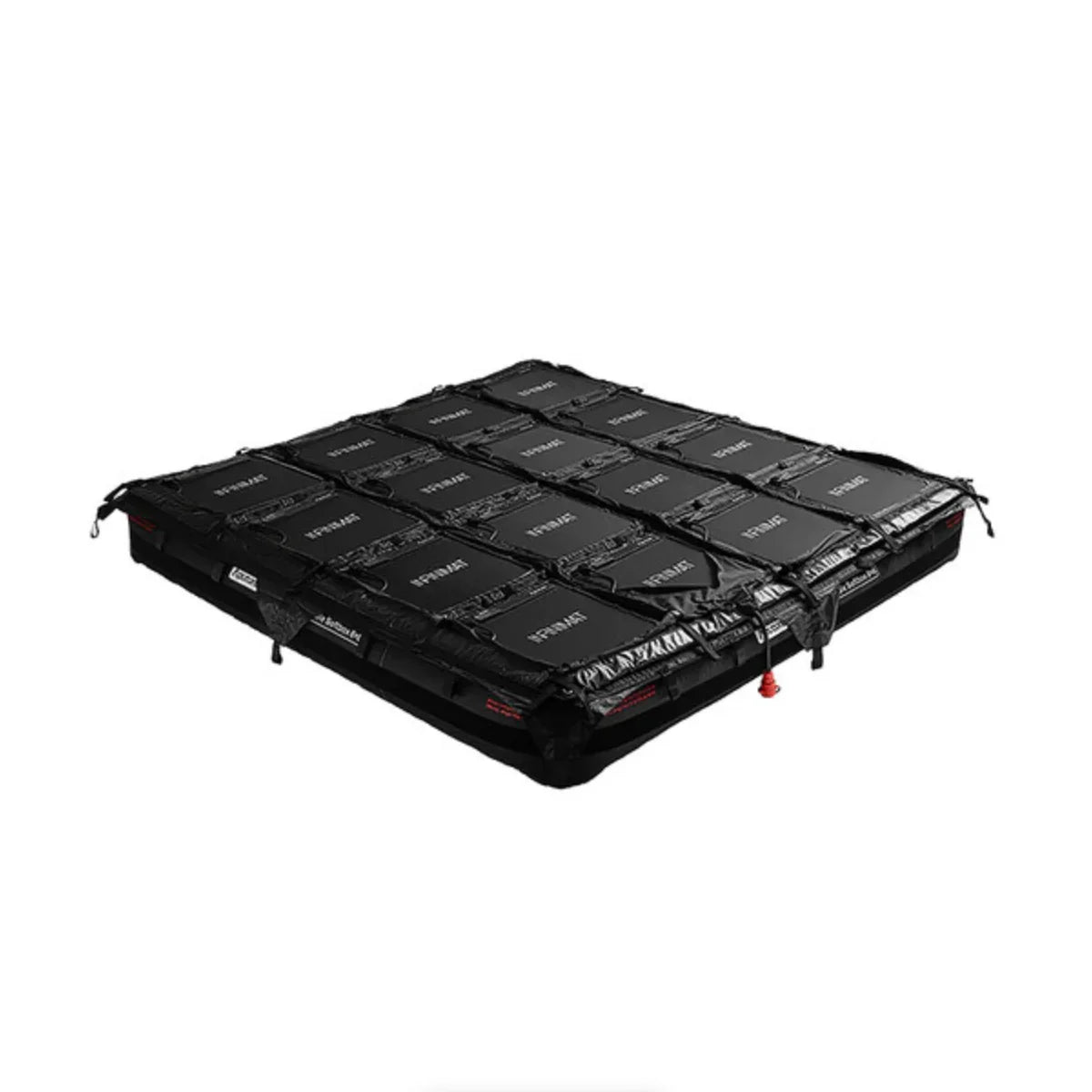

INFINIMAT can be used with or without the airbag, strapped in place, or mounted to its frame. The airbag quickly inflates and takes up less space on set than traditional diffusion rigs. When not in use, the INFINIMAT packs down small for storage or travel.

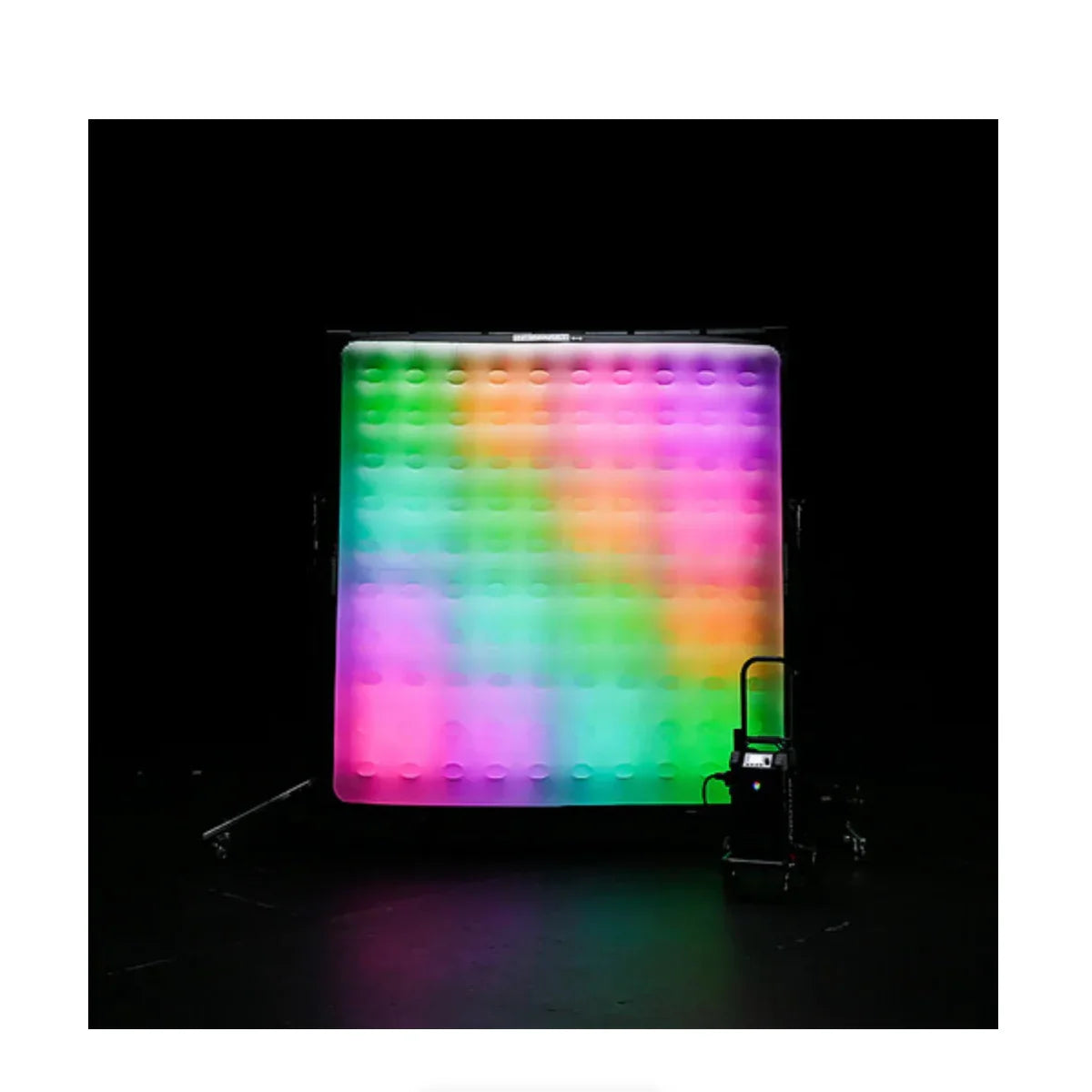

All INFINIMATs are color tunable and are configured in 1x2 or 2x2 pixels. The INFINIMAT pixels can be controlled over DMX systems for active motion effects.
INFINIMATs are designed to last. IP65 weather protection means a sealed system, which also includes metal backing plates for heat dispersion, rigidity, and physical protection for the LEDs. The internal design of the mats and control box are modular for easy service.
The INFINIMATs utilize a dual-dimming internal control system which allows them to dim to extremely low levels without color shift and with fine gradients for a smooth transition. Dimming to as low as 0.1% is possible, up to ten times dimmer than the competition.

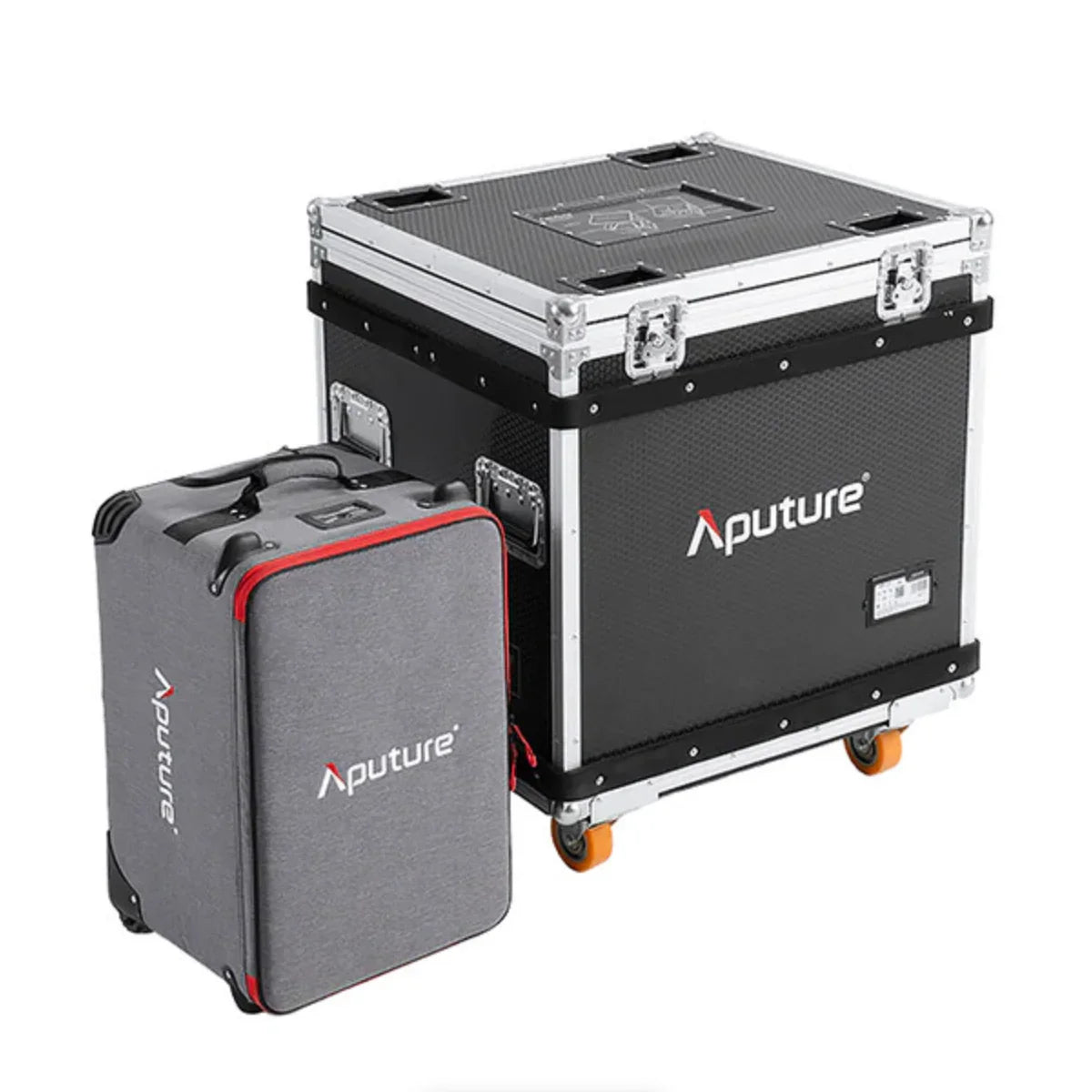

INFINIMATs can store inside their travel cases for shipping and when on set can be staged in their included zipper bags, taking up little space while ready for use. On the 4x4 and smaller sizes the airbag stores deflated on the mat, saving setup time and storage space.
| Item Type | 1x LED Array LED Inflatable Light Panel / Softbox Light |
| Included Light Modifier | 1x Softbox |
| Included Storage Case | Yes |
| Color Temperature | 2000 to 10,000K (in CCT Mode) |
| Color Modes | RGB |
| Color Accuracy Standard | CRI 96 TLCI 97 CQS 95 |
| Cooling System | No |
| Built-In Flash | No |
| Preprogrammed Effects | No |
| Umbrella Mount | No |
| Front Accessory Mount | No |
| Mobile App Compatible | No |
| Wireless Range | 328' / 100 m (Bluetooth) |
| Power Source | AC Power (Cable Included) *Requires Power Supply/Controller (Included) |
| Input Power | 100 to 264 VAC, 50 / 60 Hz |
| Included Adapter / Cable | 1x Unspecified to IEC AC to DC Adapter |
| Power Consumption | 1920 W (Maximum) |
| Display | No |
| Environmental Resistance | Weather-Resistant (IP65) |
| Operating Conditions | -4 to 122°F / -20 to 50°C |
| Storage Conditions | 68 to 185°F / 20 to 85°C |
