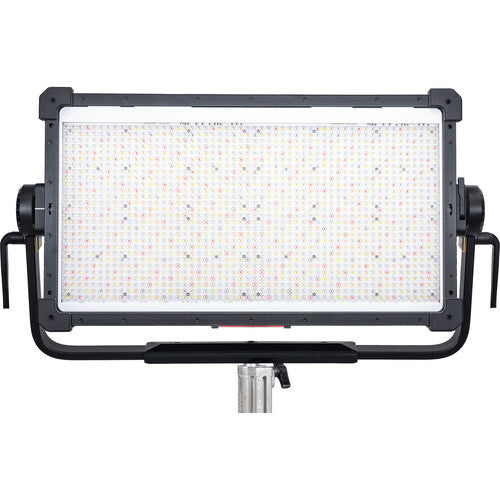

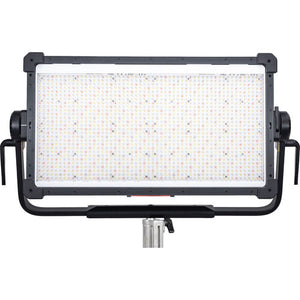

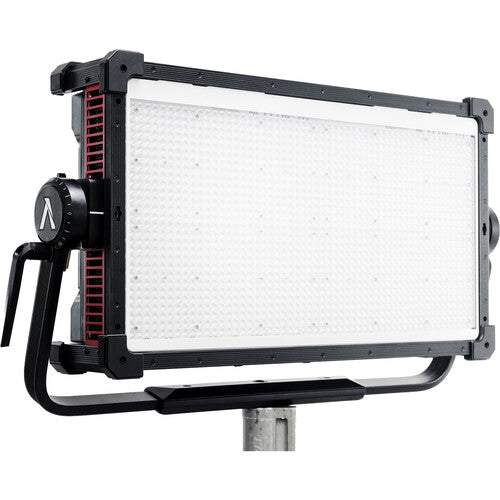

Aputure NOVA 9° 2x1 Tunable White LED Light Panel
Product Features
- For Studio & Film/TV Production
- Output: 29,730 Lux at 16.4' (9º, 5600K)
- 1800-20,000K CCT; BLAIR Chipset
- Plus/Minus Green Adj.
- 27.2 x 15.3" Panel; AC Power
- CRI 95 | TLCI 95 | TM-30 Rf 95, Rg 100
- Onboard, DMX/RDM, CRMX & Art-Net/sACN
- Fan Cooled & QuickClip Front-Mounting
- IP65-Rated Weather Resistance
- Includes Yoke, Flat Diffuser & Cable
Aputure NOVA 9° 2x1 Tunable White LED Light Panel
Model # AP0400044P
Out of Stock
Aputure NOVA 9° 2x1 Tunable White LED Light Panel
The NOVA 9° 2x1 keeps reliable features such as intuitive onboard or app control, 16-bit DMX512 in/out, LumenRadio CRMX, Art-Net/sACN, as well as batch firmware upgrades through Sidus Link Pro/Sidus Link, USB drive, or DMX. Experience multiple dimming curves, four fan modes, and dual output modes with max and constant settings. Gaffers and lighting technicians will appreciate a QuickClip front-mounting accessory ecosystem, a removable yoke for rigging flexibility, and the ability to stack the NOVA 9° 2x1 into multi-light yoke configurations to form larger, directional arrays. Finally, a rugged IP65-rated body was attentively engineered for the most demanding productions. Here, Aputure includes a conveniently removable yoke, a flat diffuser, a 19.6' long AC power cable, and a 1.6' long safety chain.
Impressive Output
The NOVA 9° 2x1 has a tight 9° beam angle with a bare brightness of 29,730 lux at 16.4' and 5600K, and it features smooth stepless dimming for adjusting light output from 0.1 to 100% with four dimming curves: linear, exponential, logarithmic, and S-shaped. The panel has the same 2x1 form factor as the previous NOVA II 2x1 fixture. Its 27.2 x 15.3" LED panel size is actively fan-cooled and offers four DMX-controllable fan modes: smart, high, medium, and silent.
Just 9°
Achieve a concentrated shaft of light that maintains intensity over long distances, which is ideal for film, television, and commercial production. It works great for simulating sunlight through windows or achieving defined shadow edges and specular highlights. Meaning realistic sunlight, with the ability to shape hard shadows, or achieve long-throw illumination on set. Pair it with the included flat diffusion panel to find exceptional punch and smooth luminance distribution for controlled softness.
Impressive Color Accuracy
Industry-leading fidelity metrics and high color accuracy ratings ensure the NOVA 9° 2x1's ability to faithfully reproduce colors. With CRI 95, TLCI 95, TM-30 Rf 95, and Rg 100 ratings, the fixture ensures natural and lifelike rendering that's ideal for color-critical applications. Other noteworthy ratings include: CQS (CIE D5600) 96, SSI (P3200) 89, and SSI (CIE D5600) 86. The light also provides advanced white point control with green/magenta color correction by +/-G at 100% to conform with the full ASC MITC standard.
BLAIR Chipset
Aputure's advanced BLAIR chipset features a five-diode structure combining blue, lime, amber, indigo, and red emitters. With its 650W output, expansive CCT range, and color accuracy, the NOVA 9° 2x1 delivers clean, reliable illumination designed to replicate the power and precision of natural sunlight. It results in flexibility for matching ambient sources, enhancing skin tones, or achieving color rendition with extended red response.
Batch Firmware Updates
Batch firmware update options ensure dependable performance across productions and can improve the life of professionals working in studios, with the fixture supporting upgrades through Sidus Link Pro, Sidus Link, USB drive, or DMX. Rental houses will also appreciate the NOVA 9° 2x1's combination of a reliable IP65-rated body, high output, and ecosystem compatibility. Whether operating as a single key source or integrated into complex console-controlled networks, the NOVA 9° 2x1 ensures fast, reliable communication.
Durable & Convenient Design
The panel's LEDs are packed into a compact design that doesn't sacrifice power and flexibility, making it a perfect fit for studio installations, onstage use, and on-location environments. A removable yoke is included to facilitate rigging, while the all-new QuickClip direct front-mounting accessory ecosystem improves your workflow by making light shaping easier and faster. The fixture weighs 38 lb without its yoke or 43 lb with its yoke, making it a durable lighting solution with rigging and control options. It has a stackable design to enable powerful 3-light configurations using an optional multi-light bracket. Whether used as a single source or as part of a massive light wall array, the NOVA 9° 2x1 delivers clarity, throw, and precision lighting results.
Additional Details
- Extremely tight native beam angle: 9°
- Flat diffuser beam angle: 80°
- Pixel count: four pixels

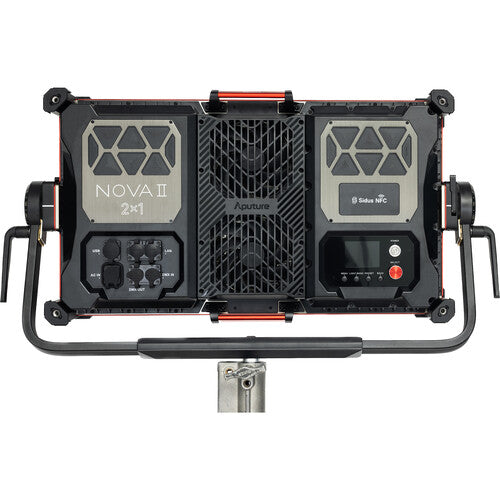

- High-resolution rear color screen for clear communication of status and settings
- Two locking Ethernet ports
- Lead-follow and Studio mode
- 15 built-in lighting effects and 10 savable presets
- Bluetooth and CRMX wireless range: 328.1'
- AC operating voltage: 100-240V

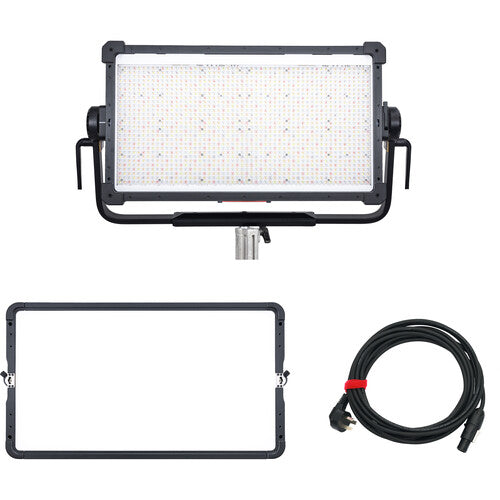

What's in the box
- Aputure NOVA 9° 2x1 Tunable White LED Light Panel
- Removable Yoke with Junior Pin

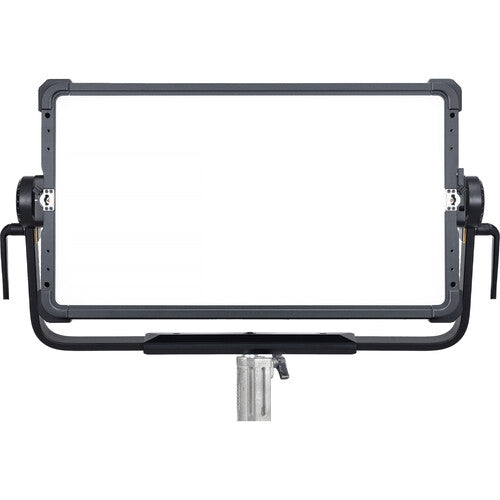

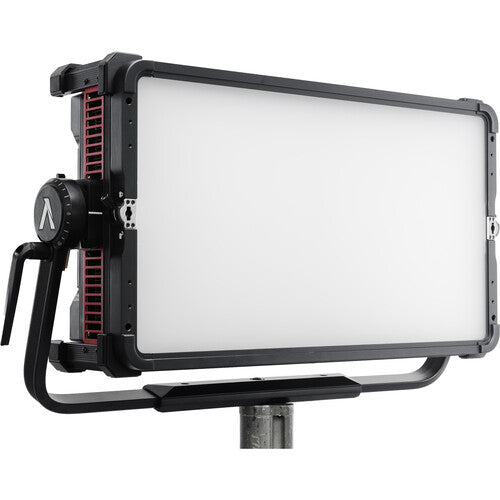

- Flat Diffuser
- AC Power Cable (19.6')
- Safety Chain (1.6')
- Limited 1-Year Manufacturer Warranty
850065294056
Specifications
Light Fixture
| Item Type |
1x LED Array LED Light Panel
|
| Included Light Modifier |
1x Diffuser
|
| Included Storage Case |
No
|
| Photometrics |
9° at 1800K:
45,497 fc / 489,750 Lux at 3.3' / 1 m (Unmodified)* 1819 fc / 19,590 Lux at 16.4' / 5 m (Unmodified) 467 fc / 5030 Lux at 32.8' / 10 m (Unmodified) 123 fc / 1329 Lux at 65.6' / 20 m (Unmodified) 9° at 2500K: 59,014 fc / 635,250 Lux at 3.3' / 1 m (Unmodified)* 2360 fc / 25,410 Lux at 16.4' / 5 m (Unmodified) 658 fc / 7090 Lux at 32.8' / 10 m (Unmodified) 174 fc / 1881 Lux at 65.6' / 20 m (Unmodified) 9° at 3200K: 65,239 fc / 702,250 Lux at 3.3' / 1 m (Unmodified)* 2609 fc / 28,090 Lux at 16.4' / 5 m (Unmodified) 711 fc / 7660 Lux at 32.8' / 10 m (Unmodified) 189 fc / 2040 Lux at 65.6' / 20 m (Unmodified) 9° at 4300K: 69,628 fc / 749,500 Lux at 3.3' / 1 m (Unmodified)* 2785 fc / 29,980 Lux at 16.4' / 5 m (Unmodified) 774 fc / 8340 Lux at 32.8' / 10 m (Unmodified) 207 fc / 2229 Lux at 65.6' / 20 m (Unmodified) 9° at 5600K: 69,047 fc / 743,250 Lux at 3.3' / 1 m (Unmodified)* 2761 fc / 29,730 Lux at 16.4' / 5 m (Unmodified) 772 fc / 8320 Lux at 32.8' / 10 m (Unmodified) 207 fc / 2229 Lux at / 20 m (Unmodified) 9° at 6500K: 67,979 fc / 731,750 Lux at 3.3' / 1 m (Unmodified)* 2719 fc / 29,270 Lux at 16.4' / 5 m (Unmodified) 763 fc / 8220 Lux at 32.8' / 10 m (Unmodified) 204 fc / 2203 Lux at / 20 m (Unmodified) 9° at 10000K: 63,055 fc / 678,750 Lux at 3.3' / 1 m (Unmodified)* 2522 fc / 27,150 Lux at 16.4' / 5 m (Unmodified) 711 fc / 7660 Lux at 32.8' / 10 m (Unmodified) 191 fc / 2064 Lux at 65.6' / 20 m (Unmodified) *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature |
1800 to 20,000K
|
| Color Modes |
Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 95
TLCI 95 SSI 90 at 3200K SSI 86 at 5600K TM-30 Rf 95 TM-30 Rg 100 CQS 96 |
| Dimming |
App-Controlled / Built-In Dimmer / DMX / RDM (Continuous)
• 0.1 to 100% |
| Cooling System |
Fan
|
| Beam Angle |
9° Unmodified
80° with Included Diffuser |
| Built-In Flash |
No
|
| Pixel Zones |
4
|
| Preprogrammed Effects |
Yes
|
| Umbrella Mount |
No
|
| Front Accessory Mount |
Proprietary
|
Connectivity
| Wireless Remote Control Type |
Bluetooth
CRMX |
| Mobile App Compatible |
Yes: Android & iOS
App Name: Sidus Link / Sidus Link Pro Functionality: Remote Control |
| Wireless Range |
328.1' / 100 m
|
Power & I/O
| Power Source |
AC Power (Cable Included)
|
| Inputs/Outputs |
1x Unspecified AC Power Input (100 to 240 VAC, 50 / 60 Hz)
1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output 2x RJ45 Network Input/Output 1x USB-A Firmware Input |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Included Adapter / Cable |
Yes
|
| Power Consumption |
650 W
800 W (Maximum) |
Mounting
| Yoke Type |
Manually-Operated Yoke
|
| Fixture Mounting |
Not Specified by Manufacturer
|
General
| Display |
Yes
|
| Environmental Resistance |
Dust/Weather/Water-Resistant (IP65)
|
| Operating Conditions |
-4 to 122°F / -20 to 50°C
|
| Storage Conditions |
-40 to 176°F / -40 to 80°C
|
| Dimensions |
27.2 x 15.3 x 5.4" / 69.1 x 38.9 x 13.7 cm (Fixture without Yoke)
32.7 x 22.3 x 6.1" / 83.1 x 56.6 x 15.5 cm (Fixture with Yoke) |
| Weight |
38.03 lb / 17.25 kg (Fixture without Yoke)
43.32 lb / 19.65 kg (Fixture with Yoke) |
What's Included
- Aputure NOVA 9° 2x1 Tunable White LED Light Panel
- Removable Yoke with Junior Pin
- Flat Diffuser
- AC Power Cable (19.6')
- Safety Chain (1.6')
- Limited 1-Year Manufacturer Warranty
