Aputure STORM 700x Tunable White LED Monolight (Cine Kit)
- Light with Fresnel, Barndoors & Skid
- Output: 16,730 Lux at 9.8' w/ Reflector
- 2500-10,000K CCT; BLAIR LED Chipset
- AC Power
- Onboard, App, DMX, RDM & CRMX Control
- CRI 95 | TLCI 95 | SSI 81 | TM-30 95/100
- 4 Fan Modes, G/M Shift & Effects
- IP65 Design & ProLock Bowens Mount
- Includes 35º Reflector & Control Box
- Includes Cables & Cases

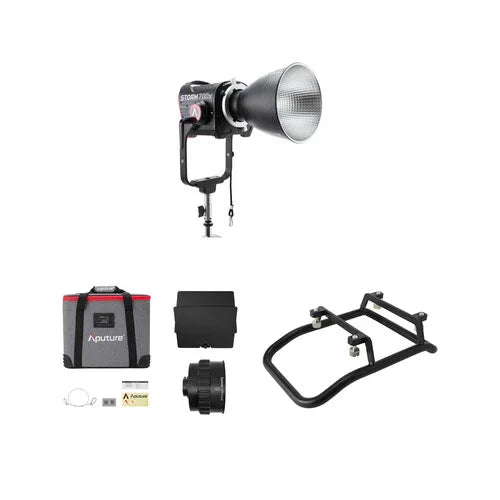

Aputure STORM 700x Tunable White LED Monolight (Cine Kit)
The Aputure STORM 700x Cine Kit is a point-source fixture kit designed for professional cinematographers, gaffers, studios, and rental houses as a standard way to deploy the STORM 700x.
This kit is based on the STORM 700x, a 700W tunable-white point source fixture featuring Aputure’s groundbreaking BLAIR LED chipset and robust ProLock mount. With all the components of the STORM 700x Cine Kit built together, the result is a fully integrated fixture unit that is easy to handle, quick to deploy, and efficient to store and transport.
Fully integrated design

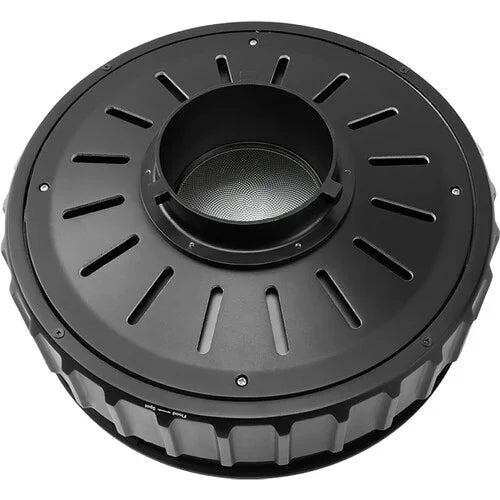

This Cine Kit includes the CF10 Fresnel, a 10-inch diameter compact Bowens mount fresnel engineered specifically for the STORM 700x’s light engine. With a spot-flood range of 15º–40º, the CF10 amplifies the fixture’s output while maintaining a smooth falloff from center to edge, offering precise control over beam spread in a lightweight, compact form factor.
Compact Bowens mount fresnel & barn doors

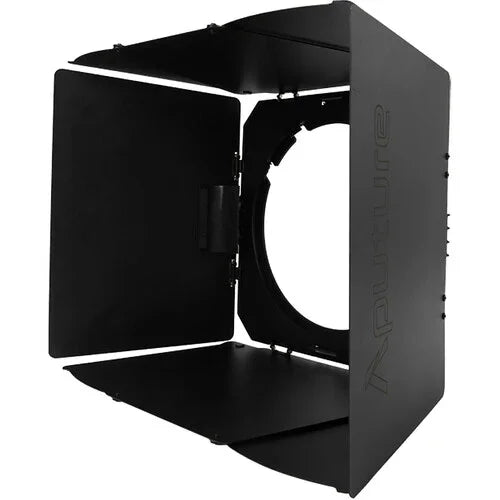

The CF10 Fresnel comes paired with its dedicated CF10 Barn Doors, allowing users to shape, cut, and control the beam with accuracy. Together, the CF10 Fresnel and Barn Doors unlock the full potential of the STORM 700x, making it a versatile and powerful lighting tool straight out of the box.
STORM 700x Skid for entire kit to sit flat on surfaces

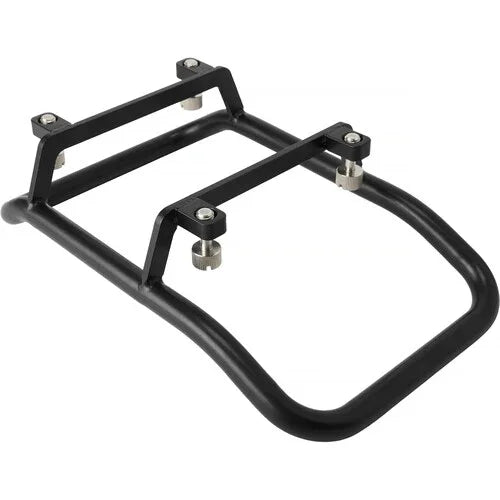

In addition to the CF10 Fresnel and Barn Doors, the STORM 700x Cine Kit also includes the STORM 700x Skid, a stainless-steel support accessory that secures to the base of the fixture. The skid enables operators to safely place the unit flat on the ground without risk of tipping, even with the CF10 Fresnel mounted to the front. Its rear cutout provides clearance for the fixture’s head cable when tilting, ensuring safe and practical operation. With the Skid mounted, the complete fixture system can sit securely on a head cart, equipment rack, storage shelf, or even the ground, streamlining transport and setup on set.
When output, handling efficiency, and precision color performance are essential, the Aputure STORM 700x Cine Kit delivers. Whether you’re lighting controlled studio environments or rugged location shoots, the STORM 700x Cine Kit ensures exceptional results and professional efficiency every time.

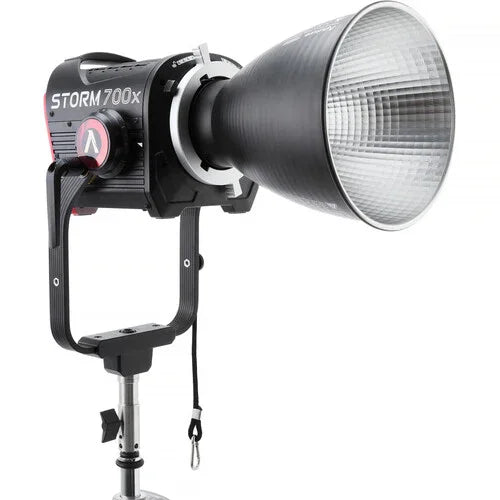

Aputure STORM 700x Tunable White LED Monolight
- Control Box
- Clamp
- Hyper Reflector (35º)
- Head Cable (9.8')
- AC Power Cable (19.6')
- Bowens Mount Protection Cover
- Soft Rolling Case
- Limited 1-Year Manufacturer Warranty
Aputure CF10 Fresnel & Barndoors Kit
- Safety Chain
- Soft Carry Case
- Limited 1-Year Manufacturer Warranty
Aputure Skid for STORM 700x
- Limited 1-Year Manufacturer Warranty
Light Fixture
| Item Type |
1x COB LED Monolight
|
| Included Light Modifier |
1x Reflector
|
| Included Storage Case |
Yes
|
| Photometrics |
3200K:
4071 fc / 43,830 Lux at 3.3' / 1 m (Unmodified)* 452 fc / 4870 Lux at 9.8' / 3 m (Unmodified) 170 fc / 1839 Lux at 16.4' / 5 m (Unmodified) 35° at 3200K: 12,064 fc / 129,870 Lux at 3.3' / 1 m (with Reflector)* 1340 fc / 14,430 Lux at 9.8' / 3 m (with Reflector) 411 fc / 4430 Lux at 16.4' / 5 m (with Reflector) 5600K: 5325 fc / 57,330 Lux at 3.3' / 1 m (Unmodified)* 591 fc / 6370 Lux at 9.8' / 3 m (Unmodified) 222 fc / 2394 Lux at 16.4' / 5 m (Unmodified) 35° at 5600K: 15,609 fc / 168,030 Lux at 3.3' / 1 m (with Reflector)* 1734 fc / 18,670 Lux at 9.8' / 3 m (with Reflector) 500 fc / 5390 Lux at 16.4' / 5 m (with Reflector) *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature |
2500 to 10,000K (in CCT Mode)
|
| Color Modes |
Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 95
TLCI 95 SSI 87 at 3200K SSI 87 at 5600K TM-30 Rf 95 TM-30 Rg 100 |
| Dimming |
App-Controlled / Controller Included / DMX / RDM
• 0.1 to 100% |
| Cooling System |
Fan
|
| Beam Angle |
35° with Included Reflector
|
| Built-In Flash |
No
|
| Preprogrammed Effects |
Yes
|
| Umbrella Mount |
No
|
| Front Accessory Mount |
Bowens S
|
Connectivity
| Wireless Remote Control Type |
Bluetooth
Wireless CRMX (TimoTwo) |
| Mobile App Compatible |
Yes: Android & iOS
App Name: Sidus Link Pro Functionality: Remote Control |
| Wireless Range |
328.1' / 100 m
|
Power & I/O
| Power Source |
AC Power (Cable Included) *Requires Power Supply/Controller (Included)
|
| Inputs/Outputs |
Light Fixture
To Power Supply/Controller: 1x Proprietary Power Input Power Supply/Controller 1x Proprietary Power Output 1x powerCON TRUE1 Male AC Power Input (100 to 240 VAC, 50 / 60 Hz) 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output 1x USB-A Power/Firmware Input/Output (5 VDC at 0.5 A) |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Included Adapter / Cable |
1x USA Type-A/B to powerCON TRUE1 Cable (19.7' / 6 m)
1x Proprietary to Proprietary Cable (9.8' / 3 m) |
| Inline Switch |
No
|
| Power Pass-Thru |
No
|
| Power Consumption |
700 W
850 W (Maximum) |
Mounting
| Yoke Type |
Manually-Operated Yoke
|
| Fixture Mounting |
1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
|
General
| Display |
No
|
| Environmental Resistance |
Weather-Resistant (IP65)
|
| Operating Conditions |
-4 to 113°F / -20 to 45°C
|
| Storage Conditions |
-40 to 80°F / -40 to 26°C
|
| Dimensions |
19.8 x 10.8 x 10.7" / 50.3 x 27.4 x 27.2 cm (Fixture with Yoke)
12.4 x 6.1 x 4.8" / 31.4 x 15.4 x 12.3 cm (Power Supply/Controller) |
| Weight |
11.35 lb / 5.15 kg (Fixture with Yoke)
9.04 lb / 4.1 kg (Power Supply/Controller) |
Aputure STORM 700x Tunable White LED Monolight
- Control Box
- Clamp
- Hyper Reflector (35º)
- Head Cable (9.8')
- AC Power Cable (19.6')
- Bowens Mount Protection Cover
- Soft Rolling Case
- Limited 1-Year Manufacturer Warranty
Aputure CF10 Fresnel & Barndoors Kit
- Safety Chain
- Soft Carry Case
- Limited 1-Year Manufacturer Warranty
Aputure Skid for STORM 700x
- Limited 1-Year Manufacturer Warranty
