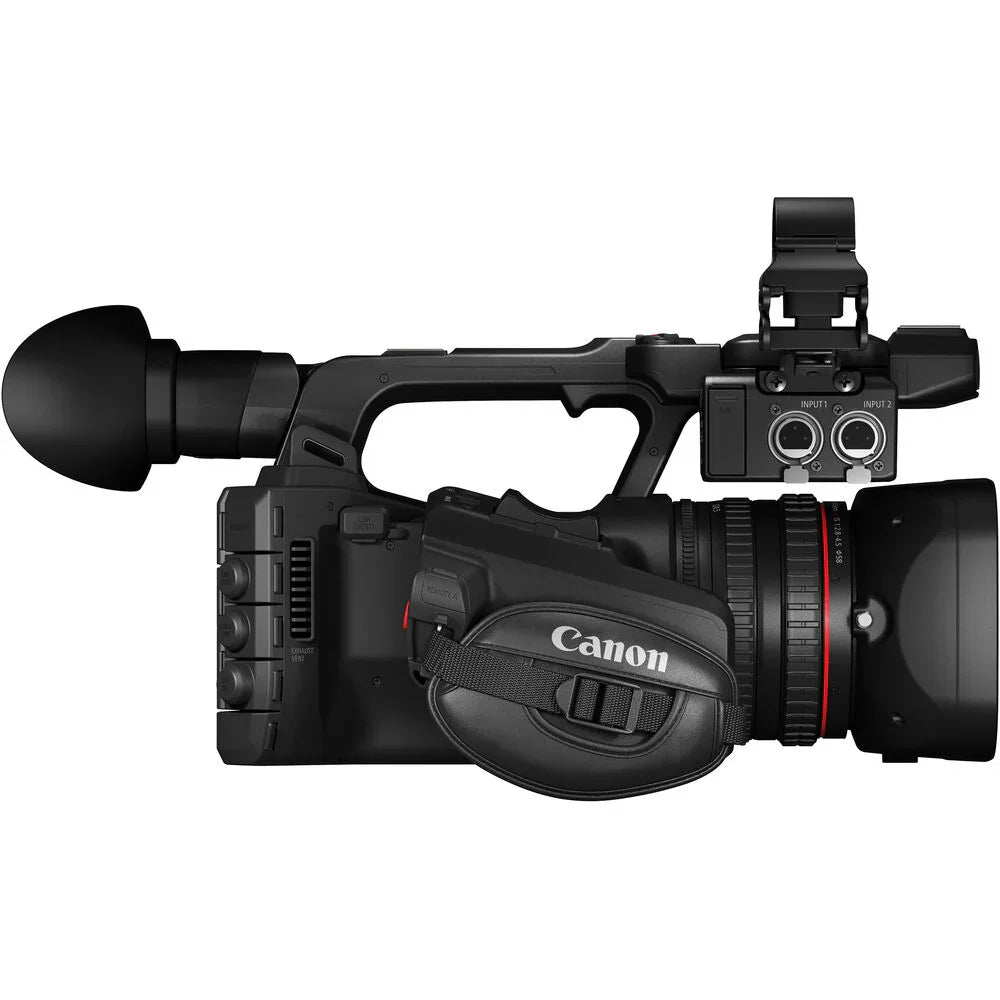

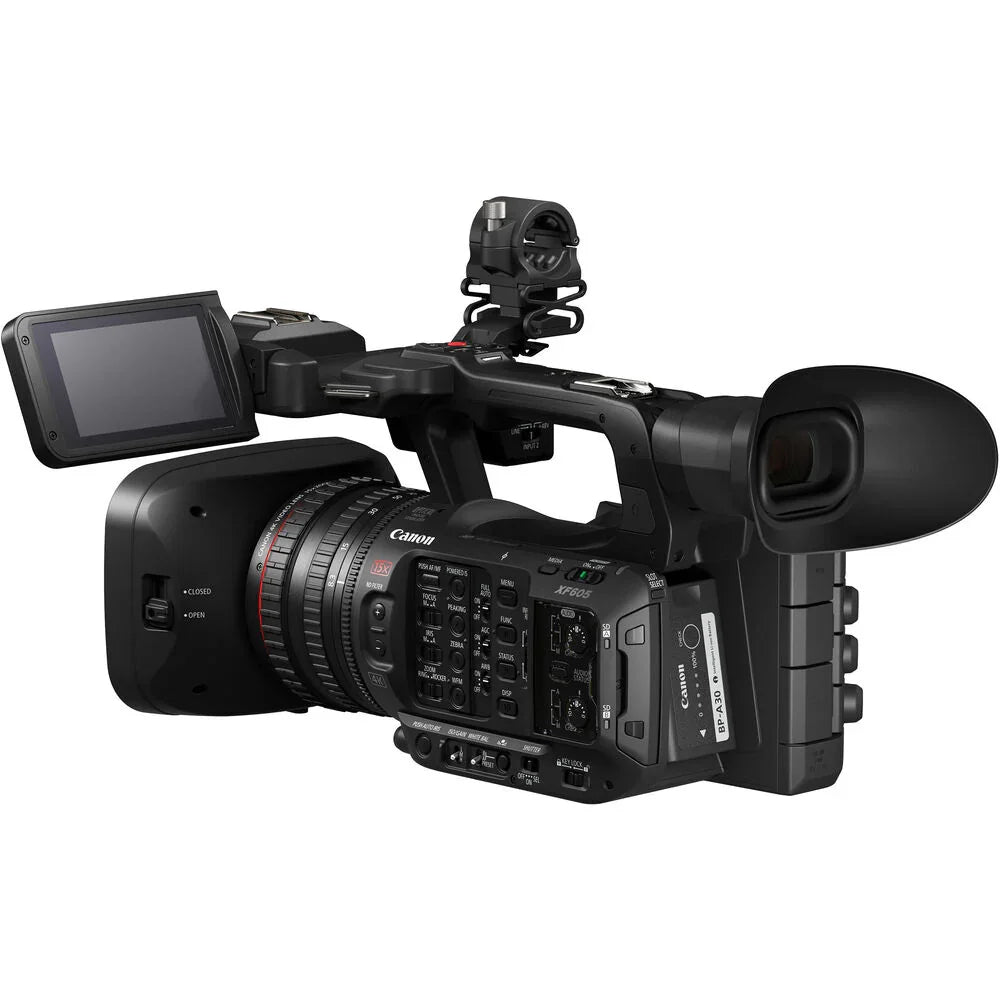

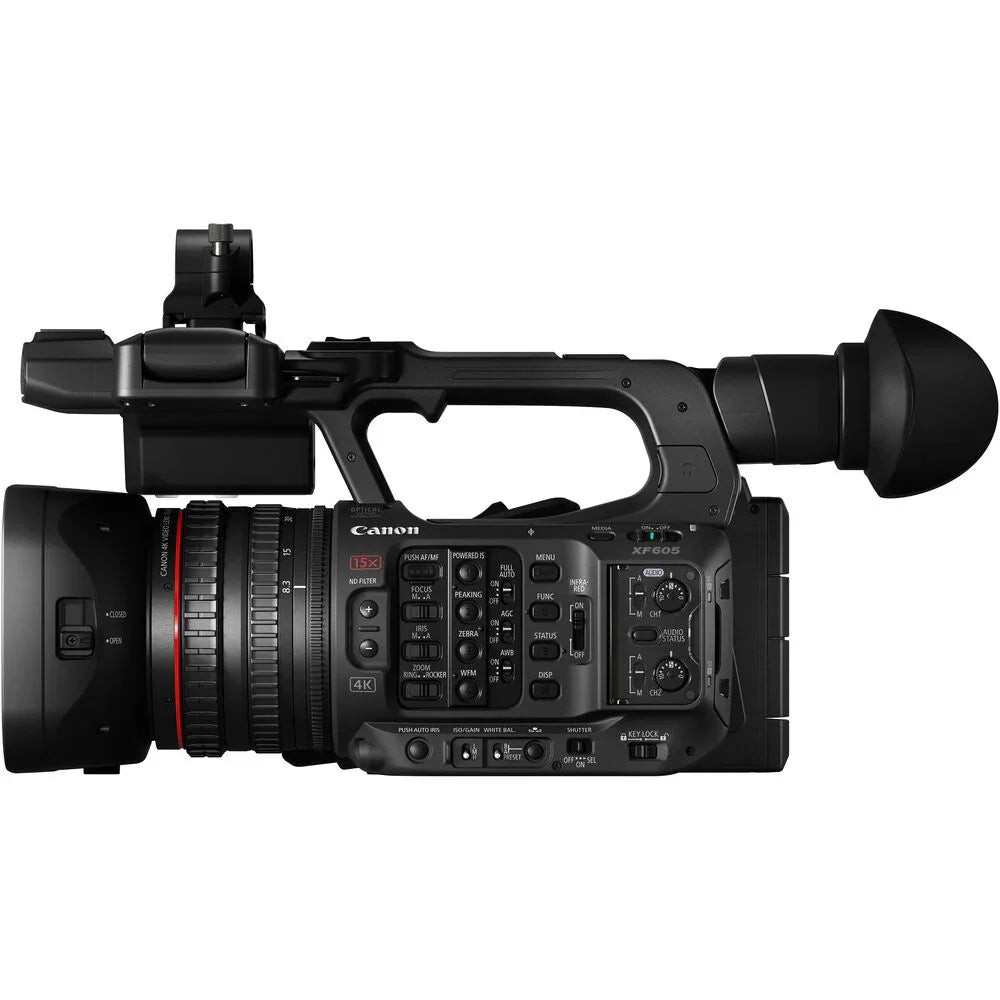

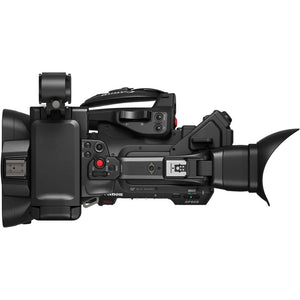

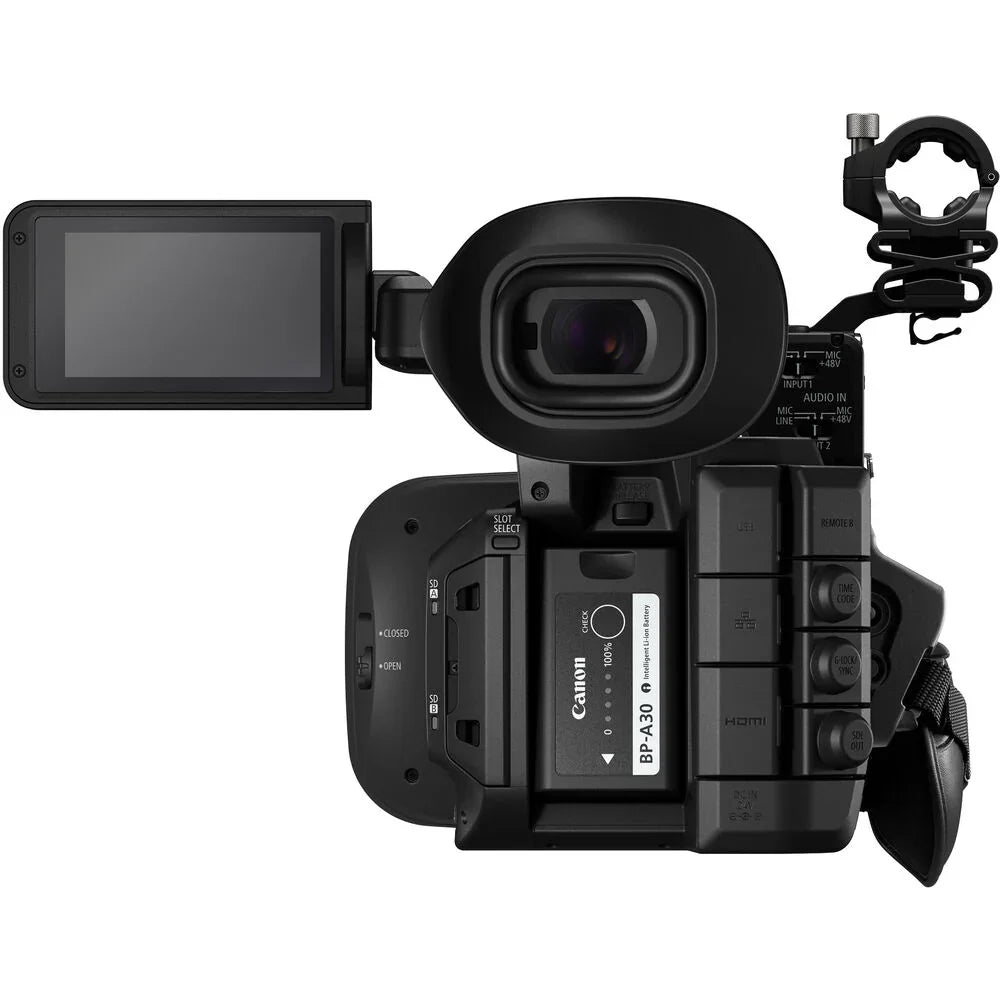

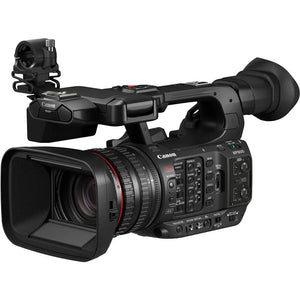

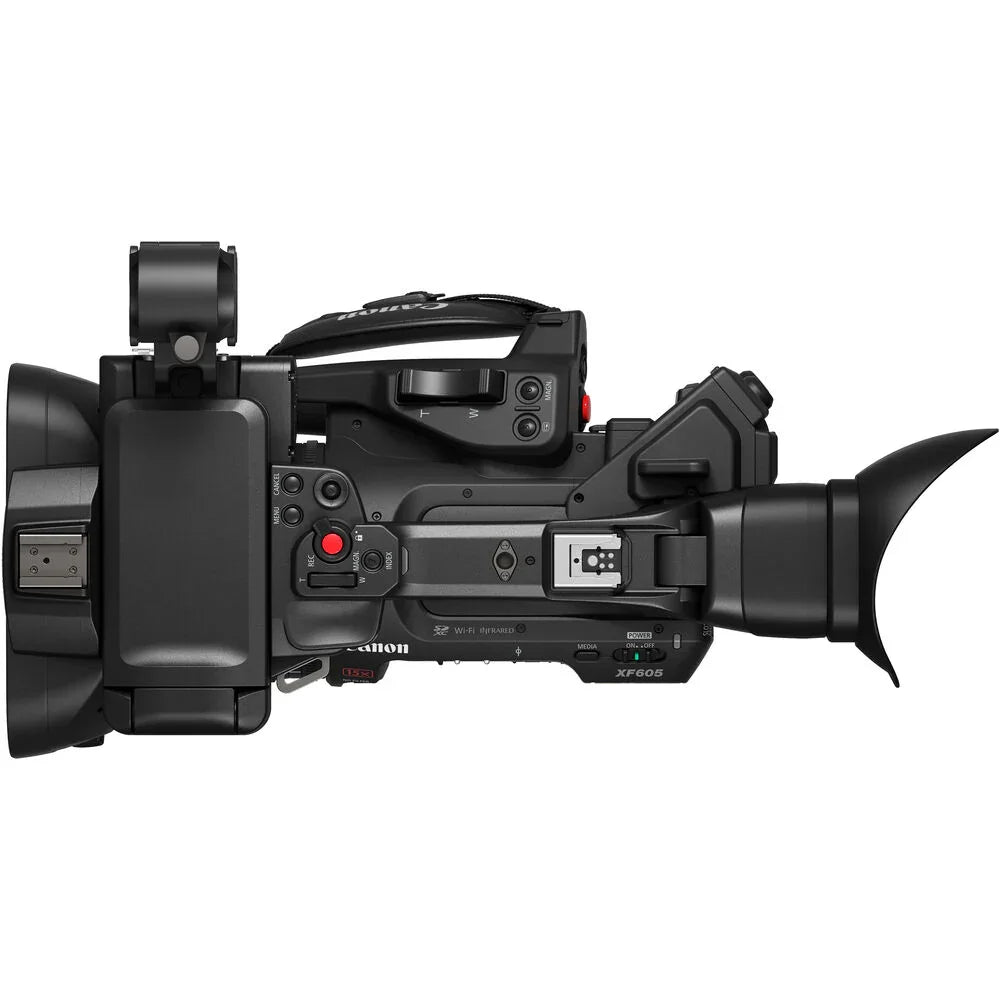

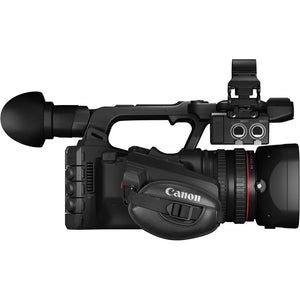

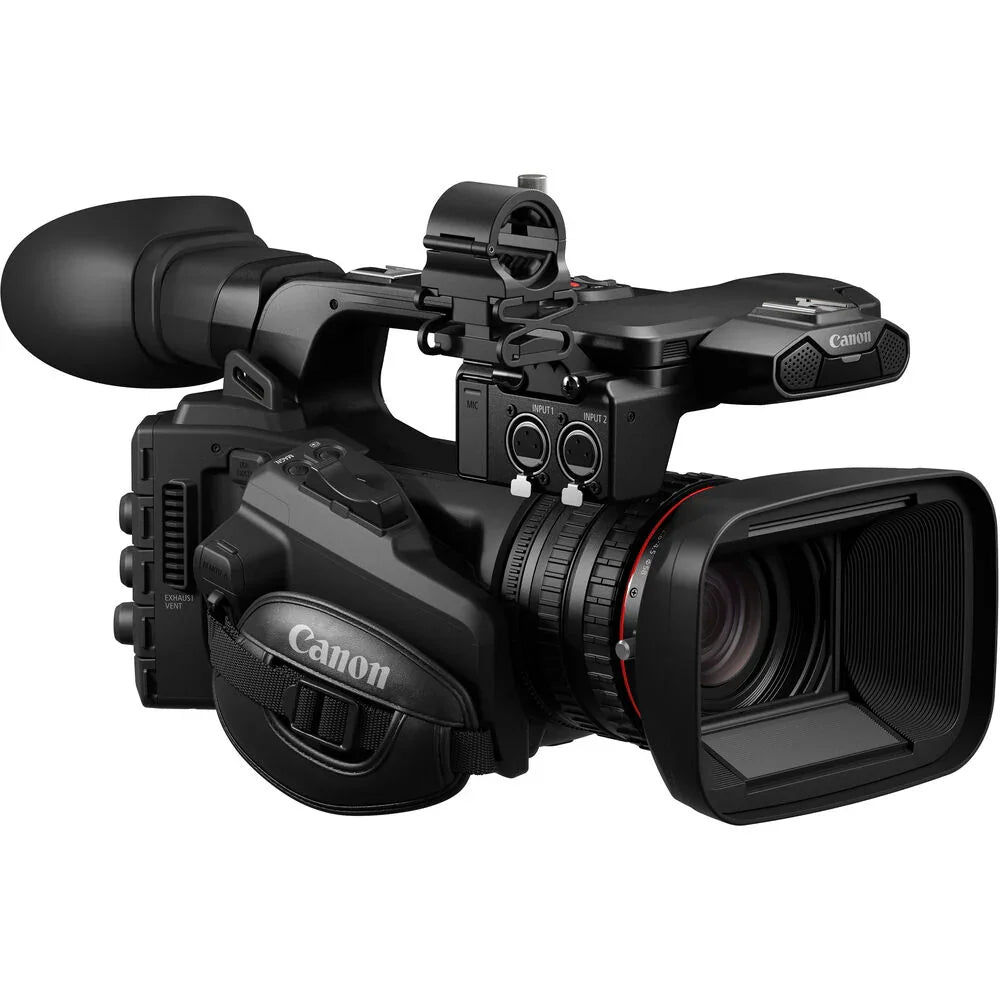

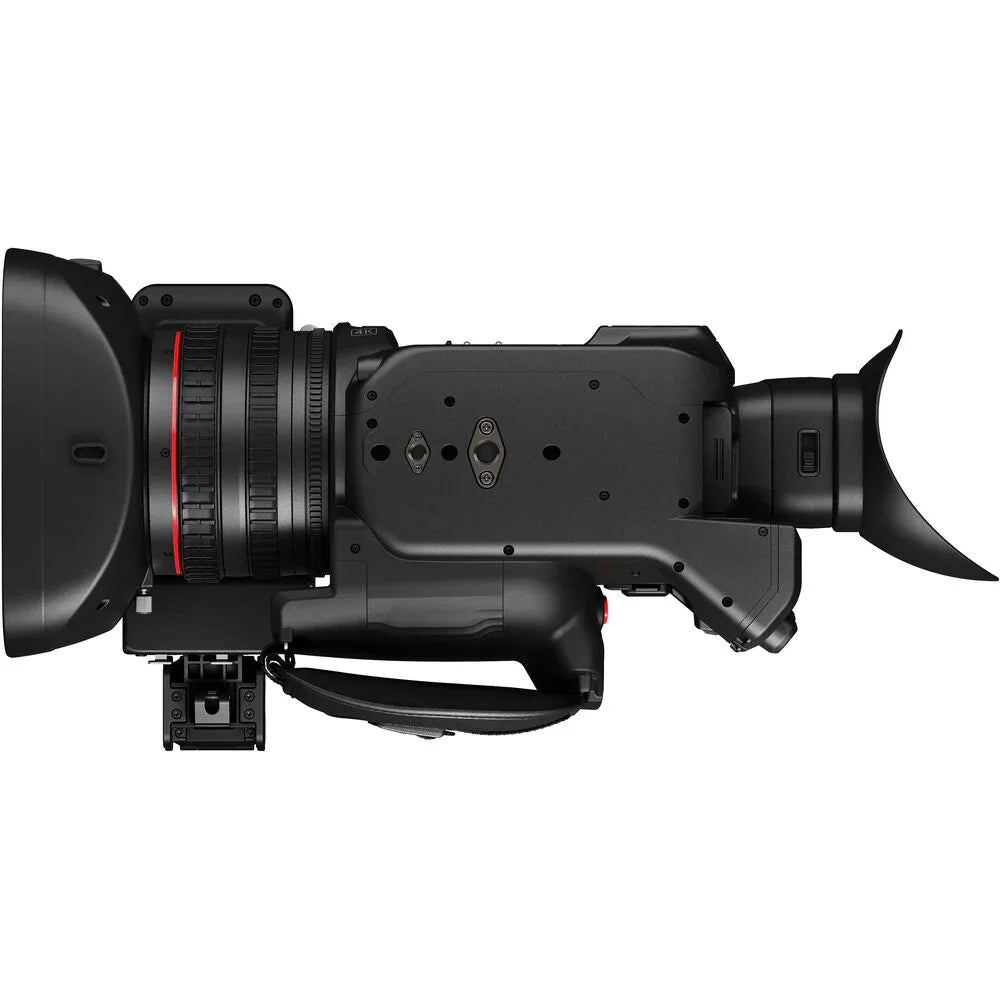

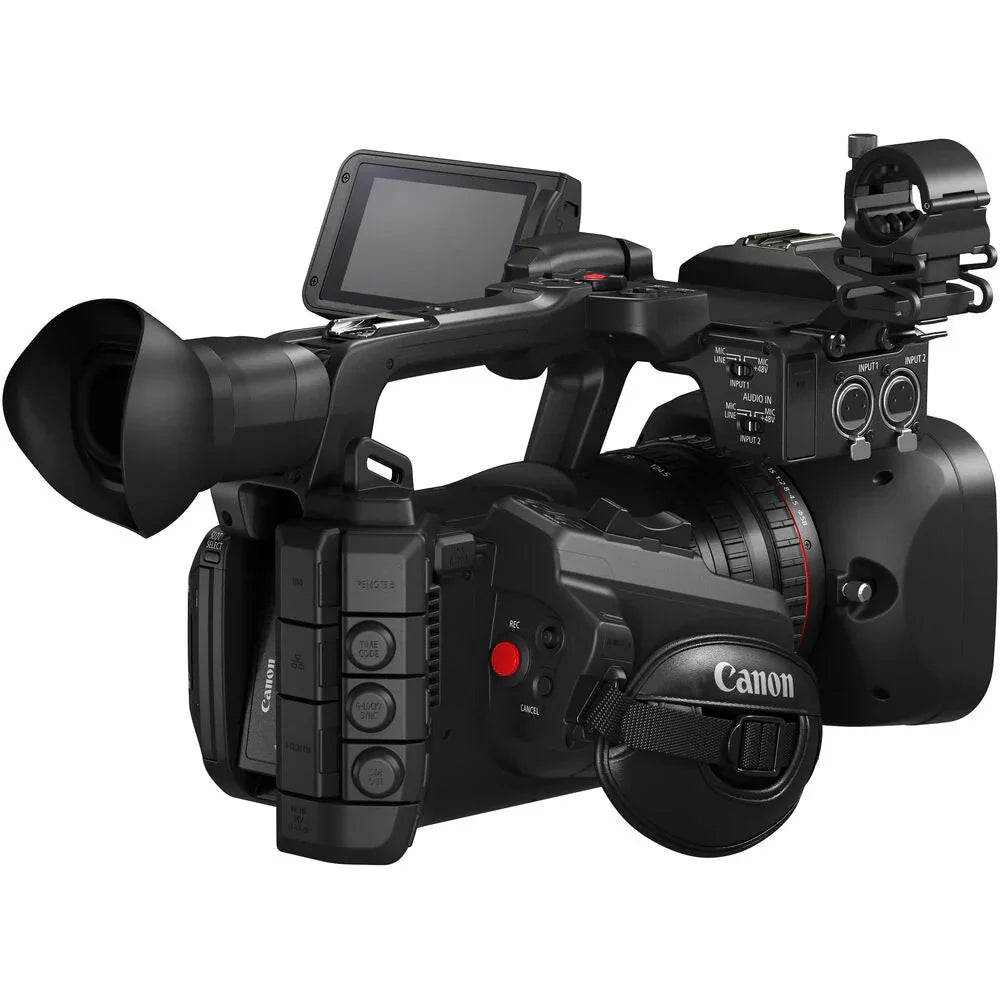

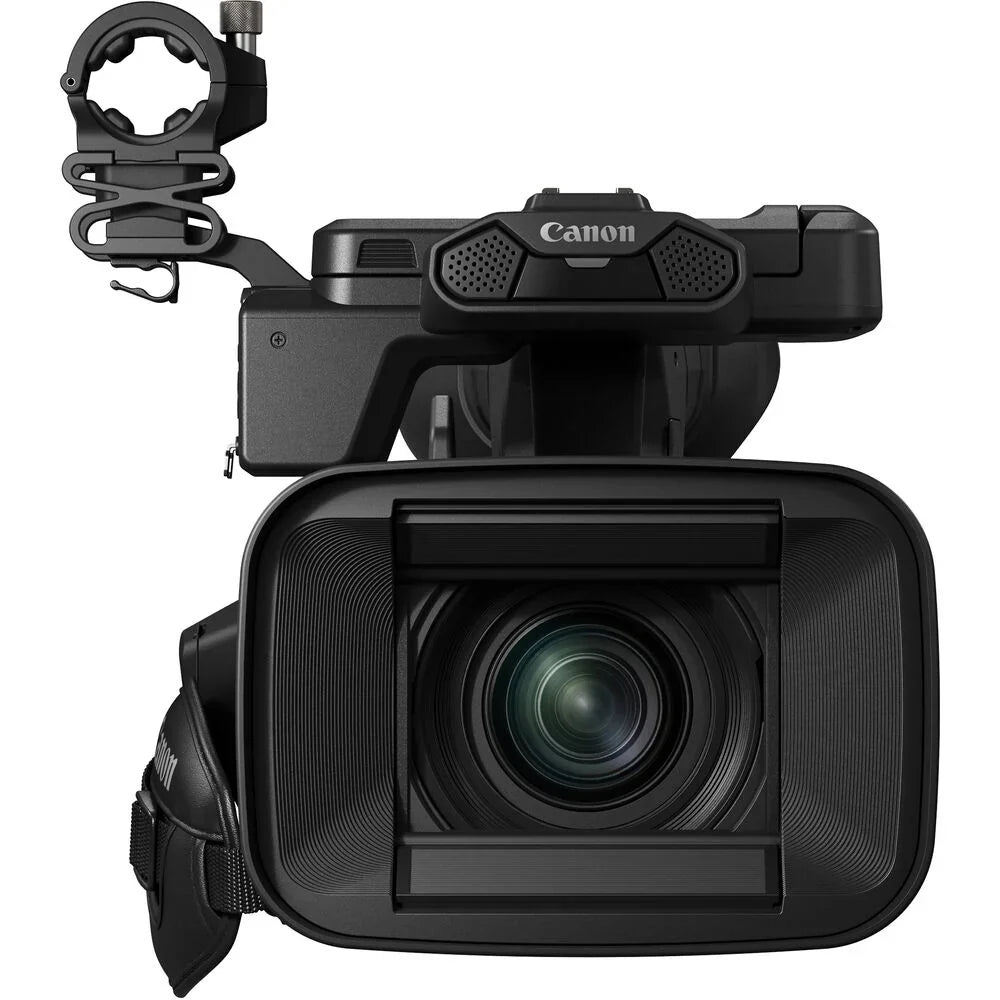

Canon XF605 UHD 4K HDR Pro Camcorder
- 1" CMOS Sensor, 4:2:2 10-Bit
- H.265/H.264 MP4 Format, XF-AVC
- UHD 4K up to 60 fps, 1080p to 120 fps
- iOS App | 15x Optical/30x Digital Zoom
- Dual-Pixel CMOS Autofocus Feature
- HDR Recording, Canon Log 3, Wide DR
- 12G-SDI, HDMI & USB-C Outputs
- Optical & Digital Stabilization
- Four XLR Inputs, 4-Channel LPCM Audio
- Discrete Focus, Iris, Zoom Lens Rings
Canon XF605 UHD 4K HDR Pro Camcorder
Special Financing | Shoot Now - Pay Later!
Get the gear you want today and pay tomorrow with one of our special financing programs.
Canon XF605 UHD 4K HDR Pro Camcorder
Canon XF605: UHD 4K Mobility
Combining high-resolution capture with a mobile workflow, the 15x zoom XF605 UHD 4K HDR Pro Camcorder from Canon is a go-to choice for ENG, sports, entertainment, and narrative applications. This compact 1" CMOS sensor camera with a DIGIC DV 7 engine features high sensitivity, Canon cinema color matrix choices, Canon Log 3, HDR support, and Eye AF and EOS iTR AF X (head detection) autofocus modes. It offers up to UHD 4K60 4:2:2 10-bit capture in a variety of both All-I and Long-GOP XF-AVC and MP4 H.264/H.265 formats with the ability to capture different codecs and rates simultaneously to its dual SD card slots. A Direct Touch Control touchscreen menu, four-channel XLR audio, simultaneous outputs, a USB-C video output, and an iPhone app built on established XF series features such as individual focus, iris, and zoom rings, and built-in ND filters.
High-Resolution Performance
Whether you shoot ENG, sports events, live entertainment, or broadcast-style footage, the Canon XF605 is poised to deliver high-resolution video using a compact form and mobile workflow options, including an iPhone app, a LAN port, and built-in dual-band, MIMO Wi-Fi.
UHD 4K CMOS Sensor
DIGIC DV 7 Engine
The DIGIC DV 7 engine powers the camcorder's processing of the 4K, 10-bit 4:2:2 video and selectable color matrix settings, including Canon EOS and other industry-standard matrix choices, as well as supporting Canon Log 3/HLG and PQ color spaces. The processor allows you to take advantage of the dual SD card slots for dual recording, relay recording, and multiple simultaneous recording options of your footage in MP4 or XFAVC.
15x Canon L Zoom
Advanced Autofocus
The XF605 is the first of the ENG-friendly XF family to offer two autofocus features familiar to Canon EOS series users that help keep your image sharp during dynamic shots:
Frame and Interval Recording
Create captivating time-lapse effects using the XF605's Frame Recording and Interval Recording modes. Frame Recording captures a set number of frames with each press of the trigger. Interval Recording enables you to choose the number of frames recorded and the interval length between them.
Cinema Color
Match the look of your other Canon cameras using the XF605's cinema color matrix selections. Use Canon Log3, HLG, and PQ HDR for beautifully detailed images.
USB Video Out
New Touchscreen
Gain intuitive touchscreen control, including start/stop with the XF605's Direct Touch Control menu borrowed from the Canon C70 cinema camera.
CTM iPhone App
Canon's new iPhone CTM (content transfer mobile) app enables a truly mobile news workflow. Use the app to exchange proxy footage, audio, and metadata through your phone connection and a newsroom server and integrate content into assignment planning software.
HDR-Compatible Viewing Options
4-Channel Audio
A new multifunction shoe on the XF605 enables you to access up to four inputs on the XLR audio unit, perfect for capturing ambient sound plus one to three speakers.
Lightweight, Compact Form
The compact XF605 is about 25% lighter and 10% smaller than the XF705, a difference you'll appreciate on long shoot days.
Wired Remote Control
Use the LANC-based RC-V100 to control your main camera functions and shading options. Use an NU (RS-422) controller like the RC-IP100 to control the XF605 and other cameras in your network.
- Canon XF605 UHD 4K HDR Pro Camcorder
- Canon BP-A30 Battery Pack for EOS C300 Mark II, C200, and C200B
- Canon CA-CP200L Compact AC Power Adapter
- Canon Single Battery Charger for EOS C300 Mark II, C200, and C200B Batteries
- Lens Cap
- Lens Hood
- Limited 1-Year Manufacturer Warranty
Imaging
| Sensor Resolution | Actual: 13.4 Megapixel (4268 x 3148) Effective: 8.29 Megapixel (3840 x 2160) |
| Image Sensor | 1"-Type CMOS |
| Image Stabilization | Optical in Integrated Lens Digital |
| Built-In ND Filter | Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
| Capture Type | Stills & Video |
Exposure Control
| Shutter Type | Electronic Rolling Shutter |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/2000 to 1/4 Second |
| Shutter Angle | 11 to 360° |
| Sensitivity | f/12 at 2000 lux |
| Minimum Illumination | 1.5 Lux at 1/30 Shutter Speed |
Lens
| Focal Length | 8.3 to 124.5mm (35mm Equivalent: 25.5 to 382.5mm) |
| Optical Zoom Ratio | 15x |
| Max Digital Zoom | 30x ( in 1080p) |
| Maximum Aperture | f/2.8 |
| Minimum Aperture | f/4.5 |
| Optical Design | 18 Elements in 14 Groups |
| Minimum Focus Distance | Entire Zoom Range: 2.0' / 60.0 cm Wide: 0.4" / 1.0 cm |
| Filter Size | 58 mm |
| Control Rings | Focus Zoom Iris |
| Focus Control | Autofocus Manual Focus |
Video Capture
| Internal Recording Modes | MXF/XF-AVC 4:2:2 10-Bit 3840 x 2160 at 23.98/25/29.97/50/59.94 fps [160 to 410 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94/120 fps [50 to 310 Mb/s] 1920 x 1080i at 50/59.94 fps [50 to 160 Mb/s] 1280 x 720 at 23.98/25/29.97/50/59.94 fps H.265/MP4 4:2:2 10-Bit 3840 x 2160 at 23.98/25/29.97/50/59.94 fps [135 to 225 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94/120 fps [50 Mb/s] 1280 x 720 at 23.98/25/29.97/50/59.94 fps [12 Mb/s] H.265/MP4 4:2:0 10-Bit 3840 x 2160 at 23.98/25/29.97/50/59.94 fps [100 to 170 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94 fps [35 Mb/s] 1280 x 720 at 23.98/25/29.97/50/59.94 fps [9 Mb/s] H.264/MP4 4:2:0 8-Bit 3840 x 2160 from 1 to 23.98/25/29.97/50/59.94 fps [150 Mb/s] 1920 x 1080p from 1 to 23.98/25/29.97/50/59.94 fps [35 Mb/s] 1280 x 720 at 23.98/25/29.97/50/59.94 fps |
| External Recording Modes | SDI/BNC UHD 4K (3840 x 2160) up to 59.94 fps |
| Fast-/Slow-Motion Support | Yes |
| Gamma Curve | Canon Log 3, HDR-HLG |
| Built-In Microphone | Stereo |
| Audio Recording | 2-Channel 16-Bit 48 kHz AAC Audio 4-Channel 24-Bit 48 kHz LPCM Audio |
| IP Streaming | MPEG2 1920 x 1080 to 3840 x 2160 at 25p, 29.97p, 50p, 59.94p (4.0 to 16.0 Mb/s) 1920 x 1080 at 50i, 59.94i (4.0 to 9.0 Mb/s) |
Interface
| Media/Memory Card Slot | Slot 1: SD/SDHC/SDXC Slot 2: SD/SDHC/SDXC |
| Video I/O | 1x HDMI 2.0 Output 1x BNC (12G-SDI) Output |
| Audio I/O | 2x XLR 3-Pin Input 1x 1/8" / 3.5 mm TRS Stereo Input 1x 1/8" / 3.5 mm TRS Stereo Headphone Output |
| Power I/O | 1x Barrel (24VDC) Input |
| Other I/O | 1x USB-A Output 1x USB-C 1x BNC (Genlock, Sync) Input/Output 1x BNC (Timecode) Input/Output 1x 2.5 mm Sub-Mini Control 1x D-Sub 8-Pin Control 1x RJ45 (LAN) Input/Output |
| Wireless | 2.4 / 5 GHz MIMO Wi-Fi Video Output, Audio Output, Control |
| Global Positioning (GPS, GLONASS, etc.) | No |
Viewfinder
| Type | Removable Electronic (OLED) |
| Size | 0.36" |
| Resolution | 1,770,000 Dot |
Focus
| Focus Type | Auto and Manual Focus |
| Focus Mode | Automatic, Manual Focus |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 0 to 85% |
General
| Battery Type | Canon BP-A Series |
| Power Consumption | 21.5 W |
| Tripod Mounting Thread | 1/4"-20 Female 3/8"-16 Female |
| Accessory Mounting Thread | 1 x 1 x |
| Built-In Video Light | Yes (Infrared) |
| Dimensions (W x H x D) | 15.2 x 8.6 x 8.3" / 385 x 219 x 210 mm (With Protrusions) 13.1 x 6.8 x 6.6" / 333 x 173 x 168 mm (Without Protrusions) |
| Weight | 4.4 lb / 2010 g |
- Canon XF605 UHD 4K HDR Pro Camcorder
- Canon BP-A30 Battery Pack for EOS C300 Mark II, C200, and C200B
- Canon CA-CP200L Compact AC Power Adapter
- Canon Single Battery Charger for EOS C300 Mark II, C200, and C200B Batteries
- Lens Cap
- Lens Hood
- Limited 1-Year Manufacturer Warranty
