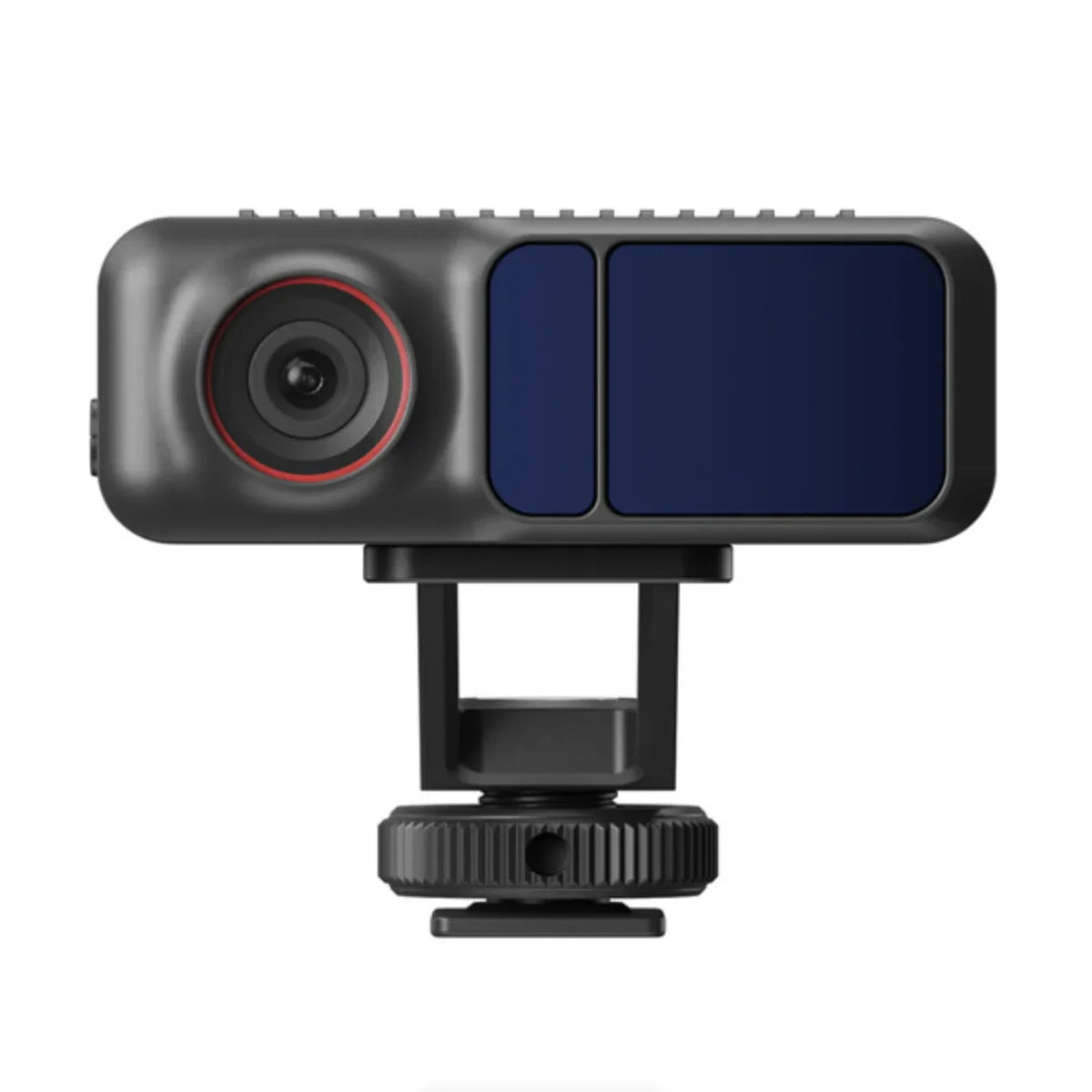

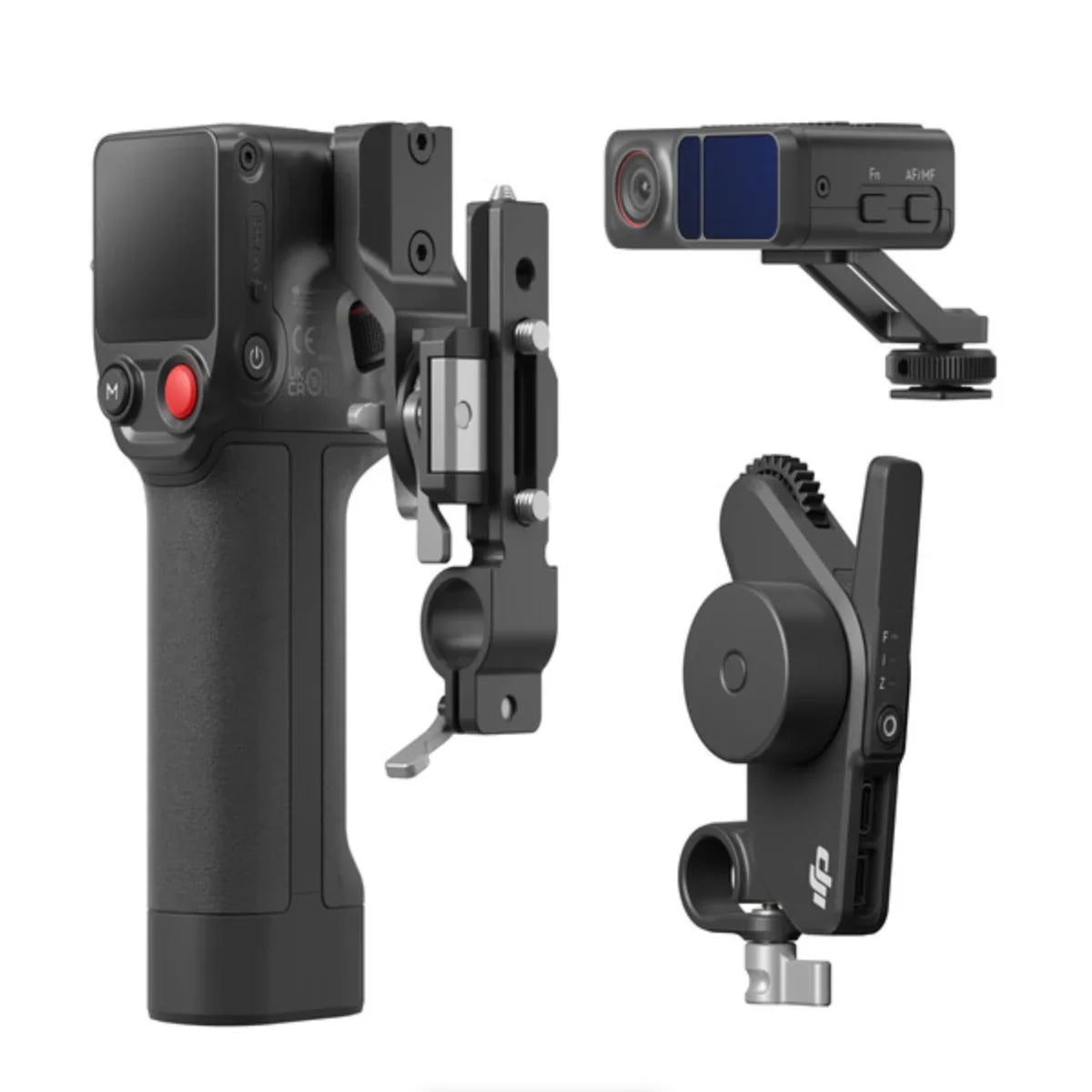

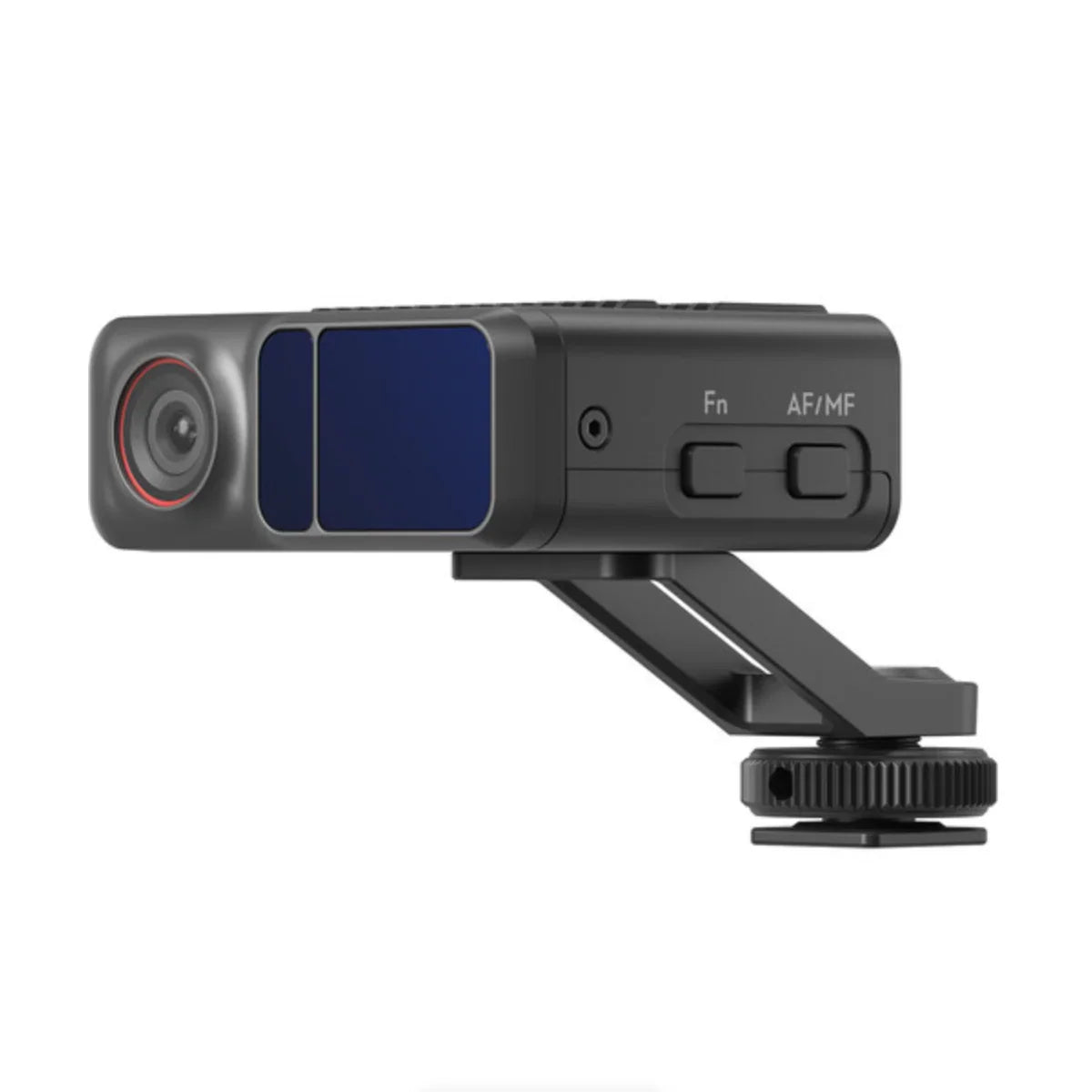

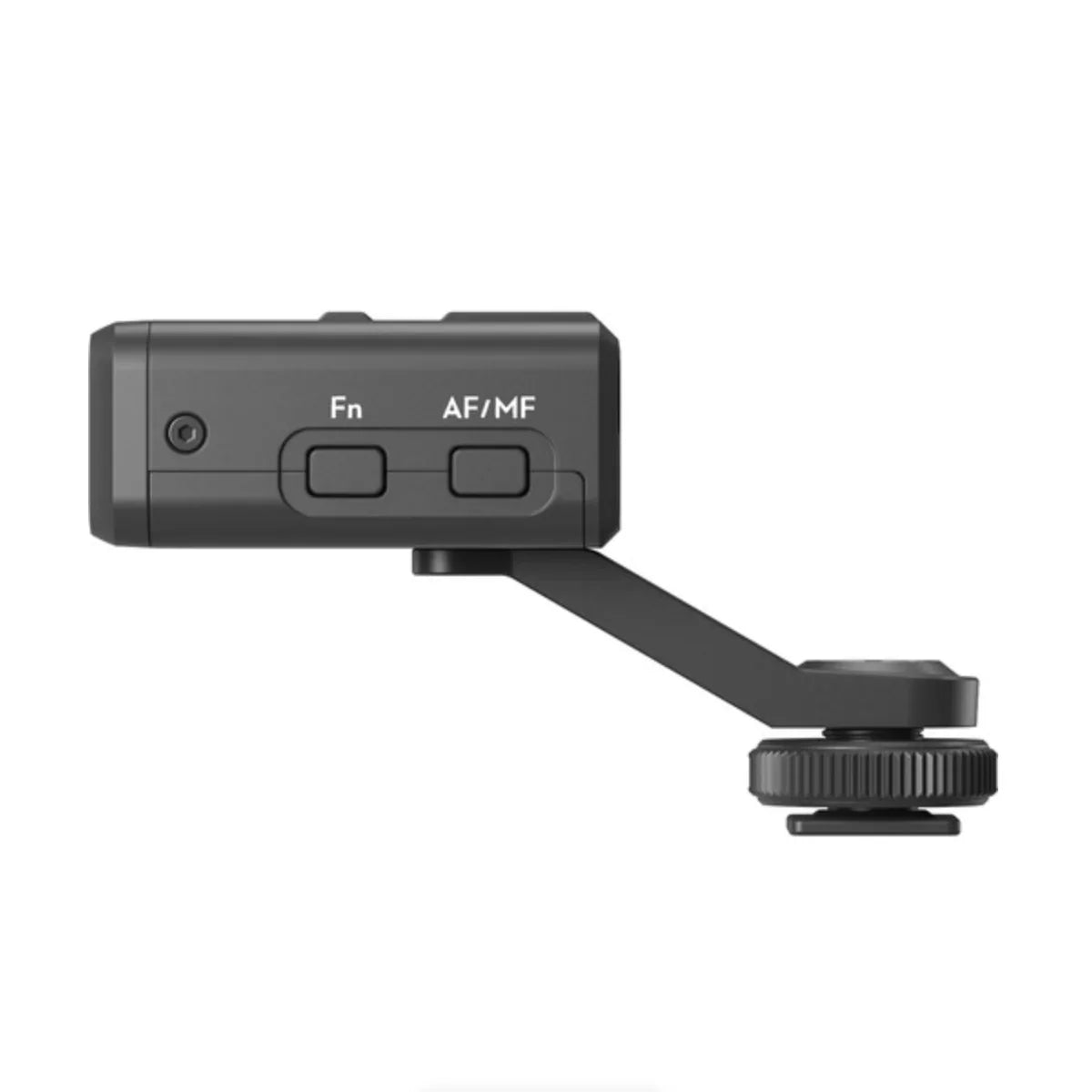

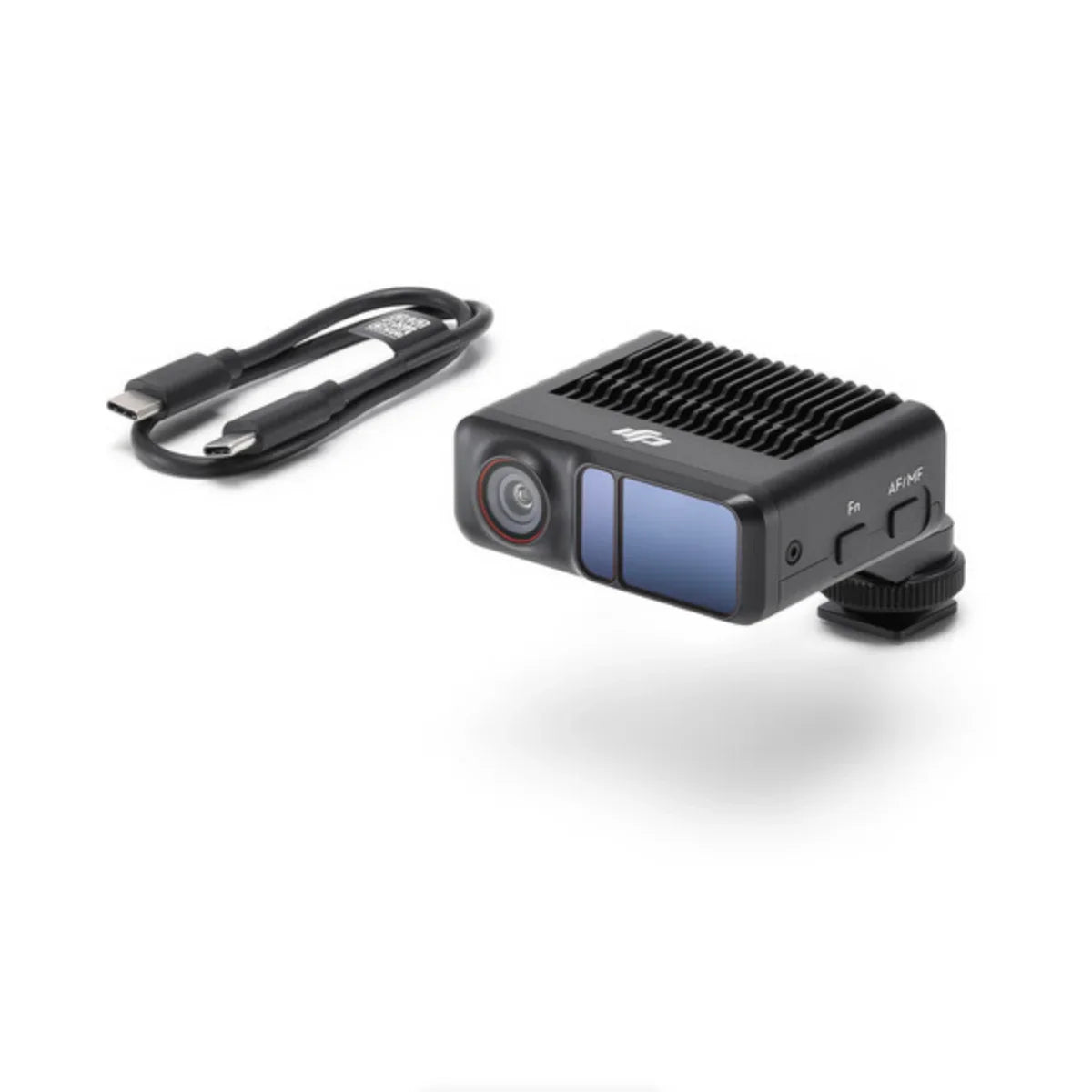

Designed for both the RS 3 Pro and RS 4 Pro gimbal stabilizers, the DJI Focus Pro LiDAR unit makes achieving intelligent autofocus intuitive and easy for solo cinematographers. The rangefinder unit makes focusing on objects in motion a breeze thanks to its expanded 76,800 ranging points, 30 Hz refresh rate, and 65.6' maximum detection area. This allows it to support both wide-angle and telephoto lens configurations.
The unit features a built-in camera with an equivalent 30mm focal length and 70° field of view to ensure accurate focus. Toggle between wide-angle, telephoto, and focus spot modes depending on the needs of your shoot. ActiveTrack Pro is activated when paired with the RS 4 Pro gimbal for improved recognition and tracking performance with multiple subjects or subjects at a distance. It is compatible with the Focus Pro Motor to provide accurate cinema-style autofocus. The LiDAR unit mounts on your RS 3 or 4 Pro series gimbal or camera via cold shoe or 1/4"-20 thread, and it is powered via a USB-C power cable.
When paired with the Focus Pro Motor, the LiDAR unit can facilitate autofocus with compatible lenses. The unit's 76,800 ranging points can project within a 1.6 to 65.6' area. It also features a built-in camera with an equivalent focal length of 30mm and a wide FOV of 70°, catering to the focusing needs of most scenarios.
The next-generation ActiveTrack Pro can directly read images from the camera built into the Focus Pro LiDAR Autofocus without needing the Ronin Image Transmitter. When using ActiveTrack Pro, you can directly monitor or frame the subject on the RS 4 Pro's OLED touchscreen. Even if the target is briefly obscured, the LiDAR unit can quickly relocate and retain focus.

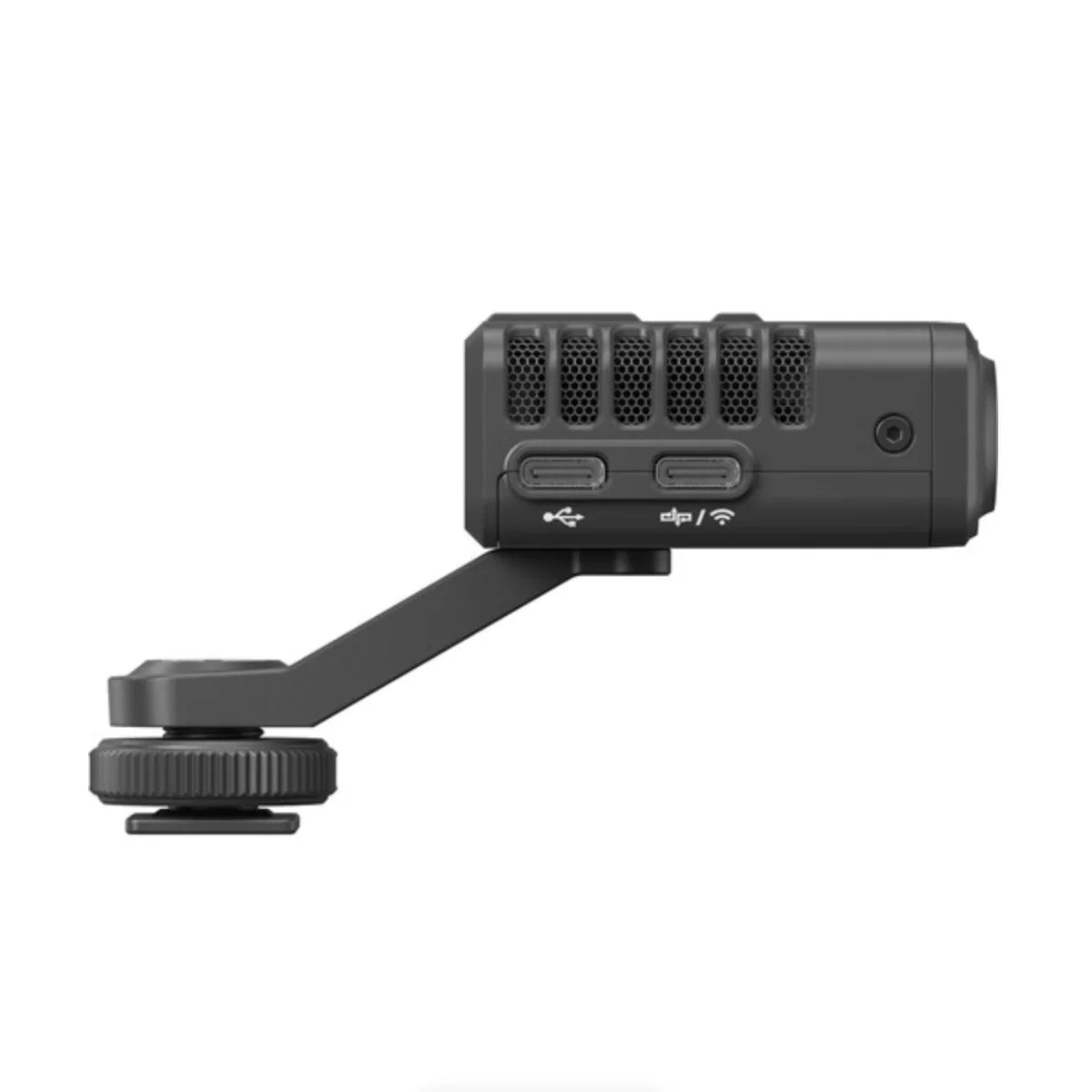

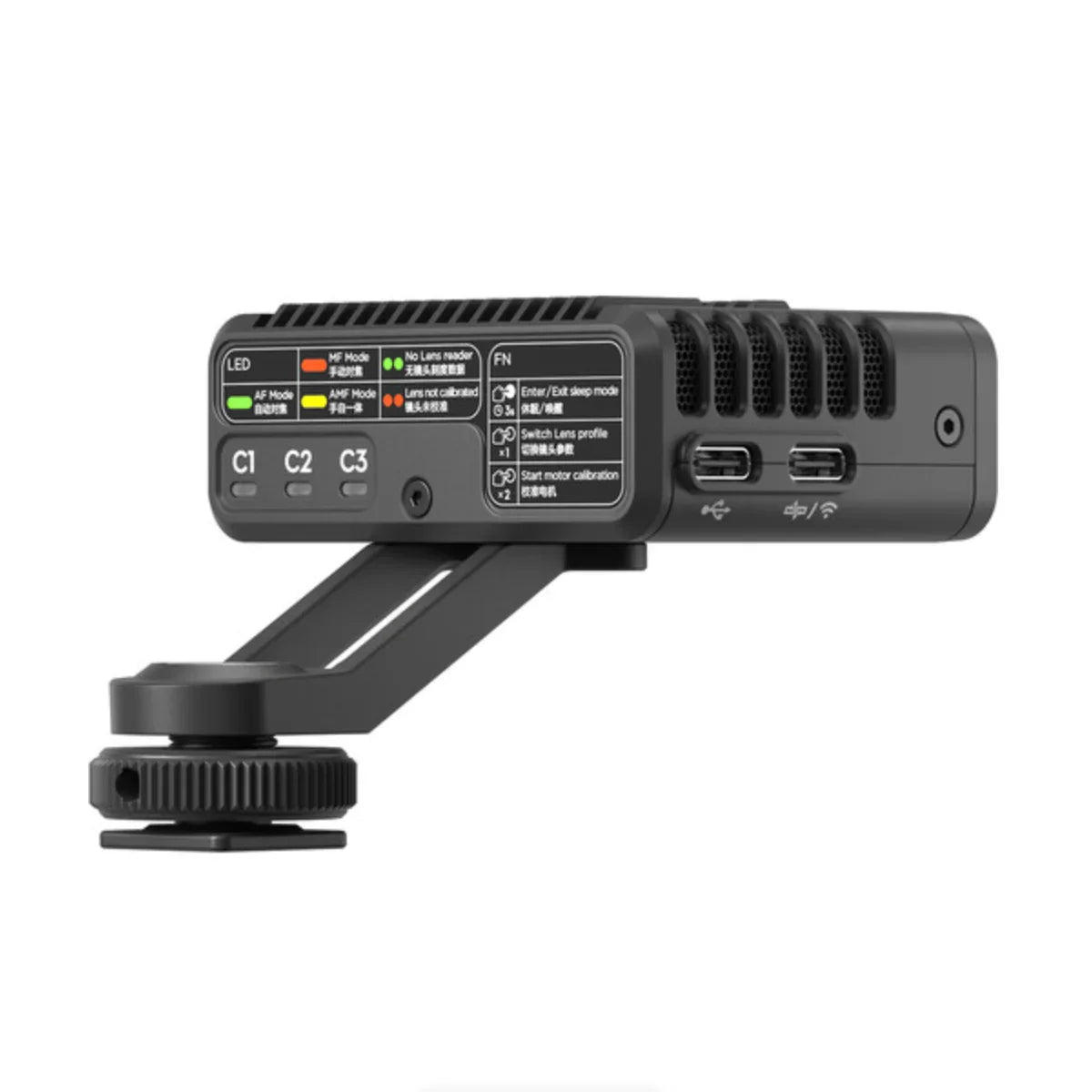

Use the USB-C data port to connect the LiDAR unit with the Focus Pro Motor for cinematic autofocus capability after calibration. Press the M button on the gimbal to switch between manual and autofocus with ease.

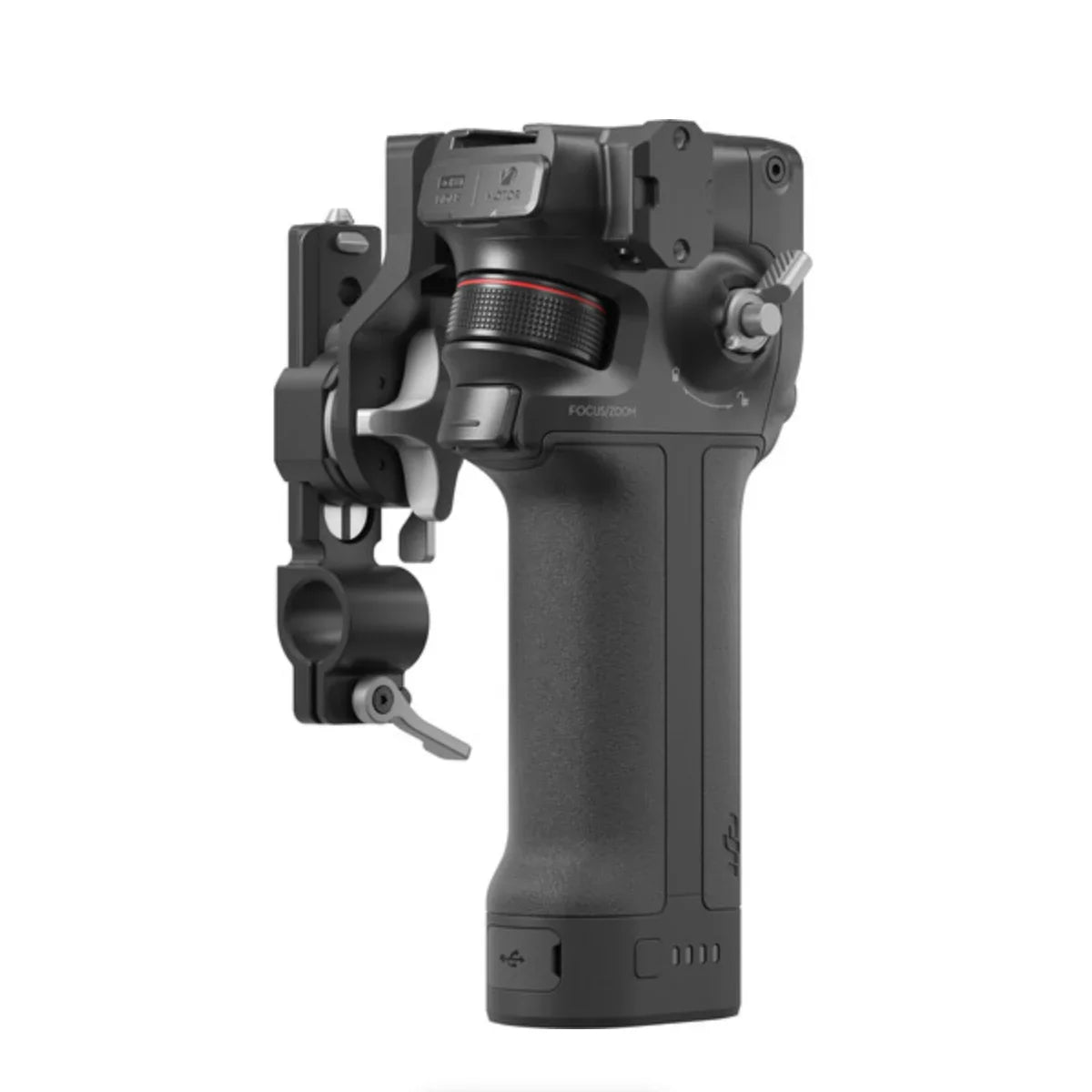

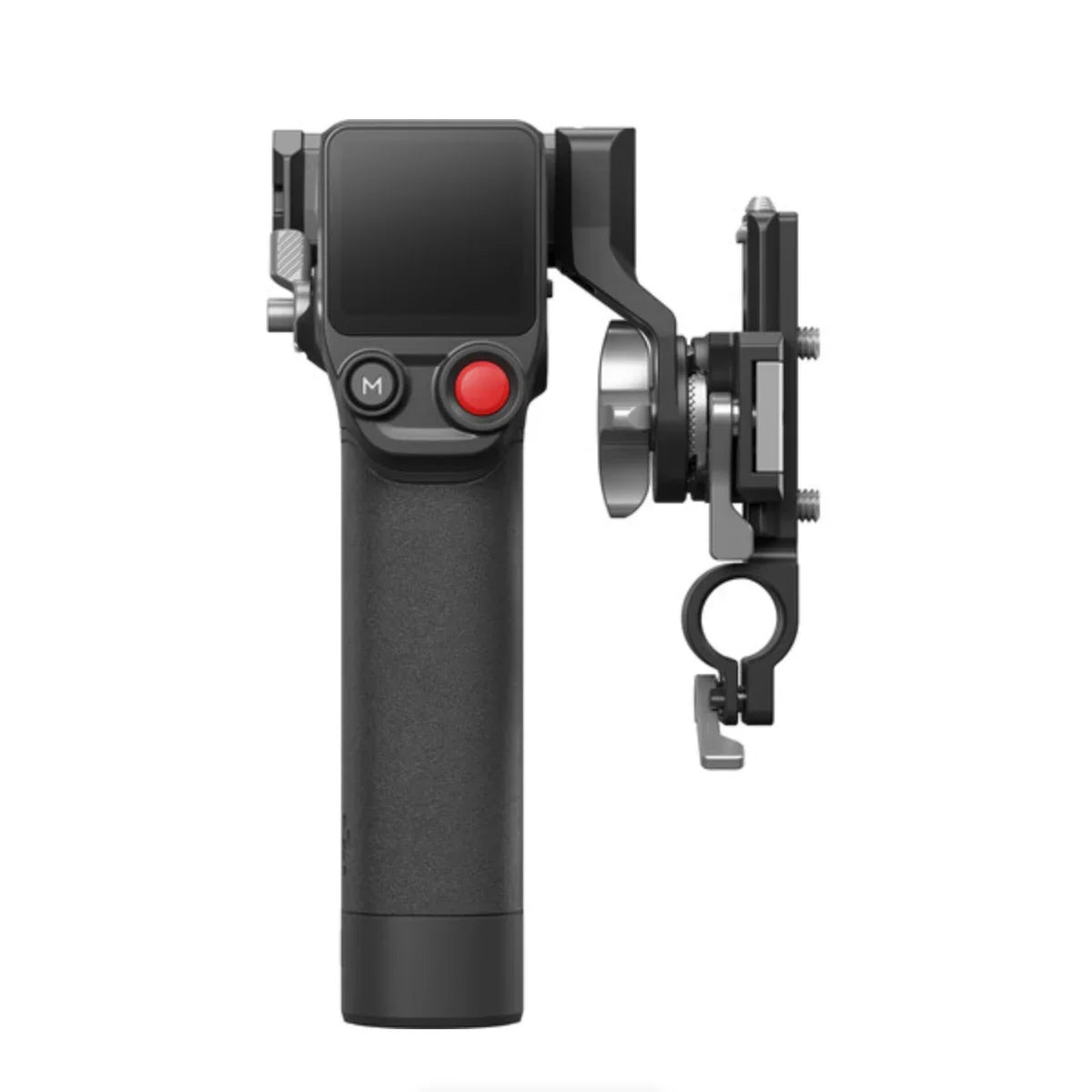

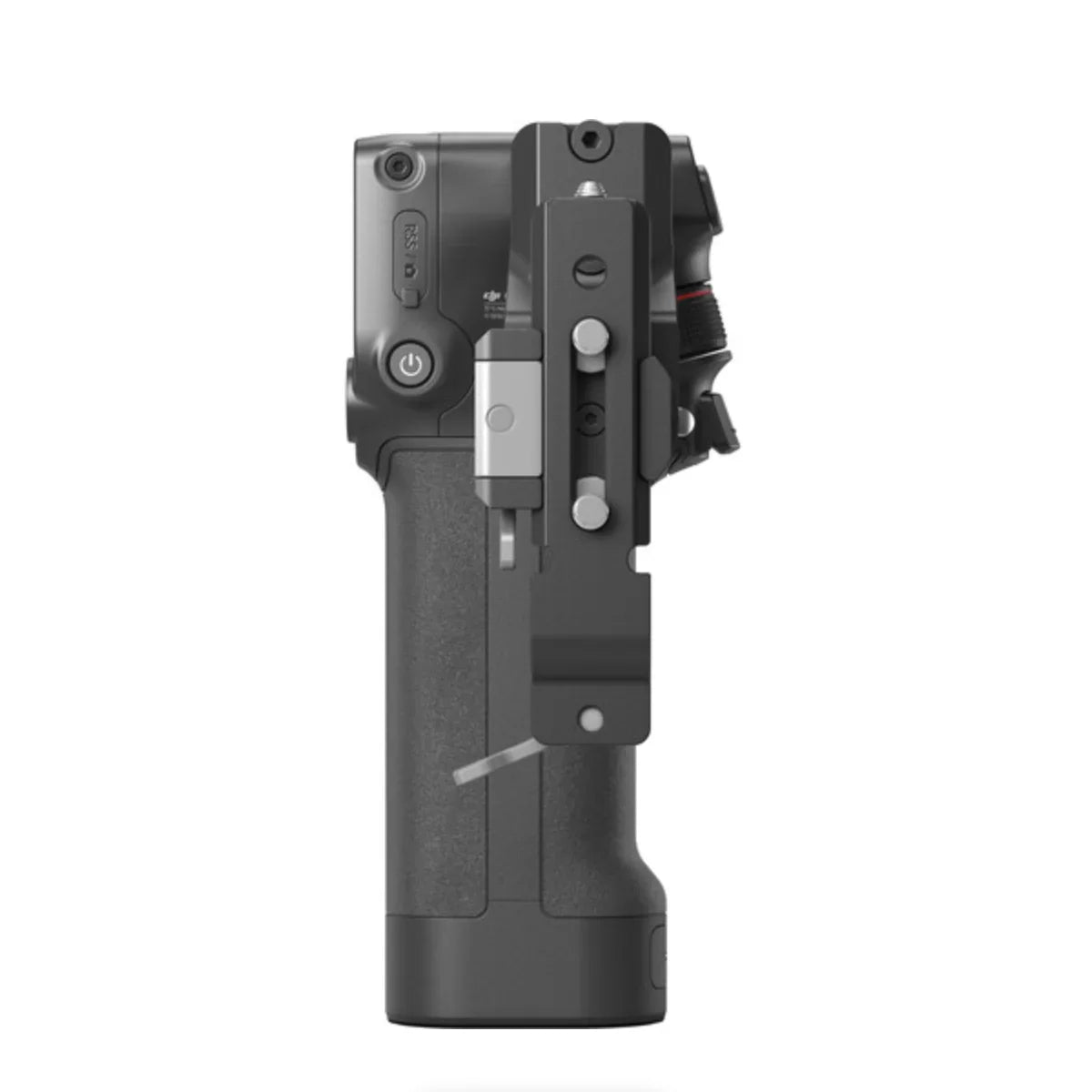

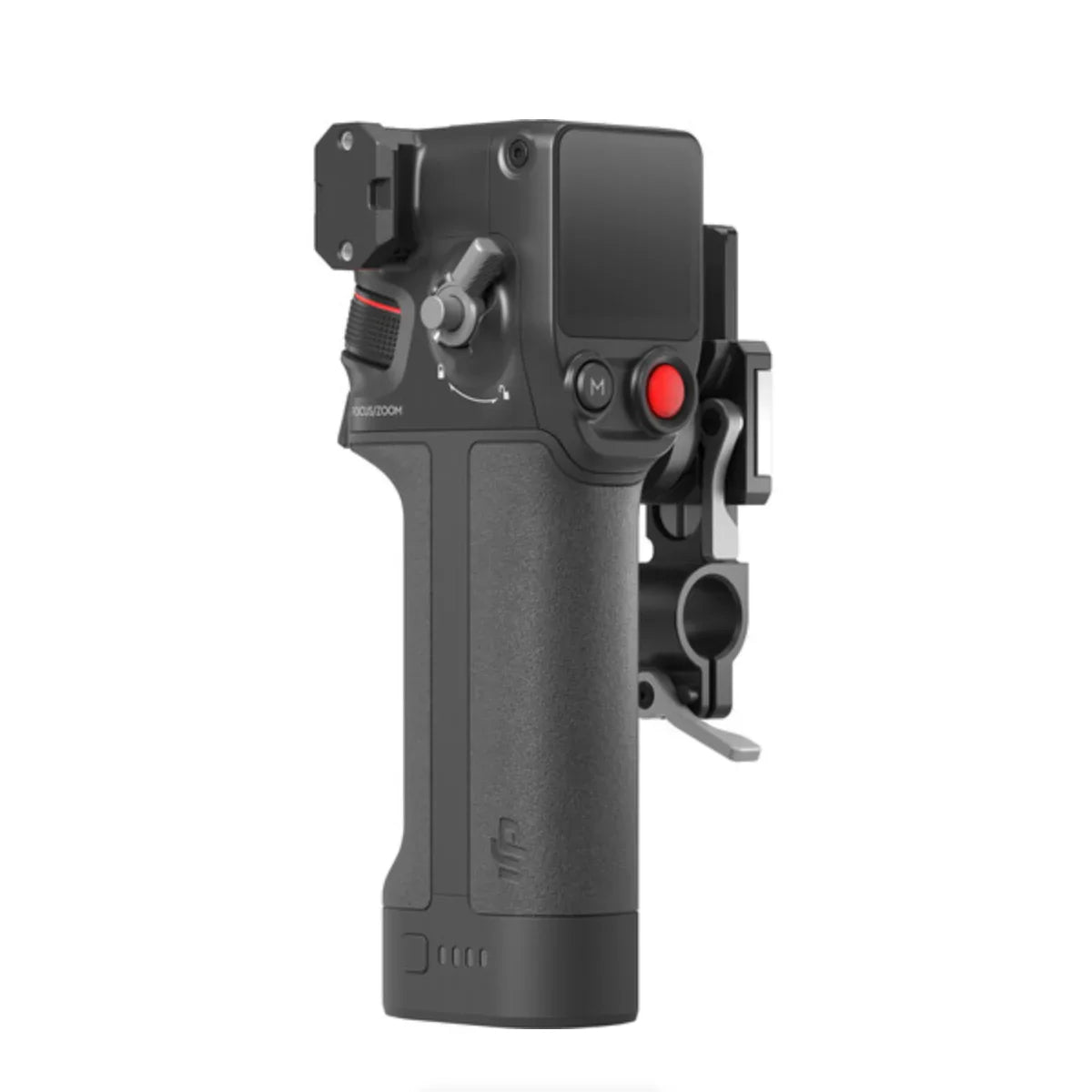

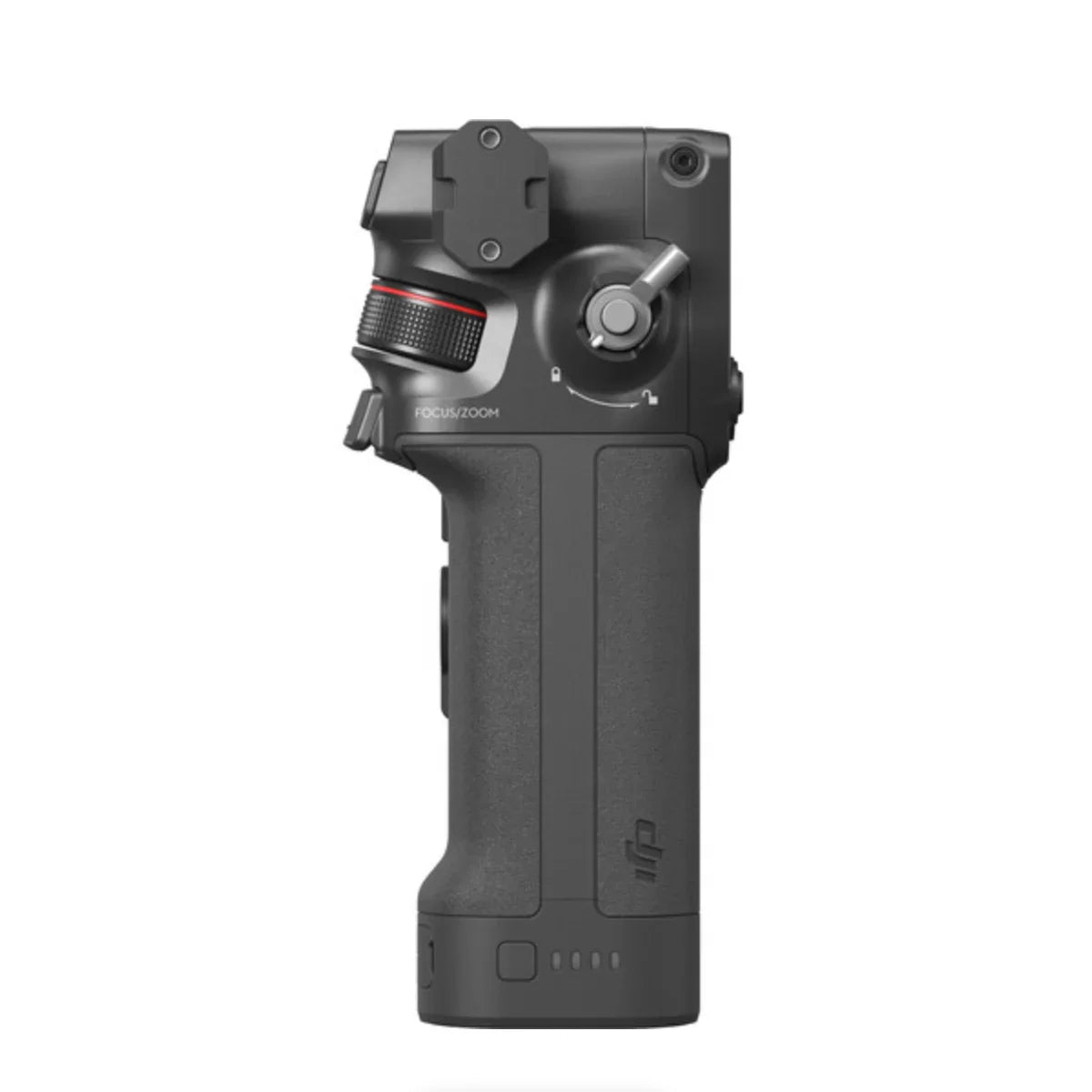

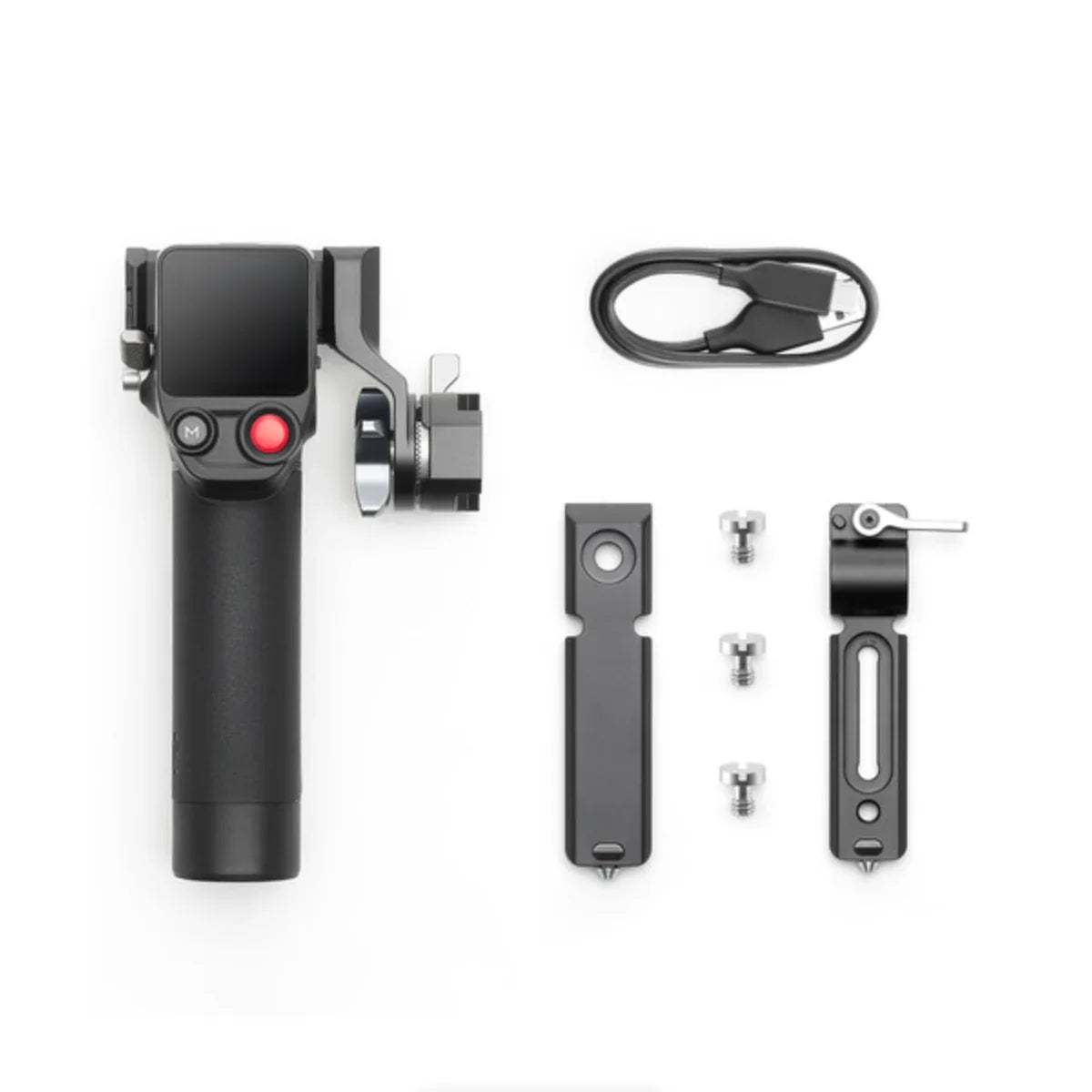

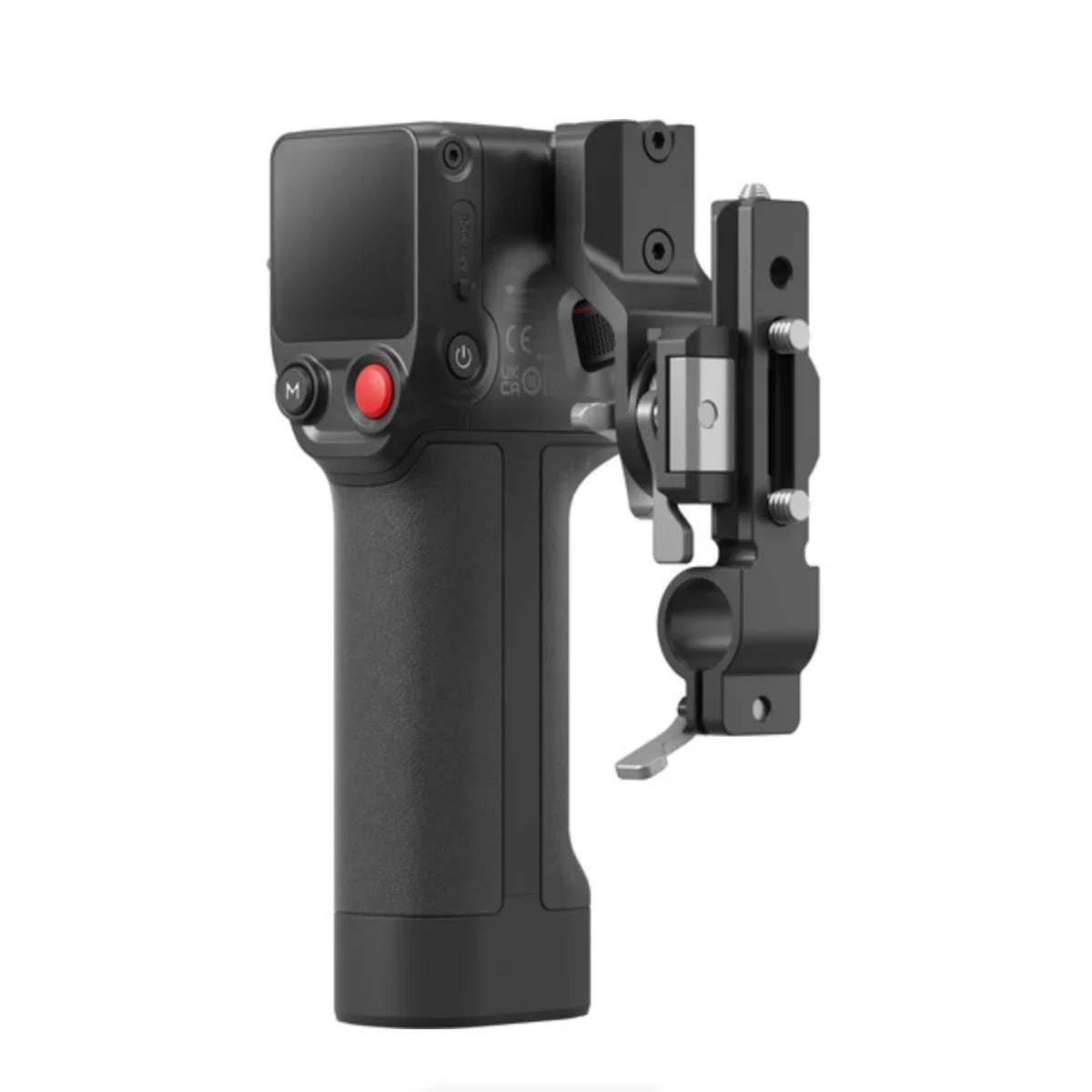

Attach this DJI Focus Pro Grip to either side of your DJI R3 Pro or RS 4 Pro gimbal and control your Focus Pro Motor configuration for precise FIZ. The grip has an integrated 1.8" touchscreen display, front dial, mode button, and record buttons for intuitive control over your camera and lens operations. Toggle AMF mode to engage autofocus, causing the front dial to rotate simultaneously and allowing cinematographers to visually observe the focus status on the monitor and via tactile feedback. Manual mode can then be engaged and disengaged intuitively.
Three USB-C ports facilitate communication between the Focus Pro LiDAR unit, Focus Pro Motor, and your camera. 2.4 GHz and Bluetooth communication allow for wireless transmission. Use the built-in NATO clamp and included adapters to attach the grip to either side of your gimbal configuration. A built-in battery keeps the grip running for 2.5 hours at a time, and it can recharge via PD fast charging technology using the USB-C port.

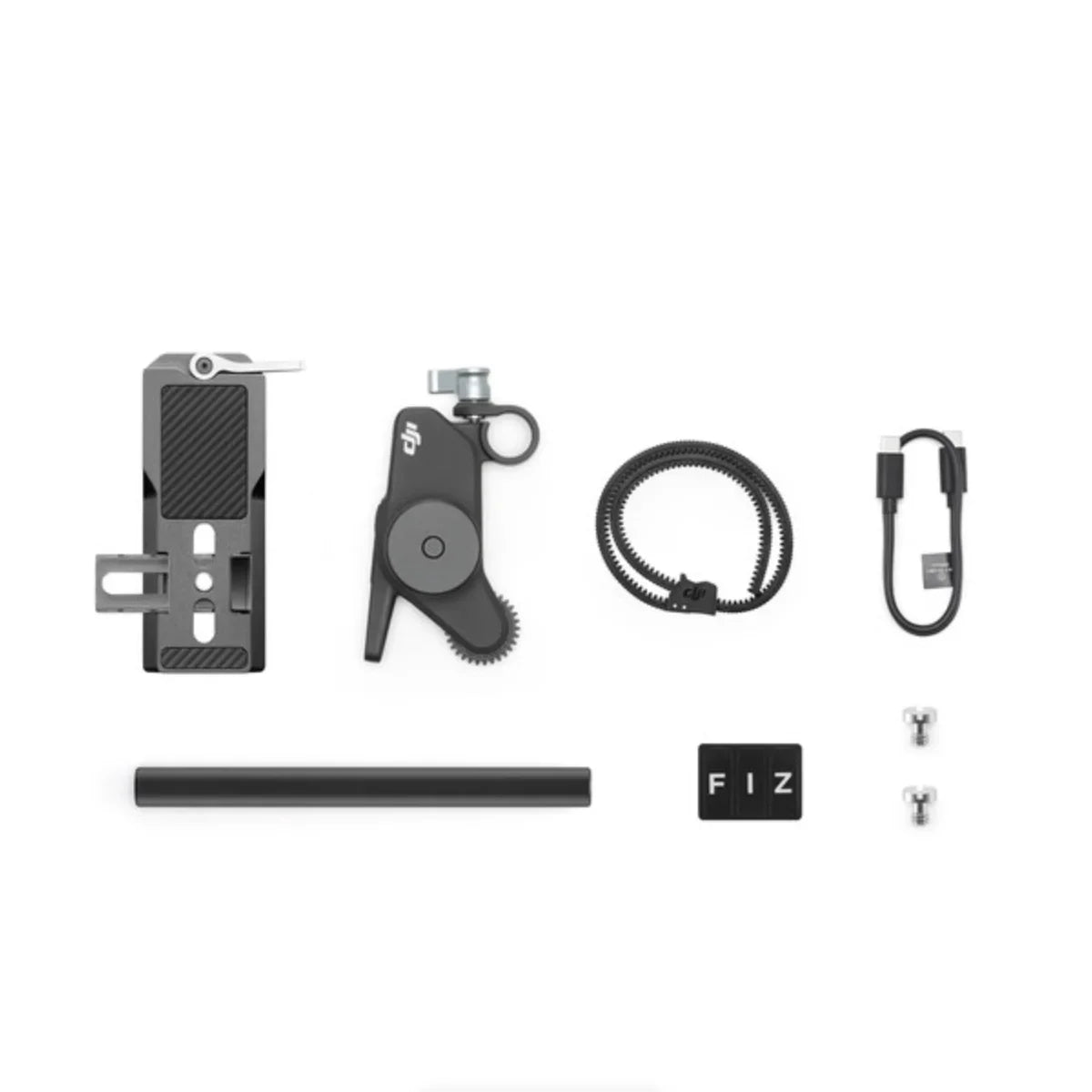

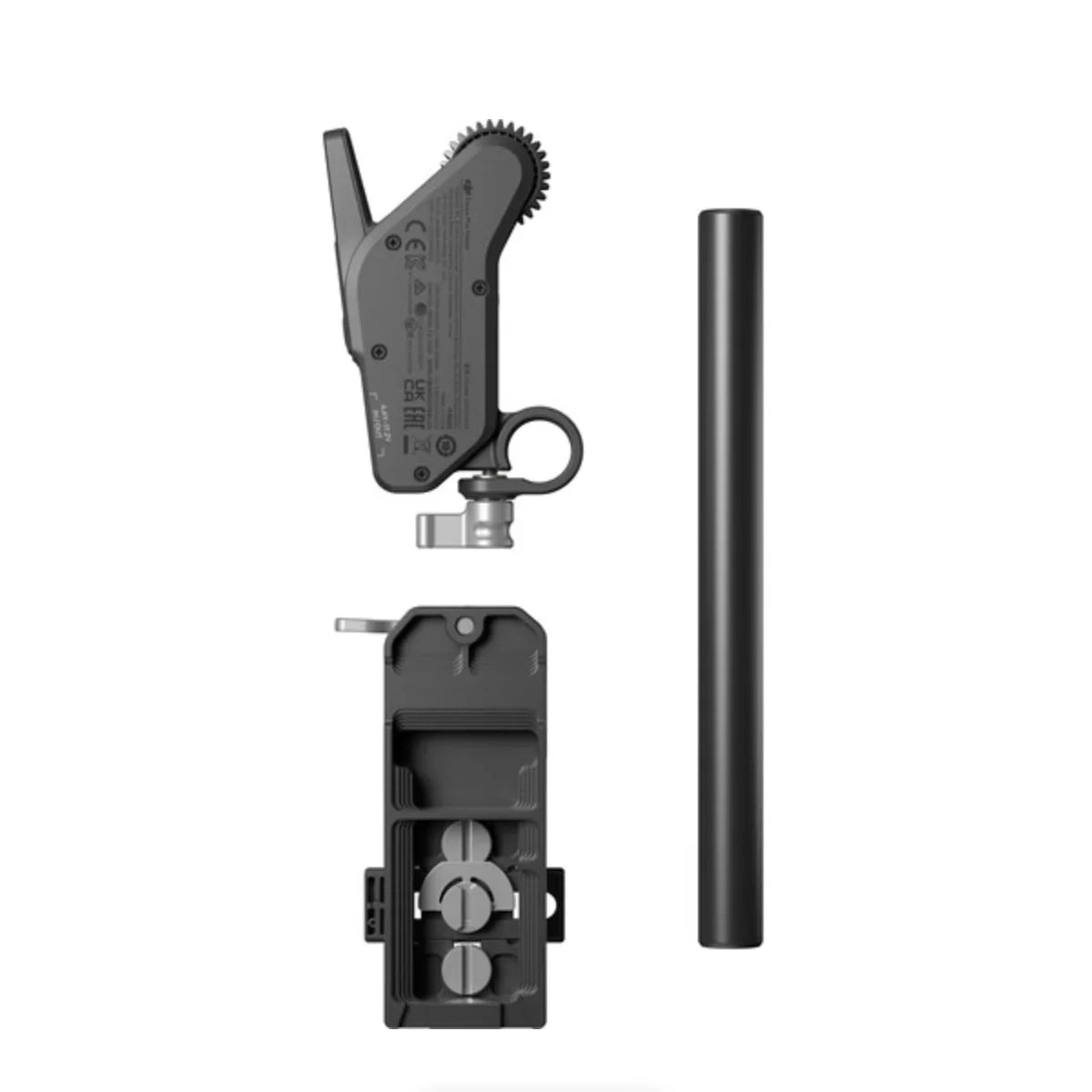

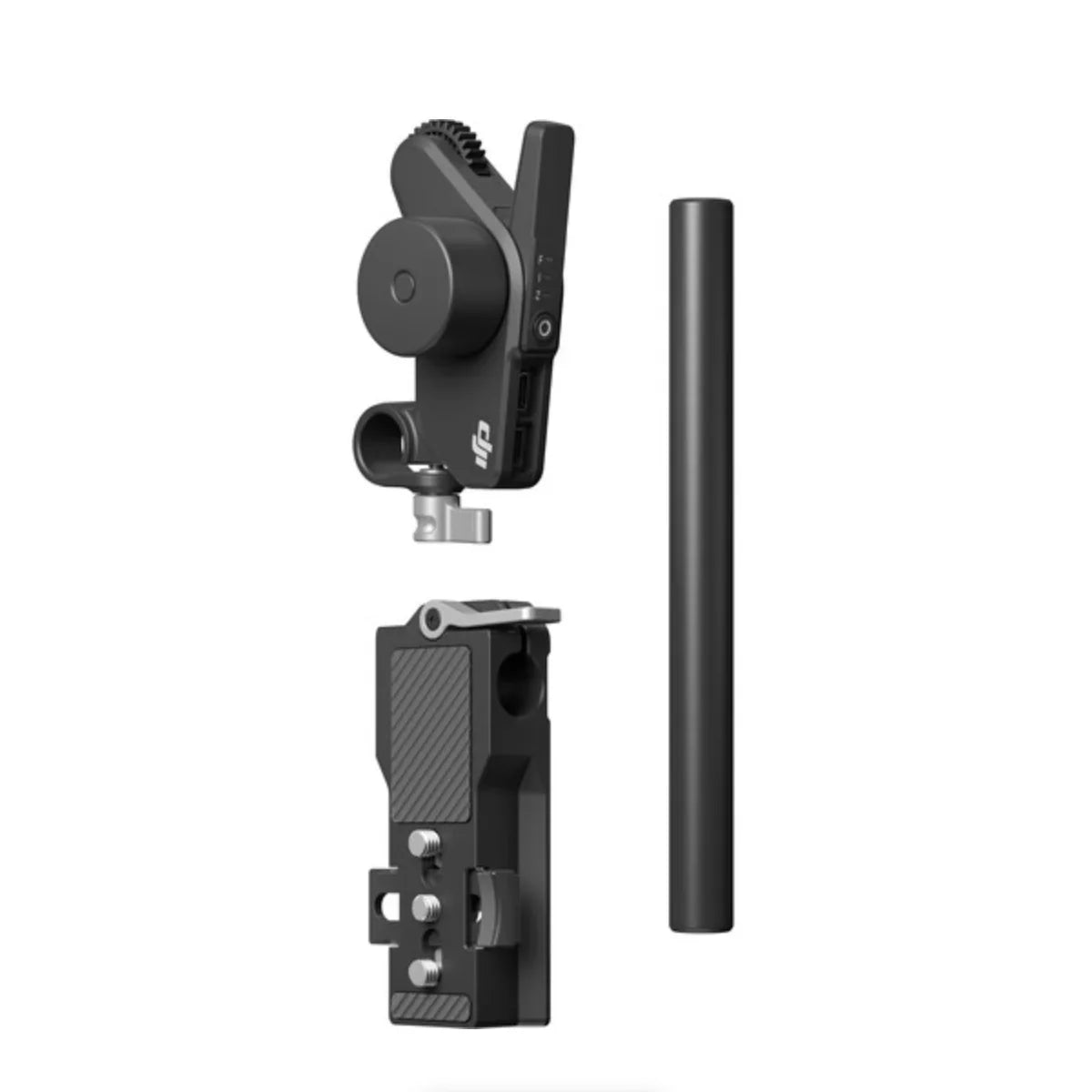

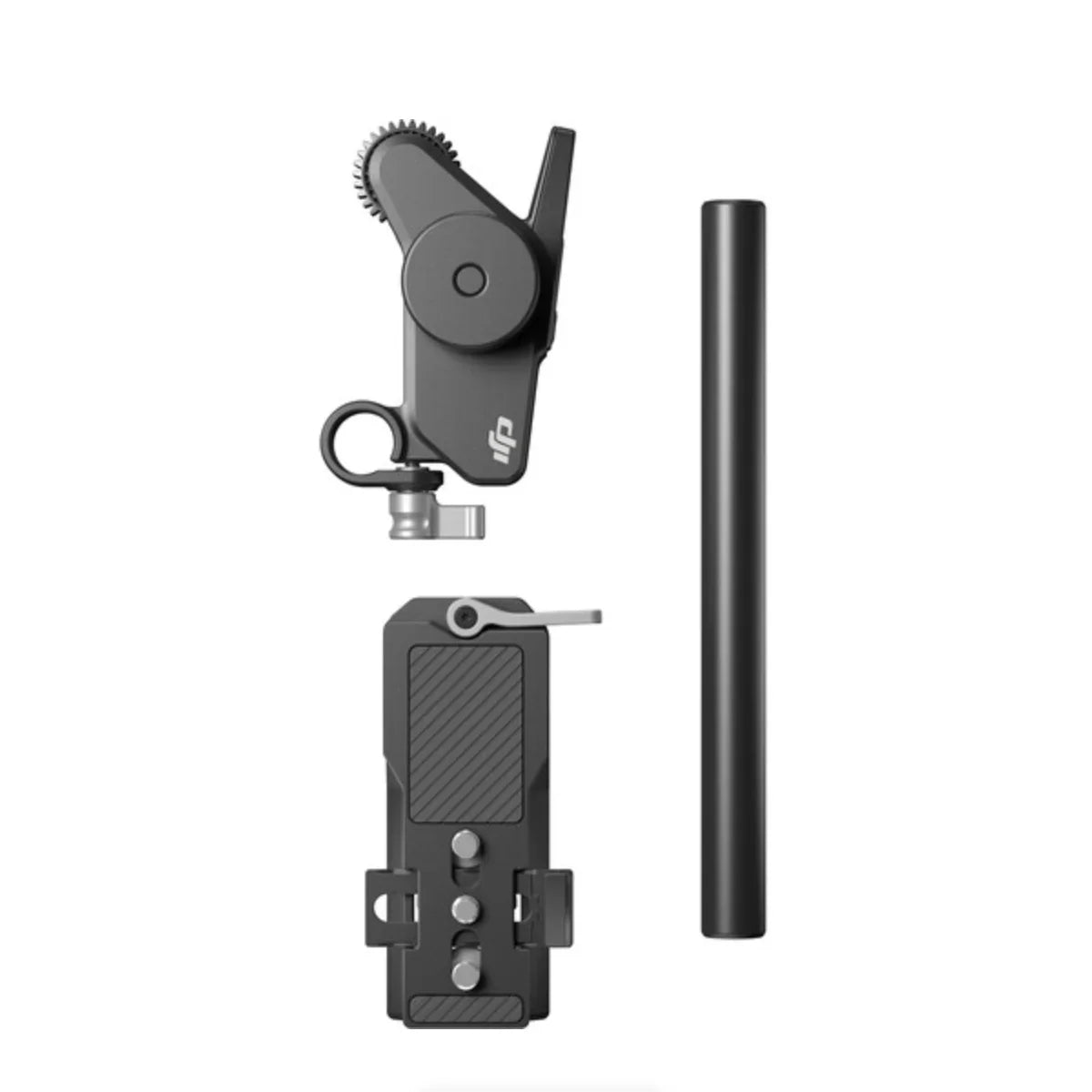

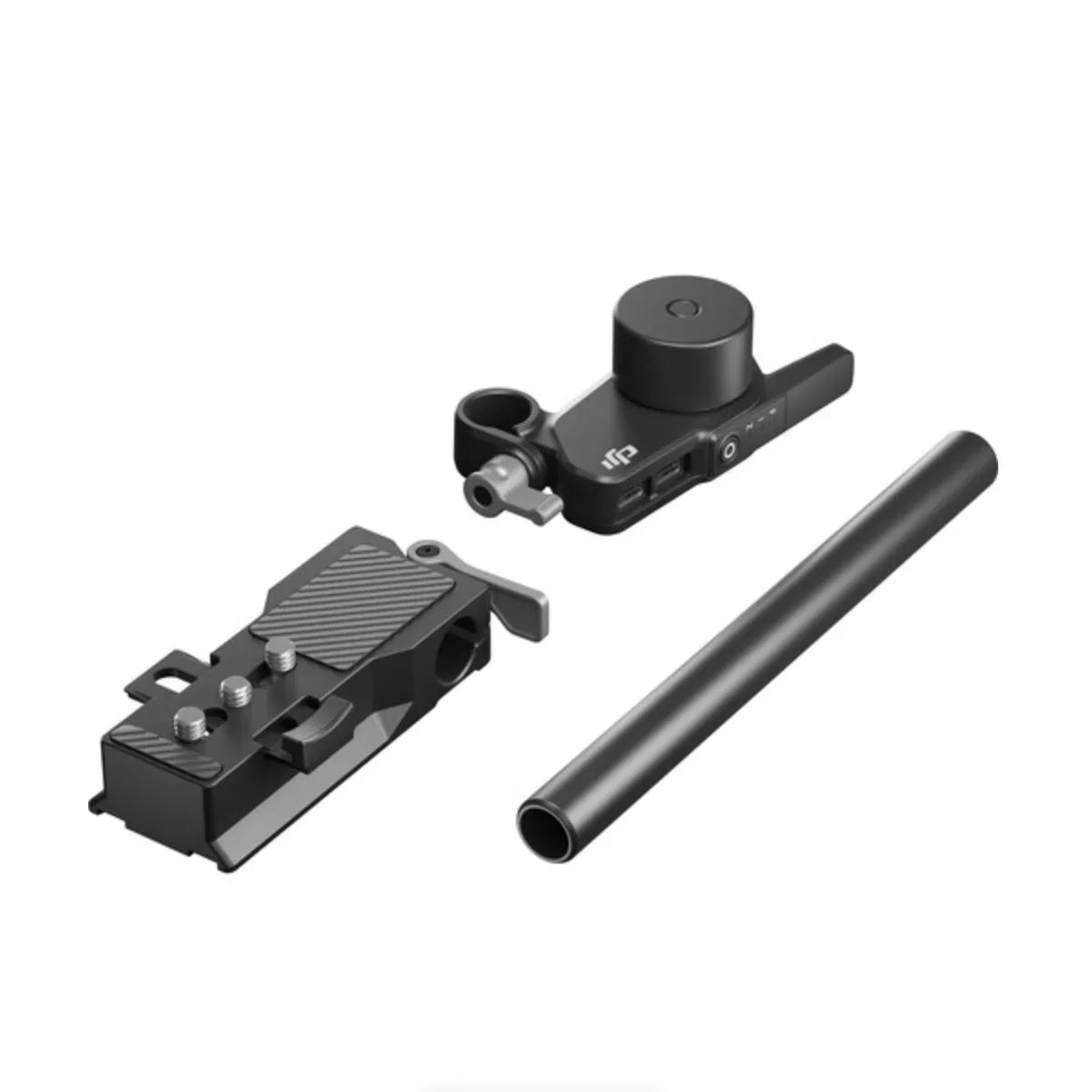

Add focus, iris, or zoom control to your camera when mounted on select RS gimbal stabilizers with the DJI Focus Pro Motor. This updated motor features a 30% speed increase over the previous model with 300 gear teeth and 10ms low latency. Control the motor via 2.4 GHz transmission technology from up to 524.9' away.
When used in zoom control mode, the Focus Pro can perform Power Zoom for PZ lenses, Clear Image Zoom, and external focus motor zoom for precise focusing. Its updated 15mm rod mount makes it more universally compatible with camera mounting configurations. Pair two Focus Pro Motors with the DJI RS 4 Pro to adjust focus with the gimbal's onboard dial and zoom with the onboard joystick for efficient lens control.
DJI RS 3, RS 4
DJI RS 3 Pro, RS 4 Pro
DJI Ronin 4D Flex
DJI Focus Pro Grip, Focus Pro Hand Unit
| Compatibility | DJI RS 3 Pro / RS 4 Pro / Focus Pro Grip |
| Resolution | 1920 x 1440 |
| Frame Rate | 30 fps |
| Field of View | 57.4° (Horizontal) 44.6° (Vertical) |
| Range | 1.6 to 65.6' / 0.5 to 20 m |
| USB I/O | 2 x USB-C Female Input |
| Power Source | USB |
| DC Input Power | 6.6 to 17.2 VDC |
| Power Consumption | 6.3 W (Typical) 6.8 W (Maximum) |
| Environmental Resistance | No |
| Operating Temperature | -4 to 113°F / -20 to 45°C |
| Mounting | 1x Cold Shoe 1x 1/4"-20 Thread |
| Color | Black |
| Cable Length | 11.8" / 30 cm |
| Dimensions | 2.7 x 2.2 x 1" / 68 x 57 x 25 mm |
| Weight | 4.9 oz / 140 g |
| Compatibility | DJI Focus Pro Motor / RS 4 Pro Gimbal Stabilizer / RS 3 Pro Gimbal Stabilizer |
| Display Size | 1.8" |
| Touchscreen | Yes |
| USB I/O | 4 x USB-C Female Input |
| Wireless | 2.4 GHz Radio/RF / Bluetooth *Built-In |
| Power Source | Battery |
| Battery Type | 1x Internal Rechargeable |
| DC Input Power | 6.6 to 8.4 VDC |
| Operating Temperature | -4 to 113°F / -20 to 45°C |
| Mounting | 1x NATO Clamp 2x NATO Rail 1x M4 Screw 1x 1/4"-20 Screw |
| Color | Black |
| Cable Length | 15.7" / 40 cm |
| Dimensions | 6.4 x 2.9 x 2.3" / 162 x 73 x 59 mm |
| Weight | 17 oz / 482 g |
| Compatibility | DJI RS 3 Gimbal Stabilizer / RS 4 Gimbal Stabilizer / RS 3 Pro Gimbal Stabilizer / RS 4 Pro Gimbal Stabilizer / Focus Pro Grip / Focus Pro Hand Unit / Ronin 4D Flex |
| Max Transmission Distance | 524.9' / 160 m |
| Gear Specs | 30 Teeth, 0.8 MOD |
| Max Torque | 0.6 Nm |
| Speed | 300 rpm (Max) |
| USB I/O | 1 x USB-C Female Input |
| Wireless | 2.4 GHz Radio/RF *Built-In |
| Power Source | USB |
| DC Input Power | 6.6 to 17.2 VDC |
| Certifications | CE, FCC |
| Operating Temperature | -4 to 113°F / -20 to 45°C |
| Mounting | 1x 15mm Rod 1x 1/4"-20 Screw 1x Rod Mount Kit |
| Cable Length | 11.8" / 30 cm |
| Dimensions | 3.9 x 2.4 x 1.3" / 100 x 61 x 34 mm |
| Weight | 4.3 oz / 123 g |
