DJI RS 4 Mini Combo Gimbal Stabilizer
Product Features
- Handheld Camera/Smartphone Gimbal
- Includes Intelligent Tracking Module
- Lightweight Design, up to 4.4 lb Payload
- Camera Control via Bluetooth/USB-C
- Horizontal & Vertical Modes, 360° Axes
- 3100mAh Battery, 13-Hour Runtime
- Panorama, Time-Lapse, Tracking Functions
- NATO Port for Handles & Accessories
- Includes Extended Grip/Tripod
DJI RS 4 Mini Combo Gimbal Stabilizer
Model # CP.RN.00000443.03
In Stock
Special Financing | Shoot Now - Pay Later!
Get the gear you want today and pay tomorrow with one of our special financing programs.Note: This Item is not available to purchase using Katapult Leasing
DJI RS 4 Mini Combo Gimbal Stabilizer
DJI RS 4 Mini Combo Gimbal Stabilizer

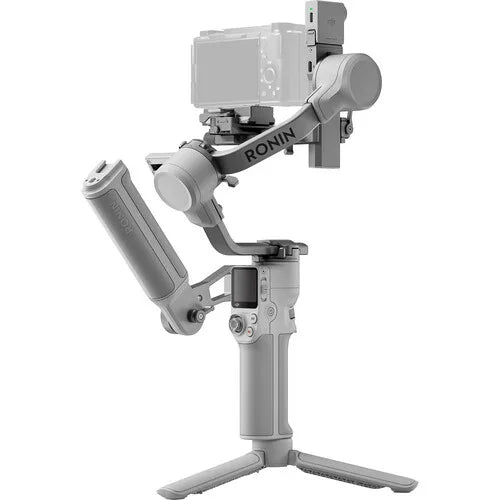

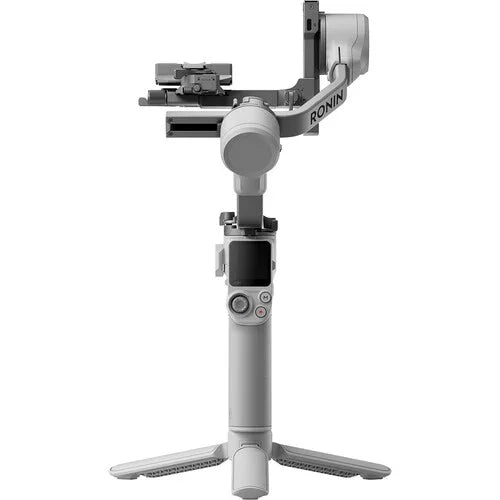

DJI RS 4 Mini Handheld Gimbal Stabilizer

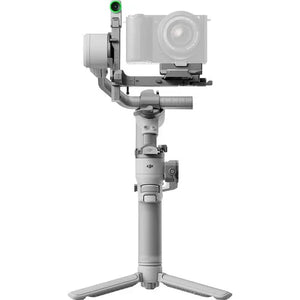

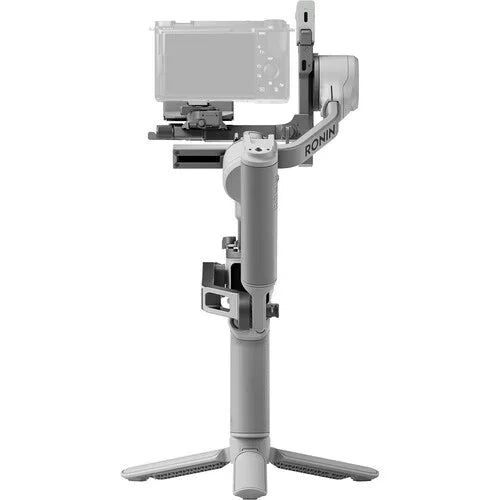

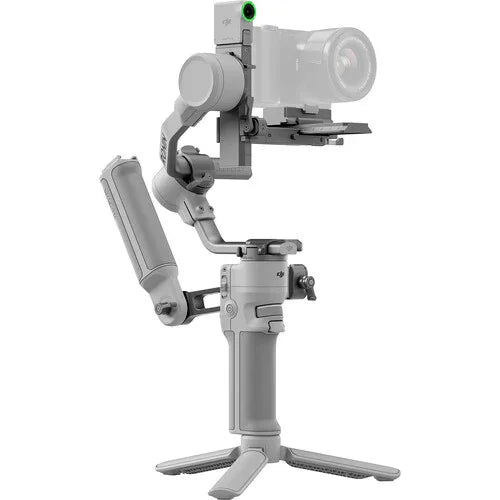

Custom-designed for mirrorless cameras, the DJI RS 4 Mini Handheld Gimbal Stabilizer is a lightweight single-handed gimbal stabilizer that supports a payload of up to 4.4 lb. This single-grip gimbal uses the DJI RS stabilization algorithm for enhanced performance. Weighing just 2 lb, it can capture smooth video for up to 13 hours thanks to the built-in 3100mAh battery and is supported by the detachable extended grip/tripod.

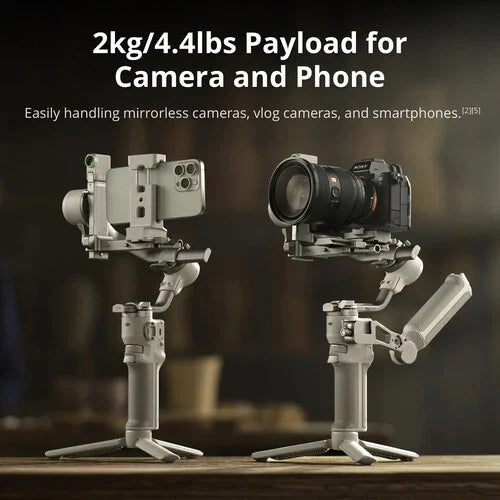

For Mirrorless Cameras or Smartphones
While the gimbal supports mirrorless camera rigs up to 4.4 lb, you can convert the RS 4 Mini into a smartphone gimbal with the optional Phone Holder. The phone holder offers more features and range of movement than a standard smartphone holder. The holder can also be used to monitor your camera image via the Ronin smartphone app.

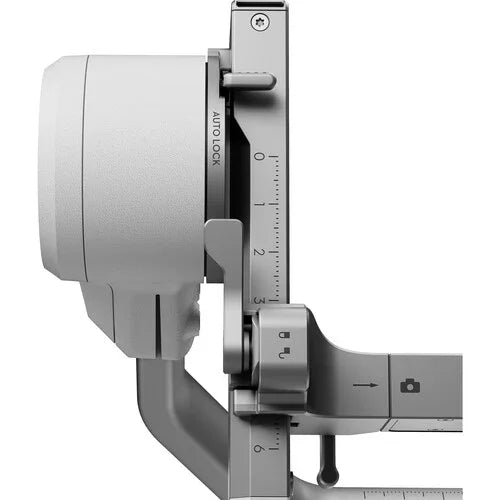

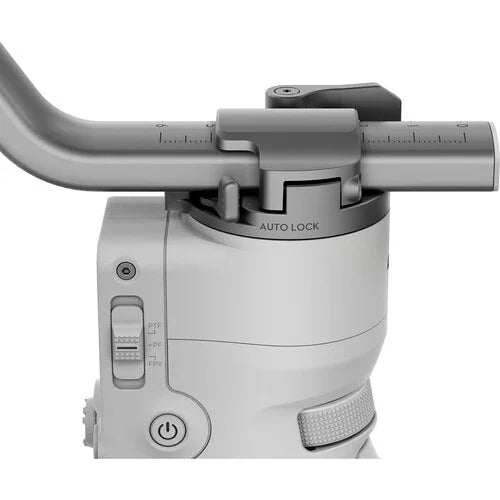

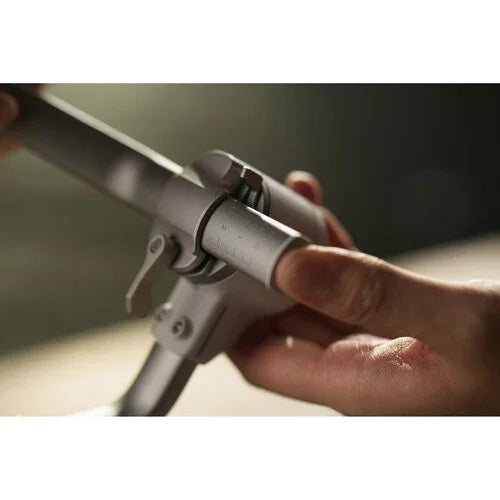

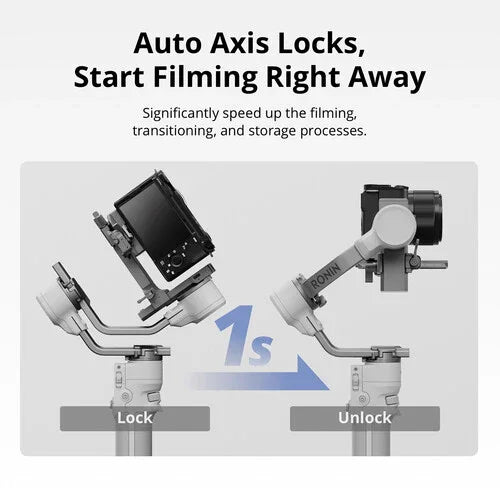

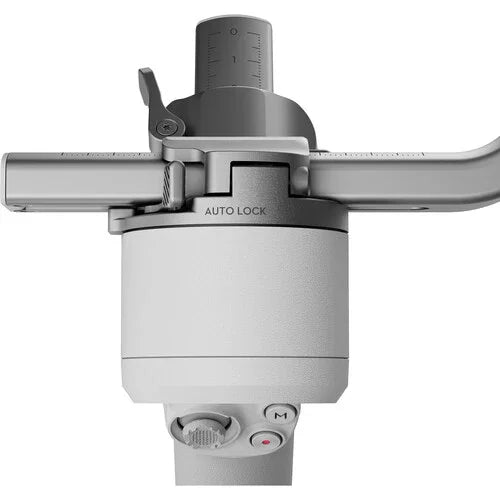

Quick Auto Axis Locks

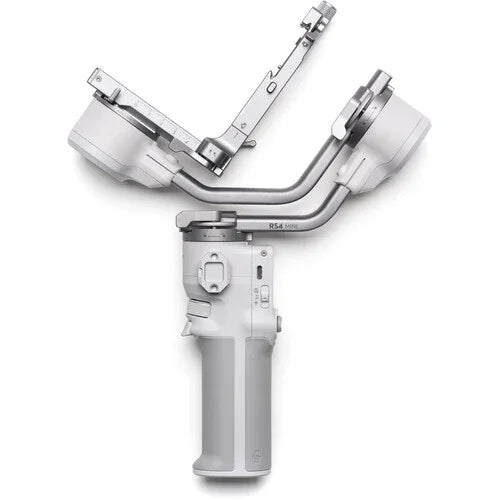

The RS 4 Mini adds auto axis locks previously found on DJI's flagship gimbals, which allow the three axis locks to automatically unlock upon power-on and lock upon power-off or sleep. This speeds up the filming, transitioning, and storage processes. The storage structure has also been upgraded, with the axis arms folding flatter to save space. Combined with automated axis locks, the gimbal can be stored quickly with the press of a button, making it easy to fit into a bag for convenient carrying.
Fast Vertical Switch
The gimbal offers the fastest switch between horizontal and vertical shooting in the RS series. To switch to vertical shooting, simply loosen and press the single-side knob, remove the gimbal's horizontal plate, rotate it 90°, and then tighten it back in place. This can all be done in approximately 10 seconds, quickly switching to vertical videos, well-suited for mobile phone capture for social media sites.
Multiple Control Options

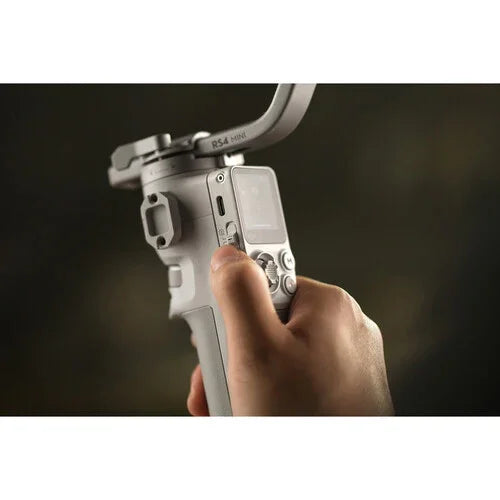

- Use the OLED touchscreen to calibrate and set parameters for the RS 4 Mini.
- Control gimbal movement, camera shutter, focus, and recording using the gimbal buttons.
- Access wireless control for select cameras using Bluetooth and the Ronin app.
- Use gesture control when the optional RS Intelligent Tracking Module is installed.
Shooting Modes
The RS 4 Mini can switch between a variety of shooting modes:
- Horizontal mode and a vertical view for social media without the need for additional accessories.
- Upright mode: Standard mode for walking or running shots.
- Underslung mode: The gimbal flips so your camera hangs for low-angle and tracking shots.
- Flashlight mode: The camera can be held forward like a flashlight to shoot in confined spaces.

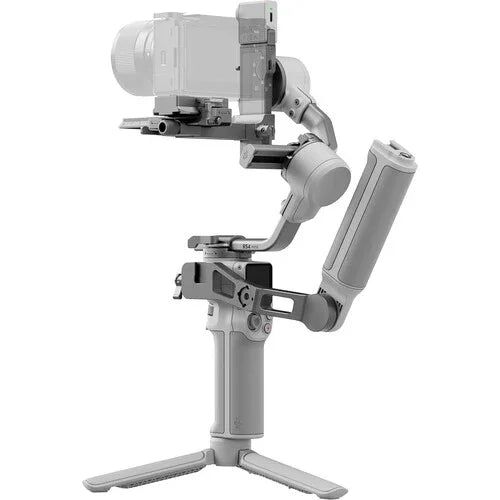

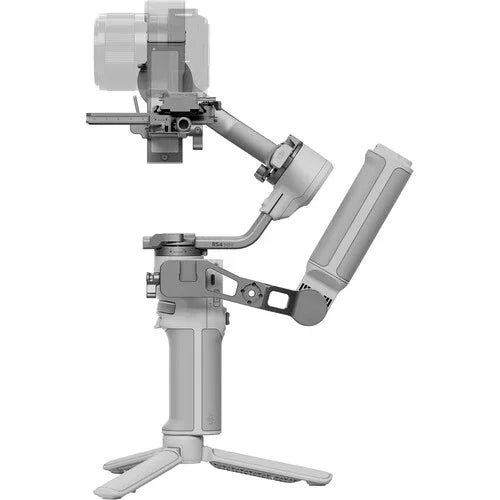

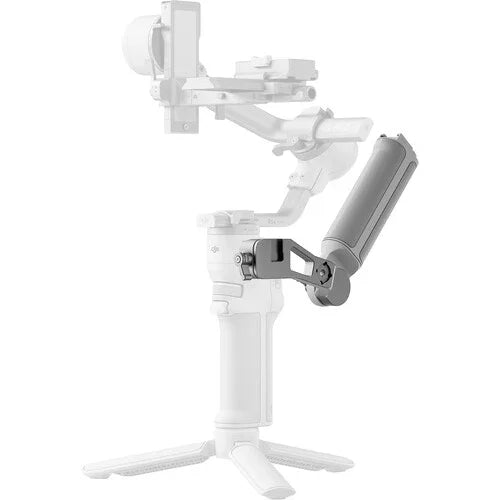

- Briefcase mode: This makes it easier for low-angle shots using the adjustable briefcase handle.
Quick Release Plates

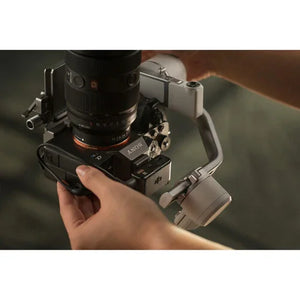

The dual-layer quick release plates make it easy to mount a camera onto the RS 4 Mini and eliminate the need to rebalance the gimbal after swapping out a new battery or memory card.
Built-In Battery
- The RS 4 Mini battery grip contains a built-in 3100mAh battery that provides a runtime of up to 13 hours (fixed mode), generous enough for shooting all day.
- It charges in less than two hours using the included USB-C cable.
Intelligent Functions
Create impressive effects using intelligent motion functions, including Panorama, Time-Lapse, and Tracking.
Accessories
- The RS Intelligent Tracking Module mounts onto a pogo pin mount on the gimbal to enable tracking and gesture control.

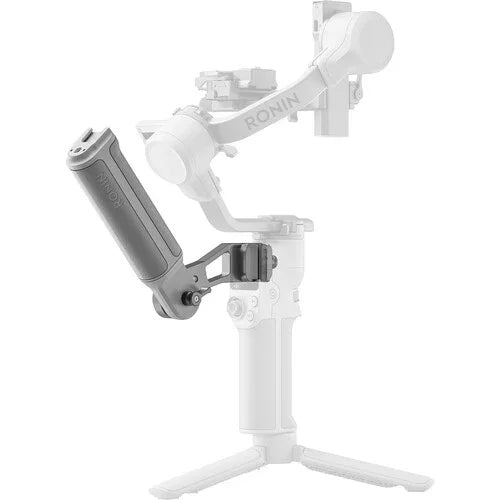

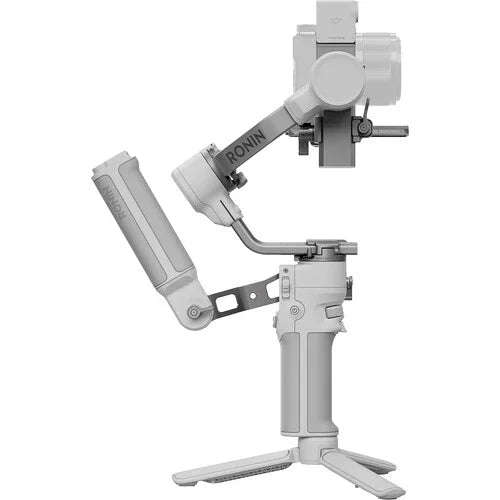

- An integrated NATO mount allows you to attach accessories like the RS Briefcase Handle.
- The detachable tripod doubles as an extended grip.

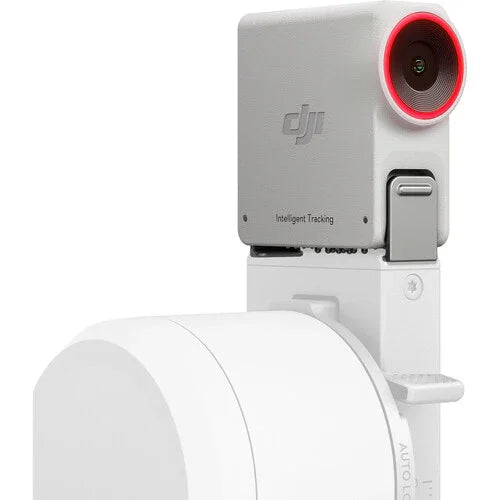

DJI RS Intelligent Tracking ModuleDJI RS Intelligent Tracking Module

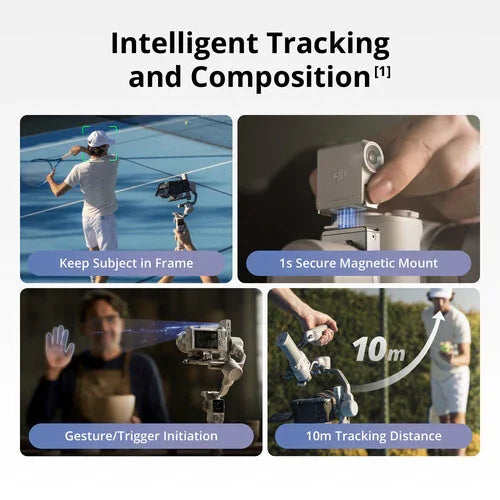

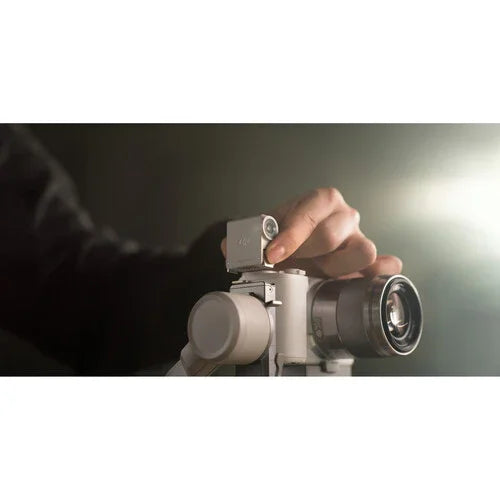

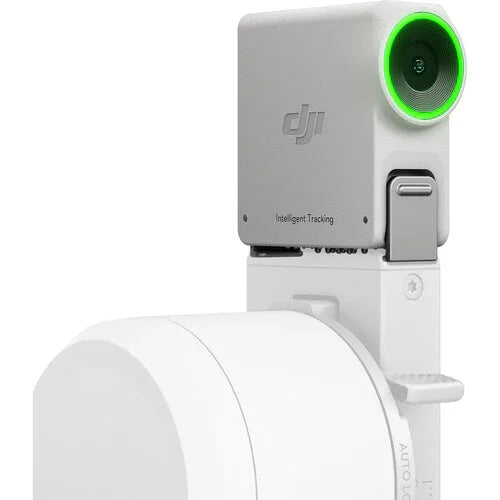

Easily track your subjects when using an RS 4 series handheld gimbal stabilizer with the DJI RS Intelligent Tracking Module. The compact module snaps onto your RS 4 series gimbal using a magnetic mount and securely locks into place. It is designed to work with the gimbal's ActiveTrack technology for one-tap intelligent tracking and framing of human subjects from up to 32.8' away.
The tracking module can be controlled using the gimbal or by using hand gestures. You can start/stop tracking or enable different modes, such as orbit mode, POV/selfie mode, or backward tracking shots. It can easily distinguish your subject when in a scene with multiple people, so you can follow a subject through complex scenarios.

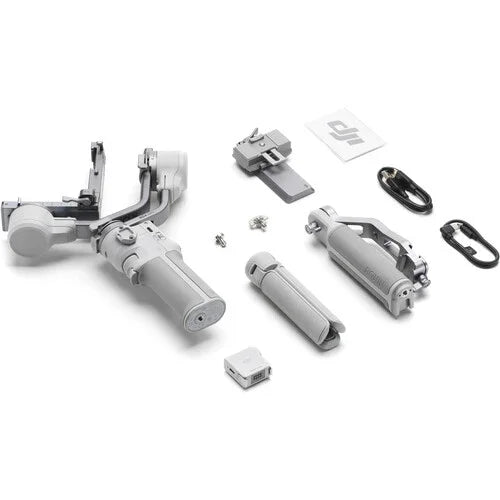

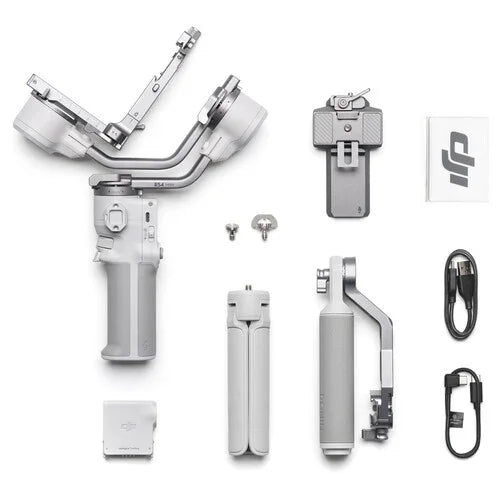

What's in the box
- DJI RS 4 Mini Handheld Gimbal Stabilizer
- Quick Release Plate
- Extended Grip/Tripod
- USB-C Charging Cable (15.7")
- L-Shaped Multicamera USB-C Control Cable (11.8")
- Screw Kit
- Limited 1-Year Manufacturer Warranty
- DJI RS Intelligent Tracking Module
- USB-C Cable (Firmware Updates)
- Magnetic Adapter Mount
- Limited 1-Year Manufacturer Warranty
- RS 4 Mini Briefcase Handle
190021117051
Specifications
Gimbal
| Load Capacity |
0.9 to 4.4 lb / 0.4 to 2 kg
|
| Number of Axes |
3: Pitch (Tilt), Roll, Yaw (Pan)
|
| Rotation Range |
Mechanical Range
Yaw (Pan): 360° Roll: 320° (-110 to 210°) Pitch (Tilt): 330° (-95 to 235°) |
| Follow Speed |
Pan/Tilt/Roll: 360°/s
|
Compatibility
| Camera Control |
On Compatible Models
|
| Camera Mounting Screw |
1x 1/4"-20 Male
|
Connectivity
| Inputs/Outputs |
1x USB-C (2.5 A 9 VDC Power)
1x USB-C (Control) 1x Proprietary |
| Wireless Frequency |
2.4 GHz
|
| Wireless Protocol |
Bluetooth 5.1
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: RONIN |
Battery
| Battery Type |
1x Built-In
|
| Battery Capacity |
3100 mAh / 22.32 Wh
|
| Battery Runtime |
13 Hours
|
| Battery Charging Time |
2 Hours
|
| Battery Chemistry |
Lithium-Ion
|
| Voltage |
9.0 VDC
|
Power
| Operating Voltage |
7.2 VDC
|
General
| Display Type |
Fixed Touchscreen OLED
|
| Operating Conditions |
14 to 113°F / -10 to 45°C
|
| Materials |
Aluminum Alloy
|
| Mounting |
1 x 1/4"-20 Female
1 x NATO Rail |
| Dimensions |
13.3 x 7.2 x 6.9" / 338 x 182 x 175 mm (without Tripod)
12.4 x 9.3 x 2.5" / 316 x 236 x 64 mm (Folded) |
| Weight |
2.0 lb / 890 g
|
What's Included
- DJI RS 4 Mini Handheld Gimbal Stabilizer
- Quick Release Plate
- Extended Grip/Tripod
- USB-C Charging Cable (15.7")
- L-Shaped Multicamera USB-C Control Cable (11.8")
- Screw Kit
- Limited 1-Year Manufacturer Warranty
- DJI RS Intelligent Tracking Module
- USB-C Cable (Firmware Updates)
- Magnetic Adapter Mount
- Limited 1-Year Manufacturer Warranty
- RS 4 Mini Briefcase Handle
