DJI RS Enhanced Intelligent Tracking Module
Product Features
- ActiveTrack & Center Tracking Modes
- Intelligent Subject Reframing
- Keep Current Framing Mode
- Tracks People, Pets & Vehicles
- Tricolor LED Ring Status Indicators
- Tracks Person up to 32.8' Away
- Joystick, Touchscreen & Gesture Control
- Orbit, POV, Backward Shot Tracking
- Magnetic Mounting Design
DJI RS Enhanced Intelligent Tracking Module
Model # CP.RN.00000499.01
Limited Stock
Special Financing | Shoot Now - Pay Later!
Get the gear you want today and pay tomorrow with one of our special financing programs.
DJI RS Enhanced Intelligent Tracking Module
DJI RS Enhanced Intelligent Tracking Module

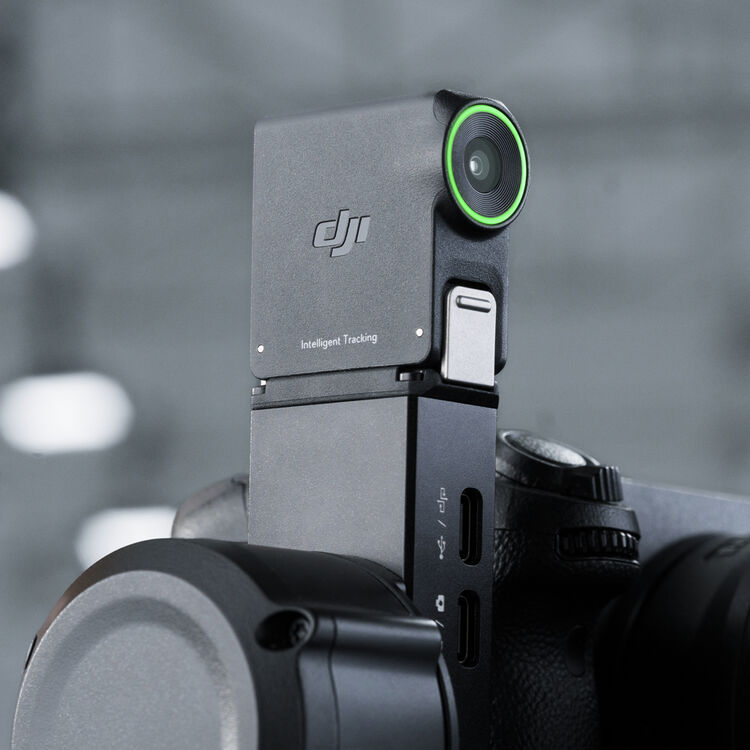

Reliably track your subjects when using an RS 5 gimbal stabilizer with the RS Enhanced Intelligent Tracking Module from DJI. This compact module snaps onto your gimbal via its magnetic mount and securely locks into place. It works with the gimbal's ActiveTrack technology for smooth, intelligent tracking and framing of human subjects from up to 32.8' away.
Multiple Modes
- The tracking module can be controlled using the gimbal or by using hand gestures.
- You can start/stop tracking or enable different modes, such as orbit mode, POV/selfie mode, or backward tracking shots.
- Once framed, it keeps your subject perfectly positioned.
- The tracker can even reacquire the person after they've temporarily left the frame.
Tricolor LED Ring Indicators
- A green, yellow, and red LED ring lets you quickly see the status of the tracking function.
- Solid and blinking indicators include sleep, in use, temporary subject loss, adjusting, and countdown modes.
What's in the box
- DJI RS Enhanced Intelligent Tracking Module
- Adapter Mount
190021162570
Specifications
| DJI CP.RN.00000499.01 Specs | |
|---|---|
| General | |
| Compatibility | DJI RS 5 Gimbal Stabilizer |
| Operating Conditions | > 20 Lux |
| Inputs/Outputs | |
| USB I/O | 1 x USB-C 2.0 Female Input |
| LED Indicators | Solid Red: Disabled: Sleep Mode or Subject Lost Solid Green: In Use Blinking Green: Subject Lost Temprorarily Solid Yellow: Composition Being Adjusted Blinking Yellow: 3-Second Countdown Timer |
| Wireless | |
| Range | Tracking Distance: 1.6-32.8' / 0.5-10 m |
| Power | |
| Power Source | Proprietary Interface |
| Power Consumption | 1 W |
| Physical | |
| Mounting | 1x Magnetic Mount |
| Color | Black |
| Operating Conditions | 32 to 113°F / 0 to 45°C |
| Dimensions | 1.5 x 1.4 x 0.7" / 38.5 x 35.9 x 17.5 mm |
| Weight | 0.7 oz / 19 g |
What's Included
- DJI RS Enhanced Intelligent Tracking Module
- Adapter Mount
