Product Features

Transmitter & High-Bright RX Monitor Kit
Transmit 1080p60 Video over 3 Miles LoS
HDMI/3G-SDI Input / Output
7" 1920 x 1200 Touchscreen Display
Gyroscopic Sensor to Control Gimbals
O3 Pro Video Transmission Technology
AES 256-Bit Encryption
Power via L-Series Batteries
Works with Ronin 2 / RS 3 Pro Gimbals
Custom LUTs, Built-In Image Tools

DJI Transmission Combo

Model # CP.RN.00000209.01

$2,499.00

Availability: In stock Pre order Out of stock

Description
Specifications
What's Included
Reviews

Description

DJI Transmission Combo

Long-Distance HD Live Feed

DJI Transmission incorporates O3 Pro video transmission technology, which offers an incredible 20,000' on-ground transmission distance. It also supports transmission at 1080p60 with a max bitrate of 50 Mb/s as well as live audio monitoring at 16-bit 48 kHz, providing crews on large sets an excellent remote visual and audio monitoring experience.

End-to-End Ultra-Low Latency

The video transmitter and receiver use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency when pairing with cinema cameras like the ARRI ALEXA Mini LF.

Seamless Auto Frequency Hopping

O3 Pro adds a DFS band on top of the traditional 2.4 and 5.8 GHz, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels.
DJI Transmission supports triple-band automatic frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel.
With a built-in frequency sweeper, users can even manually select a channel to avoid interference between devices.
By mounting high-gain antennas, transmission capability is further boosted.

One Transmitter with Multiple Receivers for Coordinated Shooting

Two transmission modes are available.
In Control mode, DJI Transmission delivers optimal transmission performance. Monitoring can be done from two receivers at the same time, while the gimbal of Ronin 2 and RS 3 Pro and camera can be controlled remotely.
Broadcast mode can be enabled on top of Control mode to enable an unlimited number of receivers (transmission performance differs from Control mode).
On larger and more dynamic, DJI Transmission can operate with 20 or more transmitters sending signals to 20 or more devices, resulting in a smooth, coordinated experience that's difficult to get with traditional transmission setups.

Encrypted Transmission

DJI Transmission supports linking and AES 256-bit encryption to avoid leaks of confidential information. Together with DJI's self-developed chip and transmission protocol, DJI Transmission is able to ensure security of your footage.

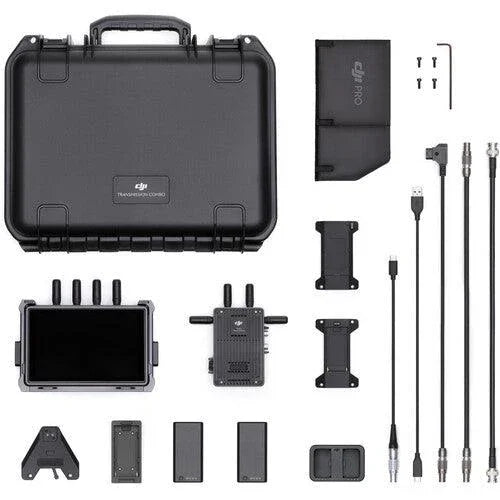

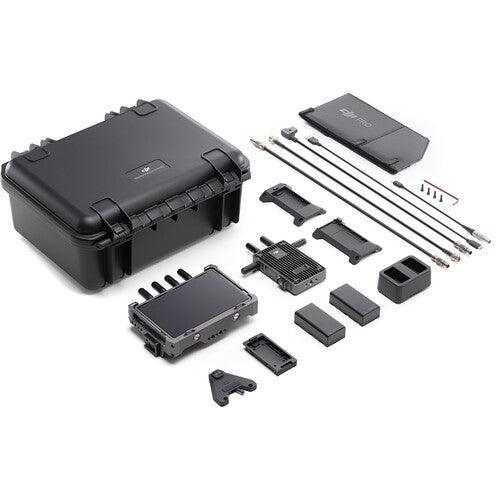

What's in the box

DJI Transmission Combo

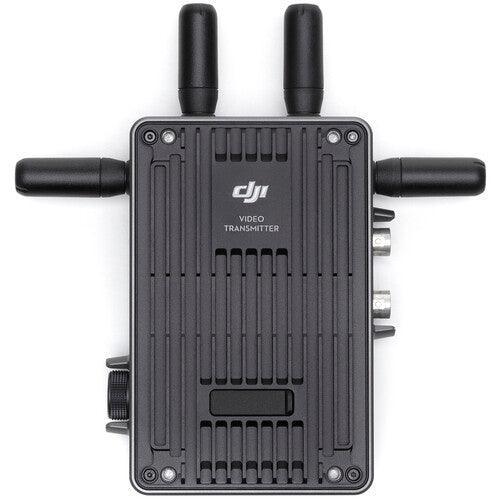

DJI Wireless Video Transmitter

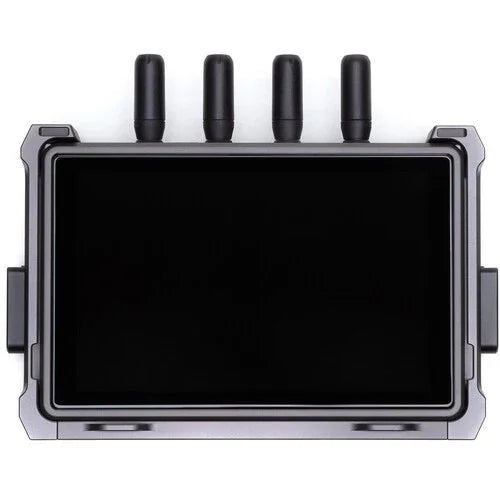

High-Bright Remote RX Monitor
Remote Monitor Hood
WB37 Battery Adapter (TX)
WB37 Intelligent Battery
WB37 Battery Charging Hub (USB Type-C)
L-Series Battery Adapter (TX)
L-Series Battery Adapter (RX)
USB Type-C to LEMO Power Cable
RS Gimbal Mounting Plate
USB Type-C Cable
SDI Cable
DC Power Cable
DC to D-Tap Power Cable
Installation Toolkit
Protector Case
Limited 1-Year Warranty

190021054127

Specifications

Display

Panel Type	Receiver: LCD
Display Size	7.0" / 17.8 cm
Display Size	Receiver: 7.0" / 17.8 cm
Resolution	Receiver: 1920 x 1200
Aspect Ratio	Receiver: 16:10
Touchscreen	Yes
Image Controls	False Color, Focus Peaking, Screen Markers, Waveform, Zebra

I/O

Video	Transmitter: 1 x HDMI Type A (HDMI 1.4) Input Transmitter: 1 x BNC (3G-SDI) Input Transmitter: 1 x BNC (3G-SDI) Loop Output Receiver: 1 x HDMI Type A (HDMI 2.0) Input Receiver: 1 x HDMI Type A (HDMI 1.4) Output Receiver: 1 x BNC (3G-SDI) Output
Embedded Audio	HDMI/SDI
Audio	Receiver: 1 x 1/8" / 3.5 mm Headphone Output
Power	Transmitter/Receiver: 1 x Barrel Input
Other I/O	Receiver: 1 x USB 2.0 (USB Type-C) Input
Media/Memory Card Slot	Single Slot: microSD/microSDHC
Encryption	256-Bit AES

Wireless

Wireless Range	3.7 Miles / 6 km (Line-of-Sight)
# of Channels	23
Channel Bandwidth	40 MHz
Frequency Range	Non-DFS Frequencies 2.4 to 2.48 GHz 5.15 to 5.25 GHz 5.72 to 5.85 GHz DFS Frequencies 5.25 to 5.35 GHz 5.47 to 5.6 GHz 5.65 to 5.72 GHz
Latency	68 ms
RF Power	< 33 dBm
Wi-Fi	Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)

Format Support

Video Format	HDMI/SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Audio Format	16-Bit 48 kHz PCM Audio
Wireless Video Compression	Compressed

Power

DC Input Power	6 to 18 VDC
Battery Type	Transmitter/Receiver: 1 x L-Series (Interchangeable Mount)
Power Consumption	Transmitter/Receiver: 11 W

Mounting

Cold Shoe

Environmental

IP Rating	None
Certifications	CE, FCC, as per Manufacturer
Operating Temperature	14 to 113°F / -10 to 45°C

General

Dimensions	Transmitter: 5 x 3.4 x 1" / 127 x 87 x 26 mm Receiver: 8.4 x 5.3 x 2" / 213 x 135 x 51 mm
Weight	Transmitter: 12.3 oz / 350 g, Excluding Antenna Receiver: 1.6 lb / 727 g, Excluding Antenna

What's Included

DJI Transmission Combo
DJI Wireless Video Transmitter
High-Bright Remote RX Monitor
Remote Monitor Hood
WB37 Battery Adapter (TX)
WB37 Intelligent Battery
WB37 Battery Charging Hub (USB Type-C)
L-Series Battery Adapter (TX)
L-Series Battery Adapter (RX)
USB Type-C to LEMO Power Cable
RS Gimbal Mounting Plate
USB Type-C Cable
SDI Cable
DC Power Cable
DC to D-Tap Power Cable
Installation Toolkit
Protector Case
Limited 1-Year Warranty
