- DMX, Manual, Wireless Phone Control
- Measures: 17.4 x 16 x 4.2", RGB Mode
- Wired & Wireless Remote Control
- CCT: 2500-8500K, CRI/TLCI: 96/97
- Lee Filter Library, 14 Special Effects
- 0-100% Dimming, Color Presets
- 32 Channels, 16 Groups

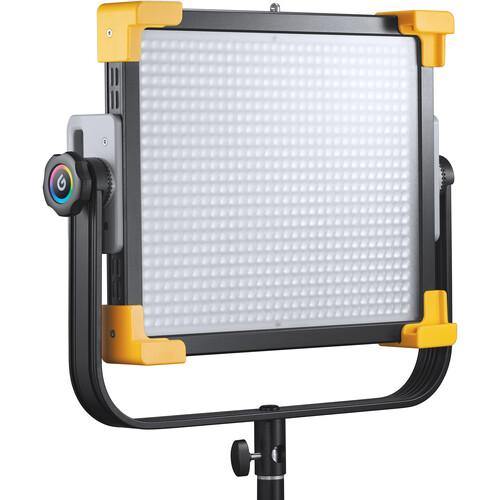

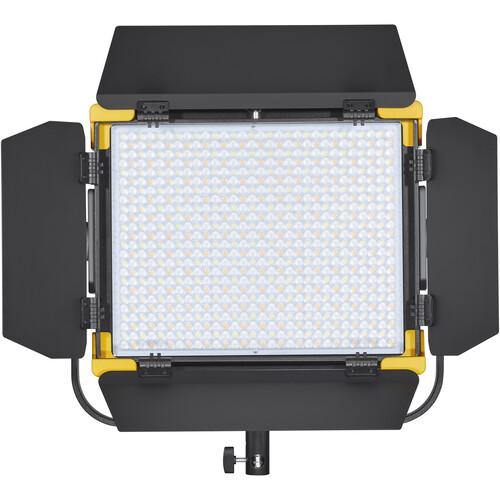

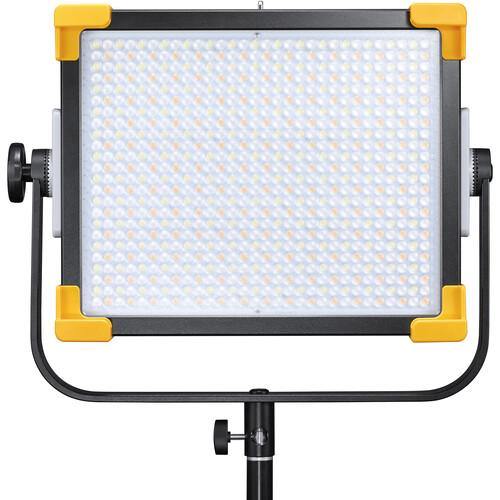

This LD75R LED Panel from Godox is a 17.4 x 16 x 4.2" fixture capable of switching between a traditional multi-LED panel for hard light and a tunable RGB panel for colorful, creative effects at the push of a button. The panel has an expansive CCT range of 2500 to 8500K for seamless integration to any ambient light situation, to match other fixtures, or just for creative expression. The panel's high CRI/TLCI ratings of 96/97 are indicators of advanced accuracy in the rendering of color. You can adjust the magenta/green balance for greater precision, as well as adjust light intensity from 0 to 100% for further versatility. One of the advanced functions is RGB mode, which employs its LEDs to access literally over 16 million color combinations for optimal choice. With dimming from 100% down to 0%, you can quickly adapt the light to any scene without adding ND filters or diffusion, since yet another perk is the light's Lee Gel library. Furthermore, the light has 14 special effects that lend realism to your shoot.

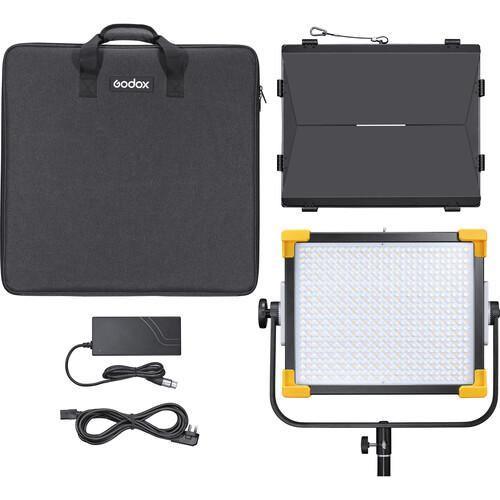

The LD75R is ready for worldwide use thanks to its multi-voltage power adapter, but it will also run on optional batteries via its V-mount plate.
Light Fixture | |
---|---|
Beam Angle | 60° |
Color Temperature | 2500 to 8500K |
Color Modes | Full RGB Tuning |
Color Accuracy Standard | CRI 96 TLCI 97 |
Cooling System | Fan |
Dimming | Yes, 0 to 100% (Continuous) |

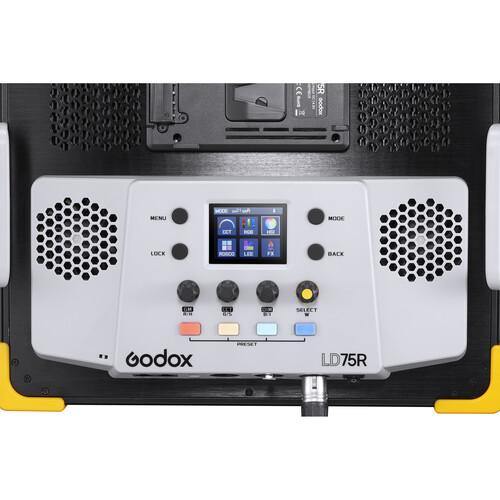

Display | LCD |
Photometrics | 865.8 fc / 9320 Lux at 3.3' / 1 m |
Fixture Dimensions | 17.4 x 16.1 x 4.2" / 441.0 x 410.0 x 107.5 mm |
Fixture Weight | 7.7 lb / 3.5 kg |

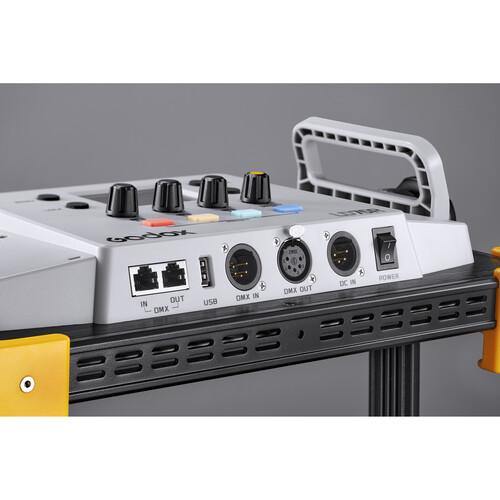

Connectors | |

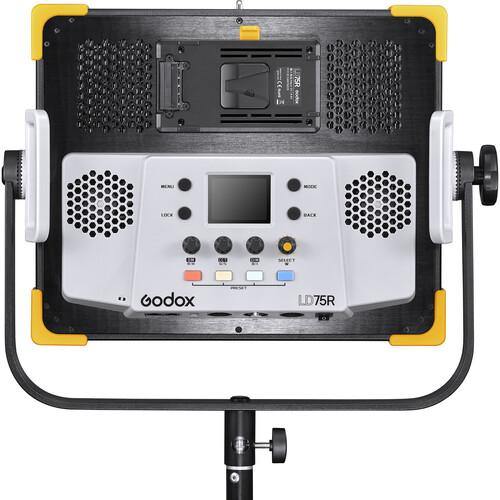

Battery Plate | 1 x V-Mount |
Mounting | |
Fixture Mount | 5/8" Receiver |
Yoke | |
Yoke Type | Yoke/Bracket |
Remote Operation | |
Remote Control Type | Bluetooth, DMX, Wi-Fi |
Wireless Range | 164' / 50 m |
Wireless Channels / Groups | 32 / 16 |
Power | |
AC Input Power | None |
DC Input Power | 16.8 VDC at 7 A |
Power Source | AC Adapter, External Battery |
Max Power Consumption | 75 W |
