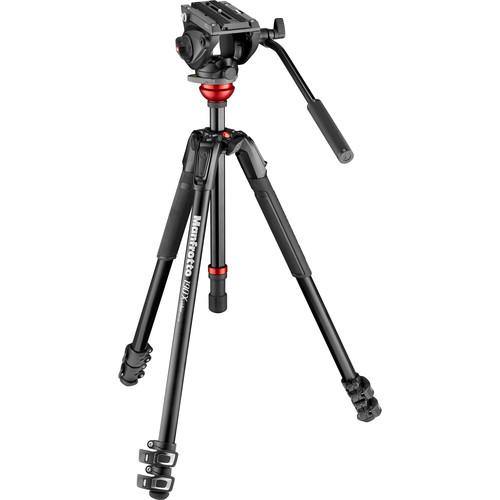

Manfrotto 500 Fluid Video Head with 190X Video Aluminum Tripod & Leveling Column Kit

Model # MVK500190XV

$369.99 $369.88

Holiday Deal

In StockIn StockOut of stock

Sale ends on {timer}

FEATURES

  • Flat Base Fluid Head with 11 lb Payload
  • Wide Platform Ideal for DSLRs
  • -70° / +90° Tilt & 360° Pan
  • Accepts Camera Plates from Above
  • 500PLONG Camera Plate Included
  • 3-Section Aluminum Tripod
  • Quick Power Lock (QPL) Levers
  • Center Column with Leveling Ball
  • 68.23" Max Height with Center Column


FREE SHIPPING *Restrictions apply.
Out of stock

AVAILABILITY & STORE PICKUP LOCATIONS
DETROIT - LIVONIA, MI

In Stock | Available for Pick-up

34224 Plymouth Rd. Livonia, MI
(734) 838-6900 Store Details

CHICAGO - AURORA, IL

Out of stock at this location

4300 Westbrook Drive Aurora, IL
(630) 631-0907 Store Details

CINCINNATI, OH

Out of stock at this location

1014 Ohio Pike Cincinnati, OH
(513) 943-9000 Store Details


The Manfrotto 500 Fluid Video Head with 190X Video Aluminum Tripod & Leveling Column Kit includes a flat base fluid video head and a flat base 2-stage tripod with ball-leveling center column. The head features a wider-than-standard platform to provide better support for DSLRs, and it supports a maximum load capacity of 11 lb. A 500PLONG quick release plate is included, and the head's side lock mounting system enables the plate to click in from above, instead of aligning and sliding in from one end.

Fluid cartridges on both the pan and tilt axes provide resistance for smooth, controlled pan and tilt. The tilt range is -70° / +90° and the pan rotation is 360°. The spring-loaded counterbalance is preset at 5.3 lb. The camera plate has both 1/4"-20 and 3/8"-16 camera screws, and the head has a 3/8"-16 tripod mounting thread and a 3/8"-16 Easy Link connector for accessories such as a video monitor.

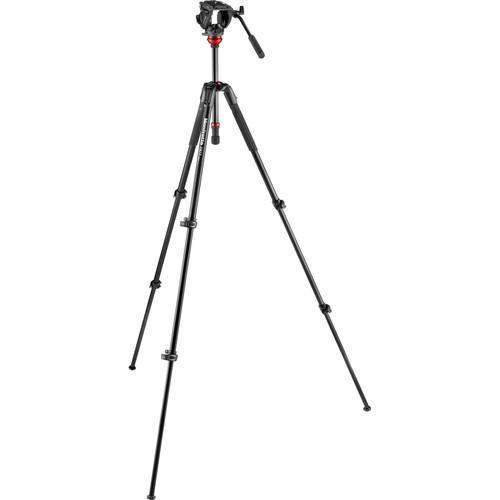

The 3-section tripod legs feature aluminum construction, and each leg extends in two stages. The built-in Quick Power Locks secure the legs at the length you select. The tripod legs are adjustable to a maximum height of just under 59" without extending the center column and feature a spreader-less design with each leg featuring four independent locking positions of 25, 46, 66, and 88°.


Flat Base Fluid Video Head


  • Wide platform ideal for DSLRs

  • 11 lb load capacity

  • Side-lock system allows the included camera plate to attach from above

  • Fluid cartridges provide resistance for smooth pan and tilt

  • -70° / +90° tilt range

  • 360° pan rotation

  • Spring-loaded counterbalance preset at 5.3 lb

  • 3/8"-16 thread on the side for attaching accessories

  • 2-Stage Tripod


  • Aluminum leg tubes with 15.4 lb load capacity

  • Each leg can be set at four different angles to accommodate for uneven ground or rough terrain

  • The QPL system allows the three leg sections to be completely extended with one hand for simple setup

  • Vertically adjustable and completely removable center column with 60mm leveling ball

  • A 3/8"-16 Easy Link connector system with anti-twist fitting is built into the tripod leg castings
  • 719821438250

    Specifications

    Camera Plate
    Camera Plate Features Sliding Balance Plate
    Camera Plate Type 500PLONG
    Camera Mounting Screw 1 x 1/4"-20 Male
    1 x 3/8"-16 Male
    Head
    Base Mount 3/8"-16 Female
    Counter Balance Fixed (5.3 lb / 2.4 kg)
    Center of Gravity 2.17" / 55 mm
    Pan Handle Fittings 2 x Rosette
    Bubble Level 1
    Accessory Mounting 1 x 3/8"-16 Female Thread
    Pan & Tilt
    Drag Control Pan: Fixed
    Tilt: Fixed
    Drag Type Fluid
    Vertical Tilt +90° to -70°
    Panning Range 360°
    Independent Pan Lock Yes
    Independent Tilt Lock Yes
    Legs
    Leg Lock Type Flip Lock
    Leg Positions 4 Positions
    Independent Leg Spread Yes
    Leg Sections 3
    General
    Maximum Working Height 68.23" / 173.3 cm
    Minimum Working Height 9.8" / 24.89 cm
    Folded Length 28.43" / 72.2 cm
    Materials Aluminum
    Operating Temperature -4 to 140°F / -20 to 60°C
    Weight 7.05 lb / 3.2 kg

    What's in the box

    • Manfrotto 500 Fluid Video Head with 190X Video Aluminum Tripod & Leveling Column Kit

    • Manfrotto MVH500AH Fluid Video Head with Flat Base

    • 190X 3-Section Aluminum Legs with Leveling Center Column

    • Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
