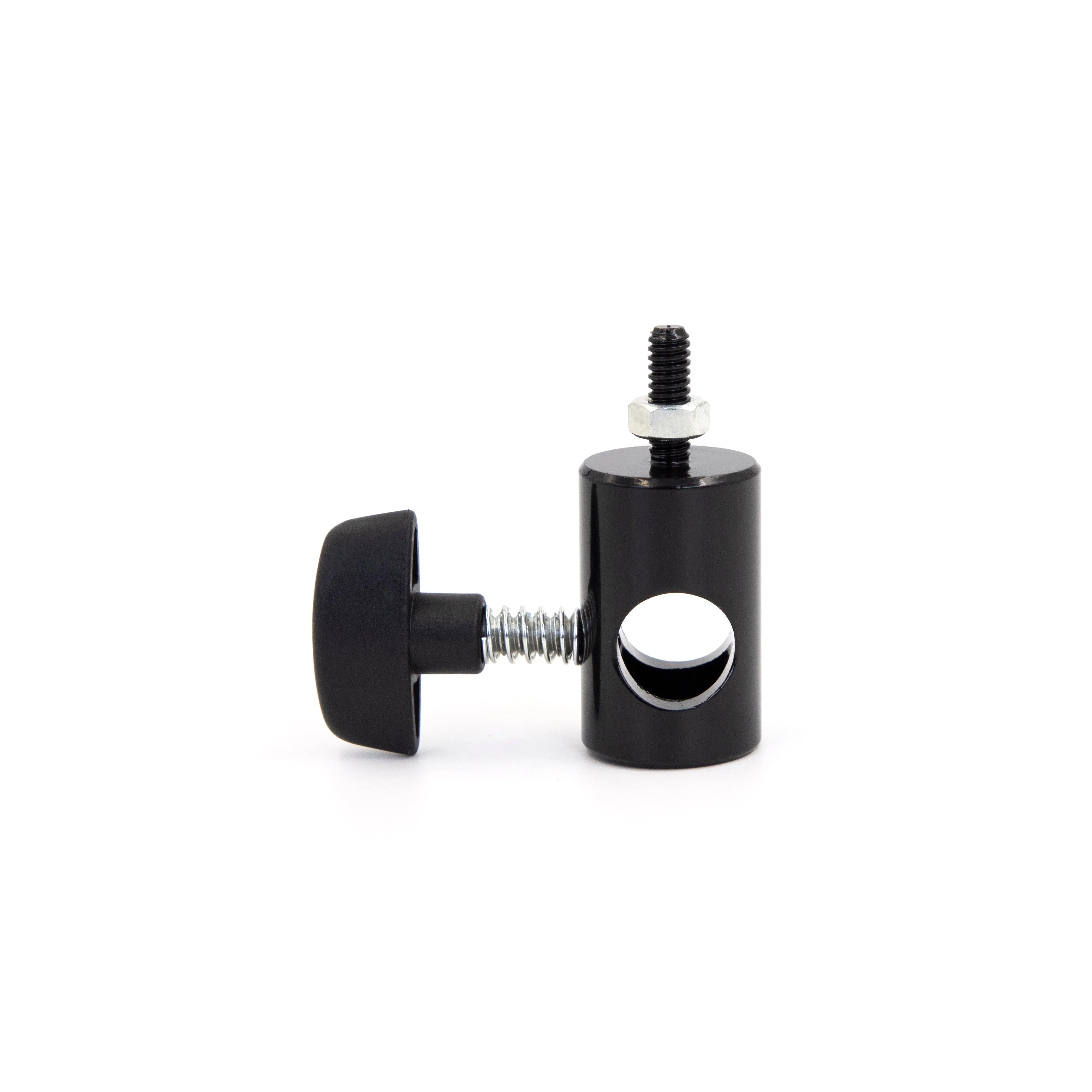

Quickly adapts a 5/8" baby stud to a 1/4"-20 threaded male post.
This receiver slides over a 5/8" stud and locks into place with a twist of the knob. It can be mounted in a straight up-and-down orientaiton, or use the holes on the side to mount it at a 90-degree angle.
Once mounted, a 1/4"-20 threaded male post at the top of the receiver can be used to connect a variety of accessories. A jam nut on the post is helpful for locking the accessory into place.
By connecting the receiver to an accessory ahead of time you can quickly mount it to a light stand, boom, arm, or other grip item.
| Top mount | 1/4"-20 male post |
| Bottom mount | 5/8" receiver |
| Dimensions | 2 5/16" high x 2 3/8 wide (with knob unscrewed to widest opening) | 58.7 mm x 60.3 mm |
| Post height | 11/16" | 17.5 mm |
| Stud opening diameters | 5/8" | 15.9 mm (applies to both openings) |
| Weight | 3 7/16 oz | 97.5 g |
