Saramonic AX1 Passive 2-Channel Audio Mixer for Cameras, Smartphones, Tablets, and Computers

Model # AX1

$39.00 $25.00

In StockIn StockOut of stock

Sale ends on {timer}

FEATURES

  • Combine Two Mics to One Stereo Output
  • Sum a Stereo Input to a Mono Output
  • 3.5mm Inputs: 2 x Mono, 1 x Stereo
  • Output: 3.5mm TRS
  • Includes TRS and TRRS Output Cables
  • Left and Right Trim Controls
  • Mono/Stereo Output Mode Switch
  • Passive Design Requires No Power Source
  • Ultracompact and Lightweight
  • 1/4"-20 Mount


Out of stock

AVAILABILITY & STORE PICKUP LOCATIONS
DETROIT - LIVONIA, MI

In Stock | Available for Pick-up

34224 Plymouth Rd. Livonia, MI
(734) 838-6900 Store Details

CHICAGO - AURORA, IL

In Stock | Available for Pick-up

4300 Westbrook Drive Aurora, IL
(630) 631-0907 Store Details

CINCINNATI, OH

In Stock | Available for Pick-up

1014 Ohio Pike Cincinnati, OH
(513) 943-9000 Store Details


Saramonic AX1 Passive 2-Channel Audio Mixer for Cameras, Smartphones, Tablets, and Computers

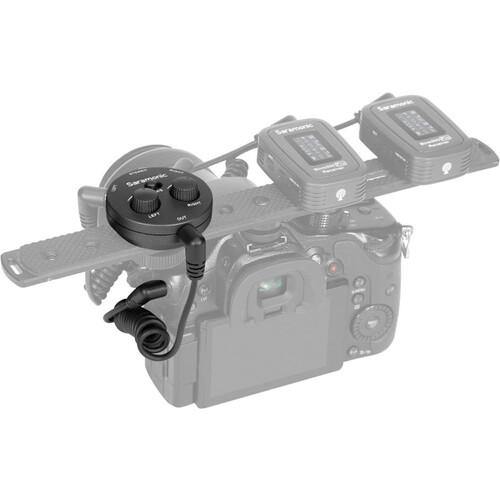

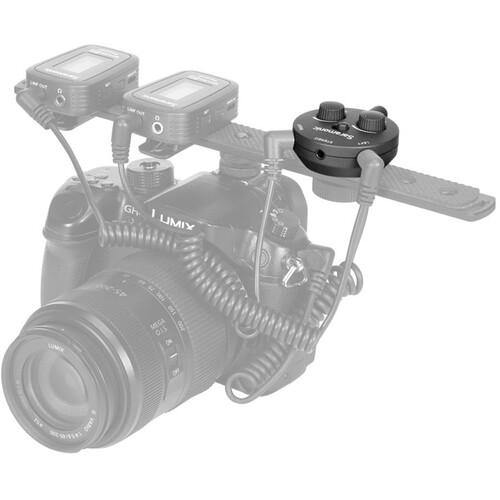

Simultaneously record two signals to a camera, DSLR, smartphone, tablet, or laptop with the Saramonic AX1 passive 2-channel audio mixer, an ultracompact and lightweight solution that won't slow you down on run-and-gun shoots, interview recordings, and more. It includes 3.5mm TRS and TRRS output cables to ensure compatible connectivity with cameras, portable recorders, and mobile devices.

Connect powered mics or wireless receivers to the two 3.5mm TRS mono input jacks or plug a stereo mic into the 3.5mm TRS stereo input. Route the 3.5mm output to your recording/shooting device. The output can be set to mono or stereo via a dedicated switch, allowing you to record the two input signals to separate channels or mix them together. It features left and right trim controls, and requires no power source. The integrated 1/4"-20 mount enables simple attachment to an accessory mount or tripod.


2-Channel Mixer


The AX1 combines two input signals to a single output, perfect for recording two powered microphones or wireless receivers to one mono or stereo input. Use it with micro wireless systems such as the Blink 500 and Blink 500 Pro, battery-powered shotgun mics like the CamMic+ and Vmic mkII series, and many other devices.


Passive Design


Since the AX1 utilizes a passive design, it requires no batteries or external power source.


Simple Connectivity

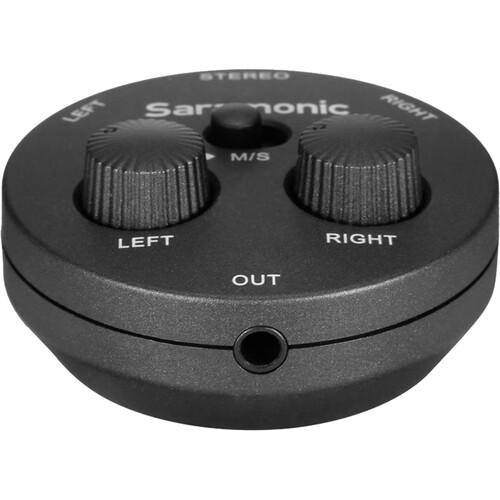

To keep connectivity simple, the AX1 features two 3.5mm TRS mono inputs, one 3.5mm TRS stereo input, and one 3.5mm TRS output. The output can be set to mono or stereo via a dedicated switch.

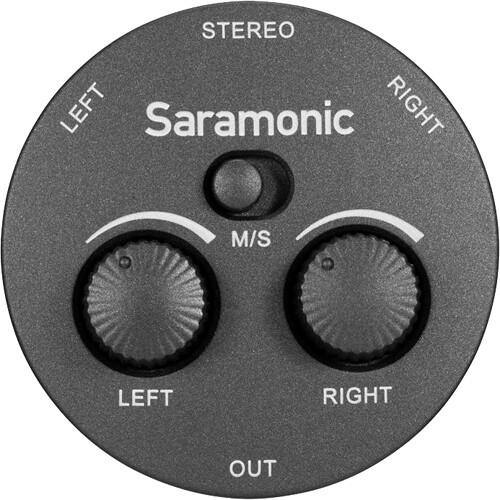

Independent Level Attenuators


Independent left and right level attenuators are provided, so you can easily achieve the right balance for your recording.


TRS and TRRS Output Cables


3.5mm TRS and TRRS output cables are supplied with the AX1. Use the TRS cable with cameras, DSLRs, and portable recorders, or swap to the TRRS cable when recording to a smartphone, tablet, or computer.


Ultracompact and Lightweight

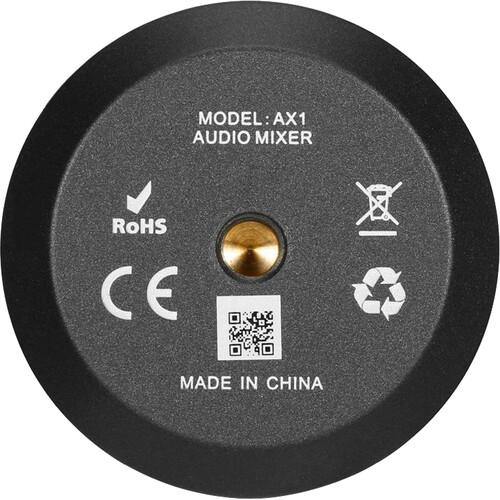

Incredibly compact and lightweight, it easily fits into even the tightest setups and smallest rigs and has a standard 1/4"-20 mount.

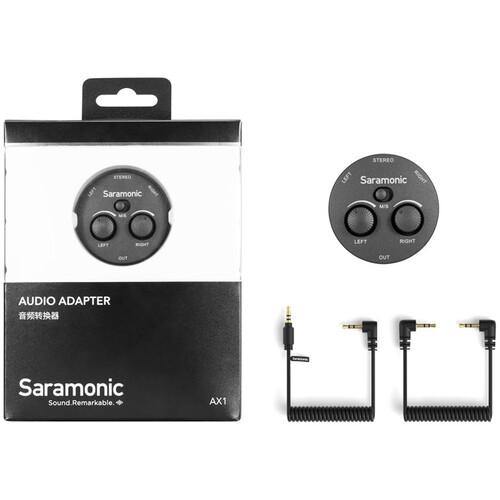

What's in the box


  • Saramonic AX1 Passive 2-Channel Audio Mixer for Cameras, Smartphones, Tablets, and Computers

  • 3.5mm TRS Output Cable

  • 3.5mm TRRS Output Cable

  • Limited 1-Year Warranty




6971008027068

Specifications


Inputs 2 x 1/8" / 3.5 mm TRS Female Mono Inputs
1 x 1/8" / 3.5 mm TRS Female Stereo Input
Outputs 1 x 1/8" / 3.5 mm TRS Female Mono/Stereo Output
Frequency Response 20 Hz to 20 kHz
Input Level ≥35 dB
Gain Unity (0 to -∞ dB)
Power Requirements None (Passive)
Mount 1/4"-20
Dimensions (Diam. x H) 1.9 x 1.0" / 4.8 x 2.5 cm
Weight 0.7 oz / 19 g

What's in the box


  • Saramonic AX1 Passive 2-Channel Audio Mixer for Cameras, Smartphones, Tablets, and Computers

  • 3.5mm TRS Output Cable

  • 3.5mm TRRS Output Cable

  • Limited 1-Year Warranty
