Saramonic UwMic15 UHF Wireless Lavalier Microphone System
The Saramonic UWMIC15 UHF Wireless Lavalier Microphone System provides stable, interference free audio in portable, compact and low cost package. This system is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, ENG, providing dependable audio broadcasting and recording.

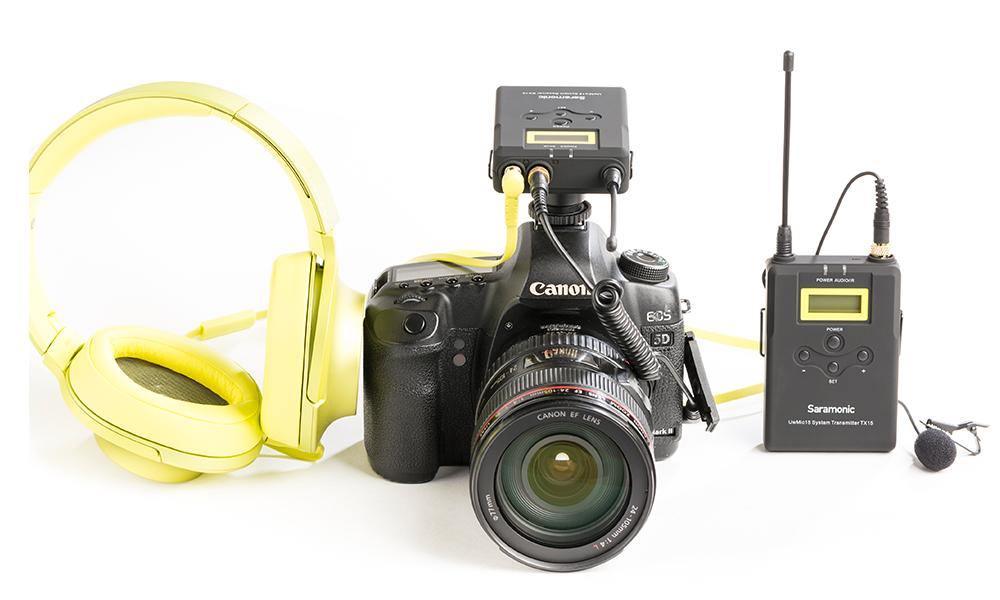

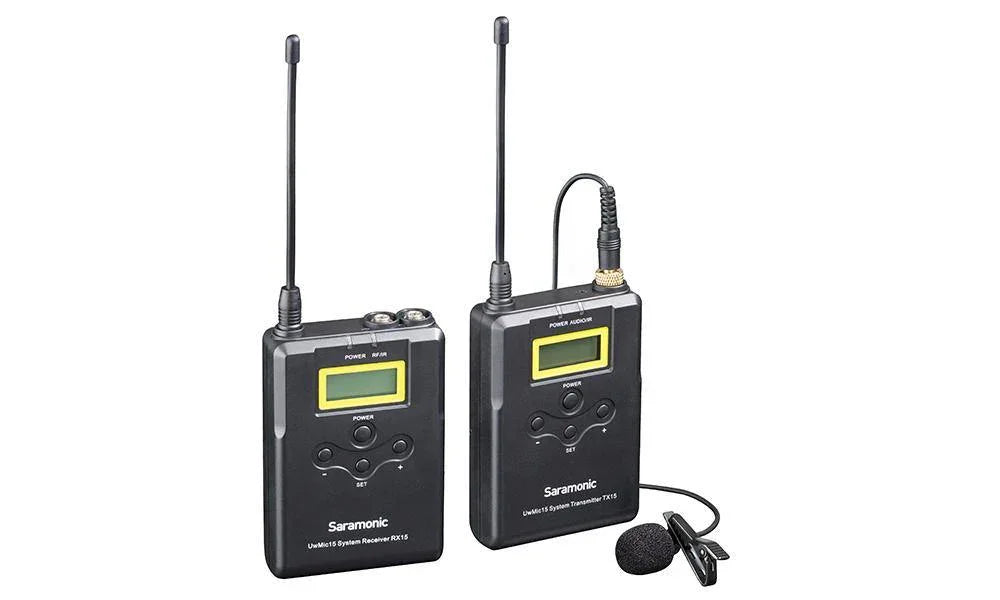

The system includes a camera-mountable, wireless receiver, wireless body-pack transmitter and clip-on lavalier mic.

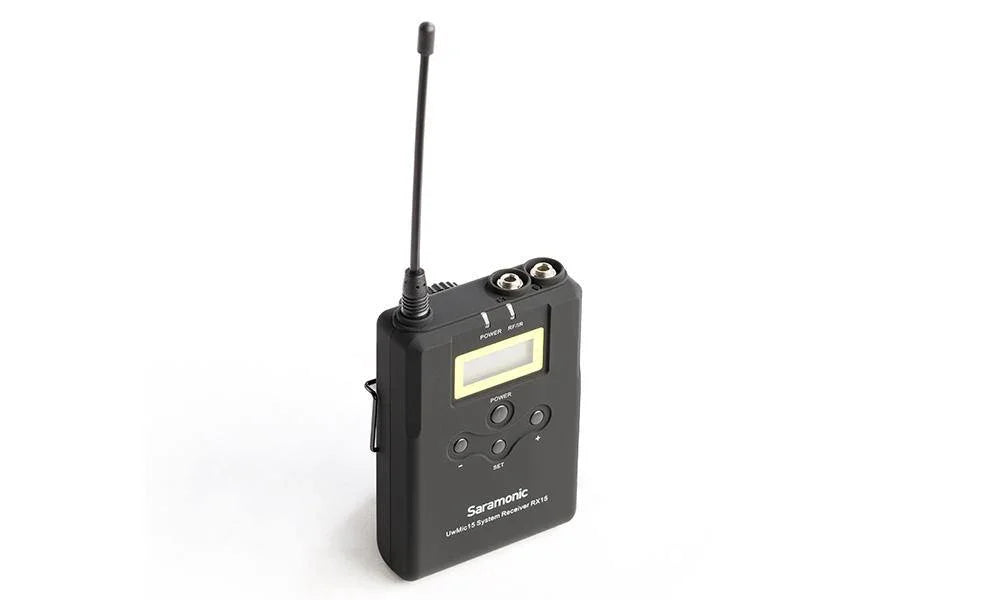

Receiver
The Saramonic UwMic15 RX15 is a camera-mountable integrated wireless receiver. It features an easy-to-read LCD display and infrared synchronization between transmitter and receiver.
Equipped with an auto-scan function, the RX15 can automatically search for an available transmission frequency. The headphone jack enables real-time monitoring or the receiver via headphones, especially useful for cameras that lack a monitor output.

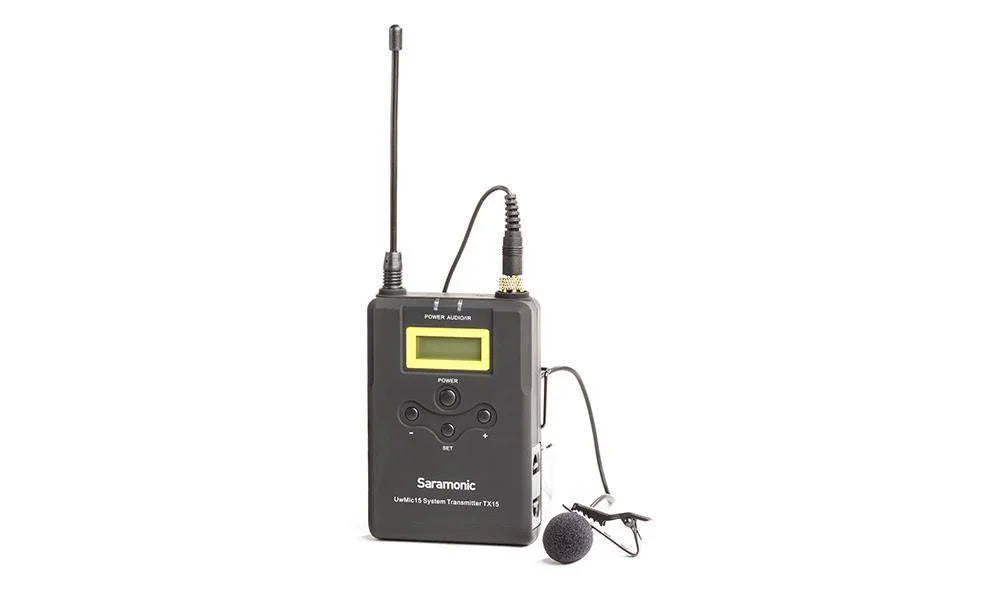

Transmitter
This compact transmitter employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a BMP-type mic input. The RF power output can be switched among high, middle and low.
TX15 Transmitter |
|
|---|---|
| Channel Number | 16 |
| Oscillator Type | PLL synthesizer |
| Carrier Frequencies | 555MHz - 579MHz |
| Reference Deviation | ±5 kHz (–60 dBV, 1 kHz input) |
| Signal to Noise Ratio | 70 dB or more |
| Spur Suppression | -60dB |
| Voice Delay | 10 ms |
| Antenna | 1/4λ wire antenna |
| Audio Input Connector | 3.5mm mini jack |
| Reference Audio Input Level | –60 dBV (MIC input, 0 dB attenuation) |
| Distortion | 0.5% or less |
| Weight | Approx. 0.14 lbs / 68g (excluding batteries) |
| Battery | 2 x AA Size Batteries |
| Dimensions | 7.08 x 2.51 x 0.90 in / 180 x 64 X 23 mm |
| Operating Temperature | 32°F to 122°F / 0°C to 50°C |
| Storage Temperature | -68°F to +131°F / –20°C to +55°C |
RX15 Receiver |
|
| Channel Number | 16 |
| Oscillator Type | PLL synthesizer |
| Audio Output Connector | 3.5mm mini jack |
| Antenna | 1/4λ wire antenna |
| Audio Output Level | –60 dBV |
| Headphone Output Level | 30mW (16 Ω) |
| Receive Frequencies | 555MHz - 579MHz |
| Receive Sensitivity | -95dBm |
| Signal to Noise Ratio | 70 dB or more |
| Voice Delay | 10 ms |
| Reference Deviation | ±5 kHz(–60 dBV, 1 kHz input) |
| Frequency Response | 40 Hz to 18 kHz (+/-3dB) |
| Distortion | 0.5% or less |
| Spur Suppression | -60dB |
| Weight | 0.16 lbs / 73g (excluding batteries) |
| Battery | 2 x AA size Batteries |
| Dimensions | 7.08 x 2.51x 1.92 in / 180 × 64× 49 mm |
| Operating Temperature | 32 °F to 122 °F / 0 °C to 50 °C |
| Storage Temperature | -68°F to +131°F / –20 °C to +55°C |
| Packaging Info | |
| Package Weight | 1.30 lb |
