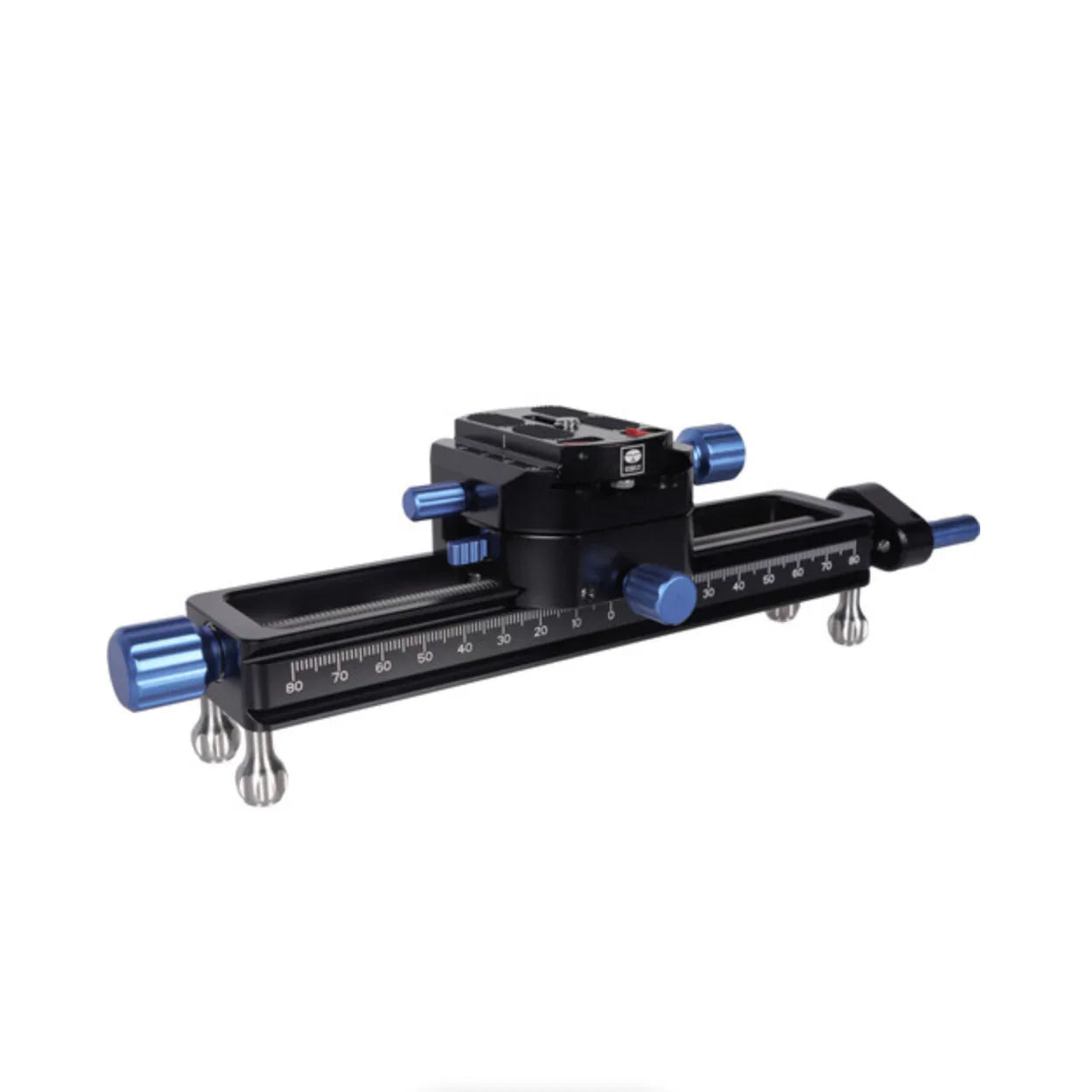

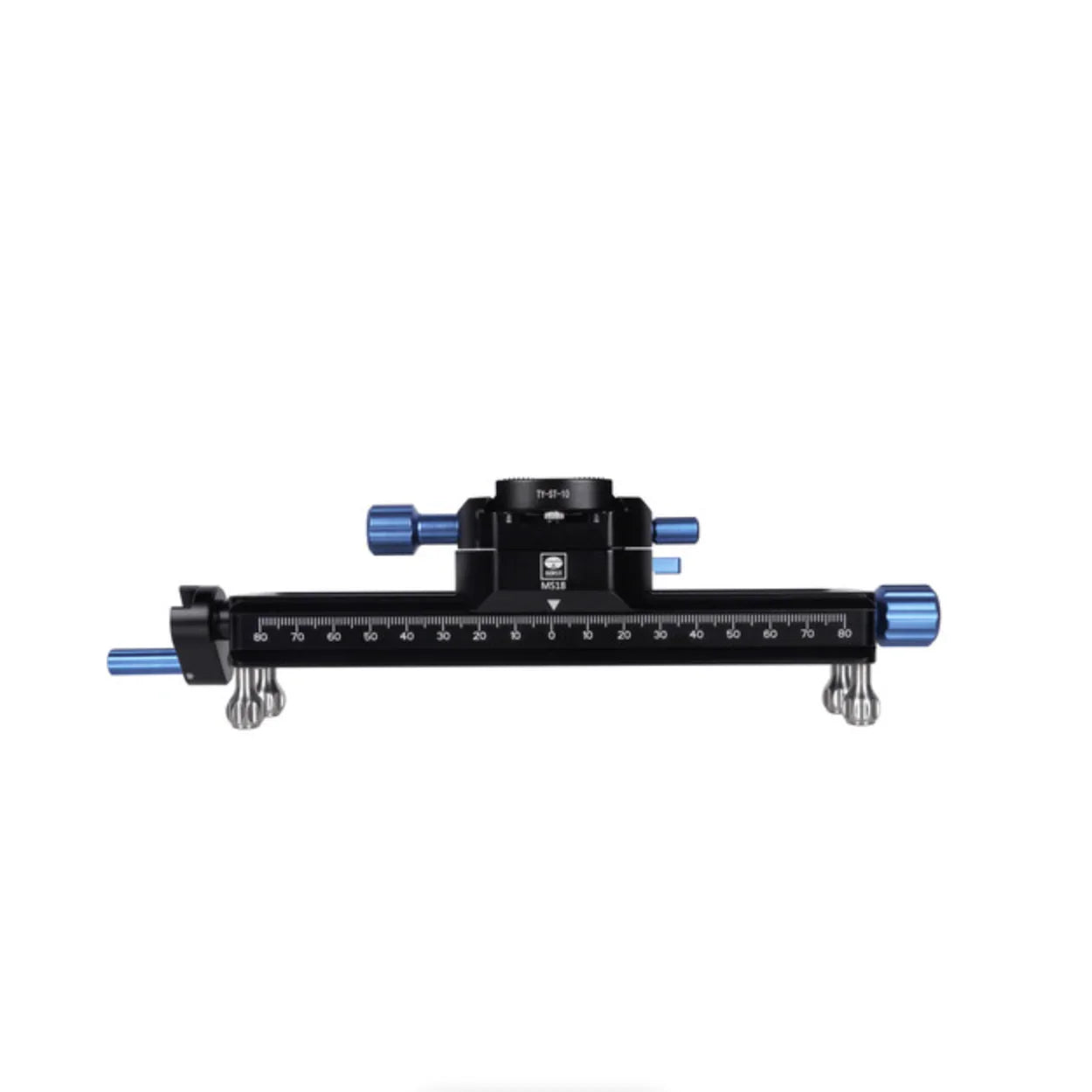

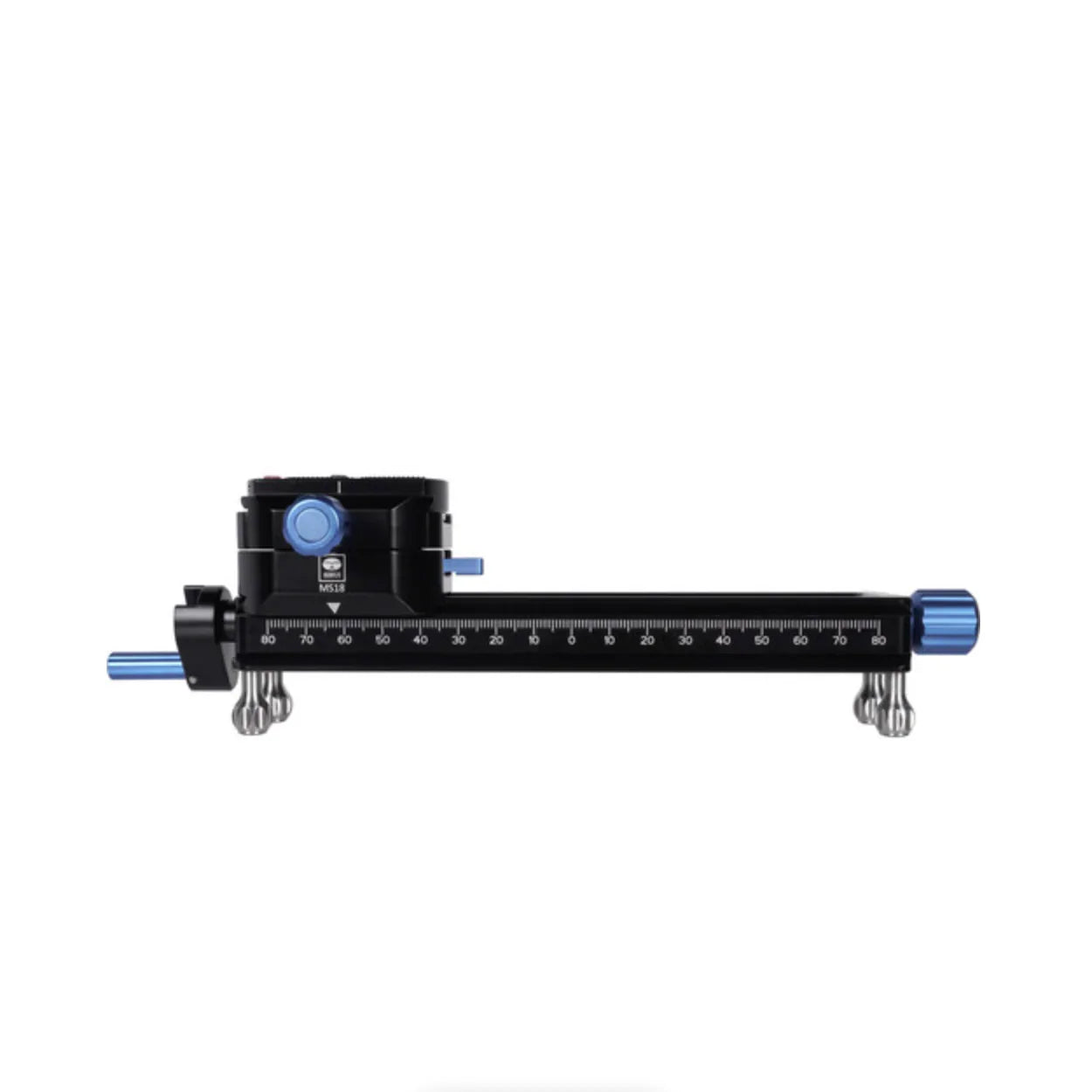

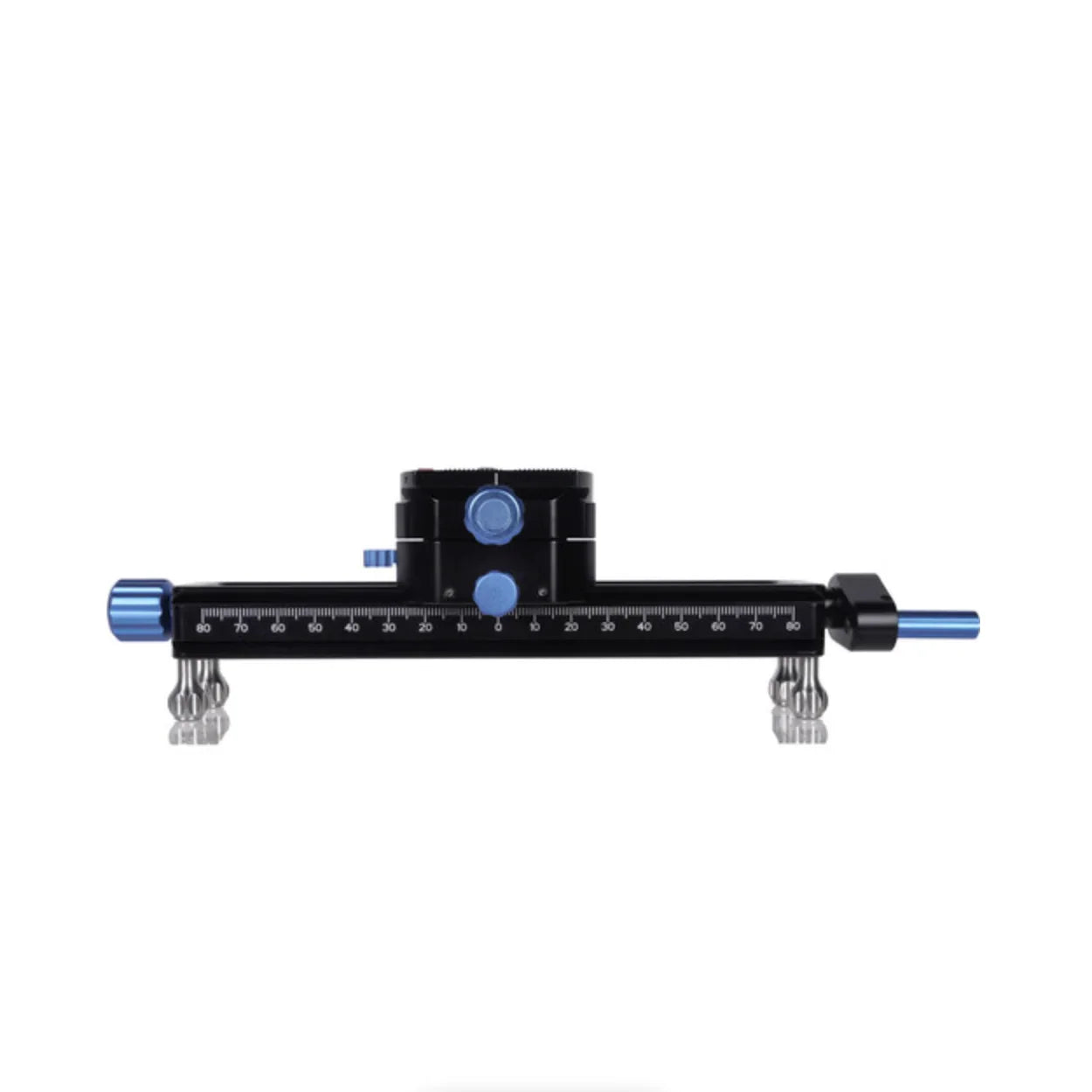

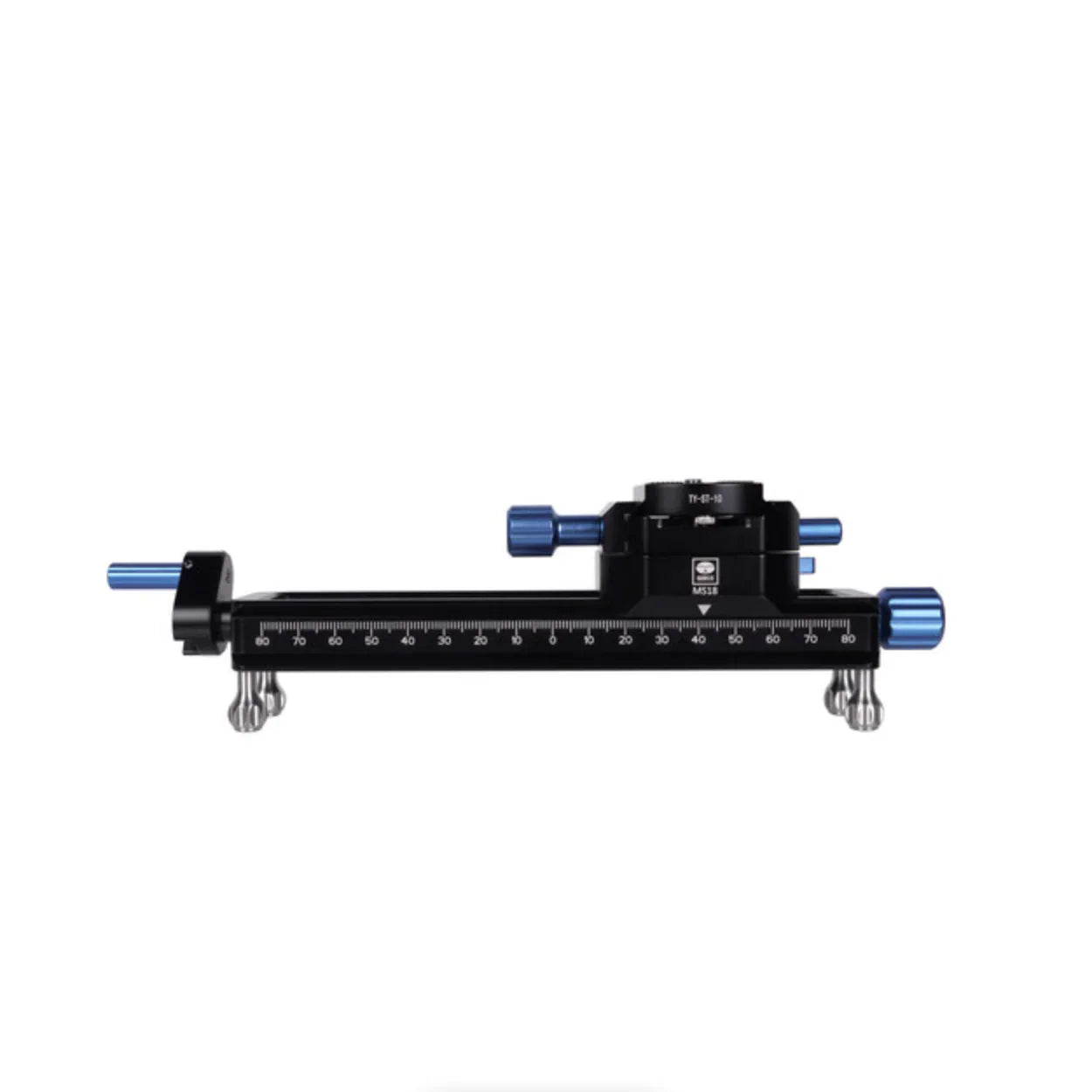

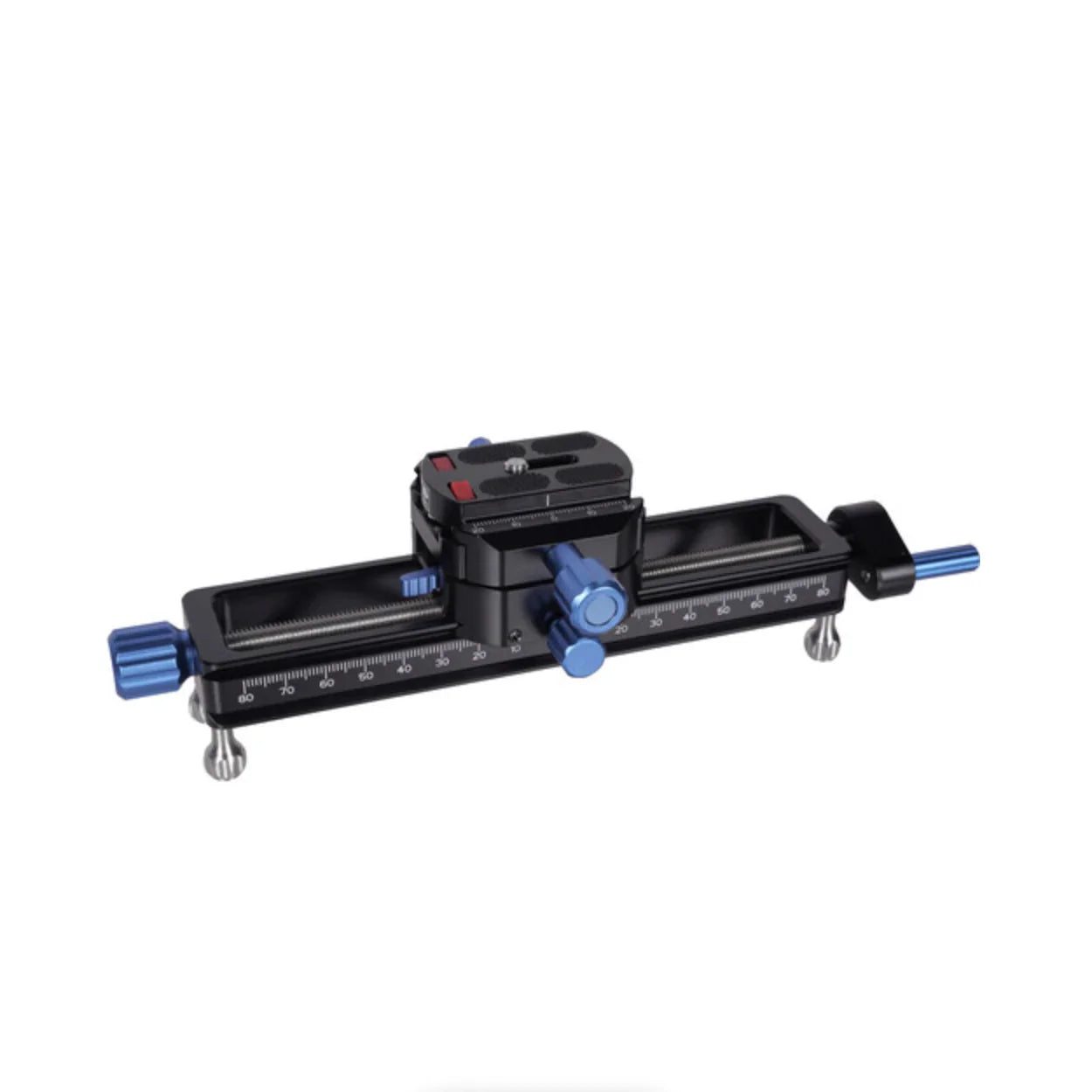

The MS18 Macro Focusing Rail from Sirui is a precision linear motion lead screw focusing stage and rail, incorporating a camera platform with a rotating Arca-type quick release set. The rail has a capacity of 6.69" of travel distance, each full rotation of the crank providing 1.25mm of movement for precise camera positioning. The focusing knob has a crank handle that conveniently folds flat. The rail has a hollowed-out design to reduce weight, but it still maintains a robust 22 lb load capacity. The base of the rail features an Arca-type dovetail, making it easy to mount on compatible devices. It also has four removable, rubber-tipped feet for tabletop use.

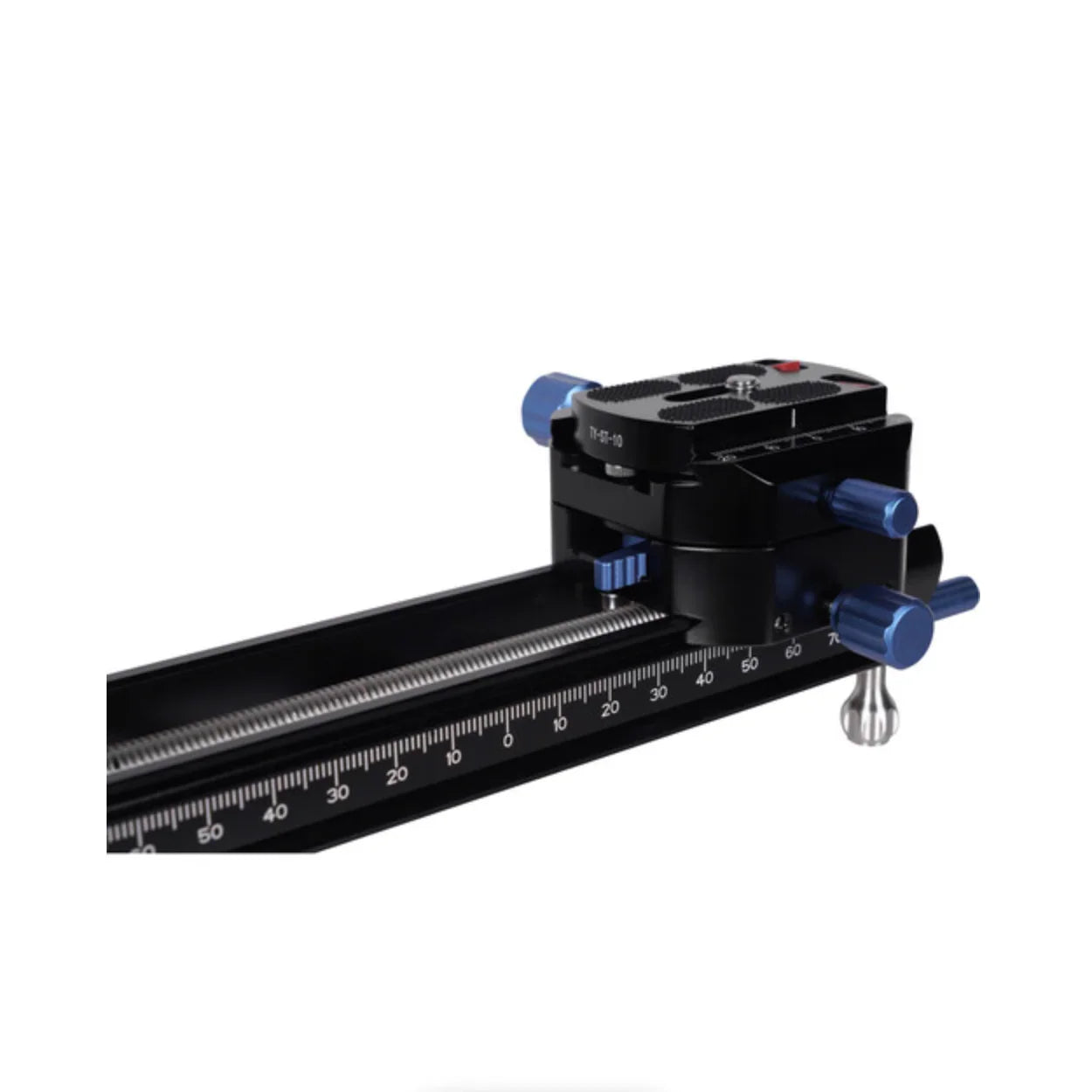

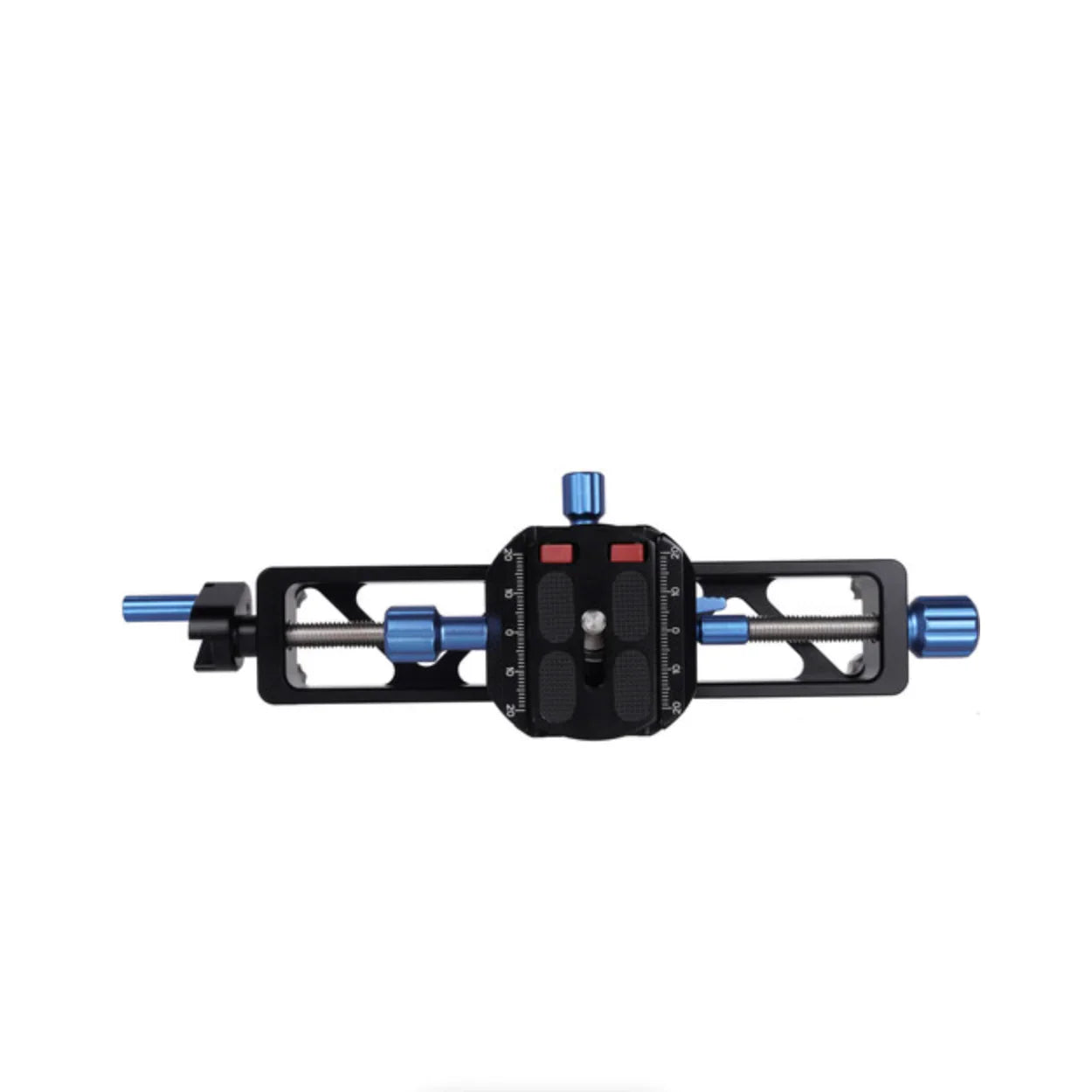

The camera platform has a locking lever and incorporates an Arca-type quick release clamp that can be quickly rotated into four positions in 90° increments. The included quick release plate has traction pads to resist movement between the plate and camera body.
| Compatibility |
Not Specified by Manufacturer
|
| Mounting |
Top: 1x Arca-Type Dovetail
Bottom: 1x Arca-Type Dovetail |
| Load Capacity |
22 lb / 10 kg
|
| Color |
Black
|
| Material of Construction |
Aluminum
|
| Dimensions |
8.7 x 2.9 x 2.8" / 220 x 73 x 71 mm
|
| Weight |
15.5 oz / 440 g
|
