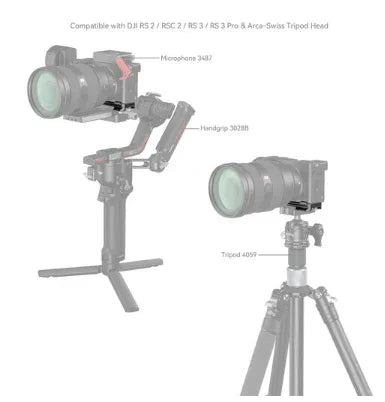

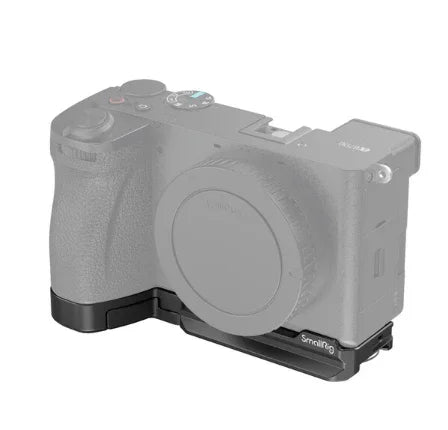

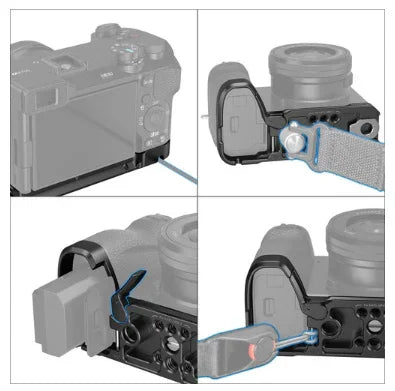

Use this SmallRig Baseplate to add an Arca-Swiss plate to the bottom of your Sony a6700 and make your camera compatible with DJI RS series gimbals. The baseplate secures to the camera via a 1/4"-20 screw. Multiple threads on the bottom of the plate—five 1/4"-20 threads and one 3/8"-16 threads—offer pointing points for other tripod baseplates or mounting accessories. QD sockets and strap slots can accommodate QD shoulder straps or wrist straps. The design of the baseplate maintains access to the camera's battery port.
| Mounting Screw |
1x 1/4"-20 Male
|
| Tripod Mounting Thread |
5x 1/4"-20 Female
1x 3/8"-16 Female |
| Bubble Level |
No
|
| Strap Loop |
Yes
|
| Quick Disconnect System |
QD
|
| Quick Release Plate Type |
Arca-Type
|
| Material of Construction |
Aluminum, Steel
|
| Length |
4.8" / 122.9 mm
|
| Width |
2.5" / 63.2 mm
|
| Height |
0.6" / 16.00 mm
|
| Weight |
2.4 oz / 68 g
|
