SmallRig HawkLock Cage for Sony FX5
- FX5 modular protective cage
- HawkLock quick release system
- Anti-twist multi-point mounting
- NATO rail and Arca base
- HDMI cable clamp included
- Multiple accessory mounts
SmallRig HawkLock Cage for Sony FX5

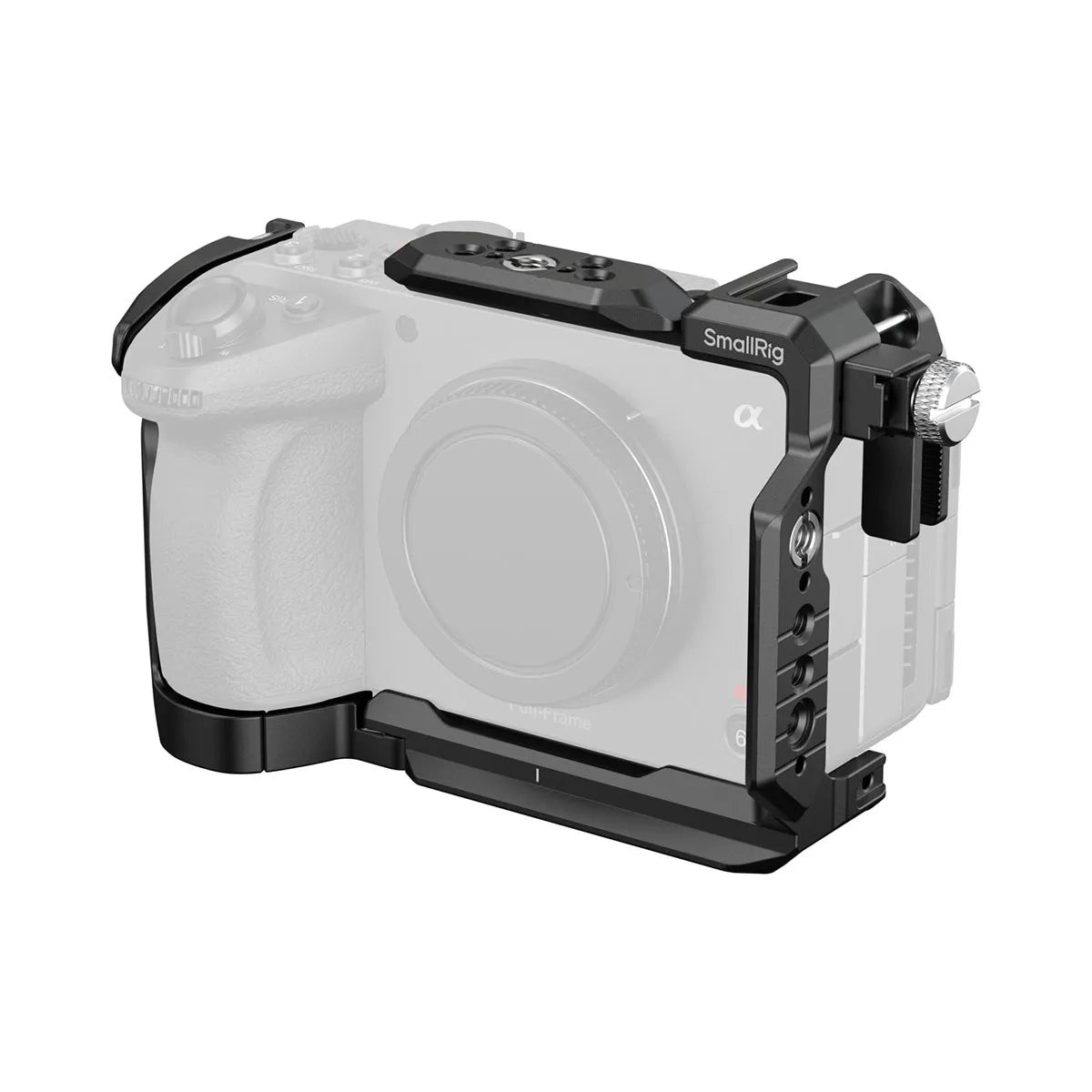

SmallRig "HawkLock" Cage for Sony FX5 (6776) is designed to protect the camera while providing versatile mounting options for professional accessories.

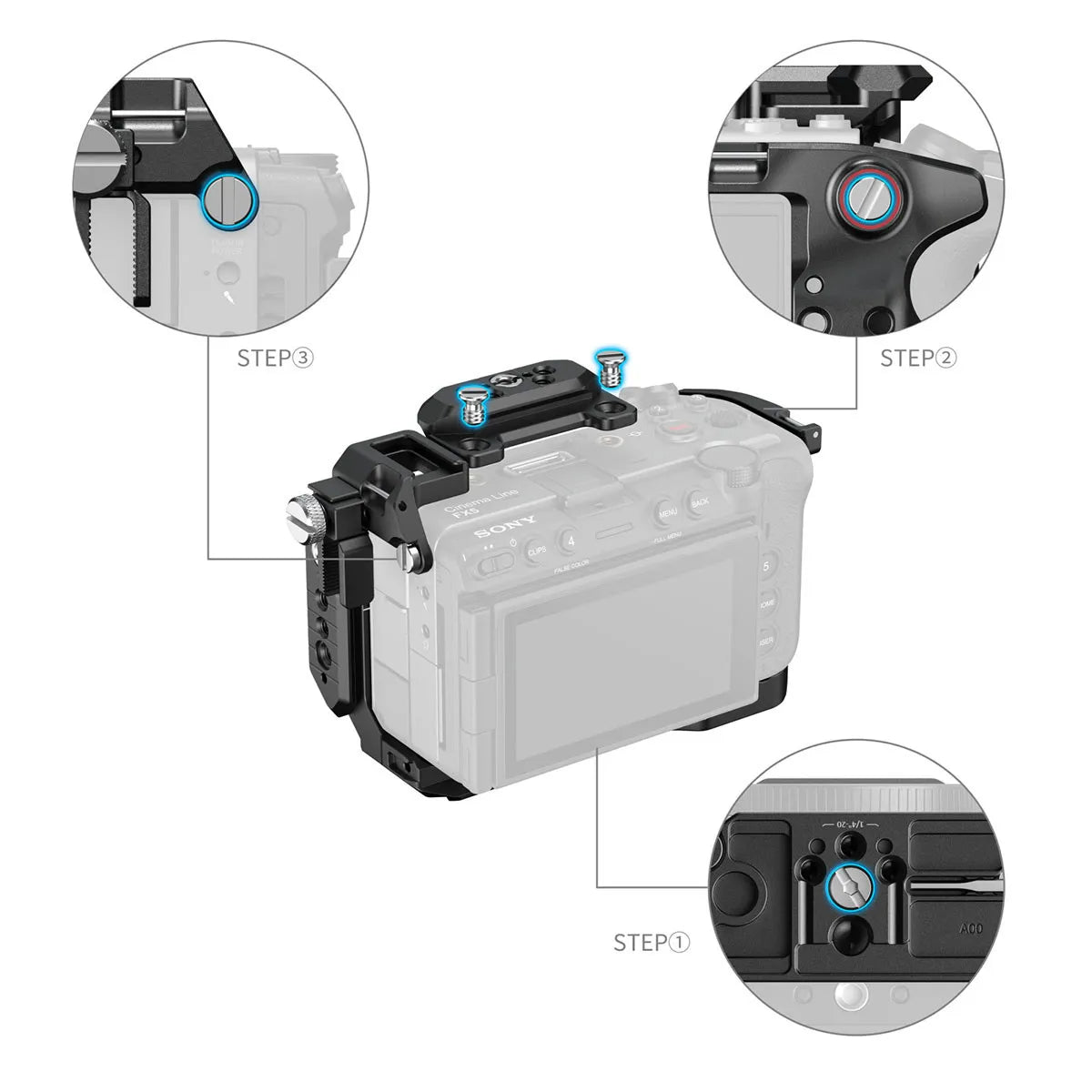

The modular design includes a removable NATO rail top plate and a U-shaped cage. The top plate attaches via two 1/4"-20 screws and can be removed to accommodate the original Sony XLR top handle. The U-shaped cage mounts securely at multiple points to prevent twisting and includes protective padding to prevent scratches. A hinged arm near the battery door improves grip and comfort.
A dedicated HDMI cable clamp protects ports and ensures stable signal transmission. SmallRig’s HawkLock quick release system integrates a NATO rail and Arca-Swiss plate for fast, secure mounting and compatibility with HawkLock accessories, while still supporting standard NATO and Arca-Swiss components.

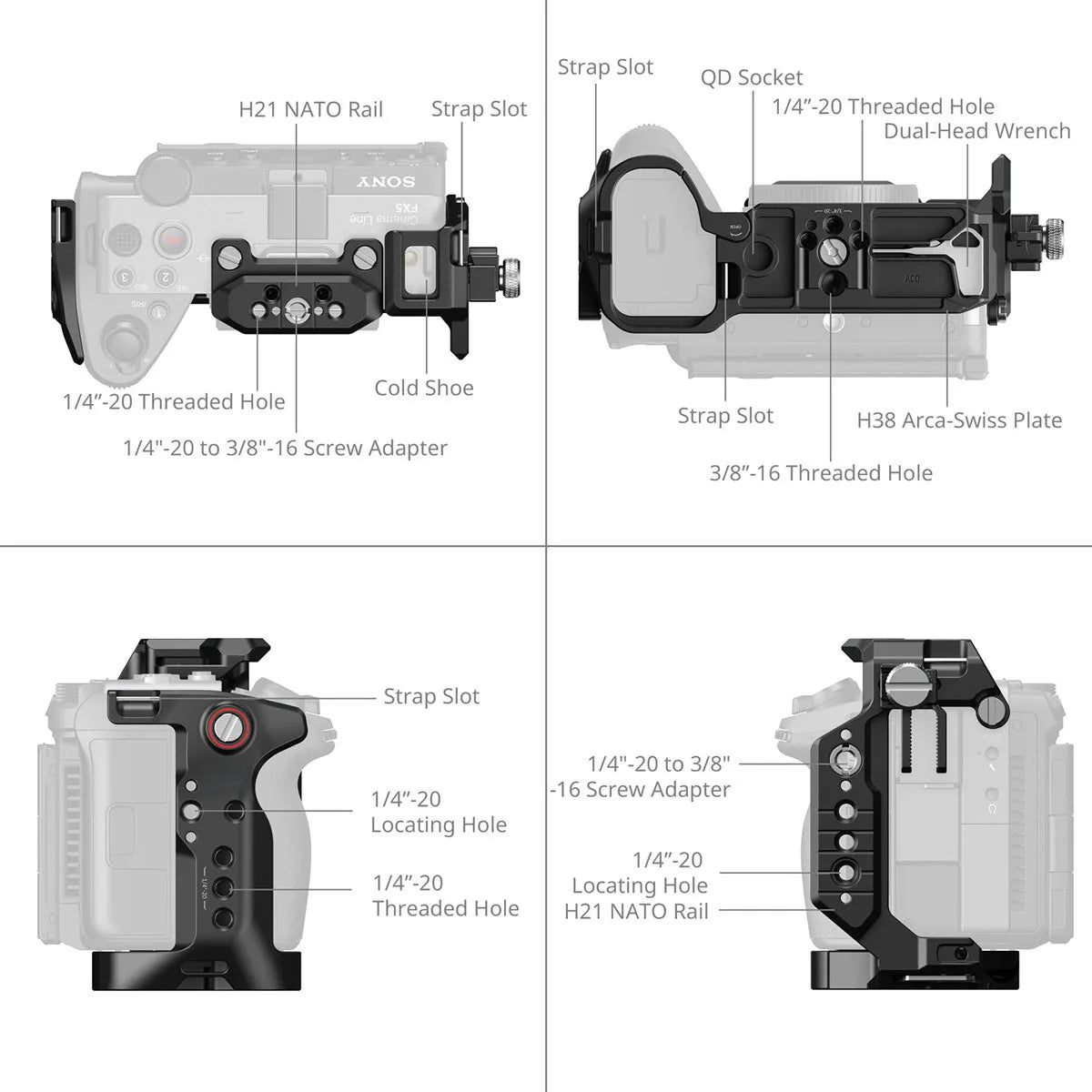

The cage features multiple mounting points including 1/4"-20 threaded holes, 1/4"-20 locating holes, ARRI 3/8"-16 locating holes, a QD socket, strap slot, NATO rail, and cold shoe mounts. A magnetic wrench is included for quick adjustments and assembly.
Notes
- Compatible hot shoe accessories (with top plate): Sony ECM-B1M, ECM-M1, ECM-B10, DJI Mic 2 hot shoe adapter
- Incompatible hot shoe accessories: Sony ECM-W3, ECM-W3S, ECM-W2BT
- Remove top plate when using Sony XLR handle (XLR-H2B) or Sony EVF (DVF-EL1B)
Key Highlights
- Locked for Impact: Multi-point locking design secures the camera
- Low Angles Without the Drag: Ergonomic grip improves low-angle handling
- No Slip, No Drift: Anti-slip NATO rail and Arca-Swiss plate ensure secure mounting
- Modular Rig Design: Lightweight system with built-in Arca-Swiss base for quick tripod use
Features
- Protective and Secure: Anti-twist cage with protective padding
- Modular Design: Removable top plate supports XLR handle and EVF
- Improved Grip: Hinged arm enhances comfort at battery door
- HDMI Protection: Dedicated clamp stabilizes signal connection
- Accessory Ready: Multiple mounting points for pro accessories
- SmallRig Hawklock Cage
- Top Plate
- Clamp for HDMI Cable
- User Manual
- SmallRig 2 Year Limited Warranty
| Support Type | Cage |
| Grip Type | No |
| Camera Compatibility | Sony FX5 |
| Mounting | |
|---|---|
| Battery Plate Type | No |
| Accessory Mounting | Top 4x 1/4"-20 Female Thread 1x Anti-Twist 3/8"-16 Female Thread Sides 1x Anti-Twist 3/8"-16 Female Thread 2x Anti-Twist 1/4"-20 Female Thread 6x 1/4"-20 Female Thread |
| Camera Mounting | 1/4"-20 Male Screw |
| Tripod Mounting | 1/4"-20 Female Thread, 3/8"-16 Female Thread |
| Shoe Mounting | Cage 1x Cold Shoe |
| Rosettes | No |
| Rail Mounting | Side 1x NATO Rail Top 1x NATO Rail |
| Cable Clamp | 1x HDMI Clamp |
| General | |
| Materials | Aluminum Alloy, Silicone, Stainless Steel |

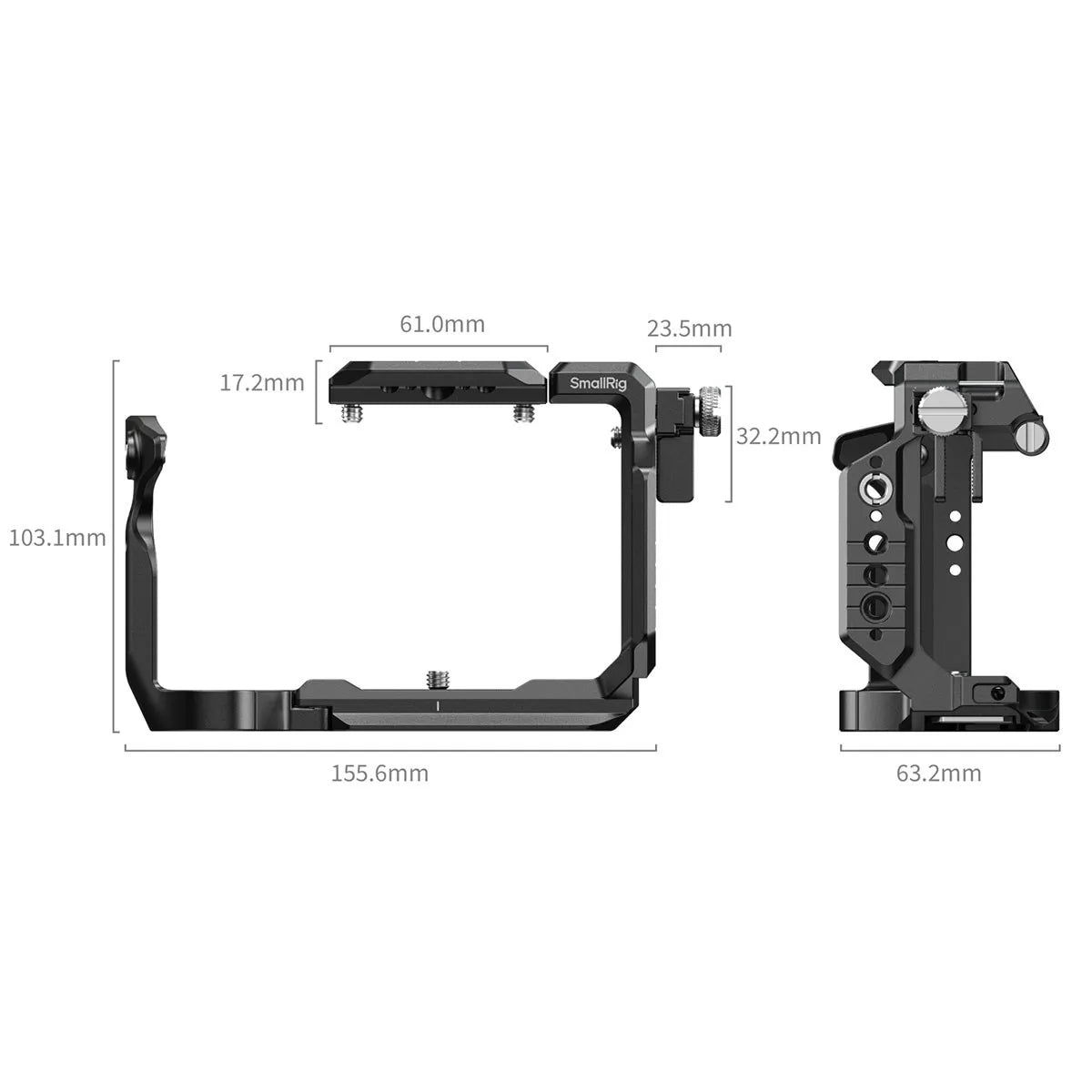

| Dimensions | 6.1 x 4.1 x 2.5" / 155.6 x 103.1 x 63.2 mm |
| Weight | 7.2 oz / 204 g |
- SmallRig Hawklock Cage
- Top Plate
- Clamp for HDMI Cable
- User Manual
- SmallRig 2 Year Limited Warranty
