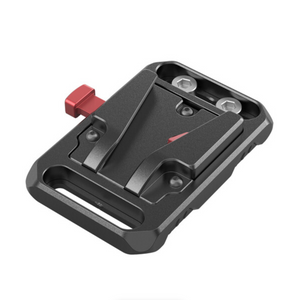

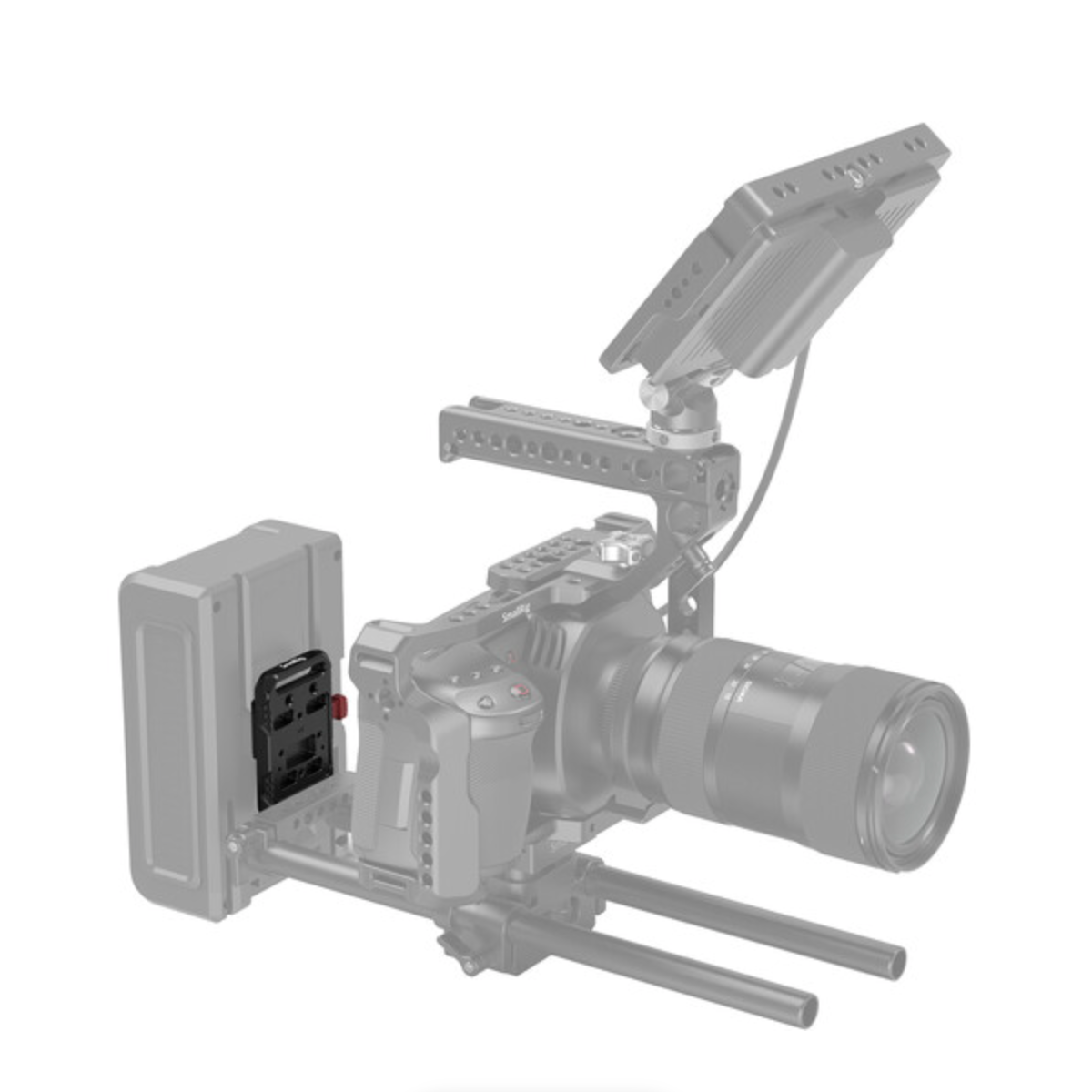

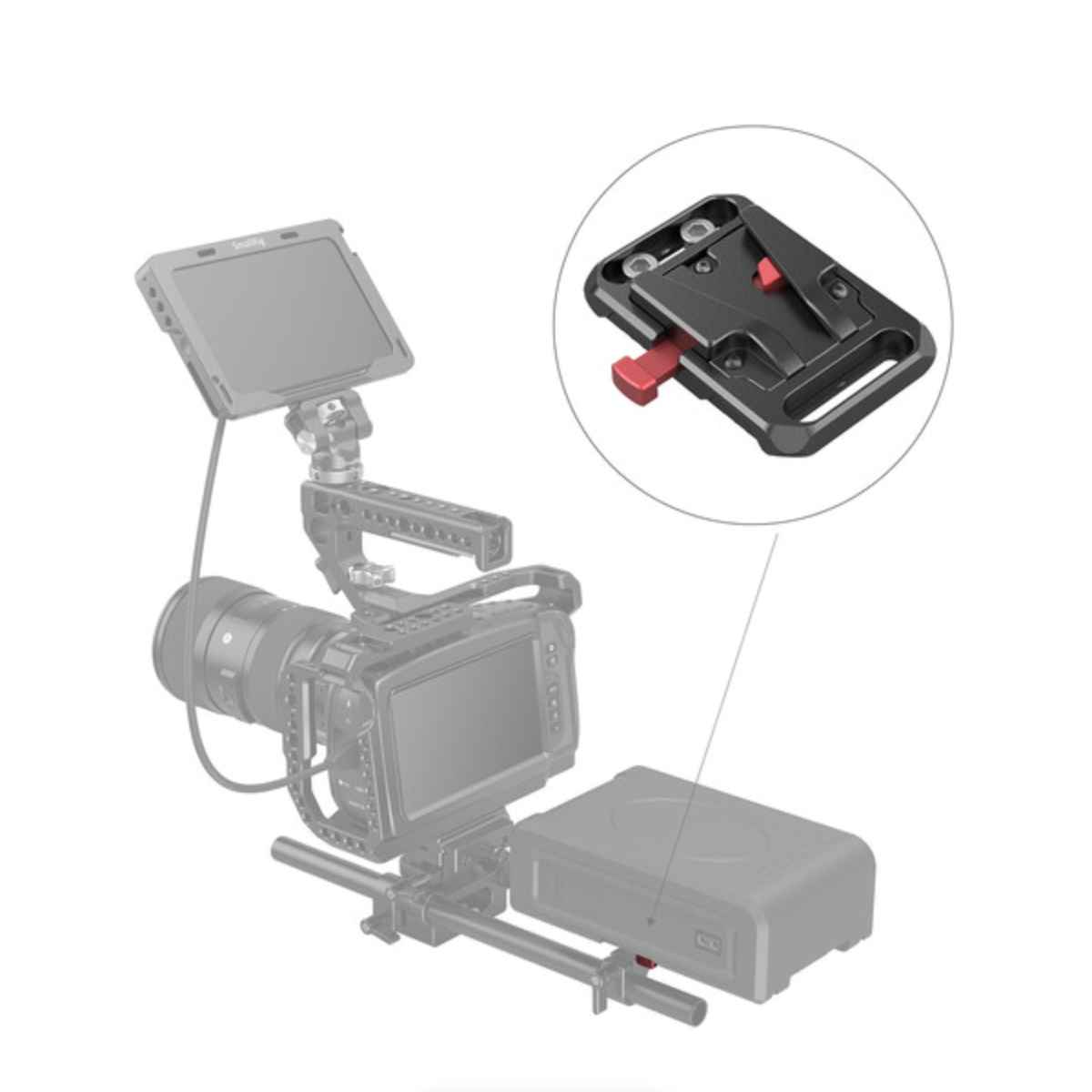

Mount a V-mount battery onto your rig with this Mini V-Lock Battery Plate from SmallRig. The mount features a V-lock mount with a quick release lever that fits most V-mount batteries. The mount has no electronics and is meant to mount a battery that has its own power outputs to power your gear.

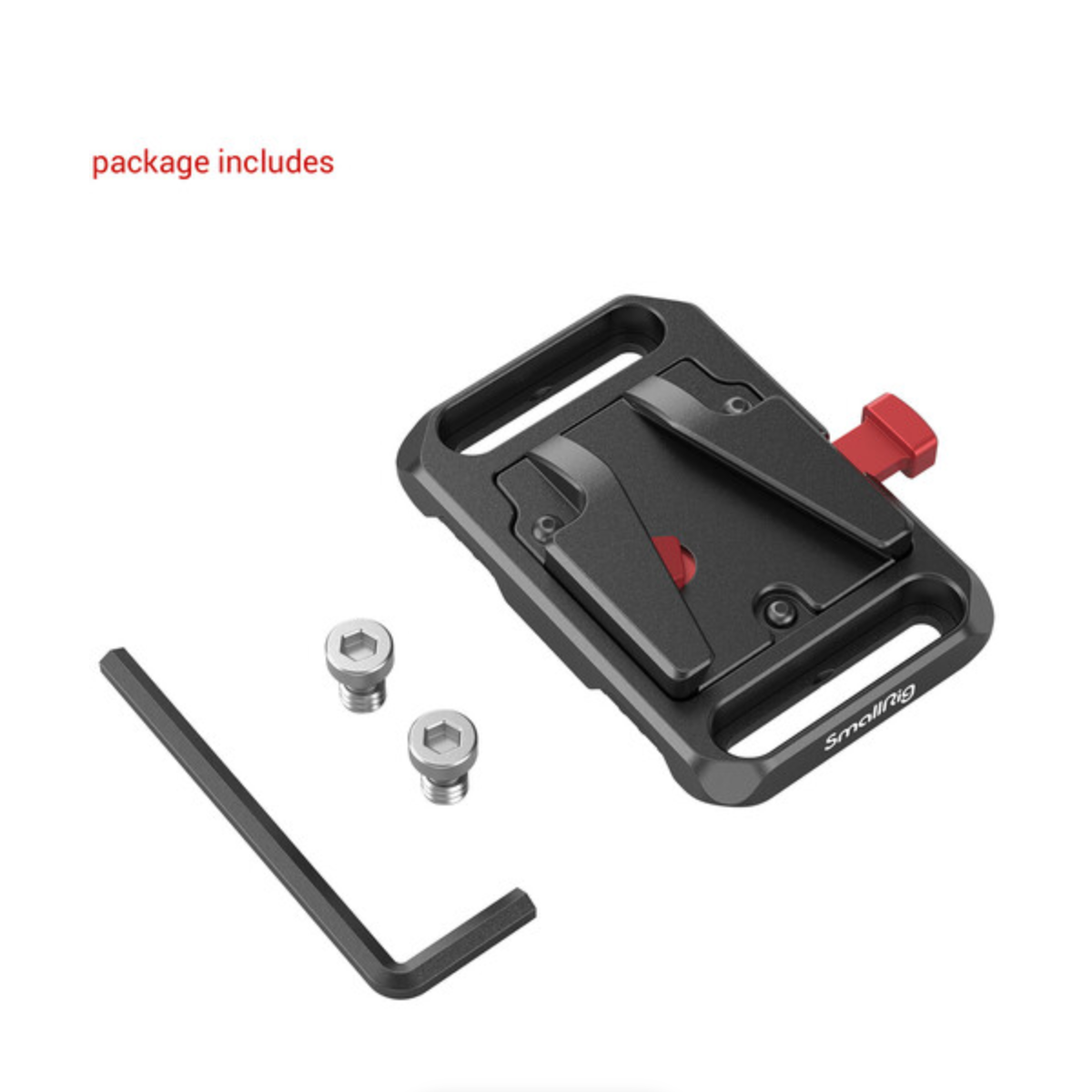

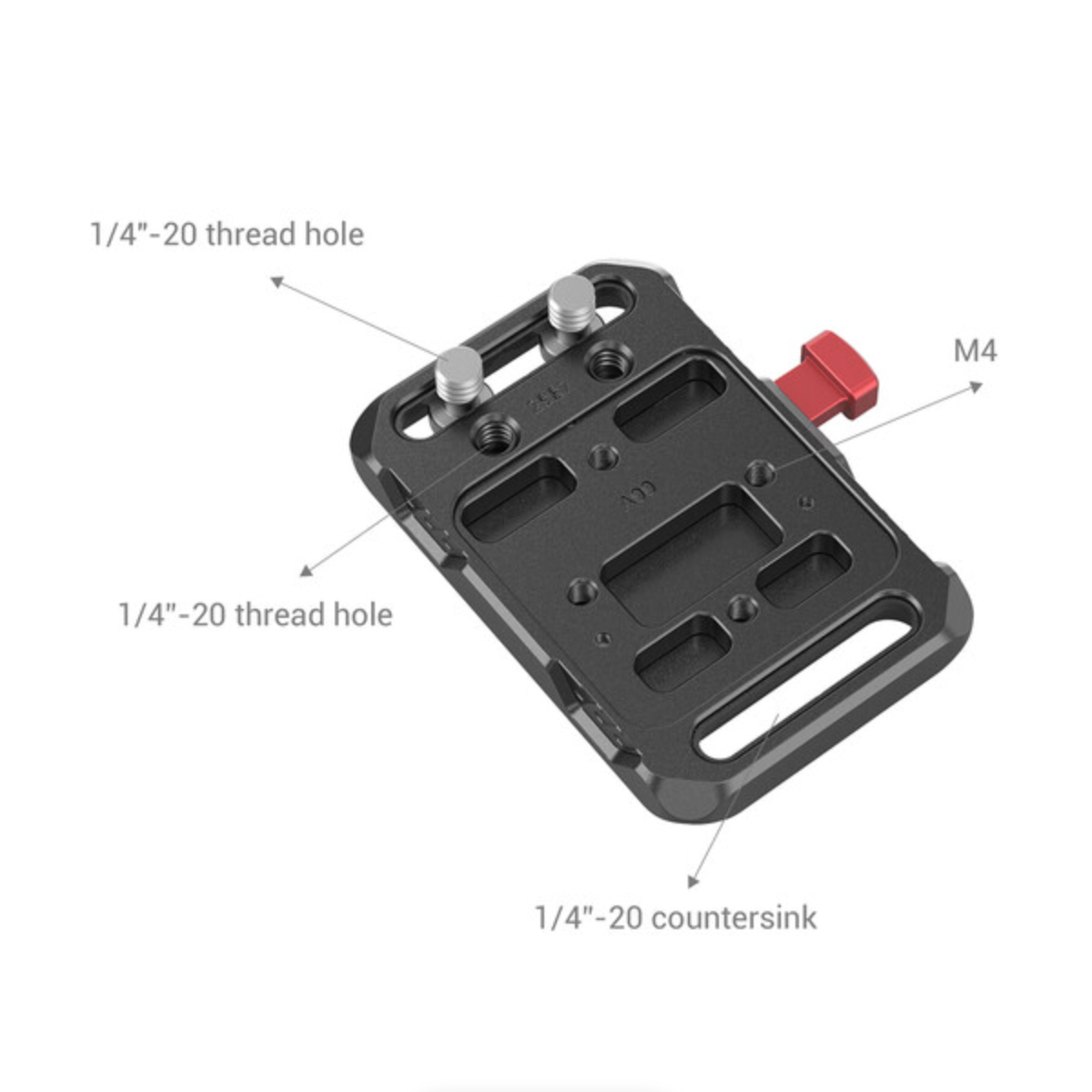

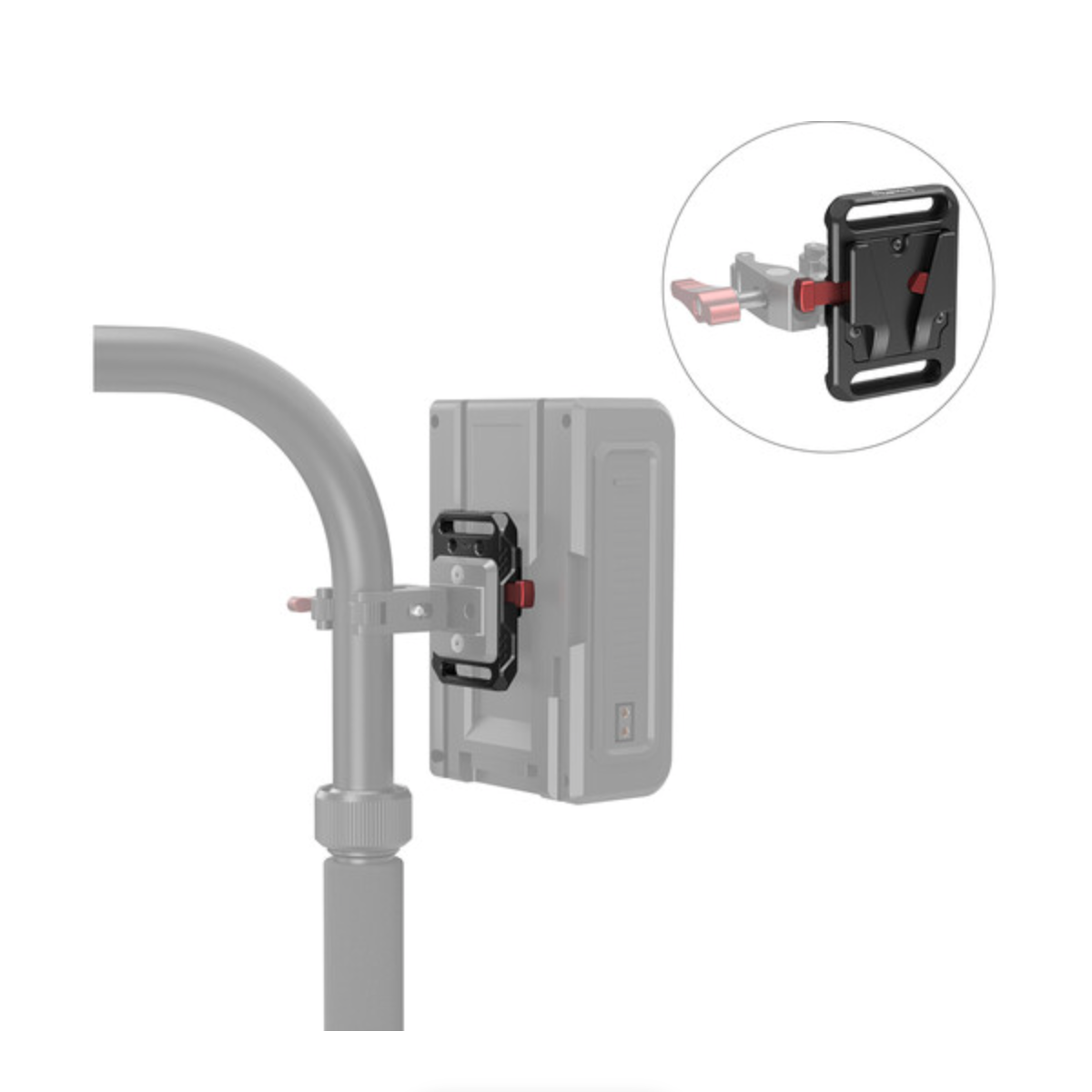

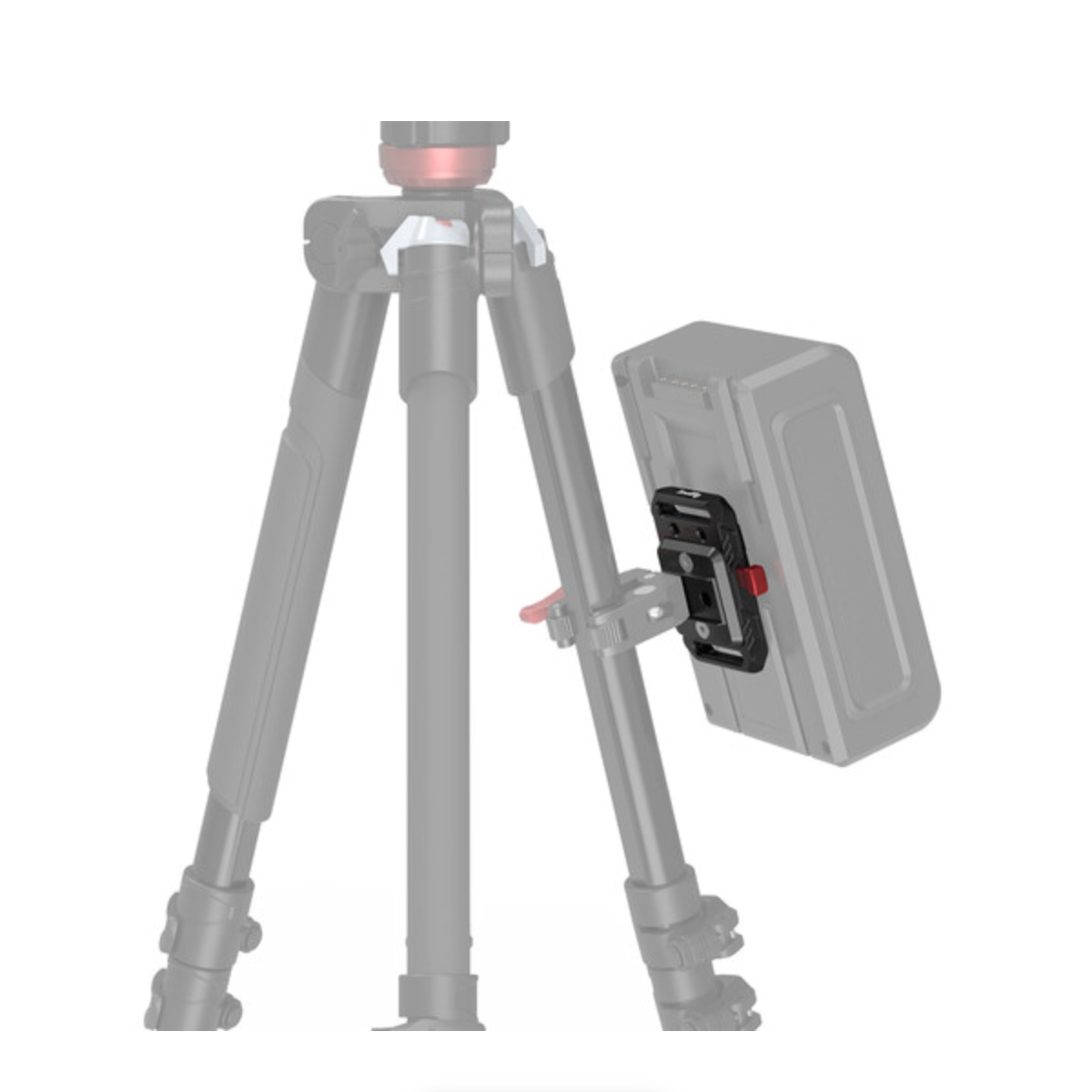

The mount features two 1/4"-20 countersink holes, two 1/4"-20 threads, and four M4 threads to mount a variety of gear such as clamps, rod mounts, extension arms, or other accessories and mounting gear. It is constructed with durable aluminum and weighs only 2.2 oz. Two 1/4"-20 screws and an Allen wrench are included for mounting.
This is a V-lock plate with no electronics and is for mounting a V-mount battery with power outputs onto a rig.
Fits most V-mount batteries (however, it does not fit PAGlink series V-mount batteries or the Patona Premium Battery for BP-190WS).
There are no electronics on the plate.
| Camera Power Method |
Connector
|
| Plate Rear Mount |
V-Lock
|
| Number of Battery Bays |
1
|
| Accessory Mounting |
1/4"-20 Female, M4 Female
|
| Material of Construction |
Aluminum
|
| Dimensions |

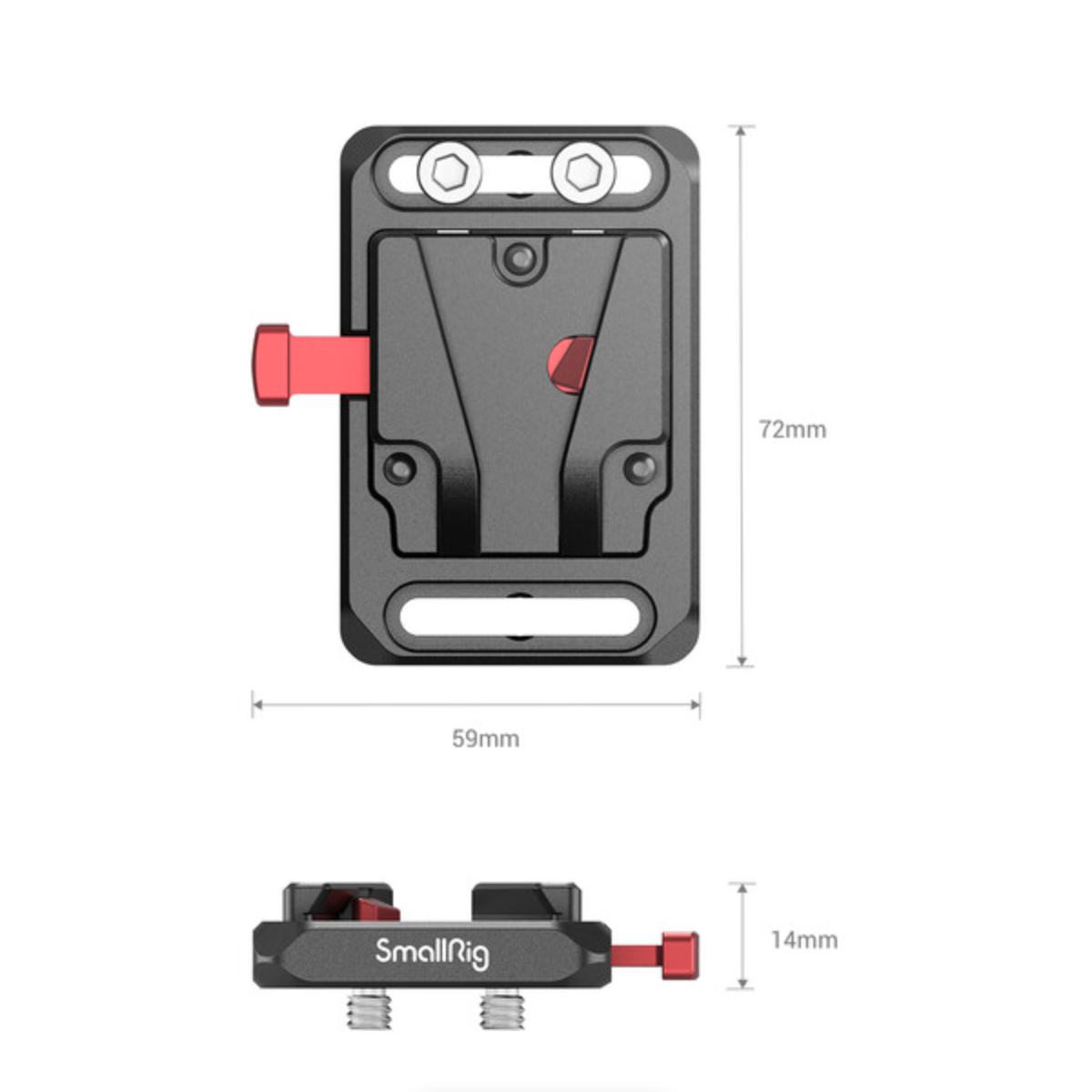

2.8 x 2.4 x 0.8" / 72 x 59.8 x 19.6 mm
|
| Weight |
2.2 oz / 63 g
|
