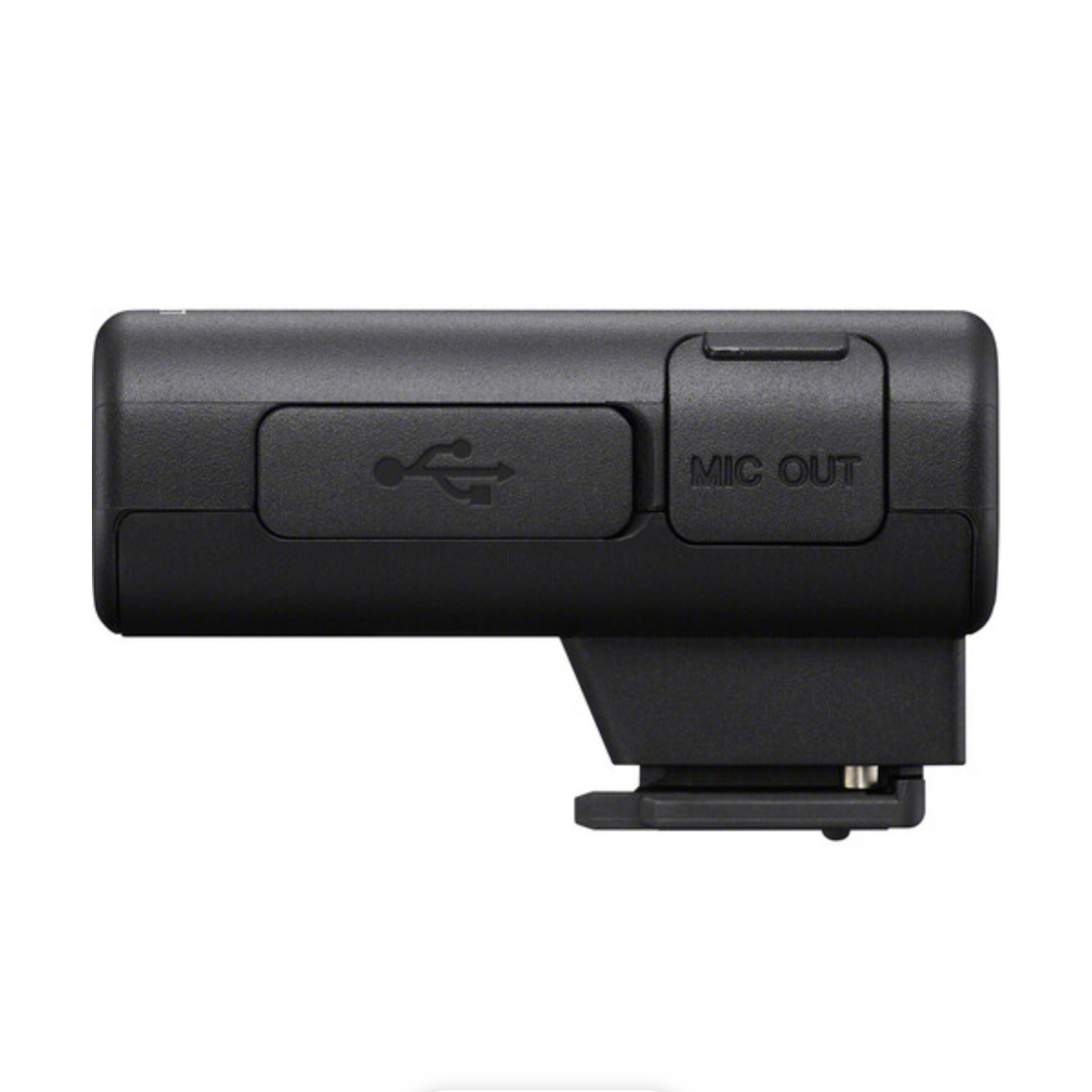

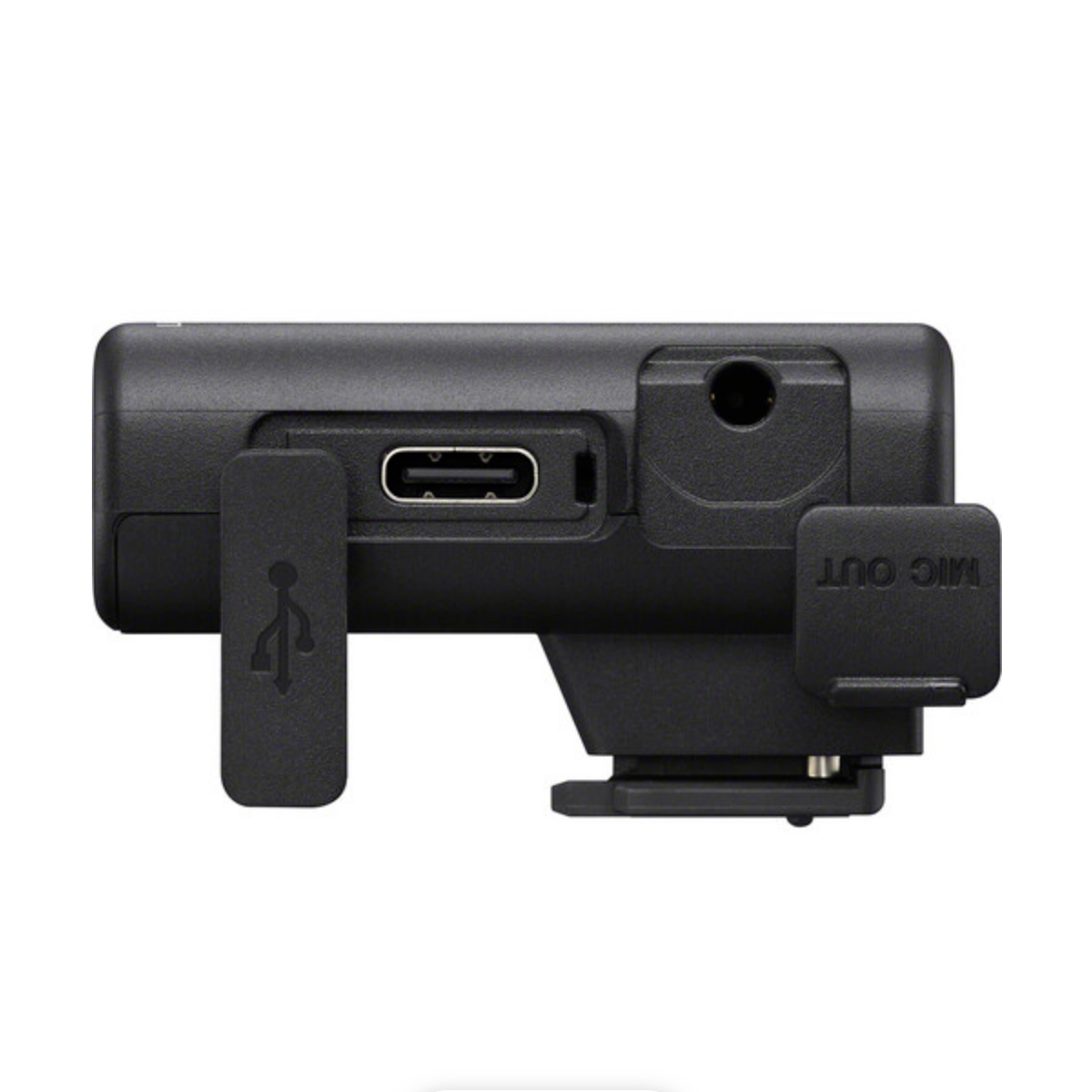

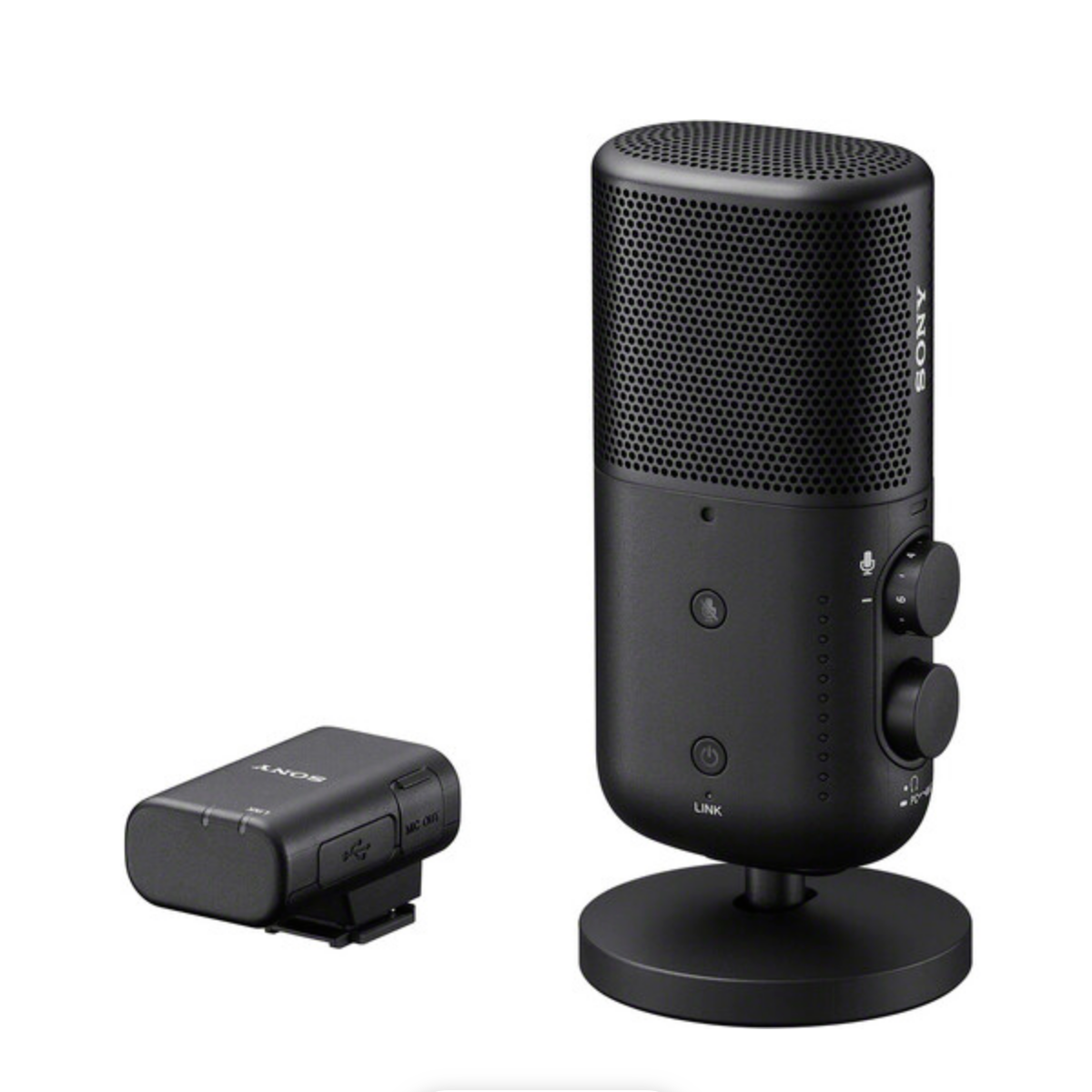

Record your podcast, livestream, or other forms of content creation with your Sony camera, computer, or smartphone using this Sony ECM-S1 Wireless Streaming Microphone System thanks to its multiple wired and wireless audio outputs. The microphone transmits audio to an included dual-channel receiver via Bluetooth 5.3 technology to your Sony camera's MI shoe for stable digital audio. A stand with non-slip base and a 1/4"-20 thread at the base of the device allow you to attach the microphone to a boompole or simply place it on your desk. If wireless capture doesn't suit your gear configuration, use the USB-C or 3.5mm TRS ports on the receiver or the USB-C port on the microphone to record directly to your laptop, smartphone, or other camera brands.

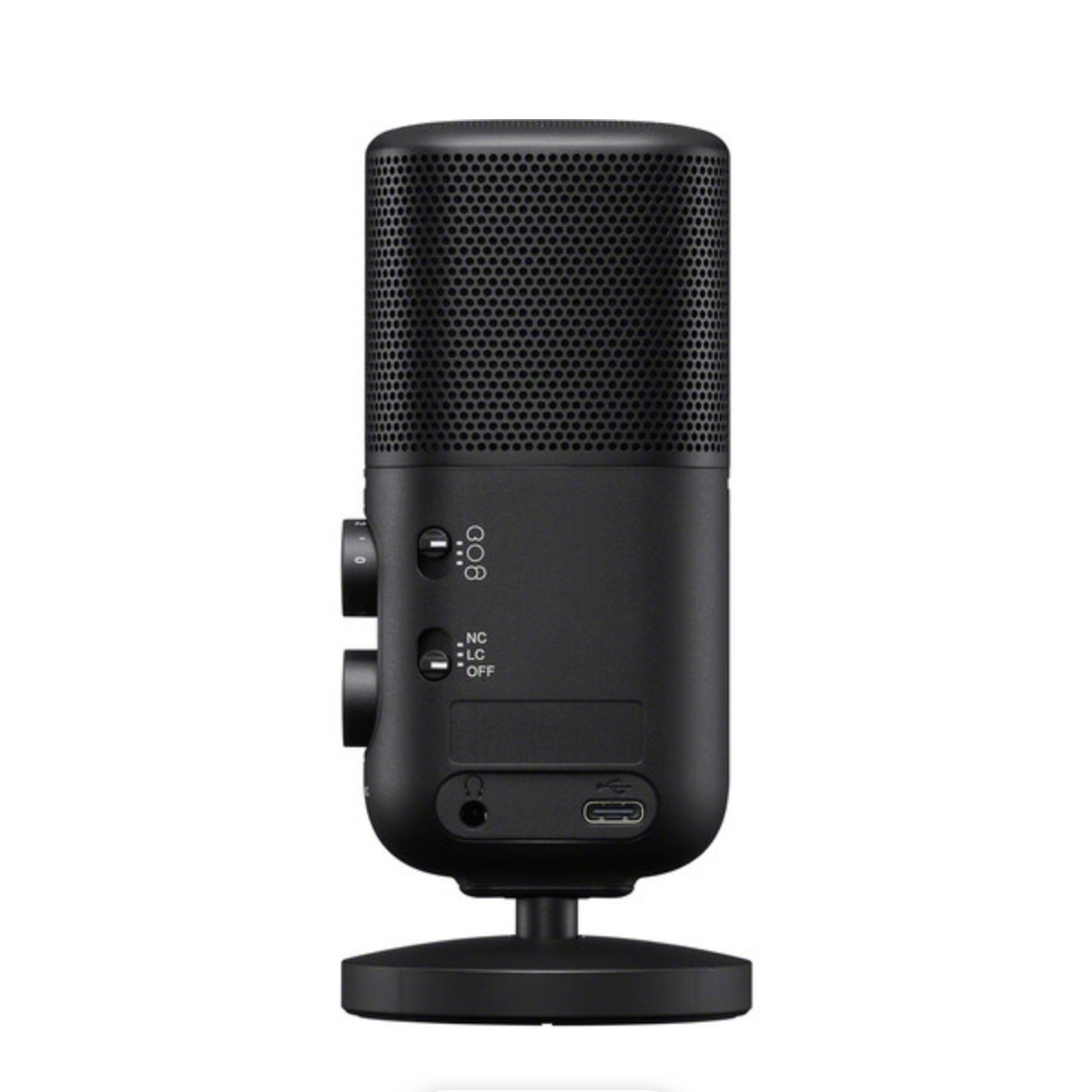

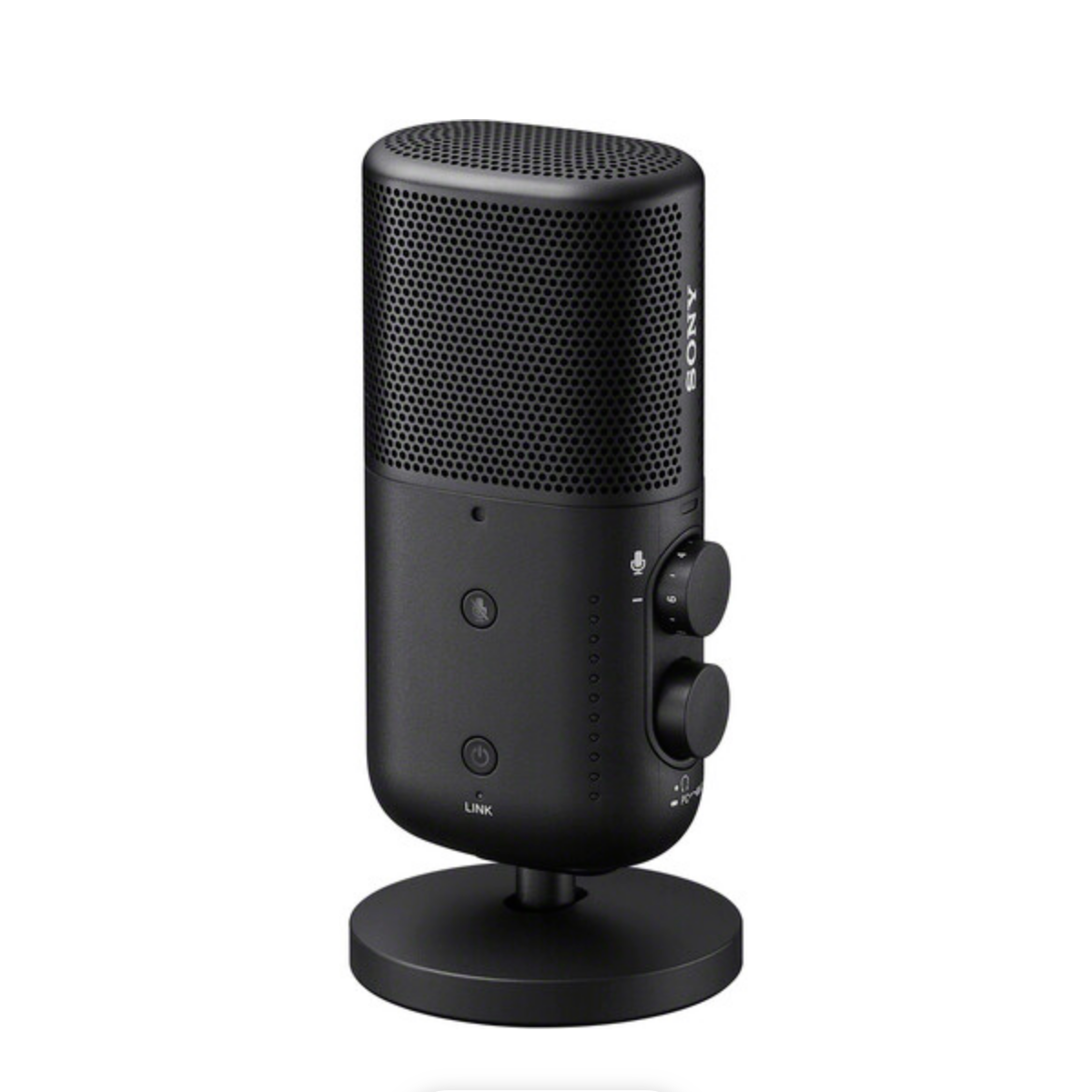

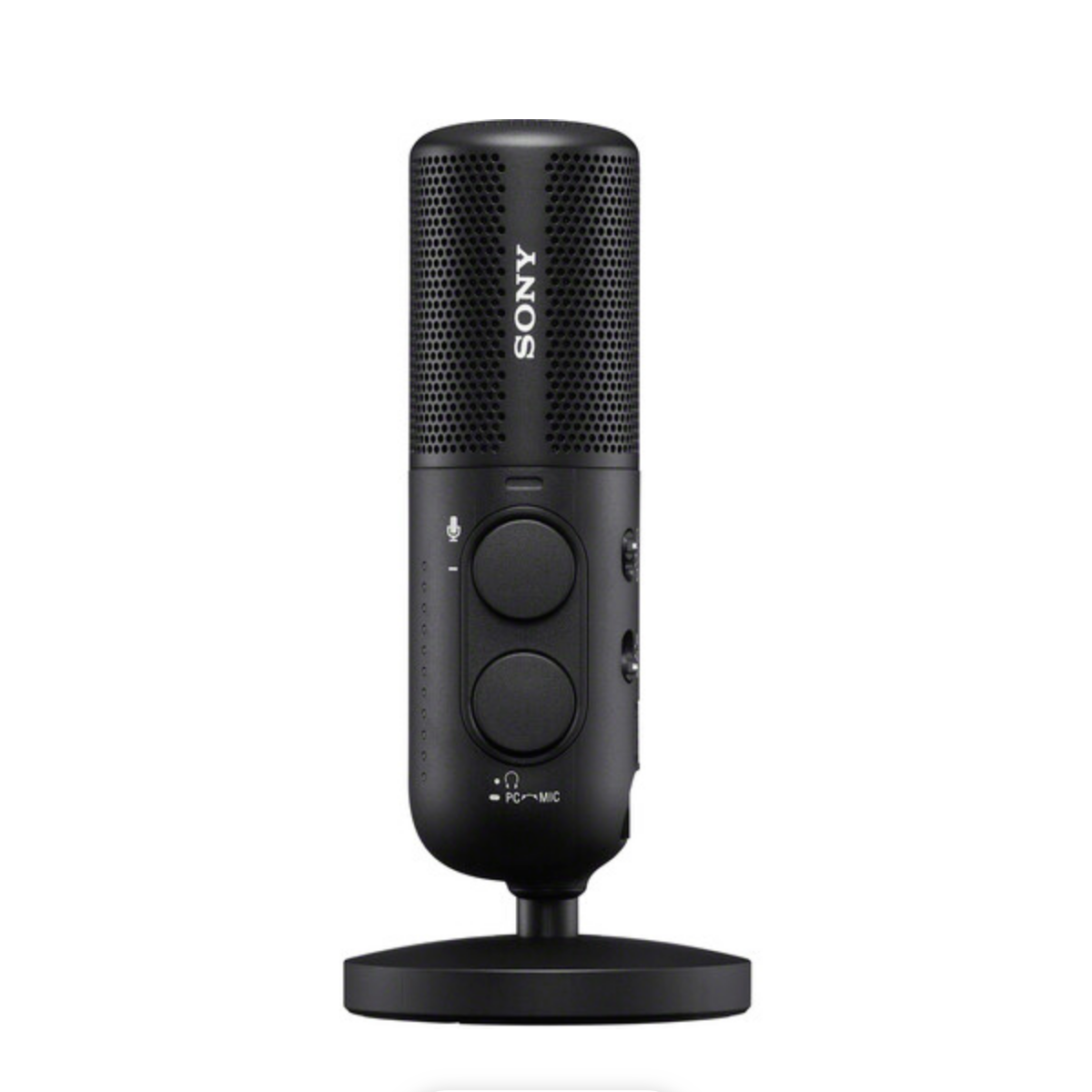

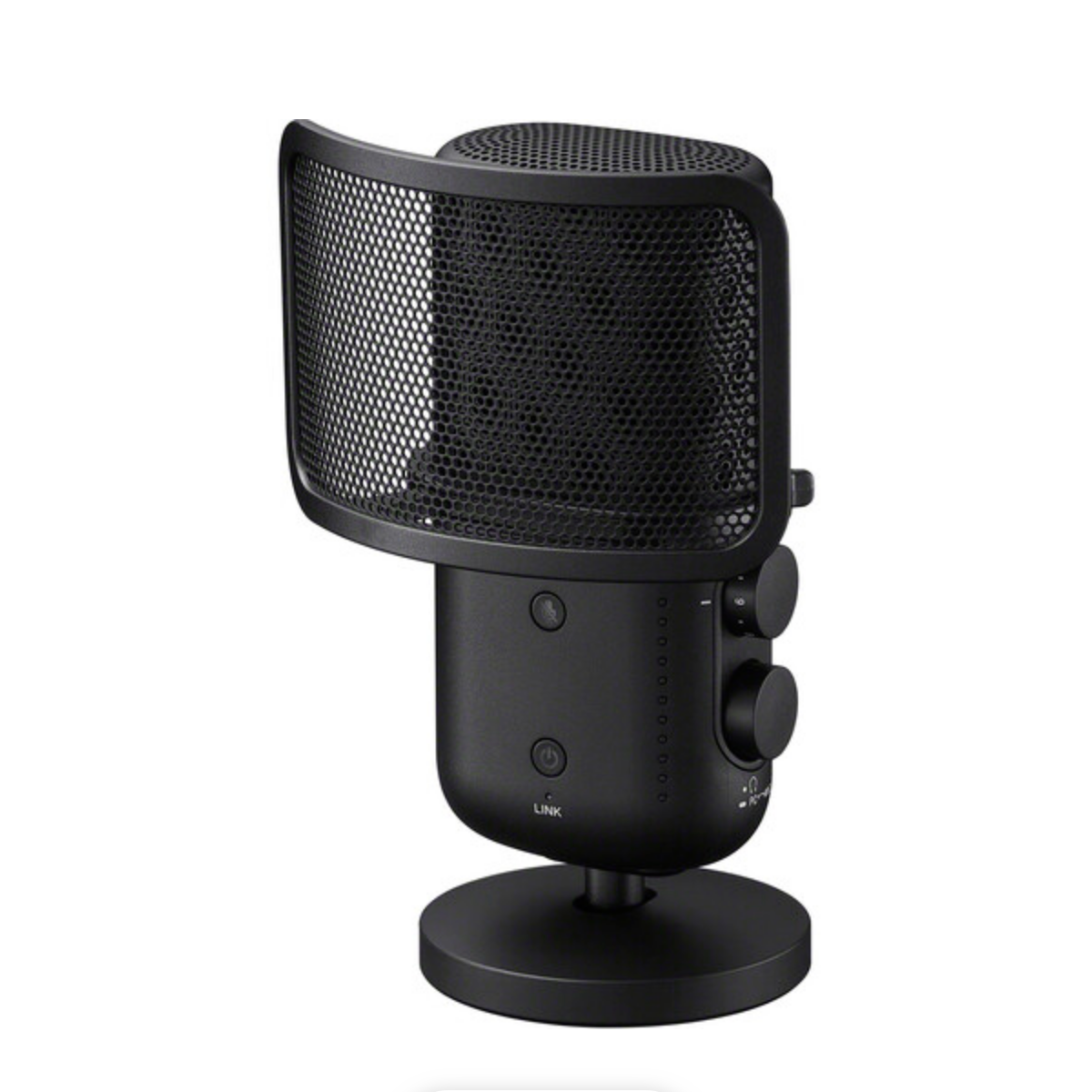

Toggle between three capture modes using an onboard switch on the microphone. Monoaural unidirectional is best for narration, voiceover, and podcasting applications. Omnidirectional allows for multiple subjects or a room's atmosphere to be captured. Stereo unidirectional is suitable for music recording. An included pop filter reduces plosives when the speaker's mouth is close to the microphone.

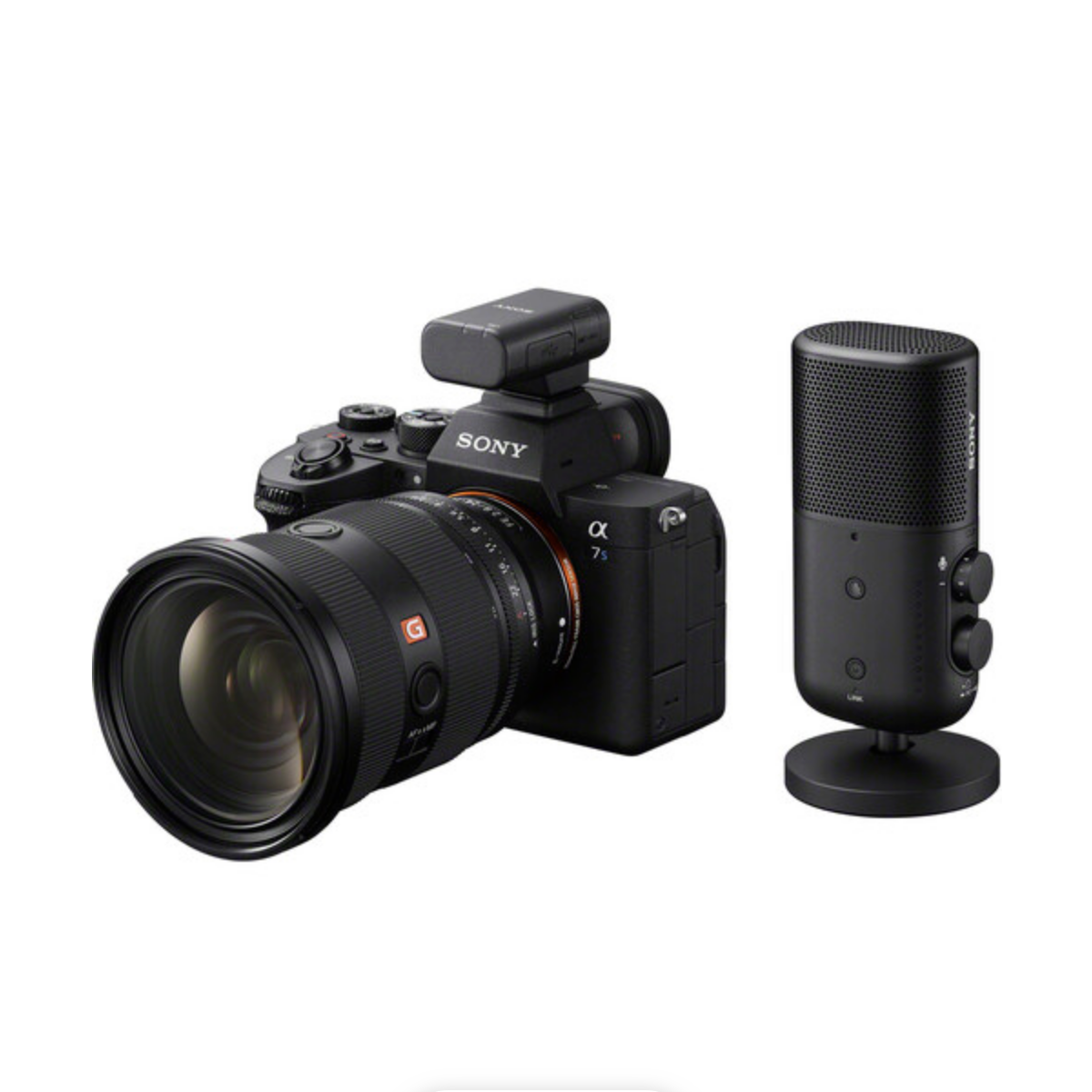

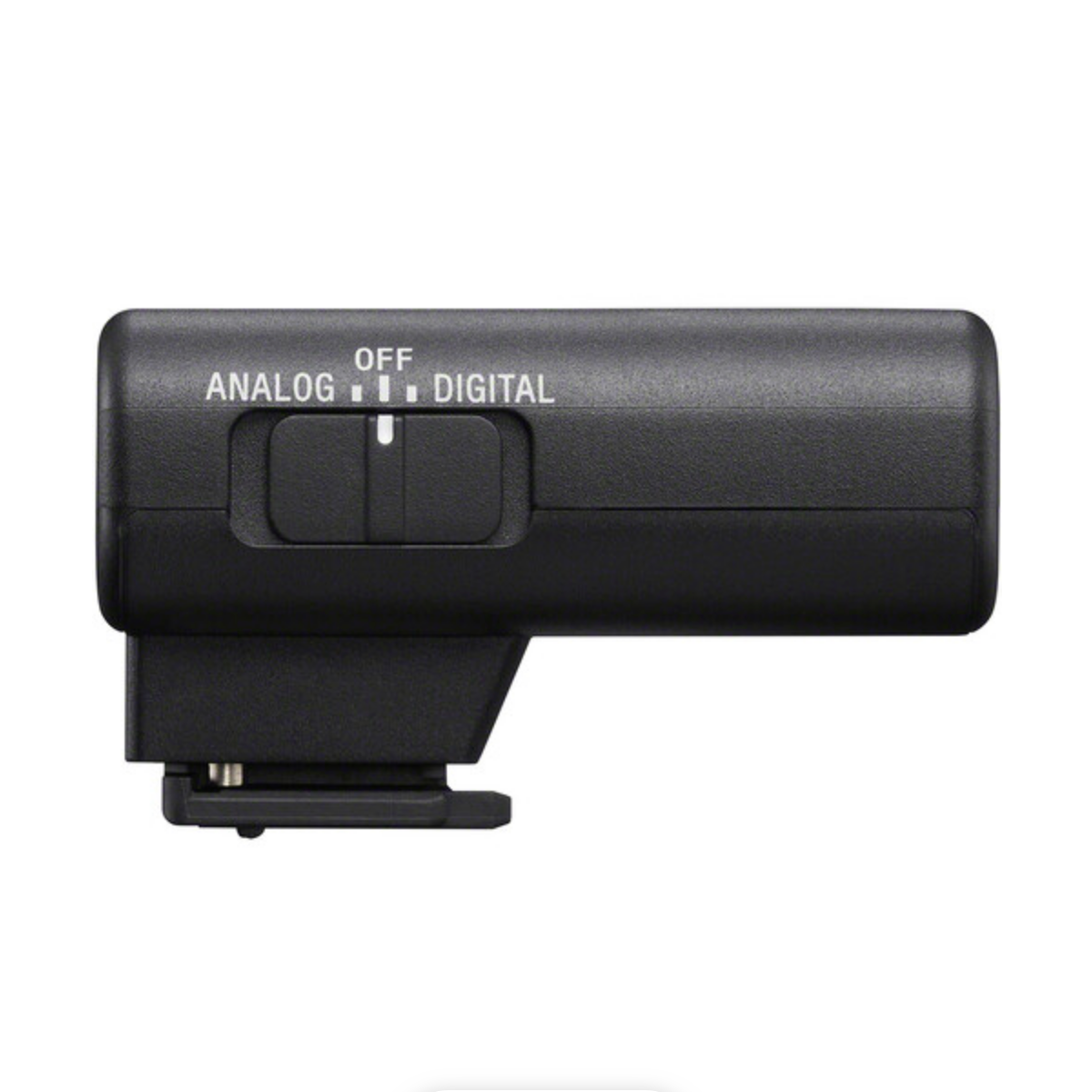

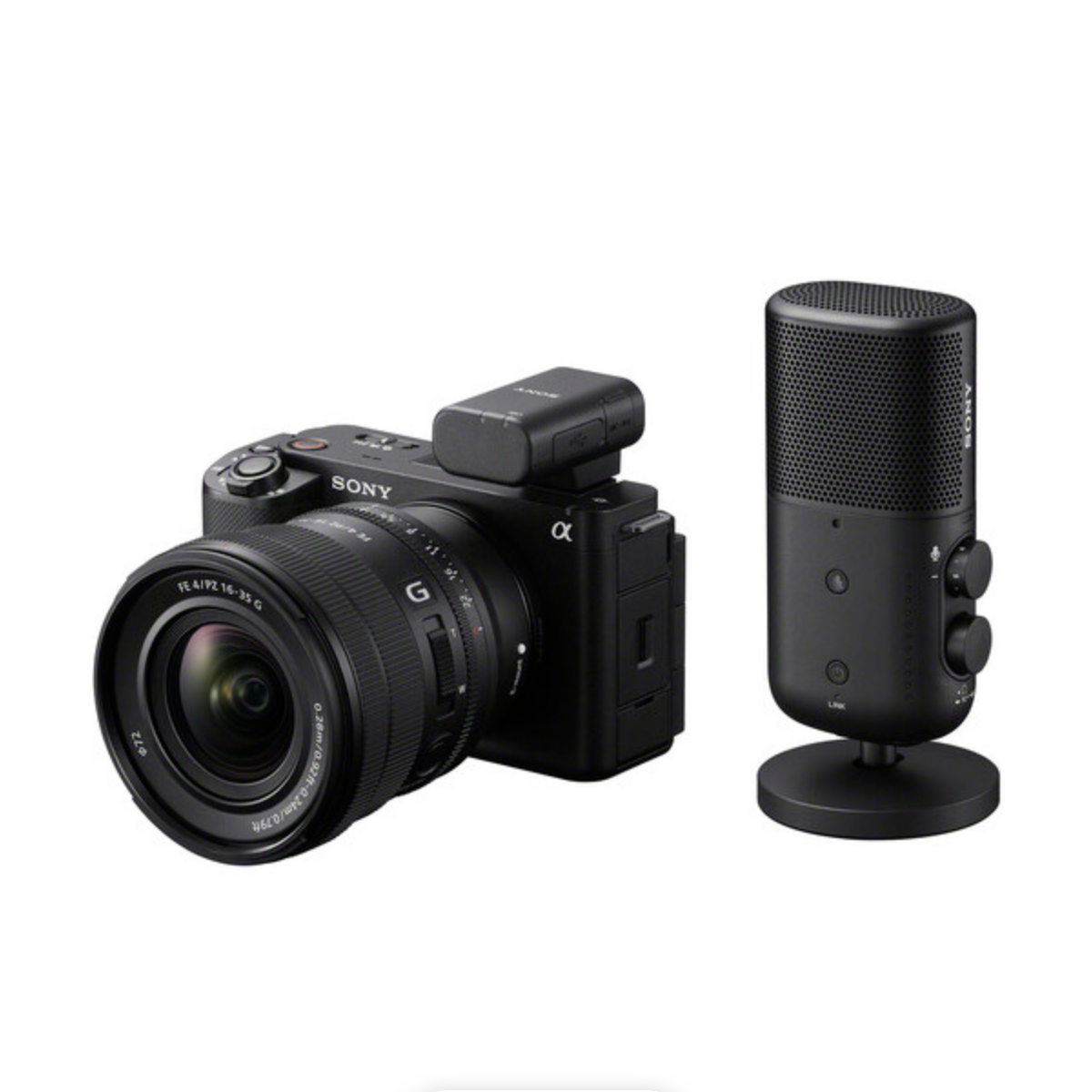

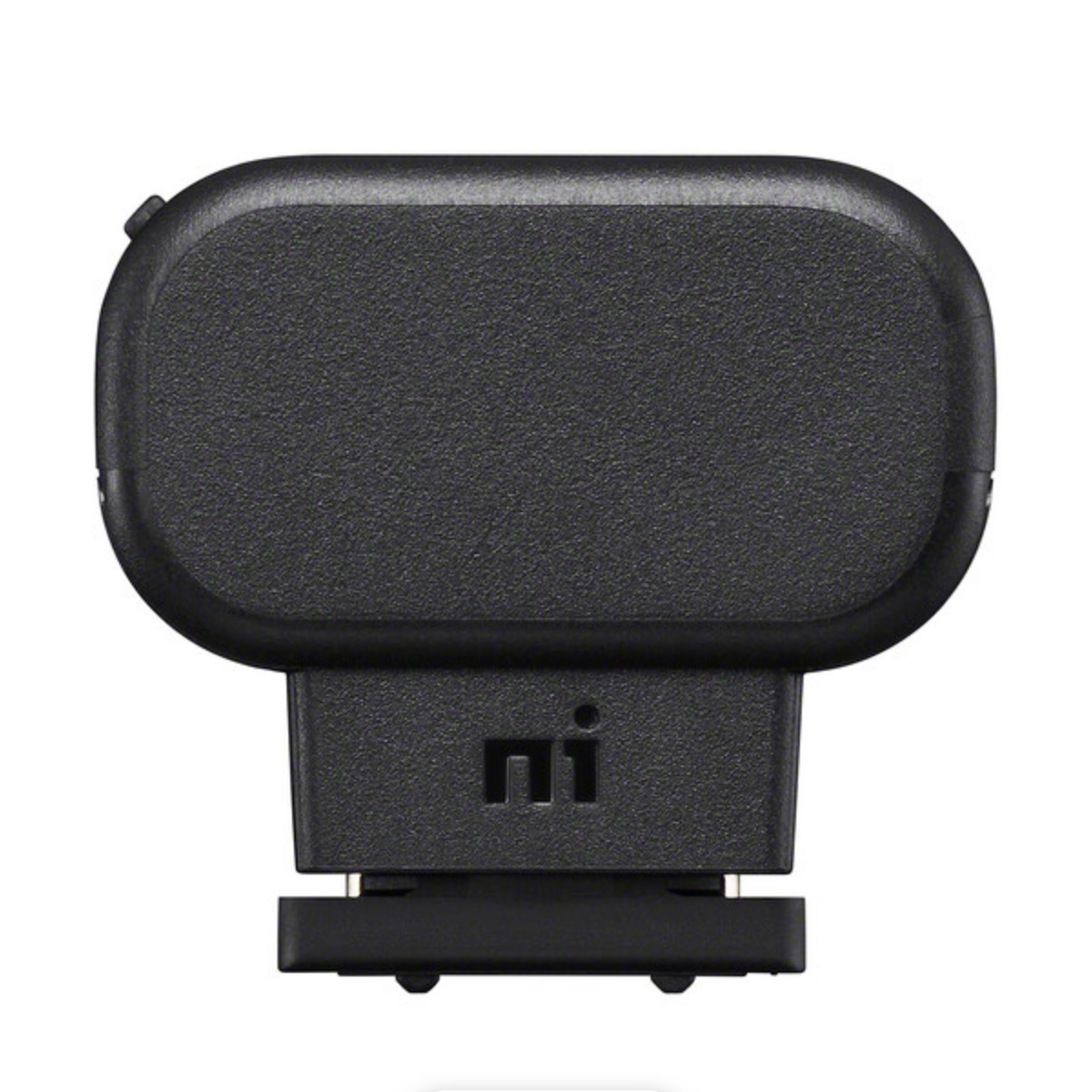

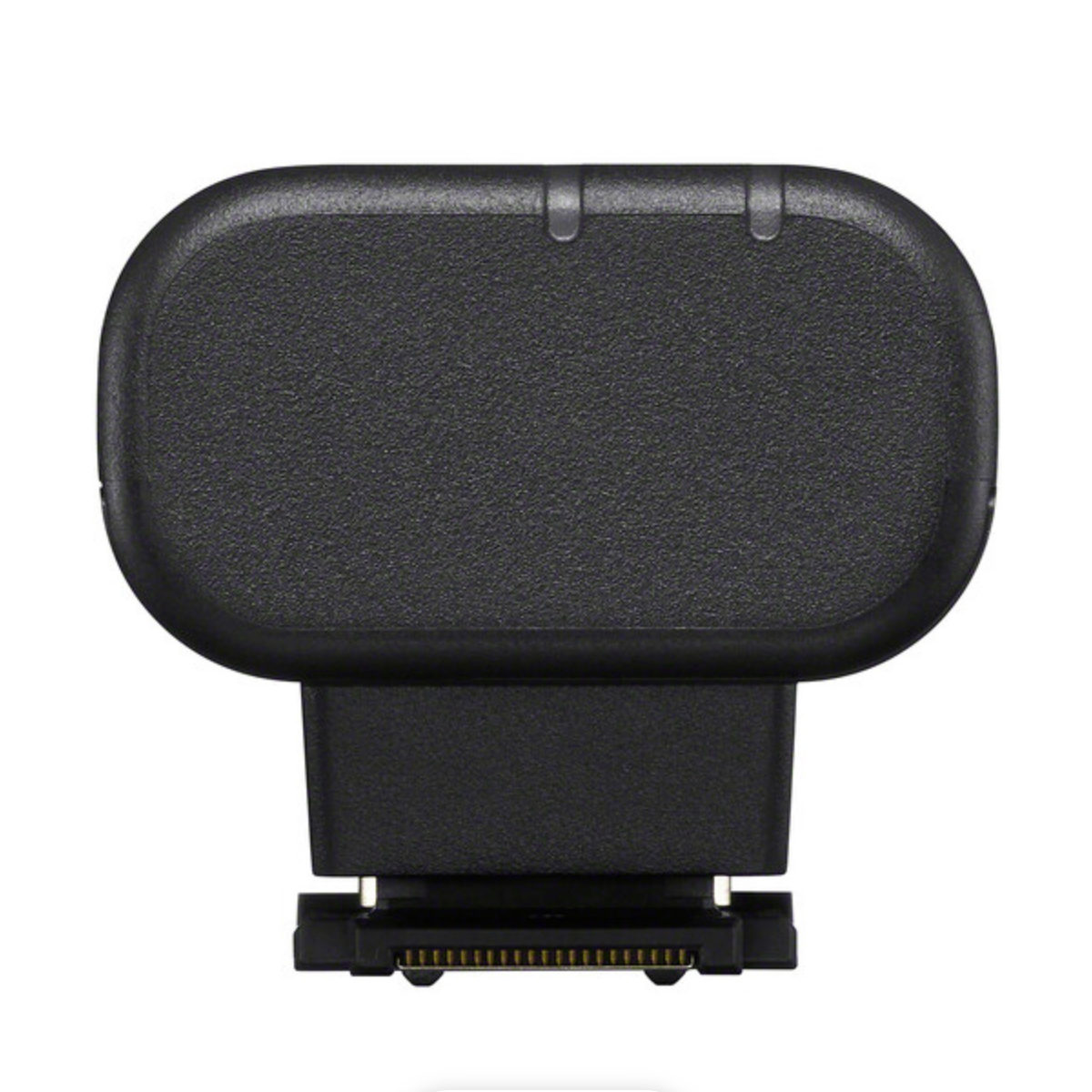

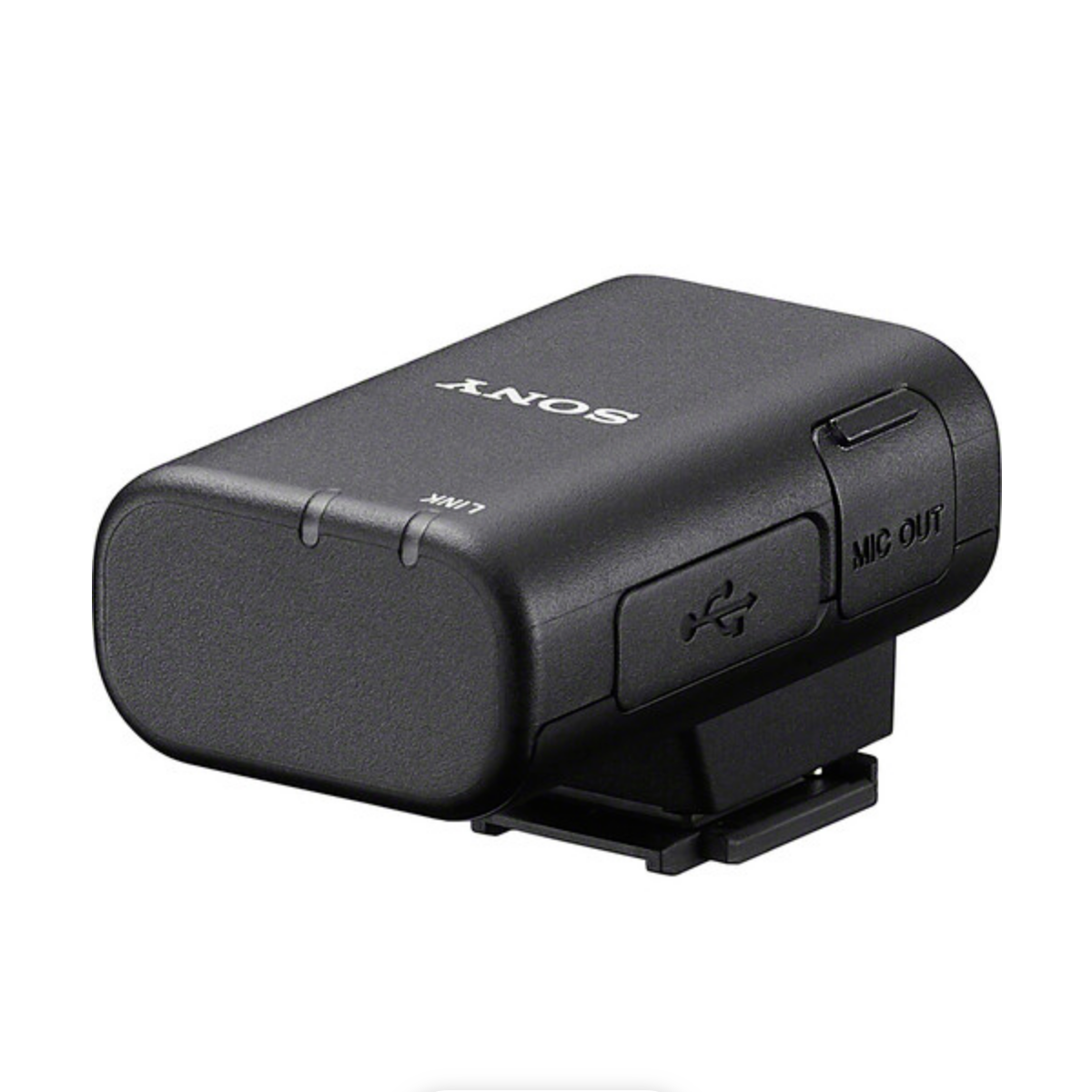

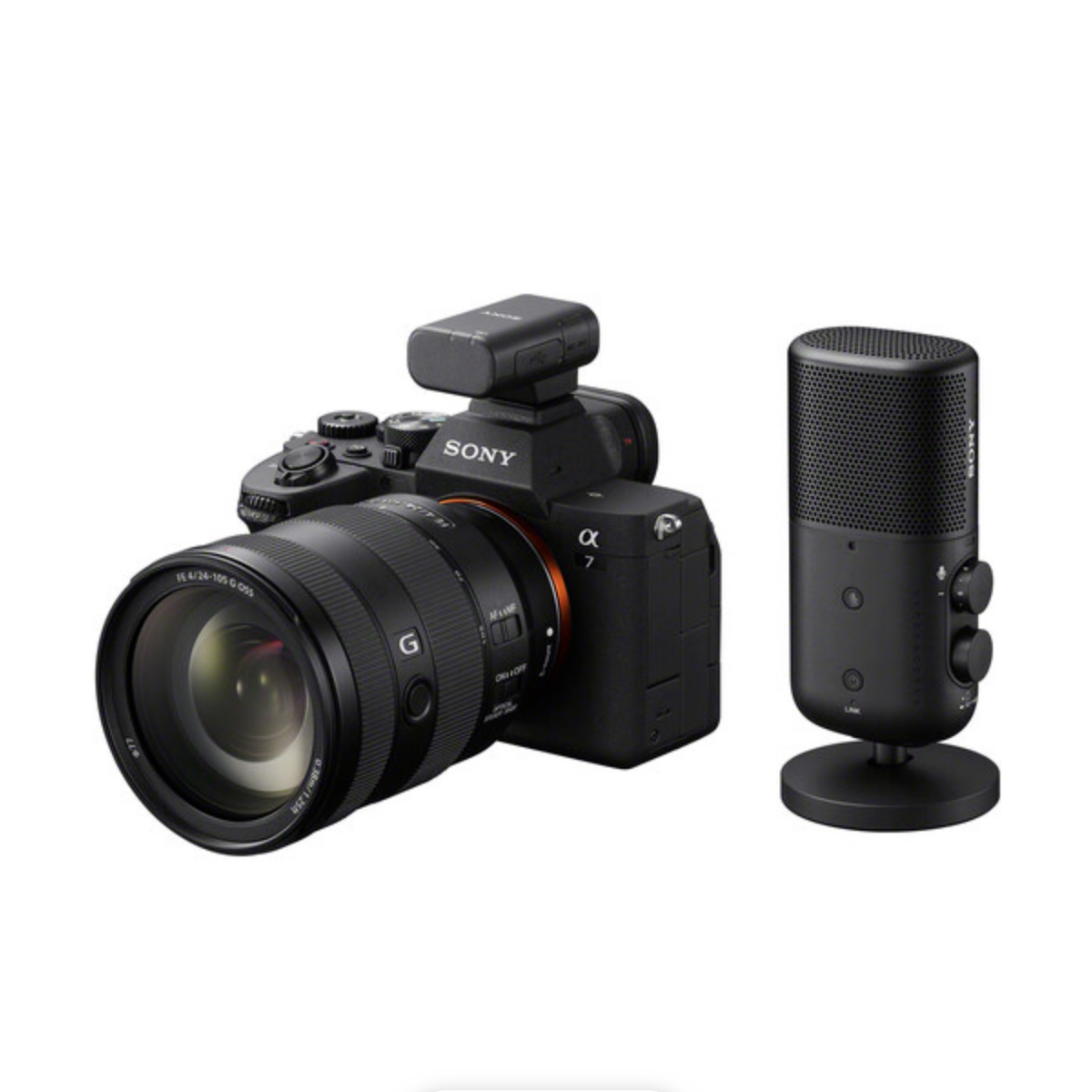

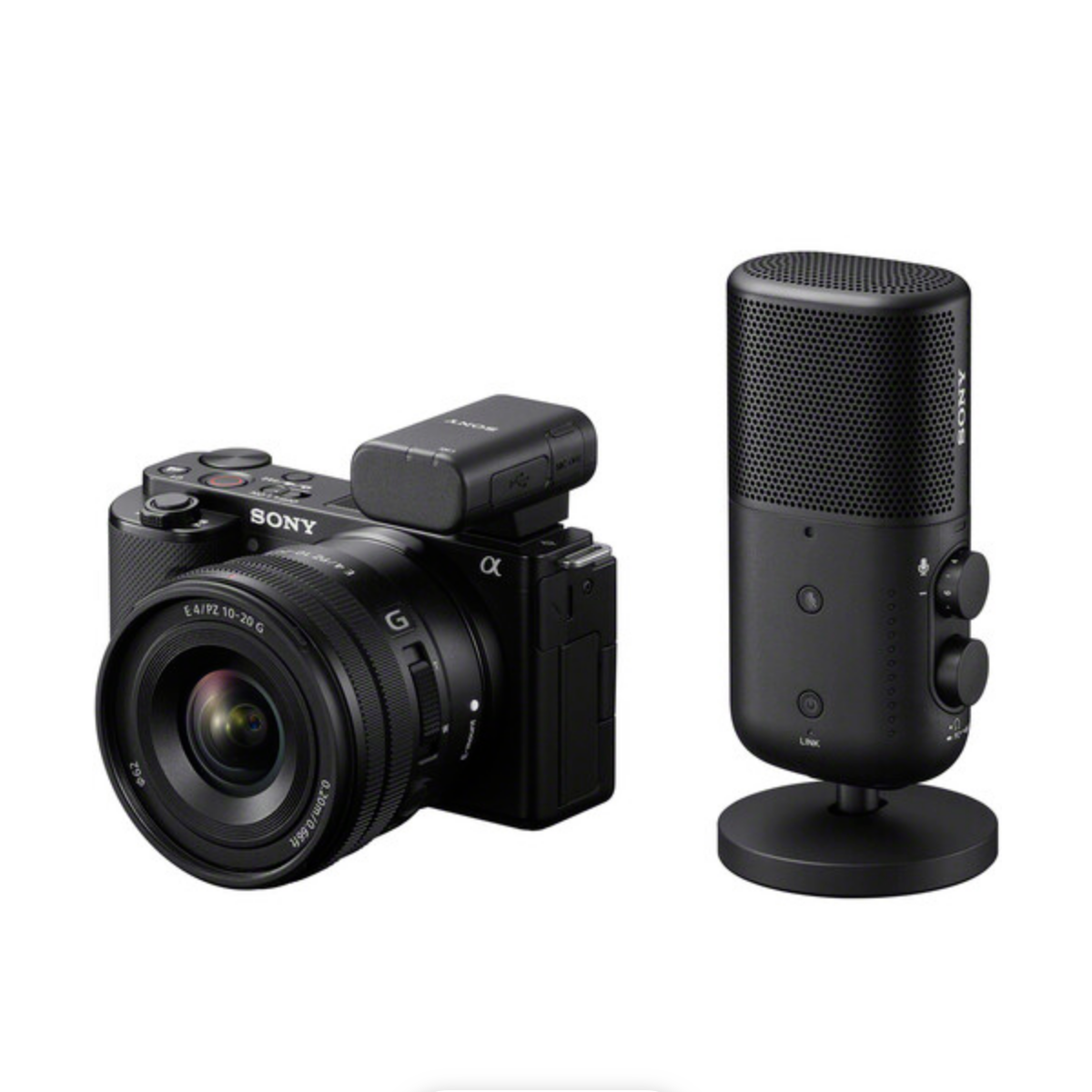

Use the receiver's integrated Multi Interface Shoe for cable-free connection to your compatible Sony camera. The camera body can supply power to the receiver when attached. Audio is transmitted via direct digital signal for high-quality sound free of transmission deterioration.

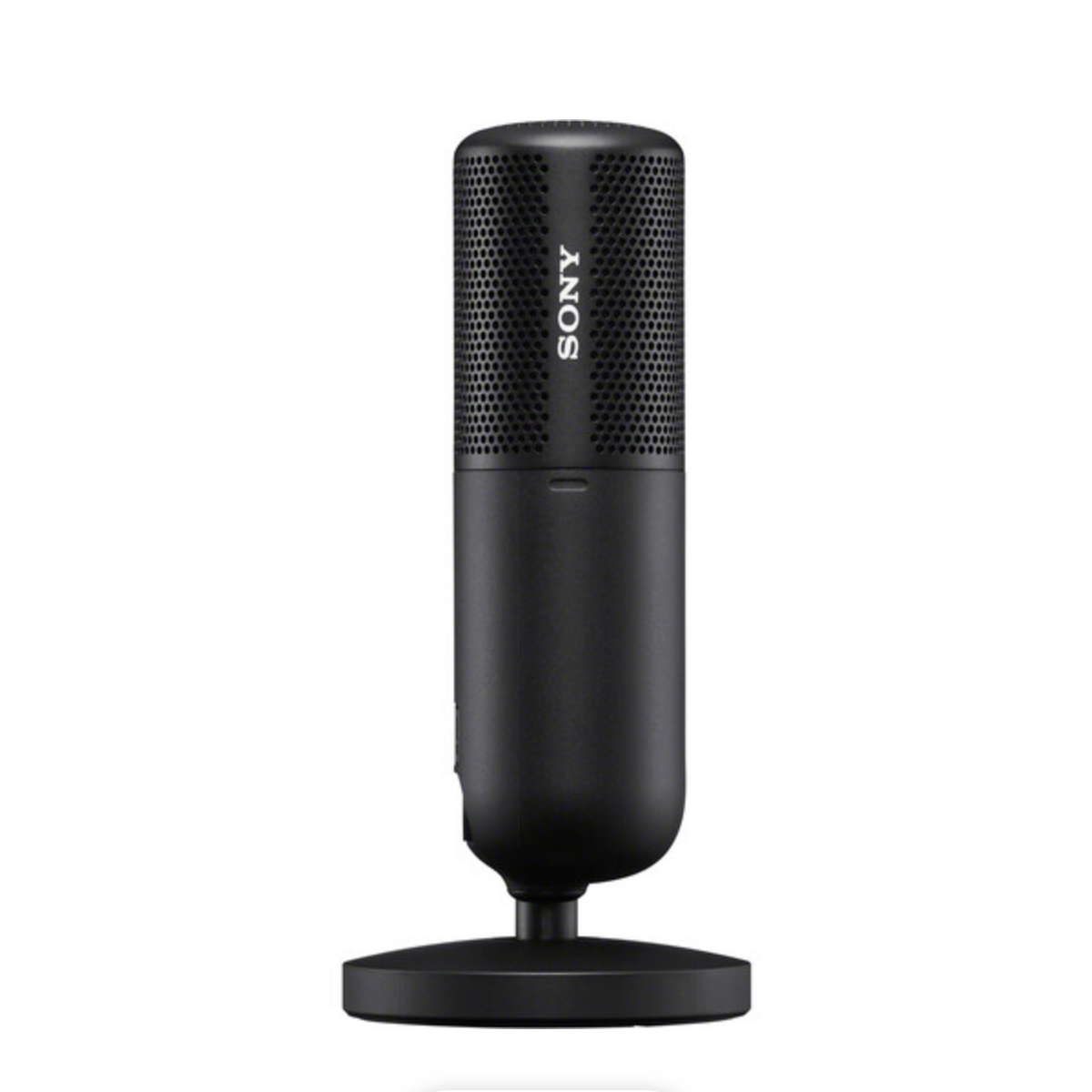

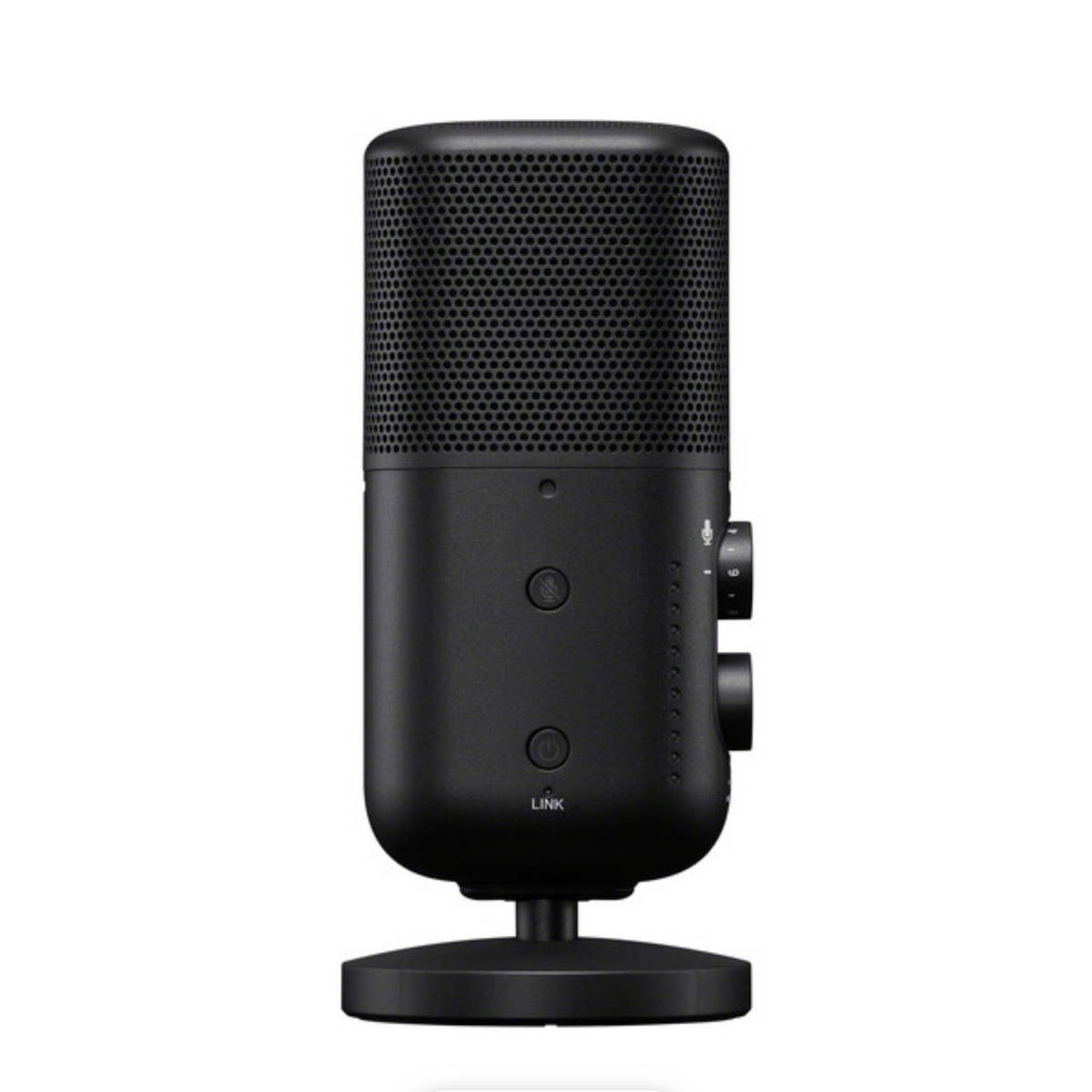

The included desktop stand can be rotated 360° for optimal positioning. It can be easily attached or detached from the microphone. A 1/4"-20 thread at the bottom of the microphone can connect it to a tripod or boom arm.
The units communicate with one another via Bluetooth 5.3 low-energy LC3plus codec from up to 492' away. The Bluetooth LC3plus codec ensures low power consumption and low latency while maintaining high sound quality.
| System | |
|---|---|
| Wireless Technology |
Analog/Digital Hybrid
|
| Number of RF Channel Frequencies |
2
|
| Included Transmitters |
1 x Tabletop
|
| Diversity |
Non-Diversity
|
| RF Channel Scanning |
Auto-Scan
|
| Max Operating Range |
492.1' / 150 m
|
| Max Transmitters per Band |
1
|
| Built-In Recorder |
No
|
| Timecode Support |
No
|
| Mobile App Compatible |
No
*As of September, 2023: Check with manufacturer for the most up-to-date compatibility |
| Bluetooth |
5.3
|
| Bluetooth Operating Distance |
492.1' / 150 m
|
| Sample Rate/Resolution |
48 kHz / 24-Bit
|

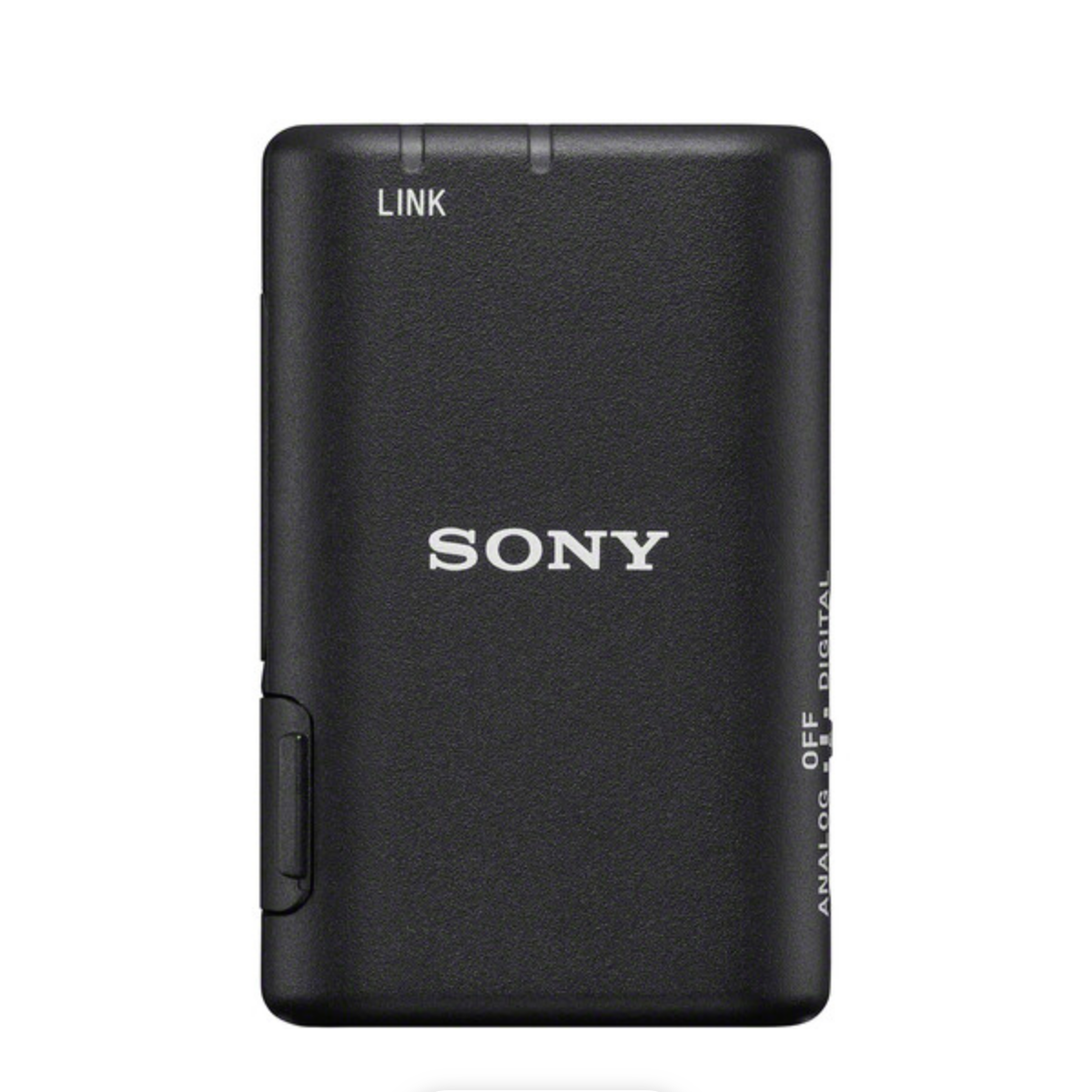

| Receiver | |
| Receiver Type |
Camera-Mount
|
| Mounting Options |
Shoe-Mount (with Included Hardware)
|
| Antenna |
Internal
|
| Number of Audio Channels |
2
|
| Audio I/O |
1 x 1/8" / 3.5 mm TRS Unbalanced Output
1 x Intelligent Hot Shoe Output |
| Frequency Response |
20 Hz to 20 kHz
|
| Network I/O |
None
|
| USB/Lightning Connectivity |
USB-C Female
|
| Power Requirements |
Battery
|
| Battery Type |
1 x Built-In Rechargeable
|
| Approx. Battery Life |
3 Hours
|
| Display & Indicators |
LED
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Dimensions |
1.3 x 1.1 x 2" / 32 x 29 x 50 mm
|
| Weight |
0.9 oz / 25 g
|
| Transmitter | |
| Transmitter Type |
Tabletop
|
| RF Output Power |
Not Specified by Manufacturer
|
| Audio I/O |
1 x 1/8" / 3.5 mm TRS Female In/Out
|
| Muting |
Mute Switch
|
| Auto-Level Control |
Yes
|
| Frequency Response |
20 Hz to 20 kHz
|
| Sync Method |
Bluetooth
|
| Antenna |
Internal
|
| Power Requirements |
Battery
|
| Battery Type |
1 x Built-In Rechargeable
|
| USB/Lightning I/O |
USB-C (Audio)
|
| Display & Indicators |
LED
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Dimensions |
2.5 x 5.4 x 2.5" / 63 x 137.5 x 63 mm
|
| Weight |
5.5 oz / 157 g
|
| Microphone | |
| Microphone Type |
Integrated
|
| Sound Field |
Mono, Stereo
|
| Capsule |
Electret Condenser
|
| Polar Pattern |
Omnidirectional, Unidirectional
|
| Frequency Range |
20 Hz to 20 kHz
|
| Maximum SPL |
120 dB SPL
|
| Sensitivity |
-20 dBFS at 1 kHz
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
