- Compact 6" On-Camera Monitor
- 1920 x 1080 Touchscreen Display
- 2000 cd/m² Brightness, 3D LUTs
- HDMI and 3G-SDI Input and Output
- Built-In Image Management Tools
- Up to DCI/UHD 4K30 Input and Loop Output
- L-Series Battery Plate, USB-C DC Input
- Quiet Cooling Fan
- Includes Sun Hood, HDMI Cable
- Includes Shoe Mount Adapter
Viltrox 6" Touchscreen HDMI/SDI On-Camera Monitor
Special Financing | Shoot Now - Pay Later!
Get the gear you want today and pay tomorrow with one of our special financing programs.
Viltrox 6" Touchscreen HDMI/SDI On-Camera Monitor
The lightweight DC-X3 6" Touchscreen HDMI/SDI Monitor from Viltrox lets you view your camera's image on a bright, sharp 6" display. The DC-X3 supports up to DCI/UHD 4K30 via the HDMI and 3G-SDI video input and can send the signal to other displays through HDMI and SDI loop-through outputs. This model features multiple image tools such as histogram and waveform, and its 2000 cd/m² brightness makes it suitable for indoor or outdoor use.

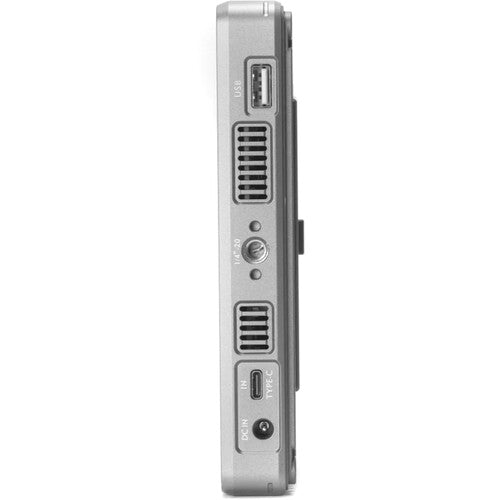

The DC-X3 features a 1920 x 1080 display that supports live view from your camera, and you can monitor the audio via its built-in speaker or 3.5mm headphone port. The SD card slot or the USB port can be used to upgrade the firmware or to add custom 3D LUT files to apply to your view. At the rear of the monitor, a built-in L-series battery plate enables you to power the monitor with an L-series battery, or you can power it with a separately available DC barrel or USB-C adapter. The camera mounts onto a cage, camera, or rig using the included shoe adapter mount, and a sun hood is available to protect the monitor from glare.
- Daylight-viewable, 6" on-camera LCD monitor with 1920 x 1080 resolution
- The DC-X3 features 2000 cd/m² brightness for indoor and outdoor use
- Full-size HDMI and 3G-SDI inputs, full-size HDMI and 3G-SDI loop-through outputs
- Supports up to DCI/UHD 4K30 video input and output
- Power the monitor with a separately available DC barrel or USB-C power adapter or via Sony L-series type batteries in the built-in battery plate
- Import custom 3D LUTs via a separately available SD card using the built-in slot or via USB, which can also be used for firmware updates
- Viltrox 6" Touchscreen HDMI/SDI On-Camera Monitor
- Sun Hood
- Shoe Mount Adapter
- HDMI Type A to Mini-HDMI Cable
- L-Series NP-F550 Battery
- Limited 1-Year Manufacturer Warranty
Display
| Panel Type |
LCD
|
| Display Size |
6.0" / 15.2 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
160°
|
| Touchscreen |
Yes
|
| Maximum Brightness |
2000 nits / cd/m2 (Peak)
|
| Contrast Ratio |
1000:1
|
| Color Support |
16.7 Million Colors (8-Bit)
|
| HDR Support |
No
|
| Color Gamut |
100% Rec. 709
100% sRGB |
| LUT Support |
No
|
| Image Controls |
False Color, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Waveform
|
Inputs/Outputs
| Video I/O |
1x HDMI 1.4 Input
1x BNC (3G-SDI) Input 1x HDMI 1.4 Output 1x BNC (3G-SDI) Output |
| Embedded Audio |
HDMI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x Barrel (2 A / 12 VDC) Input
1x USB-C (3 A / 5 VDC) Input |
| Other I/O |
No
|
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type) [LUT/Firmware Update Only]
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
HDMI
DCI 4K: 30/25/24 UHD 4K: 30/25/24 1080p SDI 1080p |
Power
| Input Power |
12 to 18 VDC at 2 A
|
| Battery |
1x L-Series Mount on Fixed Plate
|
Mounting
| Tripod/Accessory Mounting |
Bottom/Right
1x 1/4"-20 Female |
General
| Operating Conditions |
32 to 149°F / 0 to 65°C
|
| Storage Conditions |
32 to 167°F / 0 to 75°C
|
| Material of Construction |
Aluminum
|
| Dimensions |
6.12 x 3.87 x 1.2" / 15.54 x 9.84 x 3 cm
|
| Weight |
12.35 oz / 350.00 g
|
- Viltrox 6" Touchscreen HDMI/SDI On-Camera Monitor
- Sun Hood
- Shoe Mount Adapter
- HDMI Type A to Mini-HDMI Cable
- L-Series NP-F550 Battery
- Limited 1-Year Manufacturer Warranty
