Aputure Sidus One Wireless DMX Transceiver
- Transmit or Receive Any Protocol
- Designed for Sidus Link Pro App
- CRMX/DMX/Sidus Bluetooth Transmitter
- Wi-Fi sACN/Art-Net Node
- CRMX Receiver with Wired DMX Conversion
- Enhances and Extends Sidus Mesh Networks
- 5.8 GHz Frequency Wi-Fi
- Wireless Range: Up to 985' (CRMX)
- 18-Hour Battery Life
- IP54 Weather Resistant for Outdoor Use
Aputure Sidus One Wireless DMX Transceiver
Special Financing | Shoot Now - Pay Later!
Get the gear you want today and pay tomorrow with one of our special financing programs.
Aputure Sidus One Wireless DMX Transceiver

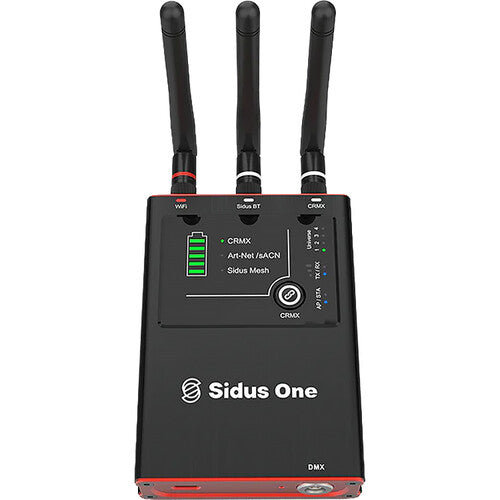

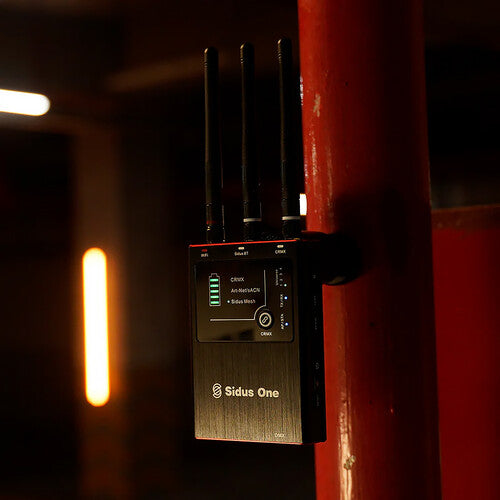

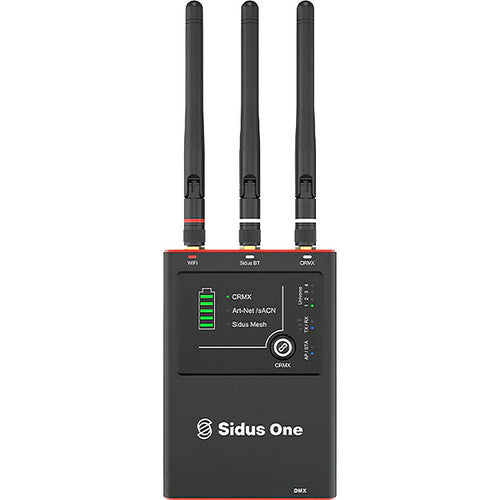

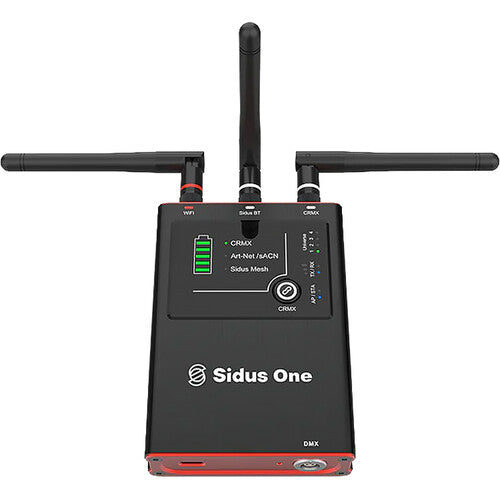

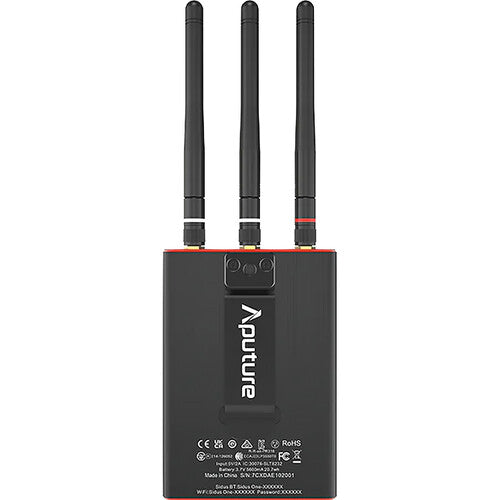

Aputure's Sidus One Wireless DMX Transceiver is a battery-powered single-universe transmitter and receiver for CRMX, DMX512, RDM, Art-Net, and sACN protocols, designed to expand the breadth and scope of Aputure's DMX console, the Sidus Link Pro app. Its three antennas boost its transmitting and receiving power, which lasts up to 18 hours on a single USB-C charge. The CRMX wireless range extends to 985', while the Wi-Fi operates on the 5.8 GHz frequency to avoid interference and communicate data faster. The Sidus One also converts CRMX wireless data into a wired DMX512 signal for non-CRMX units. When using Sidus Link Pro, users can access up to four universes with four Sidus One transceivers. Sidus One units also enhance the range and stability of the Sidus Mesh network when controlling Aputure lights. The unit's durable, IP54-rated construction makes it available for use in any filmmaking environment.
Sidus Link Pro 2.2
- Layout view allows you to organize fixtures on your monitor so that they match your physical set, providing quicker and more intuitive light control
- INFINIBAR auto-patch and auto-configure are now available
- DMX settings are now centralized under the Connections Management menu
- 16-bit DMX support for variable, strobe, constant, and control channels
- For Pro and MAX plans, layout view supports real-time visual preview during cue playback
- Aputure Sidus One Wireless DMX Transceiver
- Aputure 2-Way Splitter Cable for Sidus One or STORM 80c (13.8")
- Aputure Power Cable for Sidus One (31.5")

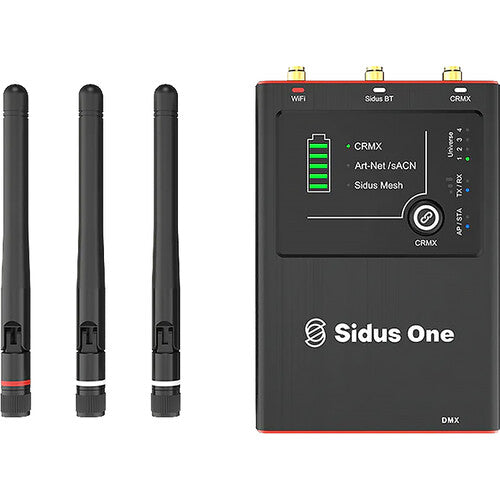

- Aputure Antenna Kit for Sidus One
- Limited 1-Year Manufacturer Warranty
| General | |
|---|---|

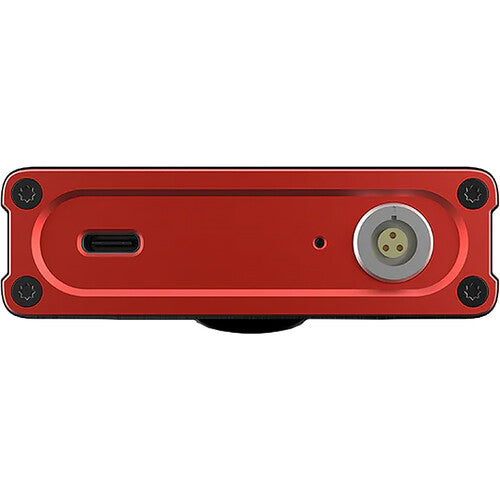

| Inputs/Outputs | 1x Terminal 3-Pin (DMX) Locking 1x USB-C Power Female Input 3x Antenna |
| Channels | 512 |
| Cooling System | Passive |
| Wireless | 5.8 GHz Radio/RF / 2.4 GHz Radio/RF / Bluetooth *Via Included Adapter |
| Wireless Range | 393.7' / 120 m (Wi-Fi) 590.6' / 180 m (Bluetooth) 984.3' / 300 m (CRMX) |
| Frequency | 2.4 to 5.8 GHz |
| Power | |
| Power Source | AC Power, USB Power |
| Input Power | 5 VDC at 2 A |
| Runtime | 18 Hours |
| Recharge Time | 3.5 Hour |
| Battery Chemistry | Lithium-Ion Polymer (LiPo) |
| Battery Capacity | 5600 mAh |
| USB Power Output | 5 VDC at 2.0 A |
| Compatibility | |
| Protocol | ArtNet, CRMX, DMX512, RDM, sACN |
| Physical | |
| Operating Conditions | -4 to 113°F / -20 to 45°C |
| Environmental Resistance | Dust/Weather/Water-Resistant (IP54) |
| Dimensions | 4.4 x 3.0 x 0.9" / 11.3 x 7.5 x 2.3 cm |
| Weight | 10.7 oz / 302 g |
| Packaging Info | |
| Package Weight | 1.95 lb |
| Box Dimensions (LxWxH) | 9.5 x 9.1 x 1.8" |

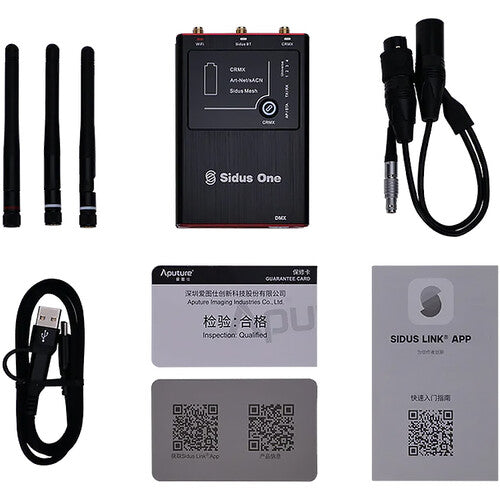

- Aputure Sidus One Wireless DMX Transceiver
- Aputure 2-Way Splitter Cable for Sidus One or STORM 80c (13.8")
- Aputure Power Cable for Sidus One (31.5")
- Aputure Antenna Kit for Sidus One
- Limited 1-Year Manufacturer Warranty
