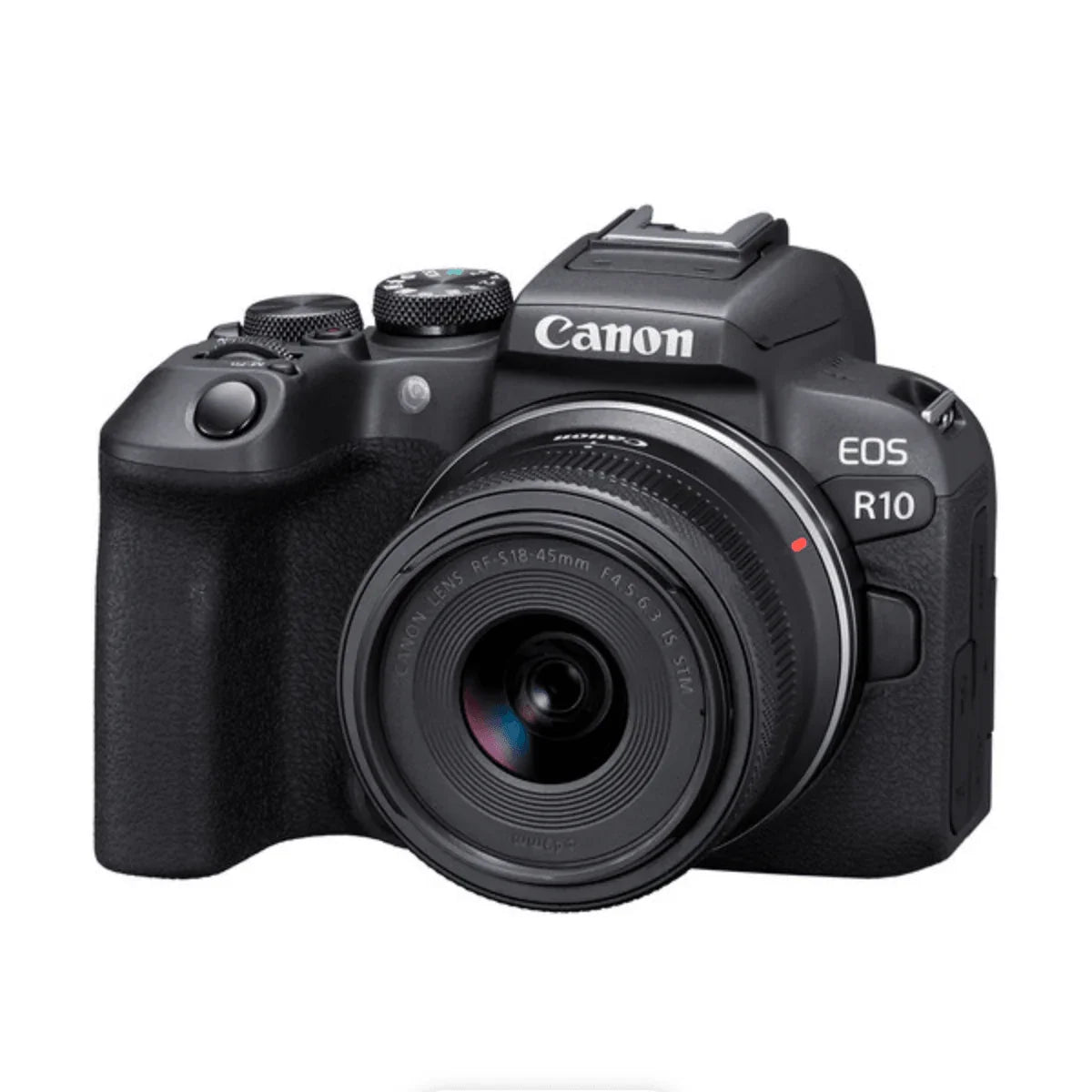

Emphasizing portability without sacrificing on capability, the Canon EOS R10 is a sleek mirrorless camera with a hybrid ethos. Adept in both photo and video worlds, the R10 brings an APS-C sensor to the R system, along with high-speed shooting, intelligent AF, and impressive 4K video recording to complement a multimedia workflow.
Sitting at a sweet-spot in terms of resolution, the 24.2MP APS-C CMOS sensor strikes a fine balance between resolution, file size, speed, and low-light performance. This sensor is suitable for general photo tasks along with UHD 4K recording, as the file sizes are manageable enough to allow for quick continuous burst shooting and extended video recording.
Beyond stills, the R10's sensor also offers high-res UHD 4K 8-bit recording, with the ability to record at up to 60p using a cropped portion of the sensor or at 30p when using an oversampled 6K recording area for improved sharpness, reduced moiré, and lower noise. And, for slow-motion playback, 120p recording is supported at up to Full HD resolution.
HDR-PQ recording is possible, too, for in-camera HDR production in 10-bit and external recording, via the micro-HDMI port, which supports a clean 4K output. Also, unlimited recording times are possible, too, and the R10 features an external microphone port as well as a multi-function shoe for wide accessories compatibility.
Carried over from the EOS R3, the advanced Dual Pixel CMOS AF II system features 651 automatic AF points that covers the entire sensor area, for faster, more responsive, and more precise focusing performance. This phase-detection focusing system also has enhanced subject detection and tracking, with the ability to intelligently recognize people, animals, and vehicles and tracking will automatically lock onto these subjects and maintain sharp focus throughout burst captures. Dual Pixel AF II's low-luminance limit focuses down to an impressive -4 EV for accurate focusing even in nighttime conditions.

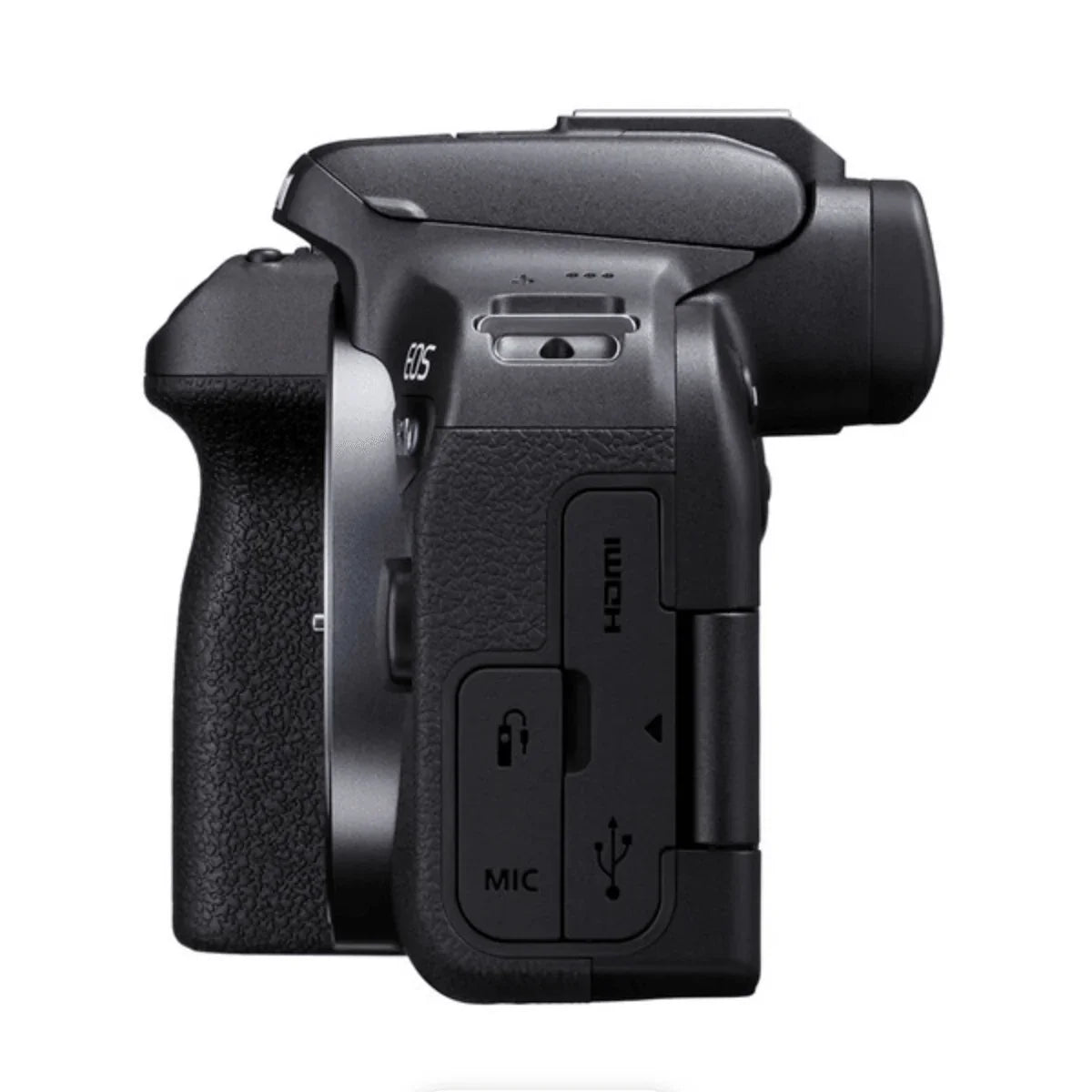

Wired and wireless connectivity options are available, allowing for multiple methods of transferring photos and videos, as well as for remotely controlling the camera. Physically, the camera features a USB Type-C port along and a micro-HDMI port, as well as a 3.5mm microphone port to benefit video recording. In terms of wireless, 2.4GHz Wi-Fi and Bluetooth is available for transferring and remote camera control.

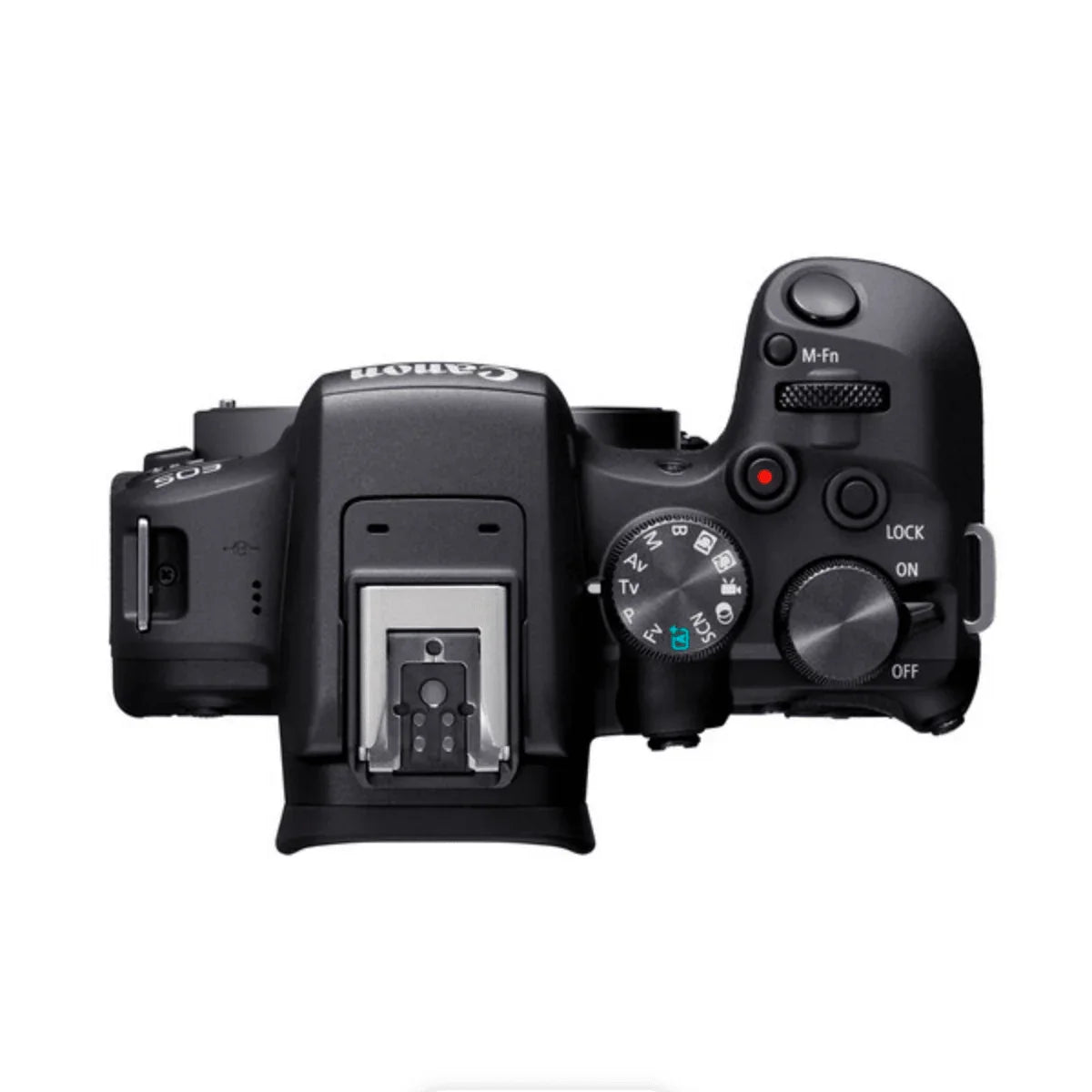

An update to a conventional hot shoe, the Multi-Function Shoe adds a row of pins at the front of the design to permit greater accessory functionality as well as provide power to select accessory types that traditionally rely on separate batteries. This updated shoe is compatible with select accessories, including the ST-E10 Speedlite Transmitter, DM-E1D Stereo Microphone, and AD-P1 Smartphone Link Adapter, as well as the AD-E1 Multi-Function Shoe Adapter to provide compatibility with legacy shoe-mounted accessories.
| Imaging | |
|---|---|

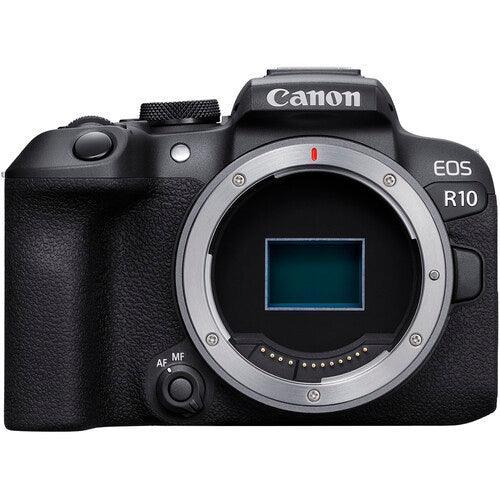

| Lens Mount | Canon RF |
| Sensor Resolution | Actual: 25.5 Megapixel Effective: 24.2 Megapixel |
| Sensor Type | 22.3 x 14.9 mm (APS-C) CMOS |
| Crop Factor | 1.6x |
| Image Stabilization | Digital (Video Only) |
| Built-In ND Filter | None |
| Capture Type | Stills & Video |
| Exposure Control | |
| Shutter Type | Electronic Shutter, Mechanical Focal Plane Shutter |
| Shutter Speed | Mechanical Shutter 1/4000 to 30 Seconds Electronic Shutter 1/4000 to 30 Seconds |
| Bulb/Time Mode | Bulb Mode |
| ISO Sensitivity | Photo 100 to 32,000 in Manual, Auto Mode (Extended: 100 to 51,200) |
| Metering Method | Center-Weighted Average, Evaluative, Partial, Spot |
| Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority |
| Exposure Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
| Metering Range | -2 to 20 EV |
| White Balance | Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
| Continuous Shooting | Electronic Shutter Up to 23 fps at 24.2 MP for up to 70 Frames (JPEG) / 21 Frames (Raw) Mechanical Shutter Up to 15 fps at 24.2 MP for up to 460 Frames (JPEG) / 29 Frames (Raw) |
| Interval Recording | Yes |
| Self-Timer | 2/10-Second Delay |
| Still Image Capture | |
| Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
| Image File Format | C-RAW, HEIF, JPEG, Raw |
| Internal Video Capture | |
| Recording Modes | H.264/MP4 4:2:0 8-Bit UHD 4K (3840 x 2160) at 23.98p/25p/29.97p/59.94p Full HD (1920 x 1080) at 23.98p/25p/29.97p/50p/59.94p/100p/119.88p H.265/MP4 4:2:2 10-Bit UHD 4K (3840 x 2160) at 23.98p/25p/29.97p/50p/59.94p Full HD (1920 x 1080) at 23.98p/25p/29.97p/50p/59.94p/100p/119.88p |
| Gamma Curve | HDR-PQ |
| Video System | NTSC/PAL |
| Built-In Microphone Type | Stereo |
| Audio Recording | MP4: 2-Channel AAC Audio |
| External Video Capture | |
| IP Streaming | Yes |
| Interface | |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-II) |
| Video I/O | 1 x Micro-HDMI Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Microphone Output |
| Other I/O | 1 x USB Type-C (USB 2.0) Input/Output |
| Wireless | 2.4 GHz Wi-Fi (802.11b/g) Bluetooth |
| Global Positioning (GPS, GLONASS, etc.) | None |
| Monitor | |
| Size | 3.0" |
| Resolution | 1,040,000 Dot |

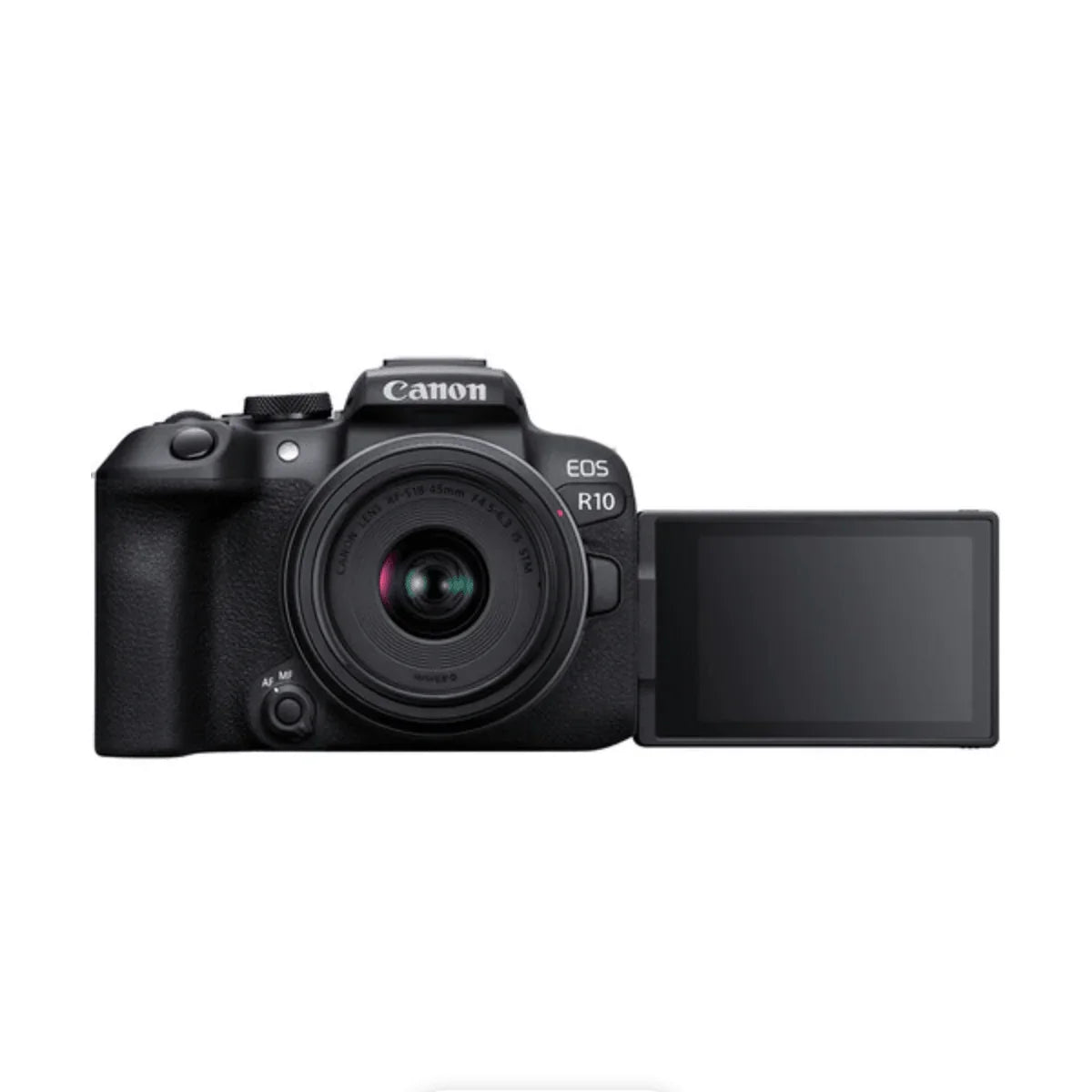

| Display Type | Free-Angle Tilting Touchscreen LCD |
| Viewfinder | |
| Type | Built-In Electronic (OLED) |
| Resolution | 2,360,000 Dot |
| Eye Point | 22 mm |
| Coverage | 100% |
| Magnification | Approx. 0.95x |
| Diopter Adjustment | -3 to +1 |
| Focus | |
| Focus Type | Auto and Manual Focus |
| Focus Mode | Continuous-Servo AF, Manual Focus, Single-Servo AF |
| Autofocus Points | Photo, Video Phase Detection: 651 |
| Autofocus Sensitivity | -4 to +20 EV |
| Flash | |

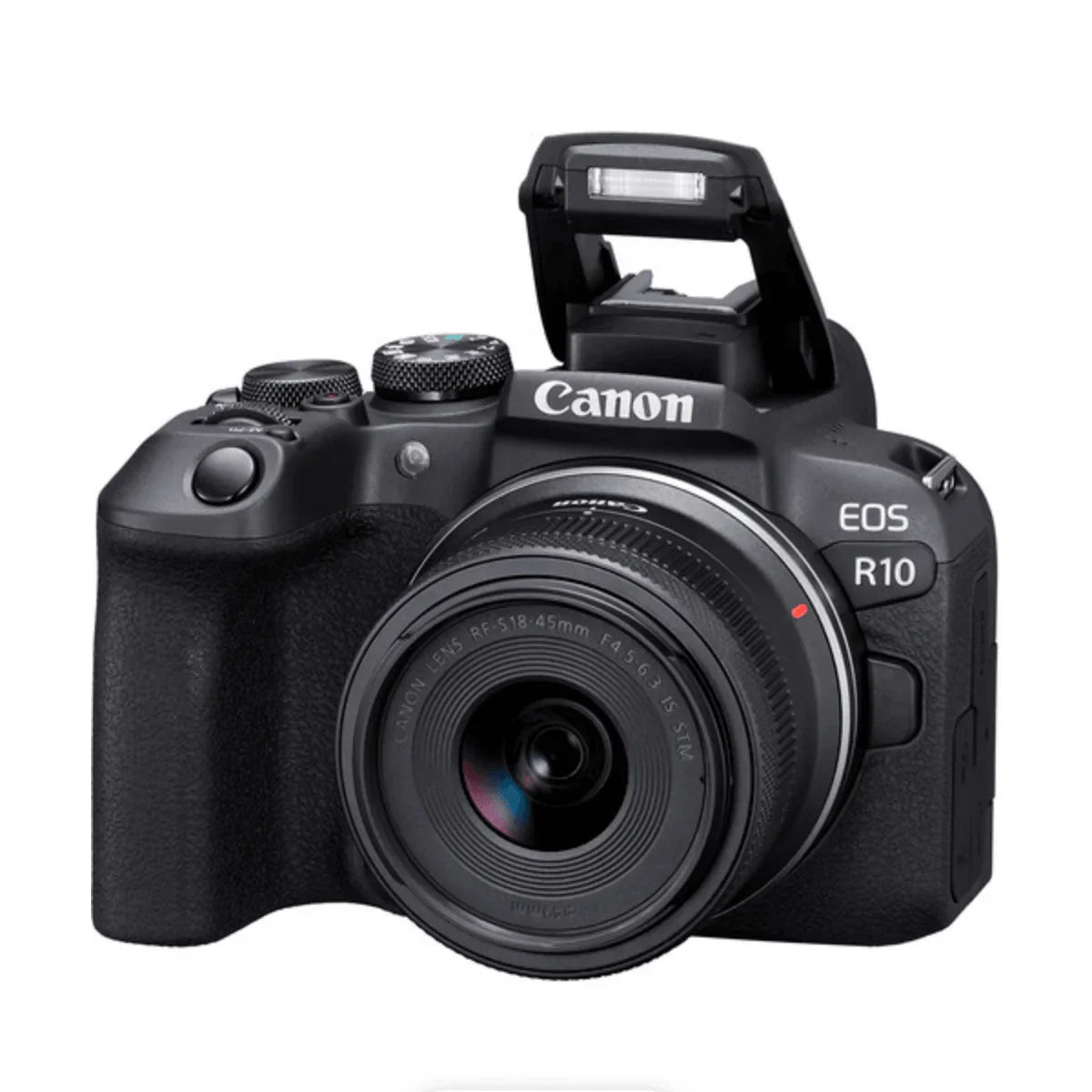

| Built-In Flash | Yes |
| Guide Number | 19.7' / 6 m at ISO 100 |
| Maximum Sync Speed | 1/250 Second |
| Flash Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
| Dedicated Flash System | eTTL |
| External Flash Connection | Hot Shoe |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 0 to 85% |
| General | |
| Battery Type | 1 x LP-E17 Rechargeable Lithium-Ion |

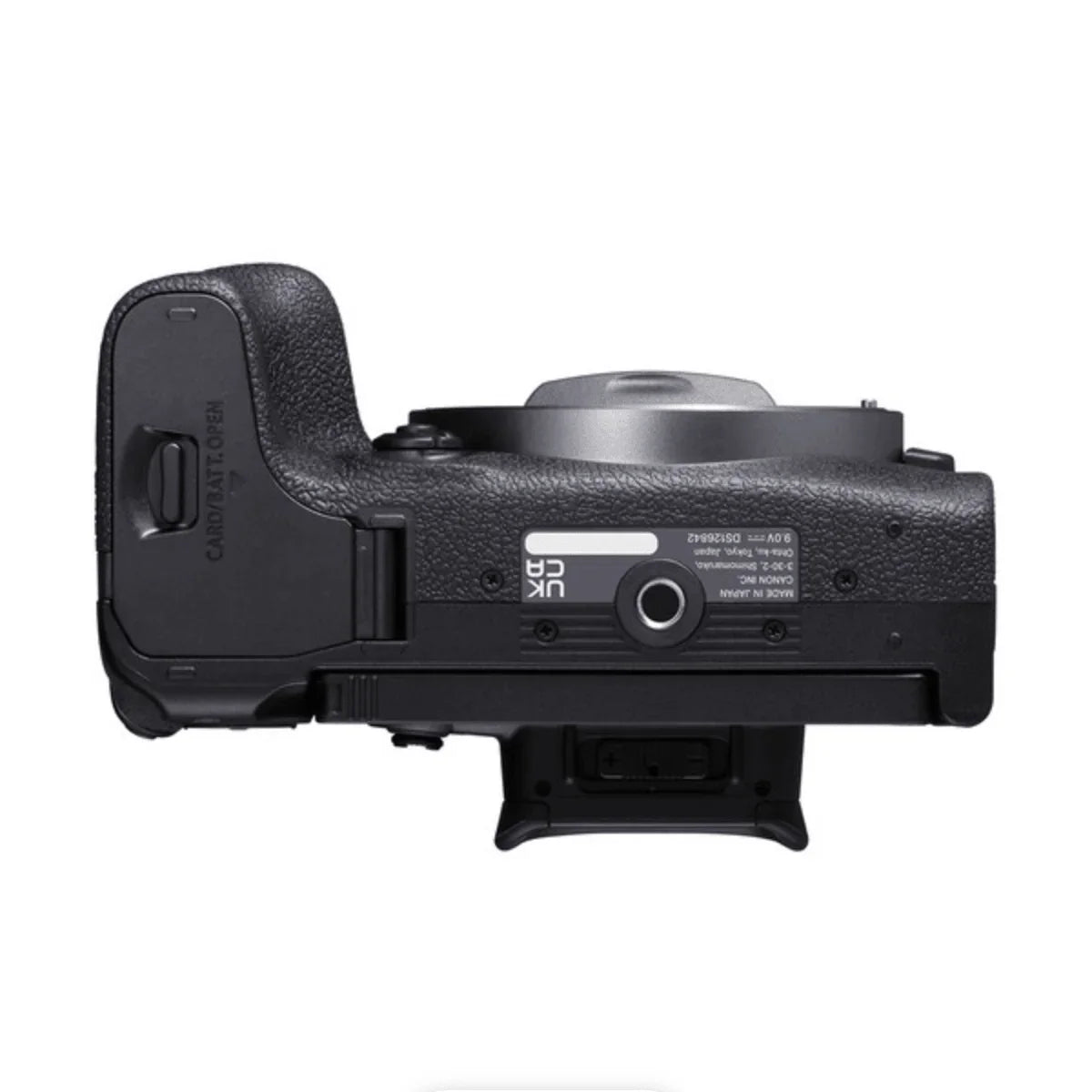

| Tripod Mounting Thread | 1 x 1/4"-20 Female (Bottom) |
| Dimensions (W x H x D) | 4.8 x 3.5 x 3.3" / 122.5 x 87.8 x 83.4 mm |
| Weight | 13.5 oz / 382.2 g (Body Only) 15.1 oz / 429.2 g (Body with Battery and Memory) |
