Nanlite MixPanel 60 RGBWW LED Panel

Model # 15-2010

$899.00 $849.00

In StockIn StockOut of stock

Sale ends on {timer}

FEATURES

  • Measures 17 x 14 x 3"
  • 3 x Light Quality Modes
  • CCT Mode: Variable 2700-7500K
  • Green/Magenta Adjustment
  • CRI/TLCI: 98/95 @ 5600K, 0-100% Dimming
  • RGB Mode for Myriad Colors and Hues
  • AC Power or Optional Batteries
  • Library of 43 Popular Gels
  • 9 x Special Effects
  • 5/8" Receiver


FREE SHIPPING *Restrictions apply.
Out of stock

AVAILABILITY & STORE PICKUP LOCATIONS
DETROIT - LIVONIA, MI

Limited Stock | *Call for Availability

34224 Plymouth Rd. Livonia, MI
(734) 838-6900 Store Details

CHICAGO - AURORA, IL

In Stock | Available for Pick-up

4300 Westbrook Drive Aurora, IL
(630) 631-0907 Store Details

CINCINNATI, OH

In Stock | Available for Pick-up

1014 Ohio Pike Cincinnati, OH
(513) 943-9000 Store Details


Special Financing | Shoot Now - Pay Later!

Get the gear you want today and pay tomorrow with one of our special financing programs.


  Lease to own   Pay as low as   $/week

Monthy payments using your credit card at 0% interest.

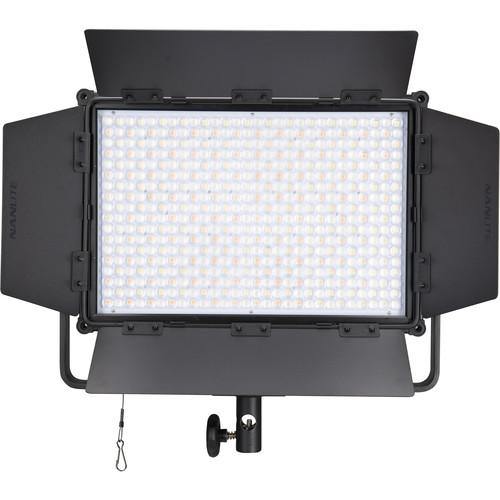

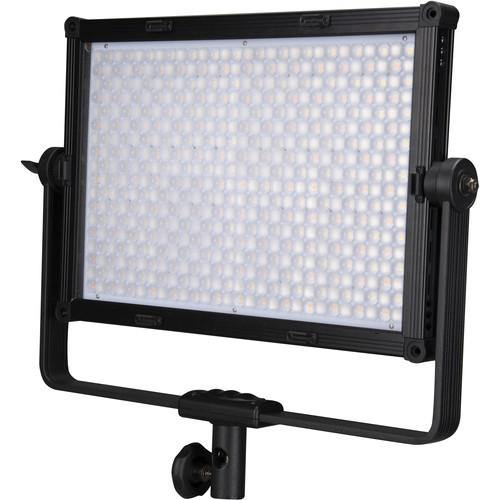

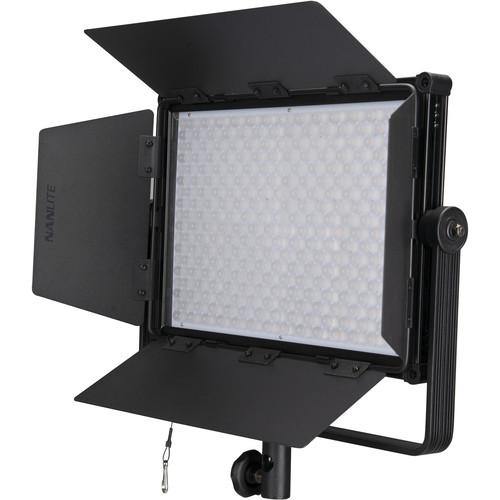

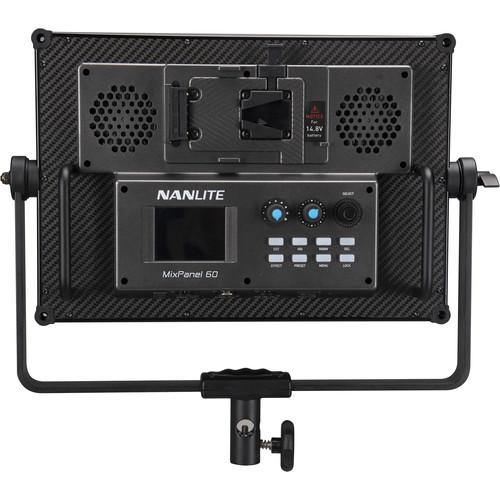

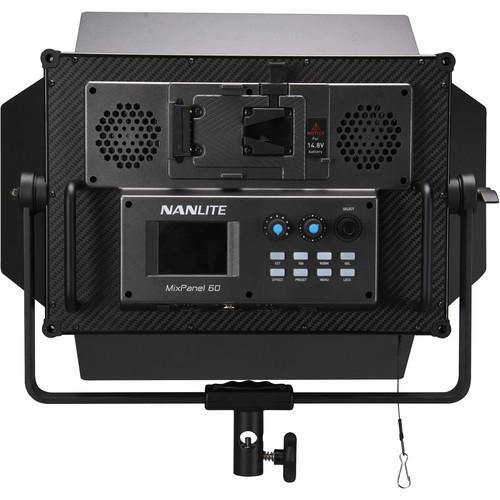

Nanlite MixPanel 60 RGBWW LED Panel

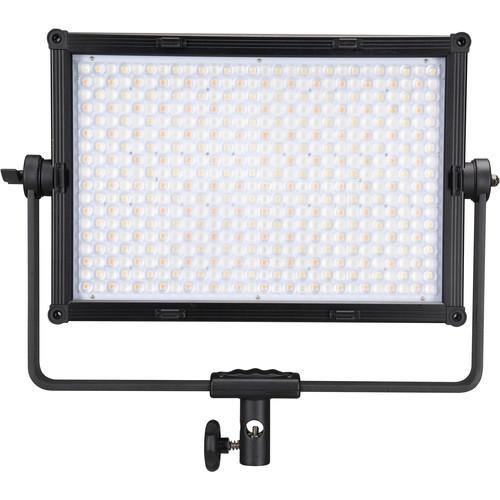

The MixPanel 60 RGBWW LED Panel from Nanlite is a 17 x 14 x 3" fixture capable of switching between a traditional multi-LED panel for hard light, a diffuse SMD LED panel for soft light, and a tunable RGB panel for colorful, creative effects at the push of a button. The MixPanel has an expansive CCT range of 2700 to 7500 to seamlessly integrate into any ambient light situation, match other fixtures, or just for creative expression. The panel's high CRI/TLCI ratings of 98/95 are indicators of advanced accuracy in the rendering of color. It's also possible to adjust the magenta/green balance for greater precision, as well as adjust light intensity from 0 to 100% for further versatility.

One of the MixPad's advanced functions is RGB mode, which employs its 4-in-1 LEDs to access literally over 16 million different color combinations for optimal choice ability. The fixture also has a Boost mode. When using the hard light fixture in normal mode, the MixPanel 60 outputs 4980 lux at 3.28' and 5600K. When shifted into Boost mode, the output climbs to 6600 lux. Plus with dimming from 100% down to 0%, you can quickly adapt the MixPanel 60 to any scene without adding ND filters or diffusion. Yet another benefit is a built-in 43-gel library which provides five CTO, five CTB, and thirty-three Calcolor choices. Furthermore, the light has nine special effects that include Hue Loop, CCT Loop, Flash, Pulse, Storm, Siren, TV, Paparazzi, and Candle/Fire.

The MixPanel 60 is ready for worldwide use thanks to its 100 to 240 VAC adapter, but it will also run on optional batteries via its V-mount plate.


Three Light Sources in One


The Nanlite MixPanel Series is capable of switching between a traditional multi-LED panel for hard light, a diffuse SMD LED panel for soft light, and a tunable RGB panel for colorful, creative effects at the push of a button.


Impressively Bright Output


When using the hard light fixture in normal mode, the MixPanel 60 outputs 4980 lux at 3.28' and 5600K. When shifted into Boost mode, the output climbs to 6600 lux. Plus with dimming from 100% down to 0%, you can quickly adapt the MixPanel 60 to any scene without adding ND filters or diffusion.


Outstanding Color


The brightness of a light is important, but without color accuracy much time and money can be lost in post-production. The MixPanel features a CRI of 98, a TLCI of 95, and green/magenta adjustment in CCT mode, meaning you can be confident in the accuracy of color reproduction.

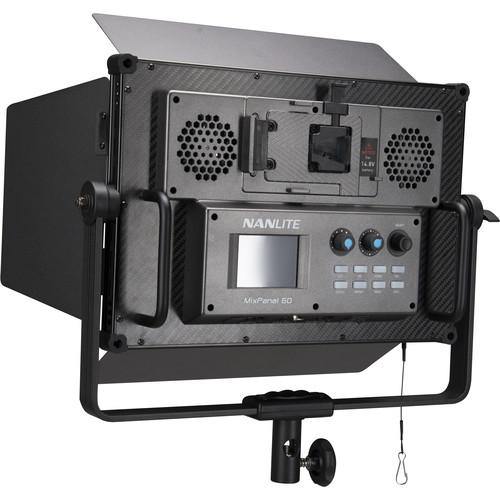

Intuitive User Interface


the MixPanel's operating system has been developed from the ground up to be efficient and intuitive to use. What's more, you can save your settings as presets to personalize your lighting and make it consistent and repeatable.


Gel Emulation and Practical Effects


The MixPanel's Gel Emulation Mode provides a selection of 43 gel presets in two light sources (3200 and 5600K) that includes five CTOs, five CTBs, and 33 Calcolor filters. In addition, nine pre-programmed, adjustable special effects make it possible to imitate lighting scenarios such as Hue Loop, CCT Loop, Flash, Pulse, Storm, Siren, TV, Paparazzi, and Candle/Fire.


Power Anywhere

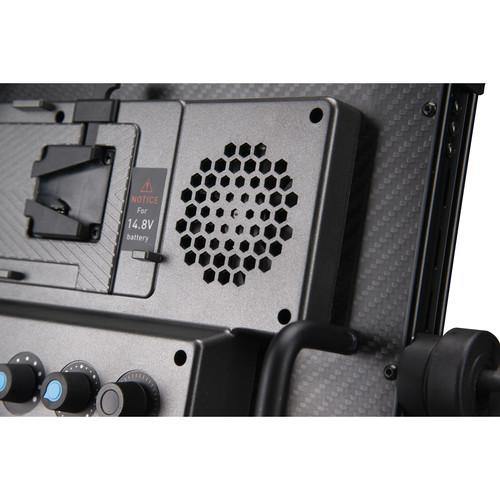

Optimized for use in the studio or on location, the MixPanel can run off either the included multi-voltage AC adapter or optional V-mount batteries, allowing for operation in any location regardless of power availability.

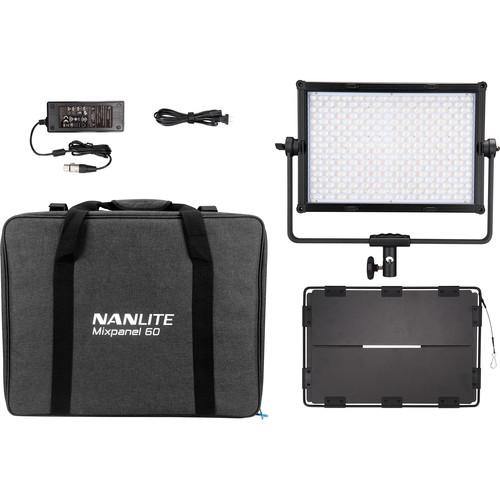

What's in the box


  • Nanlite MixPanel 60 RGBWW LED Panel

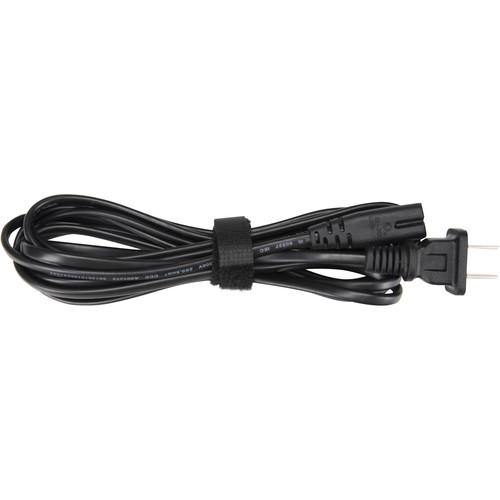

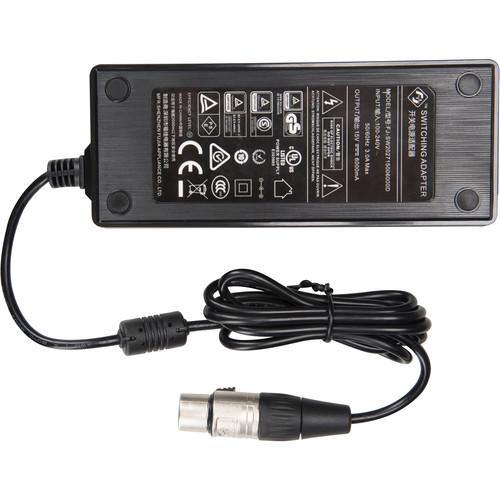

  • AC Adapter

  • Limited 1-Year Warranty, Extended to 3-Year with Online Registration




6949987420361

Specifications


Light Fixture
Color Temperature 2700 to 7500K
Color Accuracy Standard CRI 98
TLCI 95
Cooling System Passive
Dimming Yes, 0 to 100%
Lumens 5808 (at 7500K)
Photometrics 5600K:
462.6 fc / 4980 Lux at 39.37" / 1 m
Fixture Dimensions Flood: 17.0 x 14.0 x 3.0" / 43.2 x 35.6 x 7.6 cm
Fixture Weight 7.3 lb / 3.31 kg (Including Yoke)
Connectors

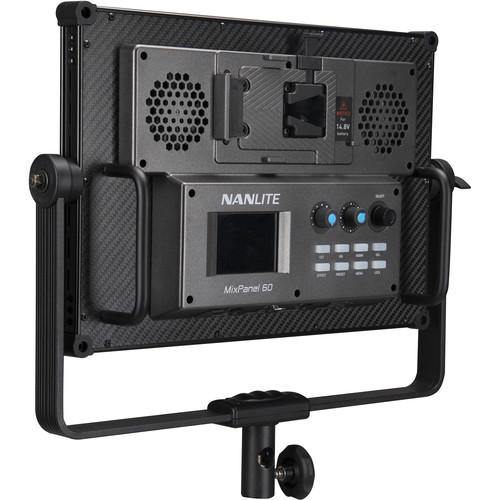

Battery Plate 1 x V-Mount
Mounting

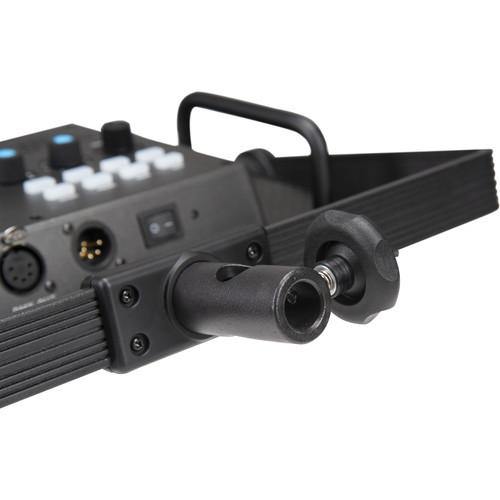

Fixture Mount 5/8" Receiver
Yoke
Yoke Type Yoke/Bracket
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
DC Input Power 15 VDC
Power Source AC Adapter, External Battery
Max Power Consumption 60 W

What's in the box


  • Nanlite MixPanel 60 RGBWW LED Panel

  • AC Adapter

  • Limited 1-Year Warranty, Extended to 3-Year with Online Registration
