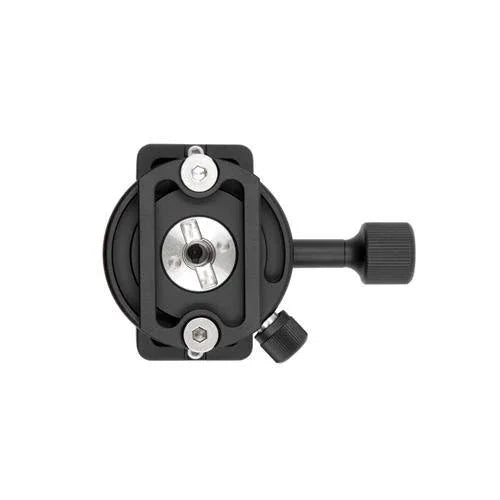

The Dovetail QR Panning Clamp adds a 360˚ upper panning ability to a tripod head, and fits ProMaster tripods, heads, and gimbals that use the Dovetail Mounting System, as well as other Arca-type products.
There are two ways of attaching the Dovetail QR Panning Clamp to a tripod head. It has a dovetail plate attached to its base which allows it to connect to any Arca-type receiver. Alternatively, the dovetail base can be removed; exposing a 3/8”-16 threaded port for mounting.

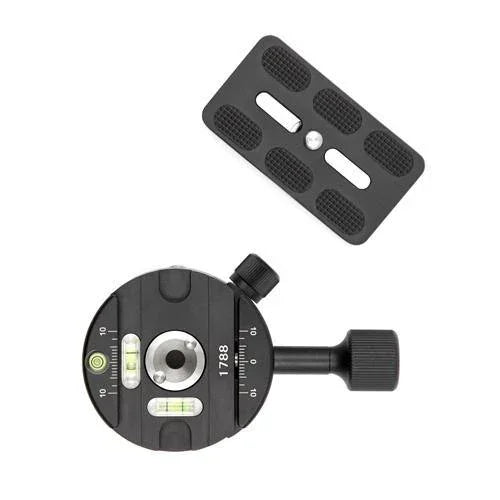

A camera or lens can be attached to the Dovetail QR Panning Clamp with the included 70mm Dovetail Quick Release Plate (1795). The clamp also accepts L-Brackets, other Arca-type QR plates, and the lens foot of many lenses; such as the one found on the Tamron 150-600mm G2.
| Clamp Dimensions | 32 mm high (with dovetail base plate installed) x 101 mm long (including QR knob). Diameter of panning clamp not including QR or panning knobs is 60 mm |
| QR Plate Dimensions | 70 mm long x 38 mm wide |
| QR Plate Weight | 1 3/4 oz / 50 g |
