Sigma 28-45mm T2 Cine Zoom Lens with AF for Leica L
Product Features
- Full-Frame Cine Lens with T2-16 Aperture
- 28-45mm Zoom Range
- Autofocus and Manual via Switch
- 11.8" Minimum Focus Distance
- 95mm Front Diameter, 86mm Filter Size
- 11-Blade Iris for Soft Bokeh
- Markings in Feet
Sigma 28-45mm T2 Cine Zoom Lens with AF for Leica L
Model # 612981
Out of Stock

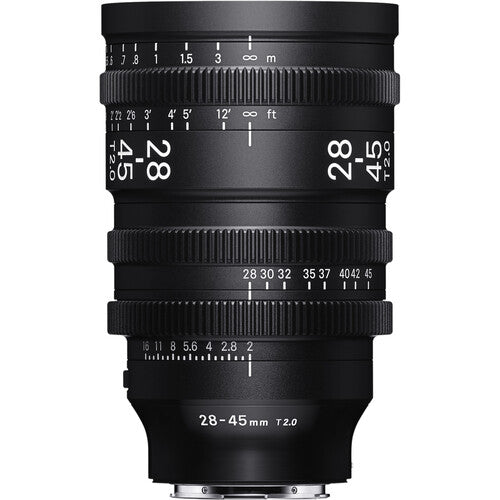

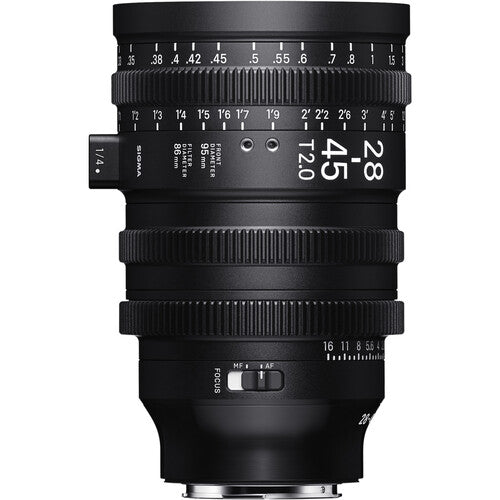

Sigma 28-45mm T2 Cine Zoom Lens with AF for Leica L
Based on the popular 28-45mm f/1.8 DG DN Art lens, Sigma introduces the Leica L-mount 28-45mm T2 Cine Zoom Lens with AF, a zoom lens for full-frame cinema cameras that also features autofocus. It features a 28-45mm zoom with a 1.4x magnification ratio and T2 to T16 aperture range, and it has a switch that changes the lens from manual to autofocus in a snap. Its 11-blade aperture provides a soft bokeh for a dramatic cinema look.
Advanced Optical Design
The Sigma 28-45mm T2 FF incorporates the optical system of the still Sigma 28-45mm f/1.8 DG DN | Art lens. These lenses deliver exceptional resolution and beautiful bokeh regardless of focal length or focus position, along with a sharp, clean look with minimal flare and ghosting.
Professional-Grade Mechanical Design
Inheriting the rendering performance and reliability of Sigma's Art lenses, the AF Cine Line adds cinema-style mechanics and operability. It features a limited-rotation focus ring, industry-standard 0.8M pitch gears, and a clickless aperture ring.
All three lens gears are standard 0.8 MOD and feature a damper that eliminates metallic sounds when you reach the end of the lens travel.
AF Tracking System
Equipped with a linear motor HLA (High-response Linear Actuator), the Sigma AF Cine Line captures intense movements in action scenes, rapid focus shifts in gimbal or handheld shooting, and unpredictable moments in documentaries without missing a split second.
Lens Front
The lens features a 95mm front diameter for compatibility with a wide variety of matte boxes and incorporates an 82mm front filter thread.
Support Foot and Thread
The lens includes a removable support foot. A 1/4"-20 thread allows you to utilize optional lens mounts for a stable setup.
What's in the box
- Sigma 28-45mm T2 Cine Zoom Lens with AF (L-Mount)
- Front Cap
- Rear Cap
- Lens Support Foot
- Limited 4-Year Manufacturer Warranty
198983612812
Specifications
| Maximum Aperture |
T2
|
| Minimum Aperture |
T16
|
| Lens Mount |
L-Mount
|
| Interchangeable Mount |
No
|
| Lens Format Coverage |
Full-Frame
|
| Image Circle |
Not Specified by Manufacturer
|
| Angle of View |
Full Frame
Horizontal: 65.5 to 43.6° APS-C (1.5x) Horizontal: 45.9 to 29.5° |
| Focus Scales |
Imperial
|
| Filter Thread |
86 mm
|
| Minimum Focus Distance |
11.8" / 0.3 m
|
| Magnification |
1.4:1 Macro Reproduction Ratio
1.4x Magnification |
| Aperture/Iris Blades |
11, Rounded
|
| Image Stabilization |
No
|
| Lens Mounting |
1x 1/4"-20
|
| Gear Standard |
Focus, Iris, Zoom: 0.8 MOD
|
| Gear Rotation |
Focus: 200°
Zoom: 60° |
| Electronic Communication |
No
|
| Diameter |
3.7" / 95 mm
|
| Length |
6.1" / 153.8 mm
|
| Weight |
2.76 lb / 1.25 kg
|
What's Included
- Sigma 28-45mm T2 Cine Zoom Lens with AF (L-Mount)
- Front Cap
- Rear Cap
- Lens Support Foot
- Limited 4-Year Manufacturer Warranty
