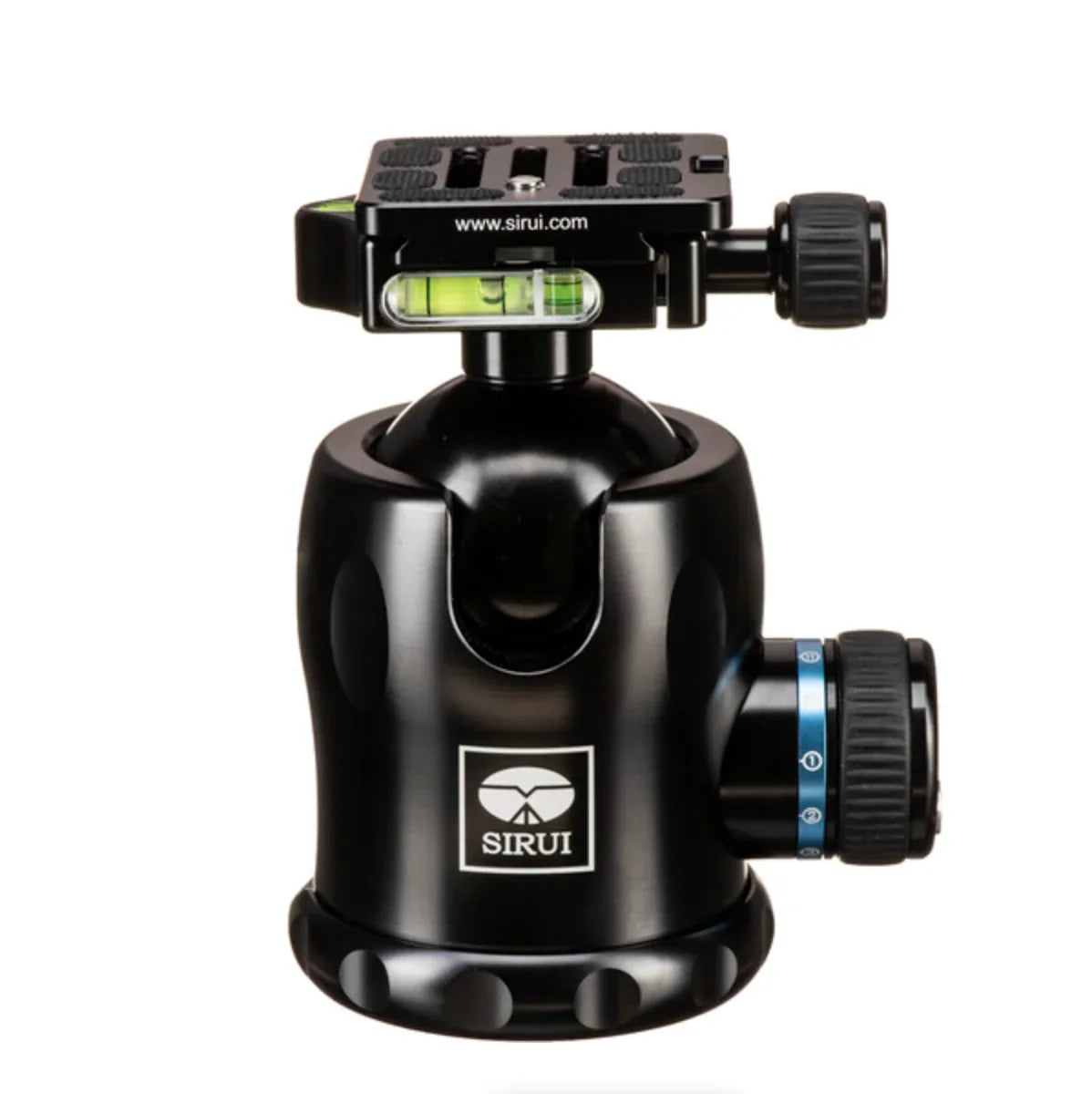

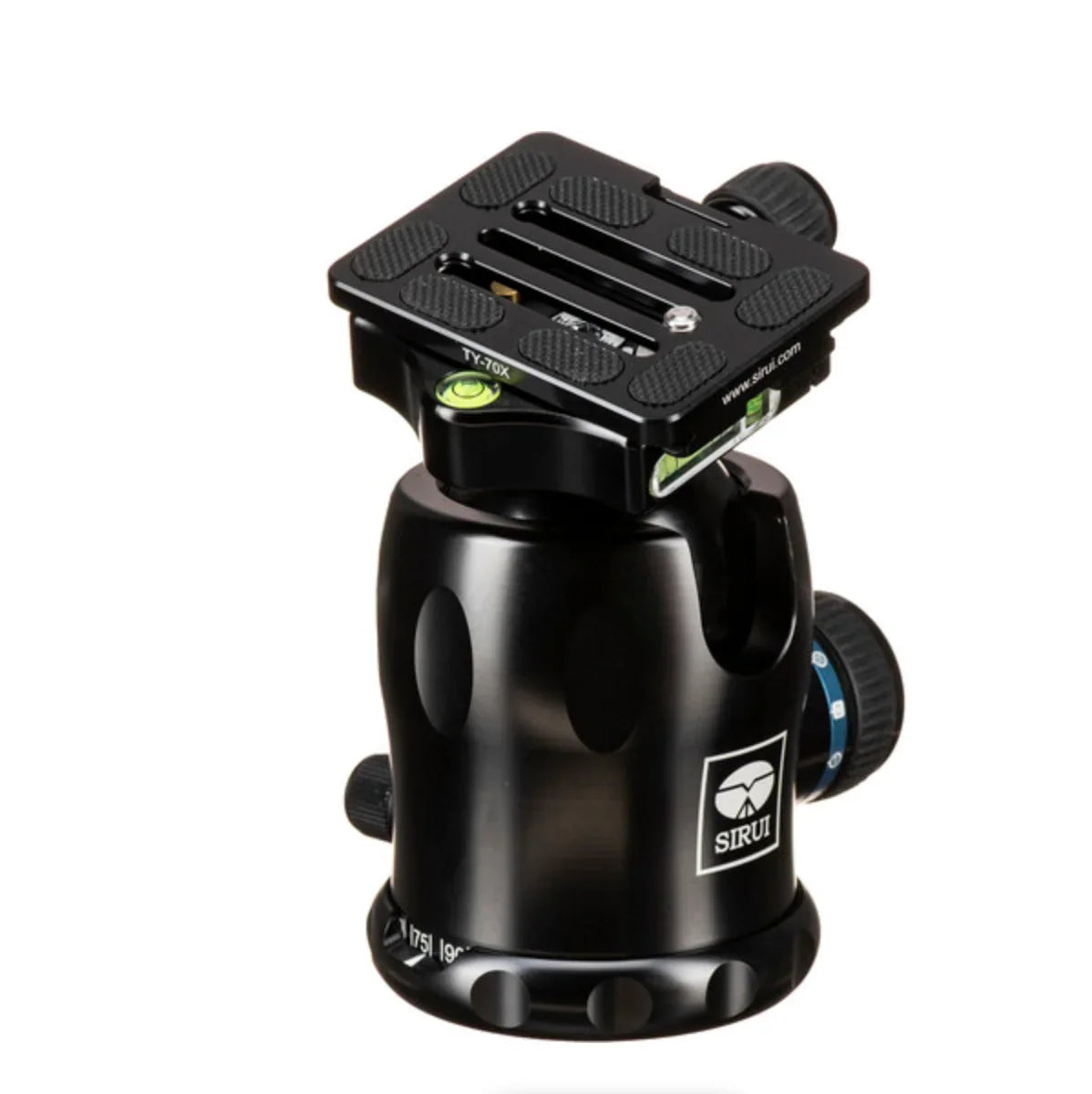

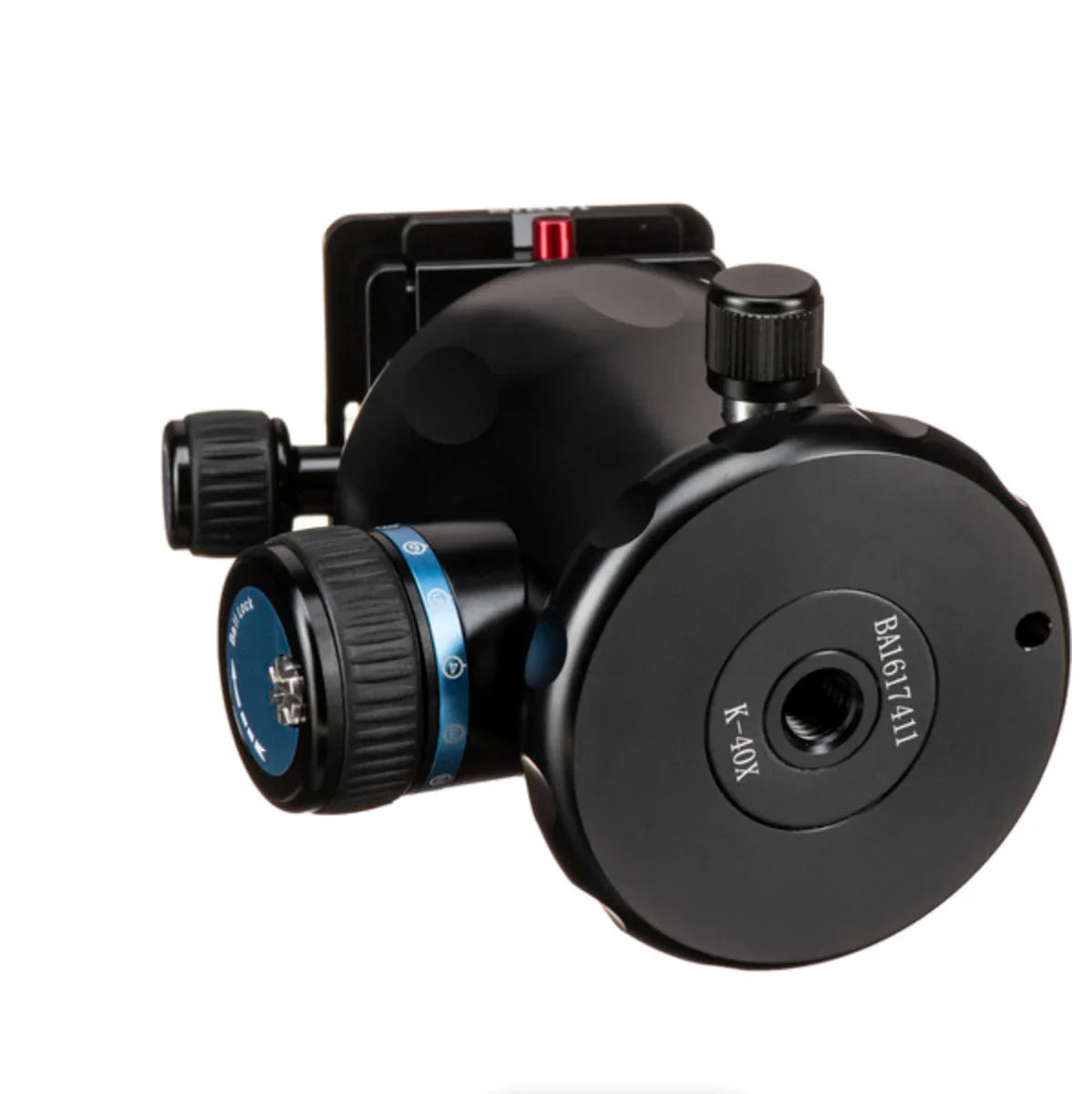

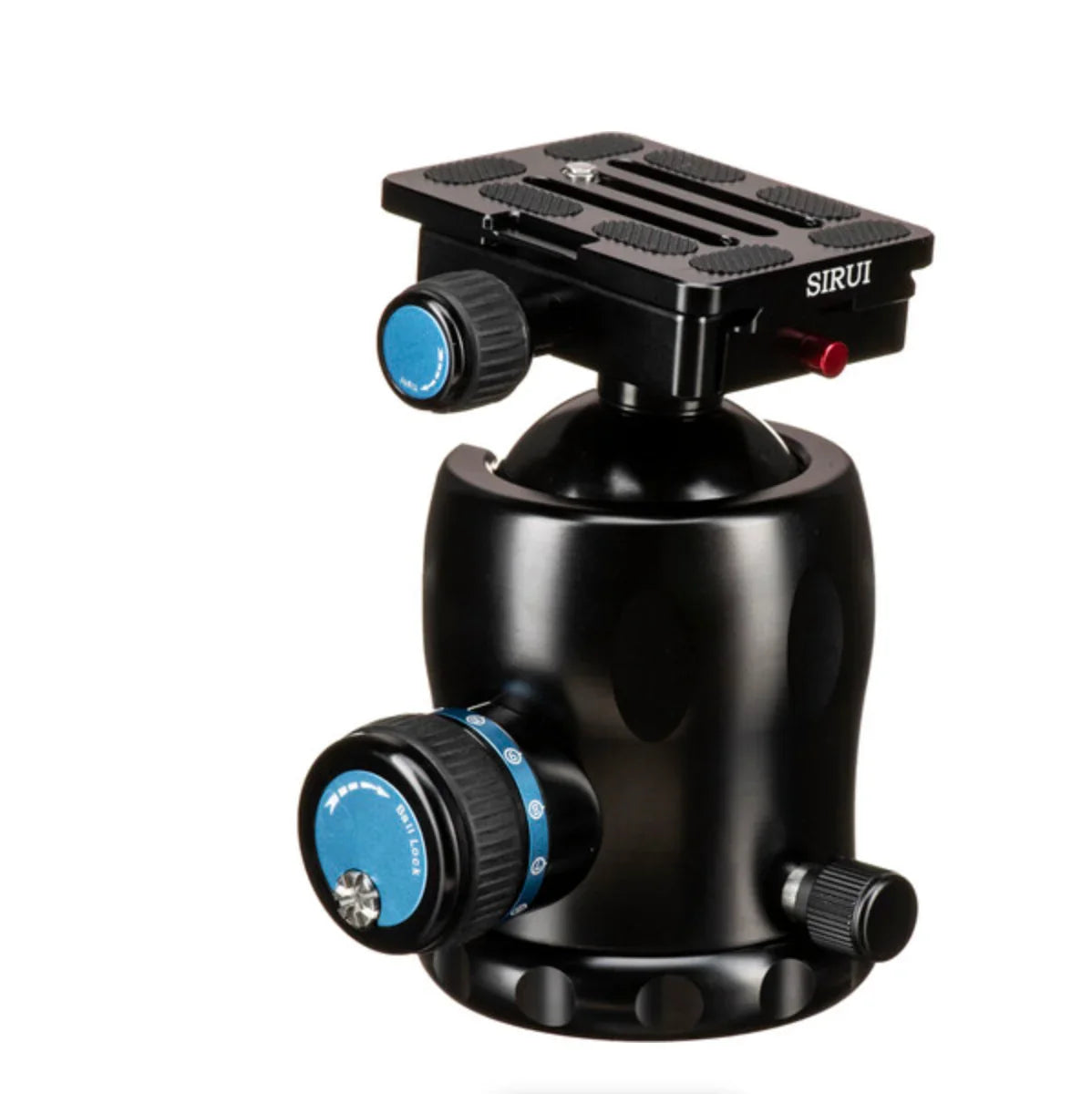

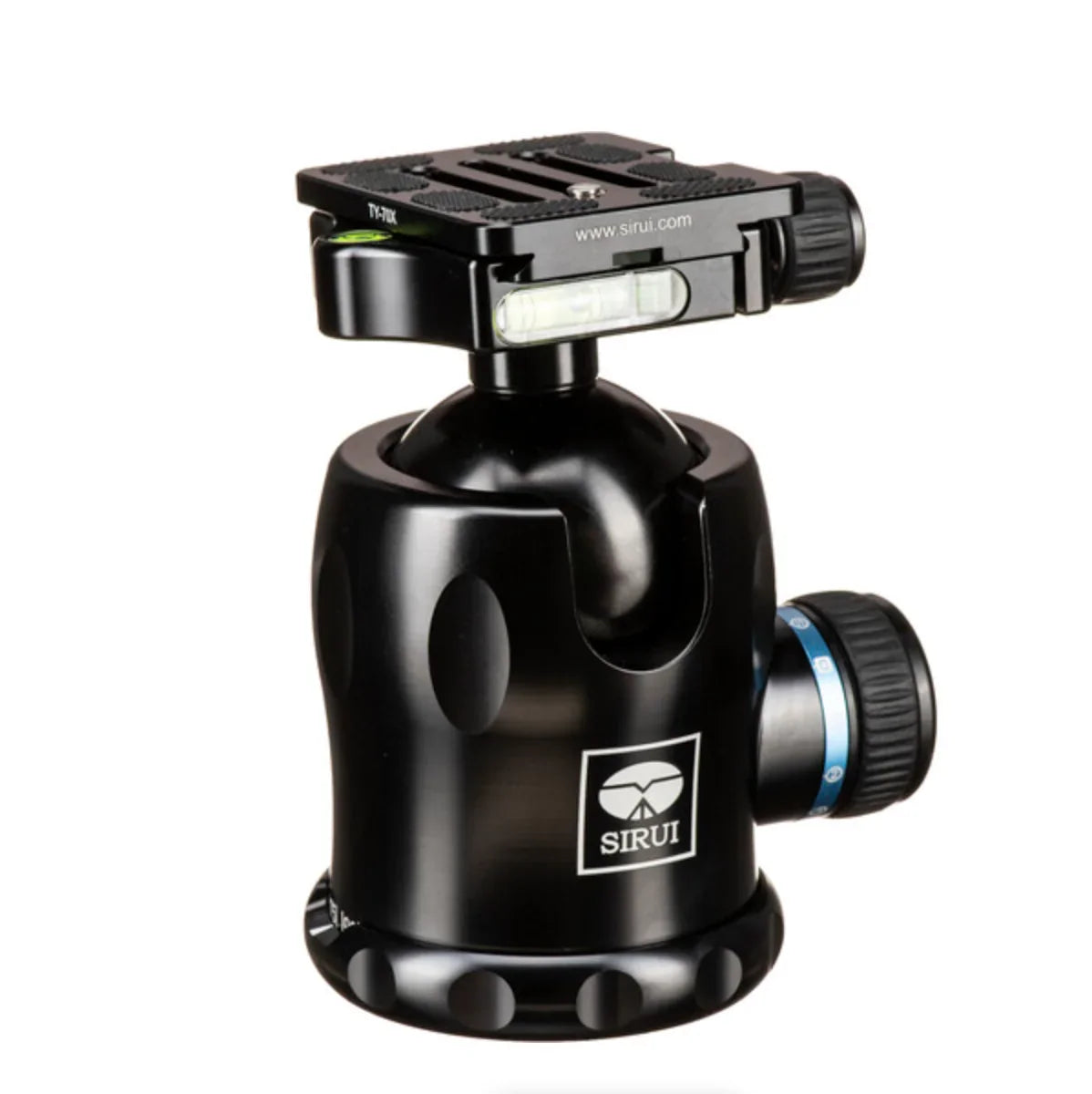

The Sirui K-40X Ball Head is an extremely sturdy head with control knobs for pan, tilt, and tension, plus an Arca-style clamp for the included quick-release plate. The pan, tilt, and quick-release knobs are all separate, while the tension knob is integrated into the ball-locking (tilt) knob. The head tilts 90° for portrait orientation. There's also a video pin on the plate to keep camcorders from twisting.
The interior ball locking of the K-40X head has a sphere tolerance of 0.01mm, and it's equipped with an orientation-memory locking dial. This helps yield a high load capacity of 77 lb. The quick-release clamp features a secondary release button that prevents any inadvertent disengagement of the camera/plate from the clamp, thereby adding to the head's overall security and stability. The Arca-style platform conforms to standard sizes, so you can use compatible plates from other manufacturers.
The three control knobs allow a photographer to exercise extremely fine control over the orientation of the camera, whether it's a DSLR, 35mm, medium-format camera, or even a camcorder. Pan, for instance, can be adjusted while the tilt stays locked, enabling precise movement that's measurable – there are degree markers at the panning base for panoramic photography.
The K-40X is CNC-machined from an aircraft-grade aluminum alloy and anodized with an oxidation treatment that ensures a durable, high-quality finish.
| Camera Mounting Screw |
1/4"-20 Male
|
| Quick Release Plate Type |
Arca-Type
|
| Number of Bubble Levels |
2
|
| Drag Control |
Yes
|
| Independent Pan Lock |
Yes
|
| Ball Sphere Diameter |
2.13" / 55 mm
|
| Panning Range |
360°
|
| Load Capacity |
77 lb / 35 kg
|
| Weight |
1.5 lb / 0.7 kg
|
