SmallRig L-Series/NP-F Battery Adapter Plate with NP-FZ100 Dummy Battery Kit (Advanced Edition)
- L-Series Battery Plate
- 2.1mm DC to NP-FZ100 Dummy Battery Cable
- 12 and 7.4 VDC Barrel Outputs
- 36W USB-C Input/Output Port
- Built-In Circuit Protection
- LED Status Indicators
- Mounts on Cage with 1/4"-20 Screw
SmallRig L-Series/NP-F Battery Adapter Plate with NP-FZ100 Dummy Battery Kit (Advanced Edition)
Special Financing | Shoot Now - Pay Later!
Get the gear you want today and pay tomorrow with one of our special financing programs.
SmallRig L-Series/NP-F Battery Adapter Plate with NP-FZ100 Dummy Battery Kit (Advanced Edition)
SmallRig 4341 Overview

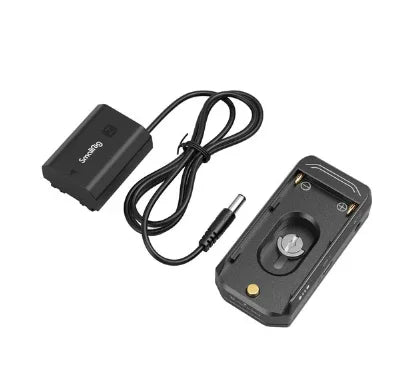

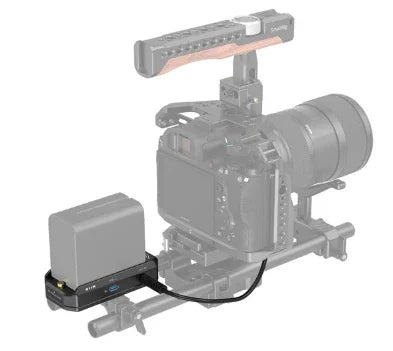

Mount your L-series battery on your cage to power your mirrorless camera with an NP-FZ100 battery slot with this advanced edition L-Series/NP-F Battery Adapter Plate with NP-FZ100 Dummy Battery Kit from SmallRig. The kit includes an L-series battery plate and a 2.1mm DC barrel to NP-FZ100 dummy battery cable to accommodate Sony mirrorless cameras that can be powered using an NP-FZ100 battery.

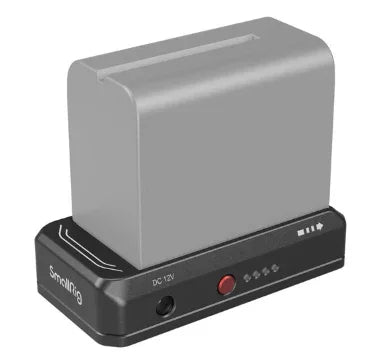

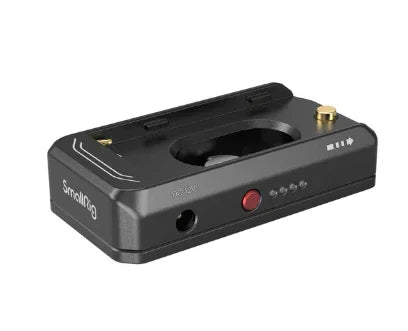

The aluminum battery plate accepts a separately available, high-capacity Sony L-series/NP-F type battery to provide up to 12V power to your camera. It mounts onto your camera rig or cage using the included 1/4"-20 thumbscrew, and it features a power button and battery status LED indicators on the side. The 36W input/output USB-C port can power a camera or accessory, and it can also be used to charge the mounted battery. There are 12 and 7.4V barrel outputs that can also power your camera or accessory using the included dummy battery or a separately available cable/adapter. All ports feature circuit protection to prevent damage to your gear.
Compatibility
- Sony FX3, FX30, α7CR, α7C II, α7 IV, ZV-E1
- Various mirrorless cameras that utilize an NP-FZ100 battery
Quick Features
- Compatible with NP-F type/L-series batteries, paired with DC to NP-FZ100 dummy battery power cable, providing external power supply for Sony FX3, FX30, α7CR, α7C II, α7 IV, and ZV-E1, and various mirrorless cameras
- Aluminum and gold-plated electrical contacts make it more durable and conductive

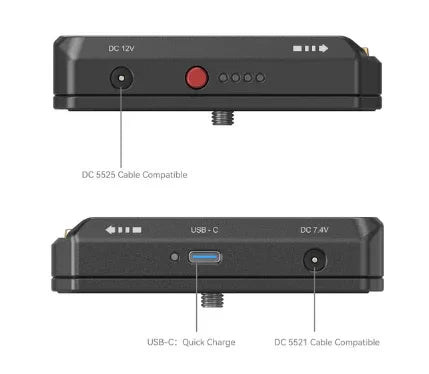

- Allows to access two devices with 7.4 and 12 VDC dual output Maximum DC and USB-C output: 36W
- The USB-C interface supports bidirectional input and output with 36W power
- Features automatic wake-up and sleep modes to avoid damage to the camera
- Comes with USB-C mode and power indicators for easy viewing of charging and state of charge
- Each output port features short circuit and high current protection to ensure safety during use
SmallRig L-Series/NP-F Battery Adapter Plate with NP-FZ100 Dummy Battery Kit (Advanced Edition)
SmallRig L-Series/NP-F Battery Adapter Plate (Advanced Edition)
2.1mm DC to NP-FZ100 Dummy Battery Cable
Limited 1-Year Manufacturer Warranty
Power
| Power Input |
USB-C: VDC
|
| Power Output |
DC Jack: 12 VDC
DC Jack: 7.4 VDC USB-C: VDC |
General
| Camera Power Method |
Connector, Dummy Battery
|
| Inputs/Outputs |
2x Barrel Connector
1x USB-C |
| Dummy Battery |
Sony NP-FZ
|
| Plate Front / Battery Mount |
Sony L-Series
|
| Number of Battery Bays |
1
|
| Accessory Mounting |
1/4"-20 Female
|
| Material of Construction |
ABS Plastic
|
| Indicator |
LED
|
| Dimensions |
3.7 x 1.9 x 0.9" / 94 x 47 x 23 mm
|
| Weight |
4 oz / 113.5 g
|
